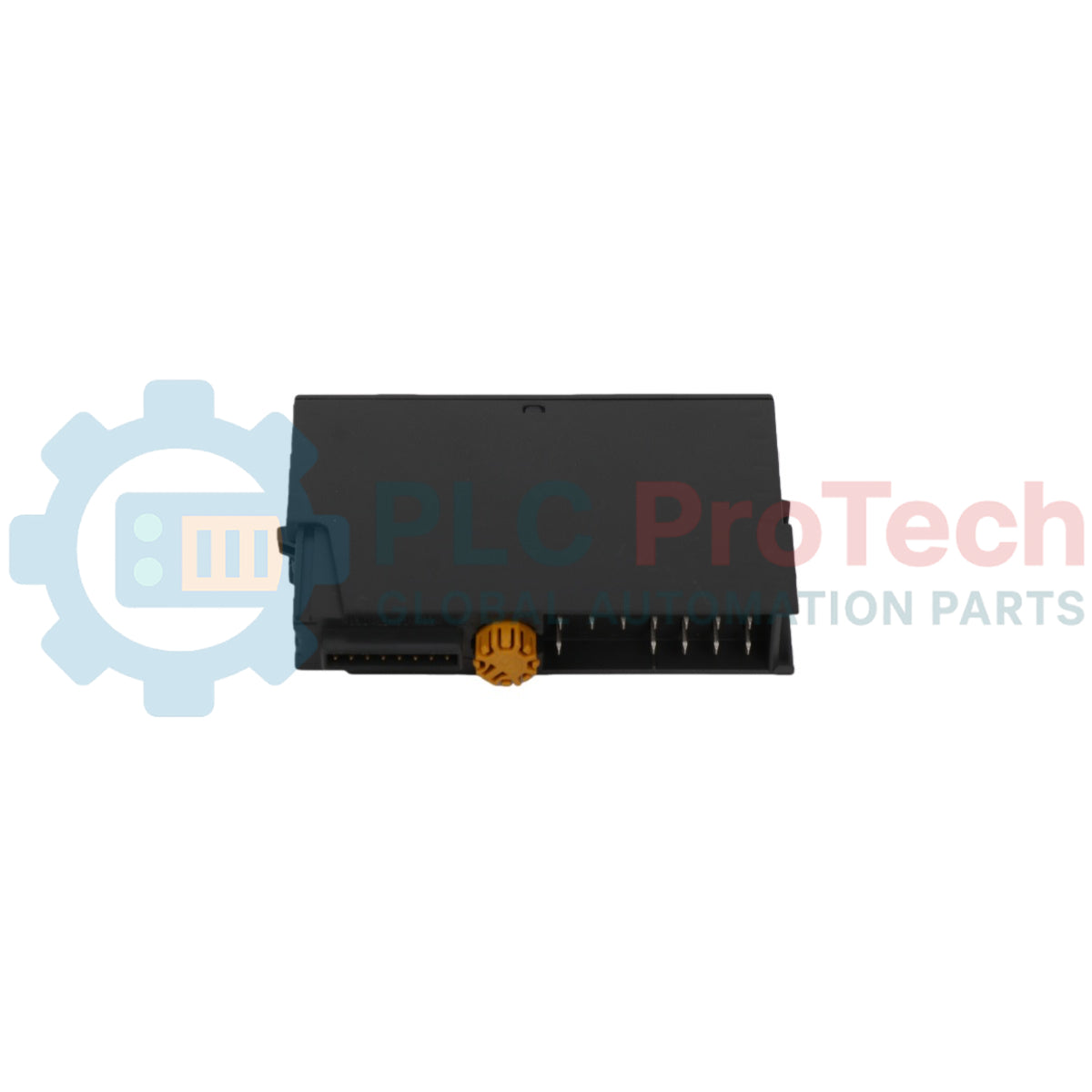

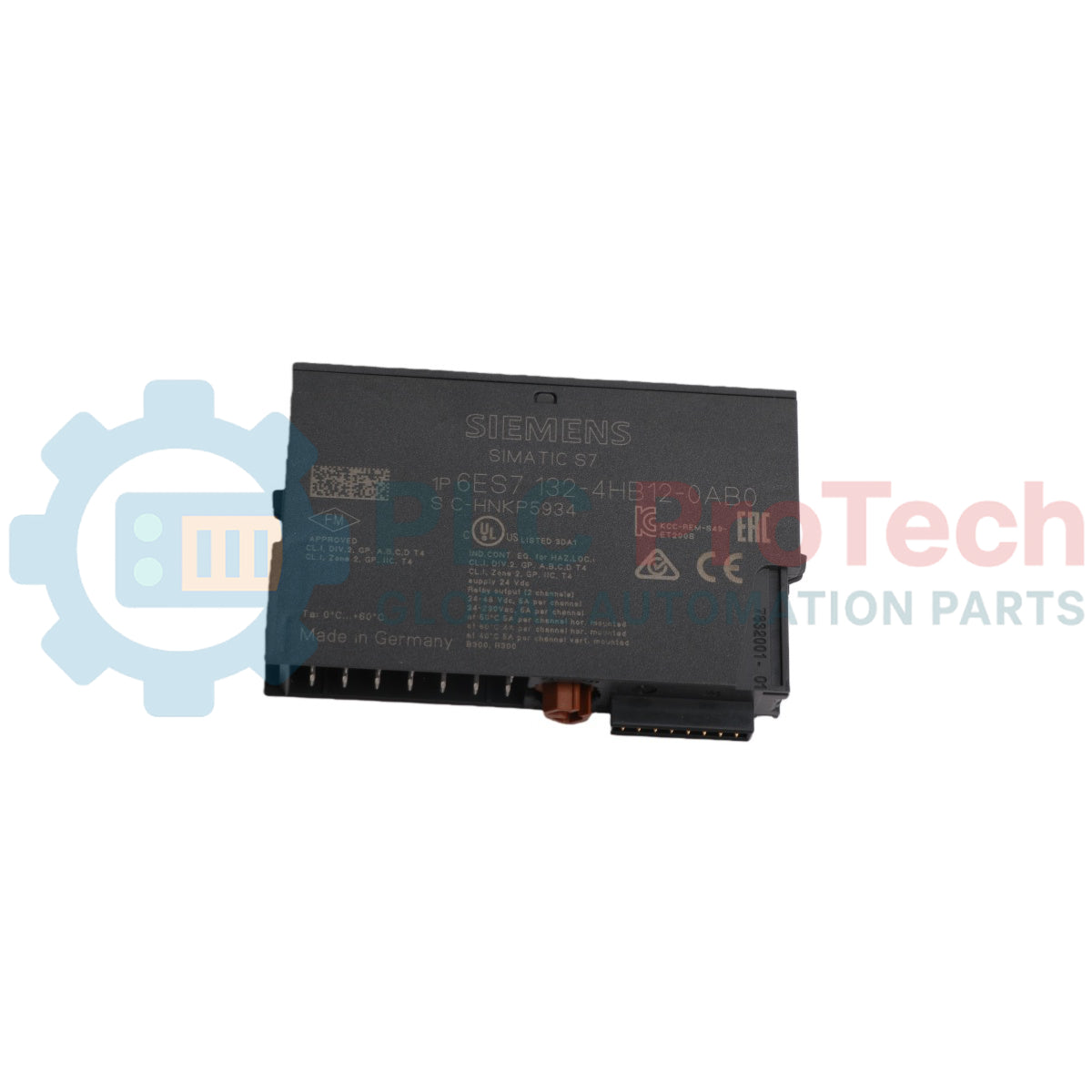

Siemens 6ES7132-4HB12-0AA0 SIMATIC ET 200SP Relay Output Module

Description

The Siemens 6ES7132-4HB12-0AA0 is a digital electronic output module designed for the SIMATIC ET 200SP distributed I/O system. This two-channel relay output module facilitates the interface between a Programmable Logic Controller (PLC) and higher-power real-world industrial devices by switching digital signals. Each of its two relay outputs is capable of switching loads up to 5A, making it suitable for direct control of various equipment such as solenoid valves, DC contactors, and indicator lights commonly found in industrial automation. The module offers significant voltage flexibility, supporting both DC circuits from 24V to 48V and AC voltages from 24V up to 230V, all at the 5A current rating. For enhanced wiring and control logic adaptability, each channel provides both Normally Open (NO) and Normally Closed (NC) contacts. The 6ES7132-4HB12-0AA0 is engineered with isolation from the system's supply voltage, which improves safety and protects the central controller from potential electrical transients originating from the load side. While similar to the 6ES7132-4HB12-0AB0 model, the "0AA0" suffix may denote a specific regional variant or an older version. This product line has reached its End-of-Lifecycle (EOL) status, with Siemens recommending migration to newer module versions for future designs and long-term spare part availability.

Features

• Two-channel relay output module
• Maximum switching capacity of 5A per channel
• Supports DC voltage range of 24V to 48V
• Supports AC voltage range of 24V to 230V
• Each channel includes Normally Open (NO) and Normally Closed (NC) contacts
• Engineered with isolation from the system supply voltage
• Designed for integration into the SIMATIC ET 200SP system

Applications

• Industrial automation systems requiring digital output control
• Switching solenoid valves in pneumatic or hydraulic systems
• Controlling DC contactors for motor starters or power circuits
• Actuating indicator lights and signaling devices
• General-purpose digital output for PLC-based control systems

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure all power to the SIMATIC ET 200SP system and connected loads is completely de-energized to prevent electrical shock or equipment damage.
2. Mounting: Securely mount the module into its designated slot within the ET 200SP rack or terminal base unit, ensuring proper mechanical and electrical connection.
3. Wiring: Connect load devices to the module's output terminals. Utilize the Normally Open (NO) or Normally Closed (NC) contacts as required by the application's control logic.
4. Voltage and Current Ratings: Verify that the connected loads' voltage and current requirements do not exceed the module's specified limits (24-48V DC, 24-230V AC, 5A per channel).
5. Grounding and Shielding: Implement proper grounding and shielding practices for all cabling to minimize electrical noise and ensure reliable operation, especially for sensitive loads.
6. Cable Routing: Route power and signal cables separately to avoid interference. Ensure cables are secured and protected from physical damage.
7. Re-energize and Test: After installation and wiring are complete, carefully re-energize the system and perform functional tests to confirm correct operation of the output channels.
