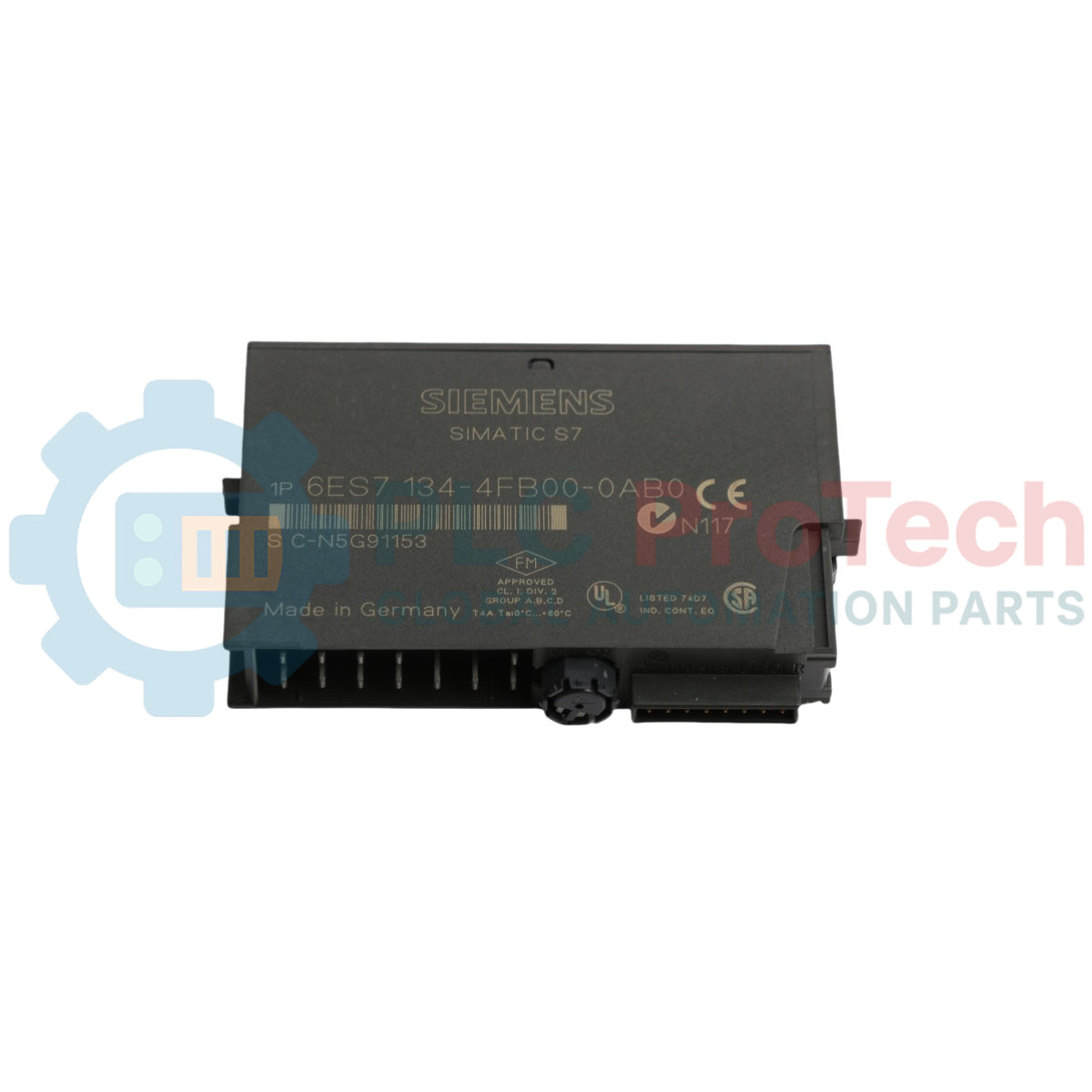

Siemens 6ES7134-4FB00-0AB0 SIMATIC DP Analog Input Module

SKU 6ES7134-4FB00-0AB0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7134-4FB00-0AB0
Country of origin:Germany
Product Type: Analog Input Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 50g
Dimensions: 1.5 x 5.5 x 8.3 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7134-4FB00-0AB0 is a 15mm-wide analog input module designed for the ET 200S distributed I/O system, part of the SIMATIC DP series. This module provides 2 channels with multiple voltage range capabilities, including ±10V (13-bit+sign), ±5V (12-bit+sign), and 1-5V (12-bit) inputs. Featuring a fast 65ms/channel cycle time, it is engineered for precision measurement applications in industrial automation environments.

The 6ES7134-4FB00-0AB0 includes a group fault LED (SF) for quick diagnostics and channel-specific LED indicators for operational status. It incorporates built-in overload and short-circuit protection to ensure robust operation. While the module has been discontinued since 2011, it remains serviceable through professional repair options, offering a cost-effective solution for maintaining existing ET 200S installations requiring reliable analog signal acquisition.

Features

2 Analog Input Channels
Multiple Voltage Input Ranges: ±10V, ±5V, 1-5V
Fast 65ms/channel Cycle Time
Group Fault LED (SF) for diagnostics
Channel-Specific LED Indicators
Built-in Overload and Short-Circuit Protection
Compact 15mm Module Width
Compatible with ET 200S Distributed I/O System

Applications

Precision measurement in industrial processes
Process control and monitoring systems
Integration into ET 200S distributed I/O architectures
Maintenance and lifecycle extension for legacy automation systems
General industrial automation environments requiring analog signal acquisition

Technical Specifications

Parameter	Value
Manufacturer	Siemens
Model Number	6ES7134-4FB00-0AB0
Module Type	Analog Input Module
System Compatibility	ET 200S Distributed I/O System, SIMATIC DP series, PLC
Number of Channels	2
Input Voltage Ranges	±10V (13-bit+sign), ±5V (12-bit+sign), 1-5V (12-bit)
Cycle Time	65ms/channel
Module Width	15mm
Diagnostics	Group Fault LED (SF), Channel-Specific LED Indicators
Protection	Overload, Short-Circuit
System Communication Interface	Ethernet router
Production Status	Discontinued since 2011
Condition	Brand New
Shipping Weight	0.05 kg
Package Dimensions (Calculated)	1.5 x 5.5 x 8.3 cm
Country of Origin	Germany
HS Code	8537101190

Installation Guidelines

De-energize System: Before installation, ensure all power to the ET 200S system and associated components is de-energized to prevent electrical shock or equipment damage.
Mounting: Install the 6ES7134-4FB00-0AB0 module into a compatible ET 200S terminal module or rack. Its 15mm width is designed for high-density installations within control cabinets.
Wiring: Connect analog input signals to the designated terminals. Ensure proper polarity and secure termination for all connections. Use shielded cables for analog signals to minimize electrical noise and interference, grounding shields appropriately.
Cable Routing: Route signal cables away from power cables and other sources of electromagnetic interference (EMI) to maintain signal integrity.
System Configuration: After physical installation, configure the module within the SIMATIC DP or ET 200S engineering software according to the application requirements for input ranges and diagnostics.
Power Up and Test: Re-energize the system and verify module operation using the channel-specific and group fault LEDs. Conduct functional tests to confirm accurate analog signal acquisition.

Compliance and Certifications

CE Certified
UL Listed
cULus Certified

FAQ

What system is the Siemens 6ES7134-4FB00-0AB0 compatible with?

This module is designed for the Siemens ET 200S distributed I/O system and is part of the SIMATIC DP series.

What input voltage ranges does this module support?

It supports multiple voltage ranges including +/-10V (13-bit+sign), +/-5V (12-bit+sign), and 1-5V (12-bit).

What is the cycle time for each channel?

The module features a fast 65ms/channel cycle time for efficient data acquisition.

Does the module provide diagnostic indicators?

Yes, it includes a group fault LED (SF) and channel-specific LED indicators for quick operational status and diagnostics.

Is the Siemens 6ES7134-4FB00-0AB0 still in production?

The module has been discontinued since 2011, but it remains serviceable through professional repair options for existing installations.
