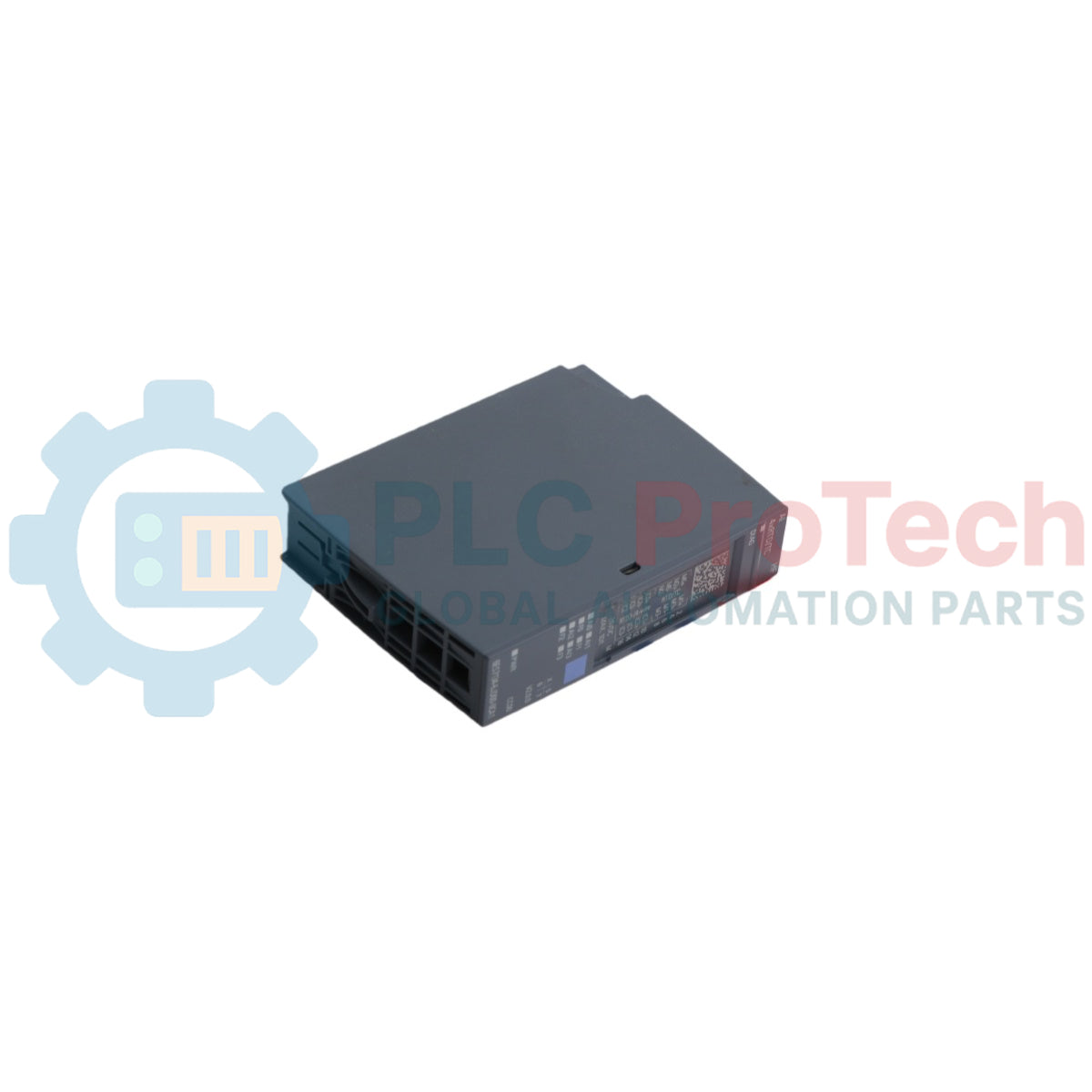

Siemens 6ES7134-6JD00-0CA1 SIMATIC ET 200SP Analog Input Module

Description

The Siemens 6ES7134-6JD00-0CA1 is a 4-channel analog input module for the SIMATIC ET 200SP distributed I/O system. It is engineered to interface with temperature sensors, providing high-precision data acquisition for both Resistance Temperature Detectors (RTDs) and various thermocouple types. This module features a 16-bit resolution and a measurement accuracy of ±0.1%, ensuring reliable process values for monitoring and control. Integrated channel-level diagnostics and flexible wiring options make it suitable for demanding industrial temperature measurement applications.

Features

• Provides four analog inputs for temperature measurement.
• Supports both Resistance Temperature Detector (RTD) and thermocouple sensors.
• High-resolution 16-bit analog-to-digital conversion.
• Offers a measurement accuracy of ±0.1%.
• Flexible sensor wiring with support for 2-, 3-, and 4-wire RTD connections.
• Includes channel-specific diagnostics for detecting wire breaks and sensor failures.
• Designed for use with SIMATIC ET 200SP Base Units type A0 or A1.
• Identified by color code CC00 for easy system integration.

Applications

• Process manufacturing and automation
• Chemical and pharmaceutical production
• Power generation and utilities
• Food and beverage processing
• Water and wastewater treatment plants

Technical Specifications

Installation Guidelines

1. 1 Prepare for Installation: Verify the module part number matches the project specification. Ensure the corresponding Base Unit (Type A0 or A1) is available and correctly installed on the DIN rail within the control panel.
2. 2 Mount the Module: Align the module with the Base Unit, ensuring the coding elements match. Push the module firmly into the Base Unit until it clicks securely into place. The module should be flush with adjacent ET 200SP modules.
3. 3 Connect Sensor Wiring: Strip sensor cable insulation to the specified length. Use appropriate shielded, twisted-pair cabling for all analog signals to minimize noise interference. Connect the sensor wires to the terminals of the Base Unit according to the 2-, 3-, or 4-wire configuration required for your sensor type.
4. 4 Grounding and Shielding: Connect the cable shield to the functional earth (FE) terminal on the Base Unit. Ensure a low-impedance path to the main panel ground to provide effective noise immunity. The shield should be grounded at the panel end only.
5. 5 System Power-Up and Verification: After all connections are verified, remove the lockout/tagout and restore power to the system. In the PLC programming software, configure the module channels for the correct sensor type and measurement range. Verify that the module's diagnostic LEDs indicate normal operation and that sensor readings are stable and accurate.
