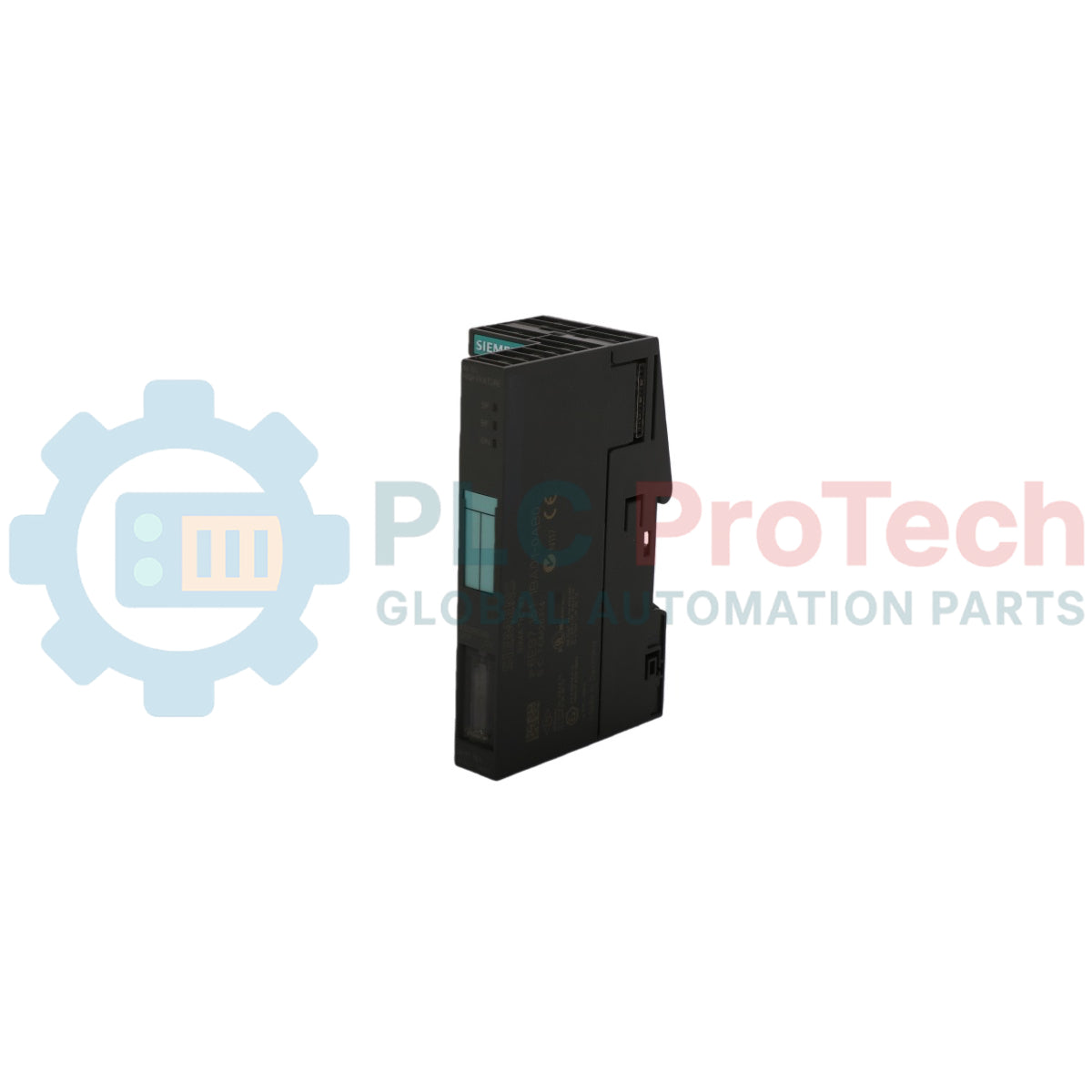

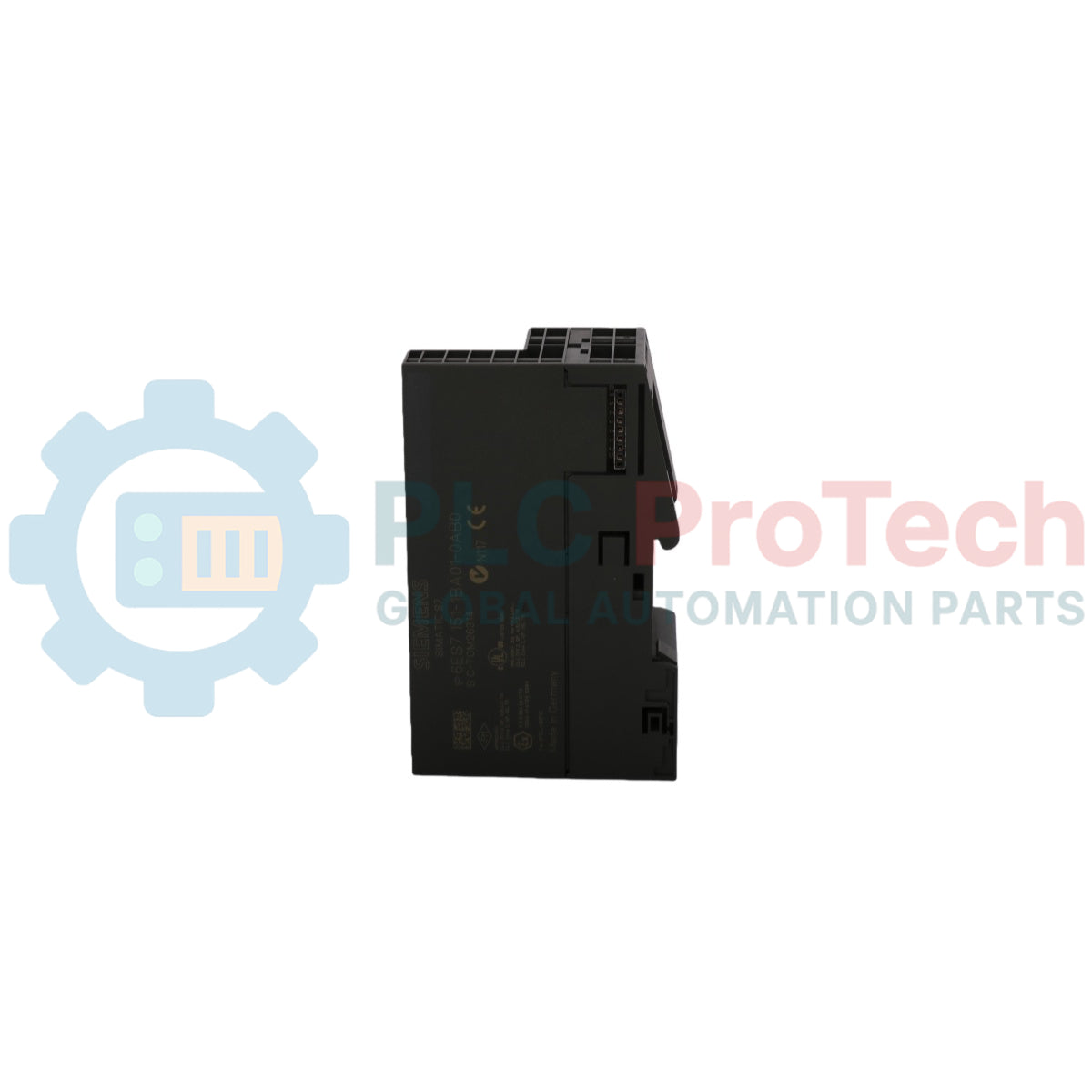

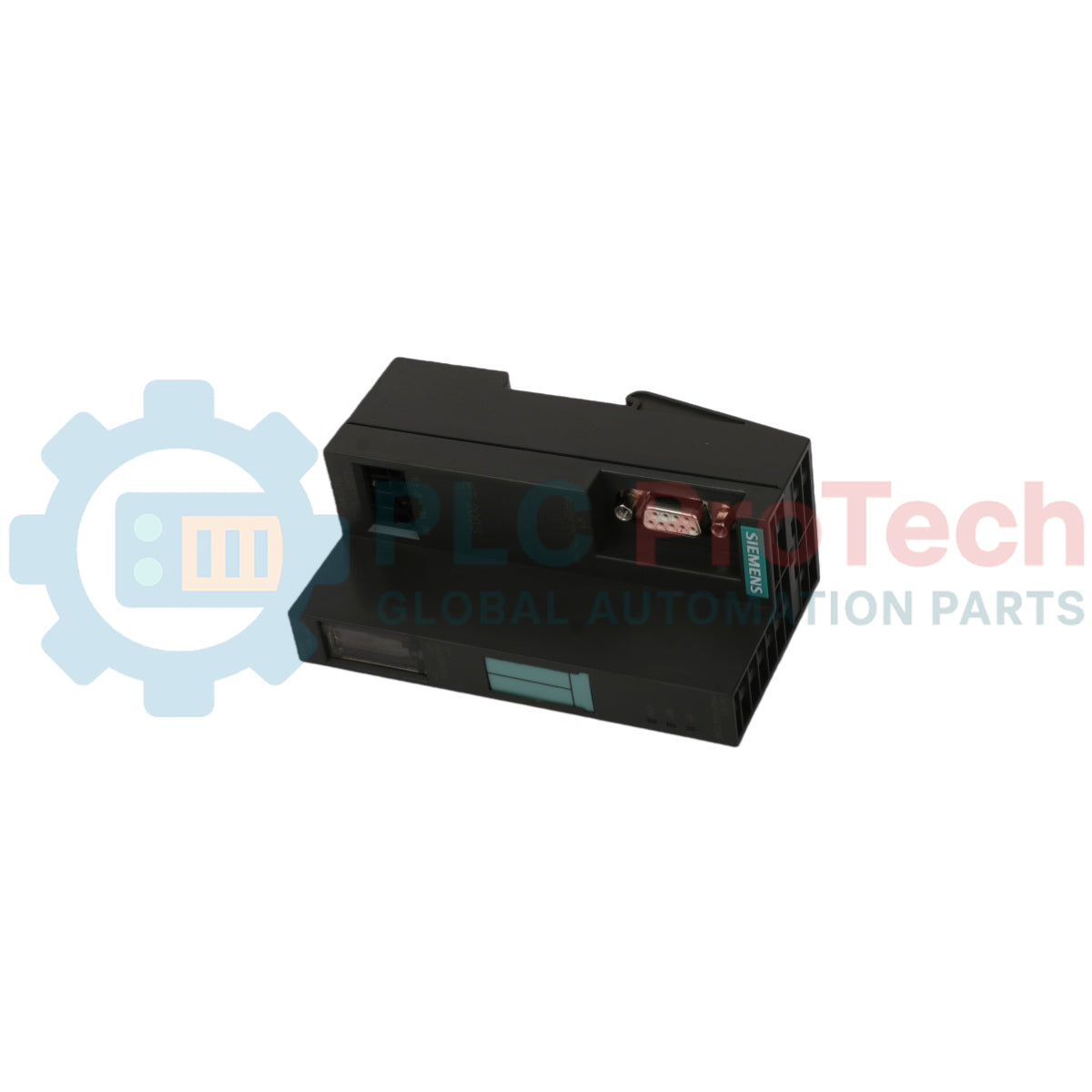

Siemens 6ES7151-1BA00-0AB0 SIMATIC ET 200S IM 151-1 Standard Interface Module

Description

The Siemens 6ES7151-1BA00-0AB0 is an IM 151-1 Standard Interface Module designed as the head module for the SIMATIC ET 200S distributed I/O system. This module provides a compact and cost-effective solution for integrating the ET 200S station into a PROFIBUS DP network, facilitating seamless communication within larger automation architectures. It is engineered to manage a substantial I/O configuration, supporting the connection of up to 63 electronic or motor starter modules on its backplane bus, allowing for the creation of highly distributed control stations directly on the machine. The 6ES7151-1BA00-0AB0 efficiently handles a maximum address space of 244 bytes for both inputs and outputs, ensuring robust data capacity for a wide array of applications. This Siemens interface module offers a dependable choice for users requiring a reliable PROFIBUS DP connection without the advanced features of a High Feature version.

Features

• Head module for Siemens SIMATIC ET 200S distributed I/O systems.
• Connects ET 200S stations to a PROFIBUS DP network.
• Supports up to 63 electronic or motor starter modules.
• Maximum I/O address space of 244 bytes for inputs and outputs.
• Designed for standard PROFIBUS DP applications.

Applications

• Distributed I/O systems in industrial automation.
• Machine-level control systems requiring PROFIBUS DP connectivity.
• Integration of remote I/O into larger PLC-based architectures.
• Cost-effective expansion of control systems with standard functionality.

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the ET 200S system and associated components is disconnected before installation or removal of the module.
2. Mounting: Securely mount the 6ES7151-1BA00-0AB0 interface module onto the designated DIN rail within the ET 200S station.
3. Module Placement: Ensure proper seating of the interface module as the first module in the ET 200S station, connecting it to the backplane bus.
4. PROFIBUS DP Connection: Connect the PROFIBUS DP cable to the module's designated communication port, ensuring correct polarity and secure termination.
5. Grounding: Verify proper grounding of the ET 200S station and the PROFIBUS DP shield to minimize electrical interference.
6. Power-Up: After all connections are verified, re-energize the system and observe module status indicators for correct operation.
