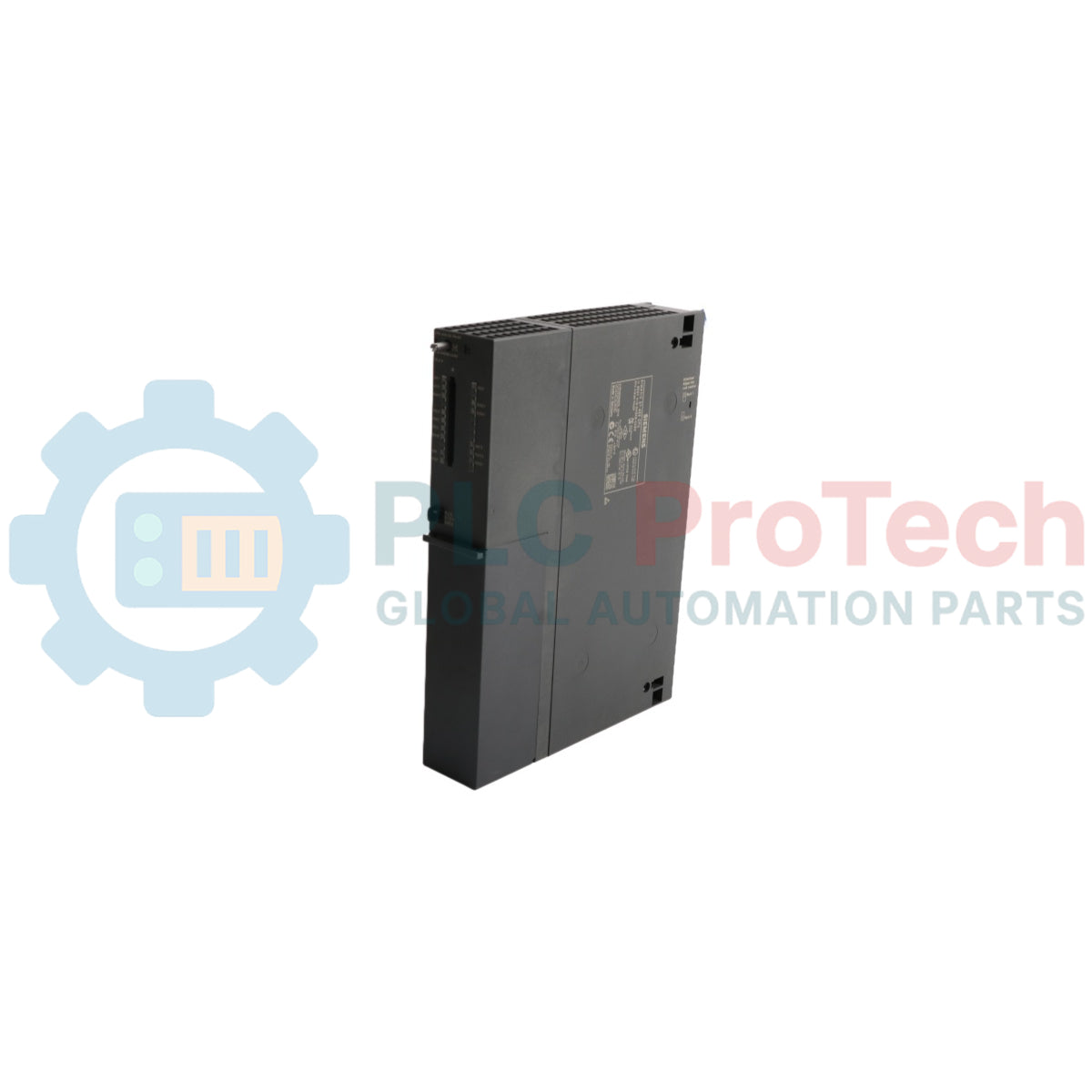

Siemens 6ES7416-5HS06-0AB0 SIMATIC S7-400H CPU 416-5H Processor Module

Description

The Siemens 6ES7416-5HS06-0AB0 is a high-availability central processing unit designed for the SIMATIC S7-400 automation platform. As a core component of the S7-400H/F series, this CPU is engineered for fault-tolerant and redundant system architectures where continuous operation is critical. It provides robust processing power and is equipped with integrated PROFIBUS DP and PROFINET interfaces, enabling seamless communication within complex industrial networks and with higher-level management systems. The module's design supports automatic switchover in redundant configurations, effectively minimizing downtime in demanding process control applications.

Features

• ■ Engineered for high-availability (H-system) and fail-safe (F-system) applications.
• ■ Supports redundant configurations to ensure continuous process operation.
• ■ Features integrated communication ports for both PROFIBUS DP and PROFINET networks.
• ■ Designed for use within the Siemens SIMATIC S7-400 PLC system.
• ■ Facilitates automatic switchover in the event of a primary CPU fault.

Applications

This processor module is suitable for deployment in critical industrial sectors where system reliability and uptime are paramount, including:

• ■ Energy generation and distribution facilities
• ■ Transportation and traffic control systems
• ■ Large-scale manufacturing and chemical processing plants
• ■ Any process requiring fault-tolerant control to prevent costly shutdowns

Technical Specifications

Installation Guidelines

1. 1
   Ensure the S7-400 rack is completely de-energized and locked out before proceeding. Verify zero-energy state with a calibrated multimeter.
2. 2
   Wear an anti-static wrist strap connected to a verified earth ground to prevent electrostatic discharge (ESD) damage to the module's sensitive electronic components.
3. 3
   Identify the designated CPU slot in the S7-400 rack. Align the module with the backplane connector and guide rails, then slide it firmly but gently into place until it is fully seated.
4. 4
   Secure the module to the rack by tightening the integrated fastening screws on the front panel. Do not overtighten.
5. 5
   Connect the PROFINET and PROFIBUS DP communication cables to the corresponding ports on the CPU front panel. Ensure connectors are fully seated and secured.
6. 6
   After all connections are verified, remove the LOTO device and re-energize the system. Proceed with system configuration and diagnostics as required.
