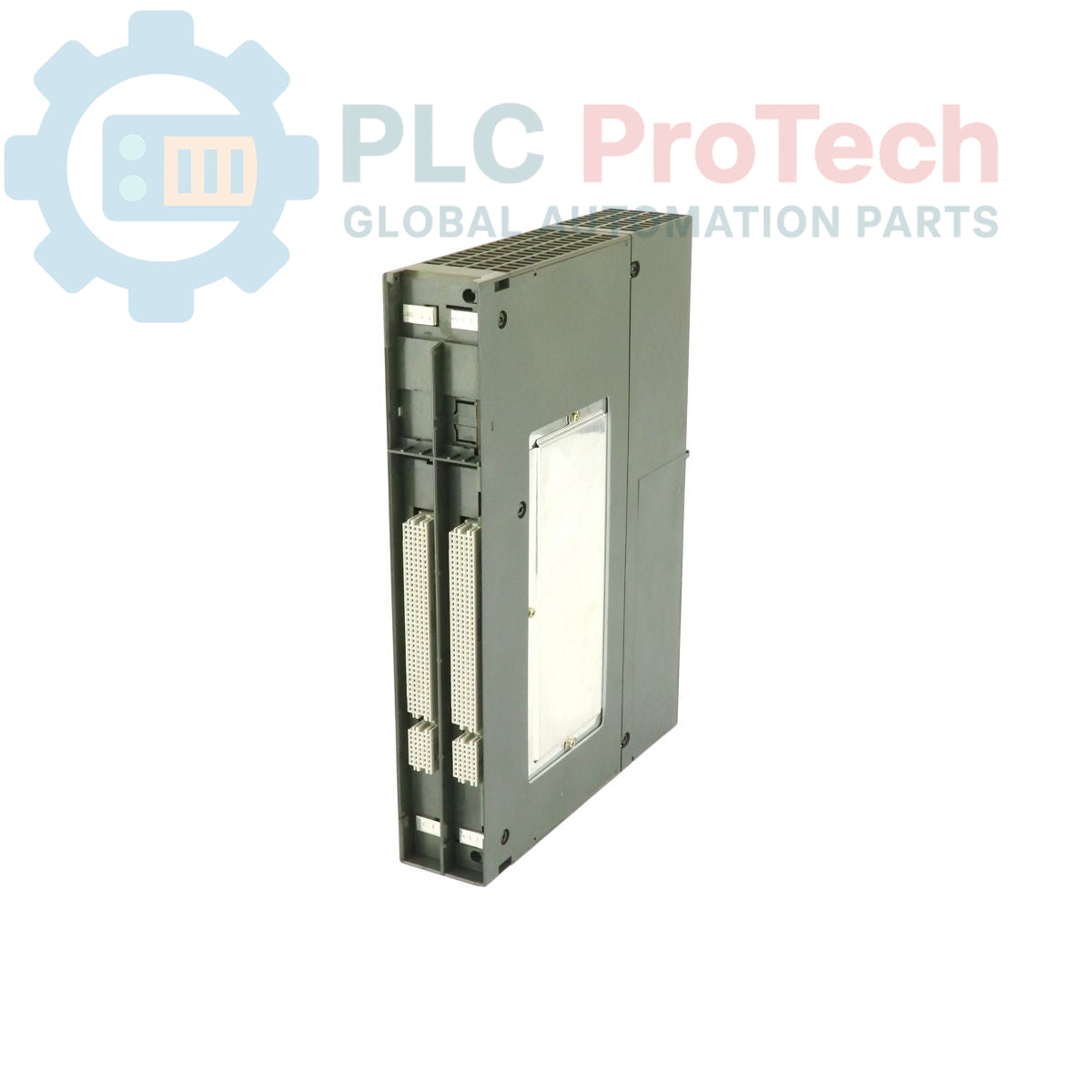

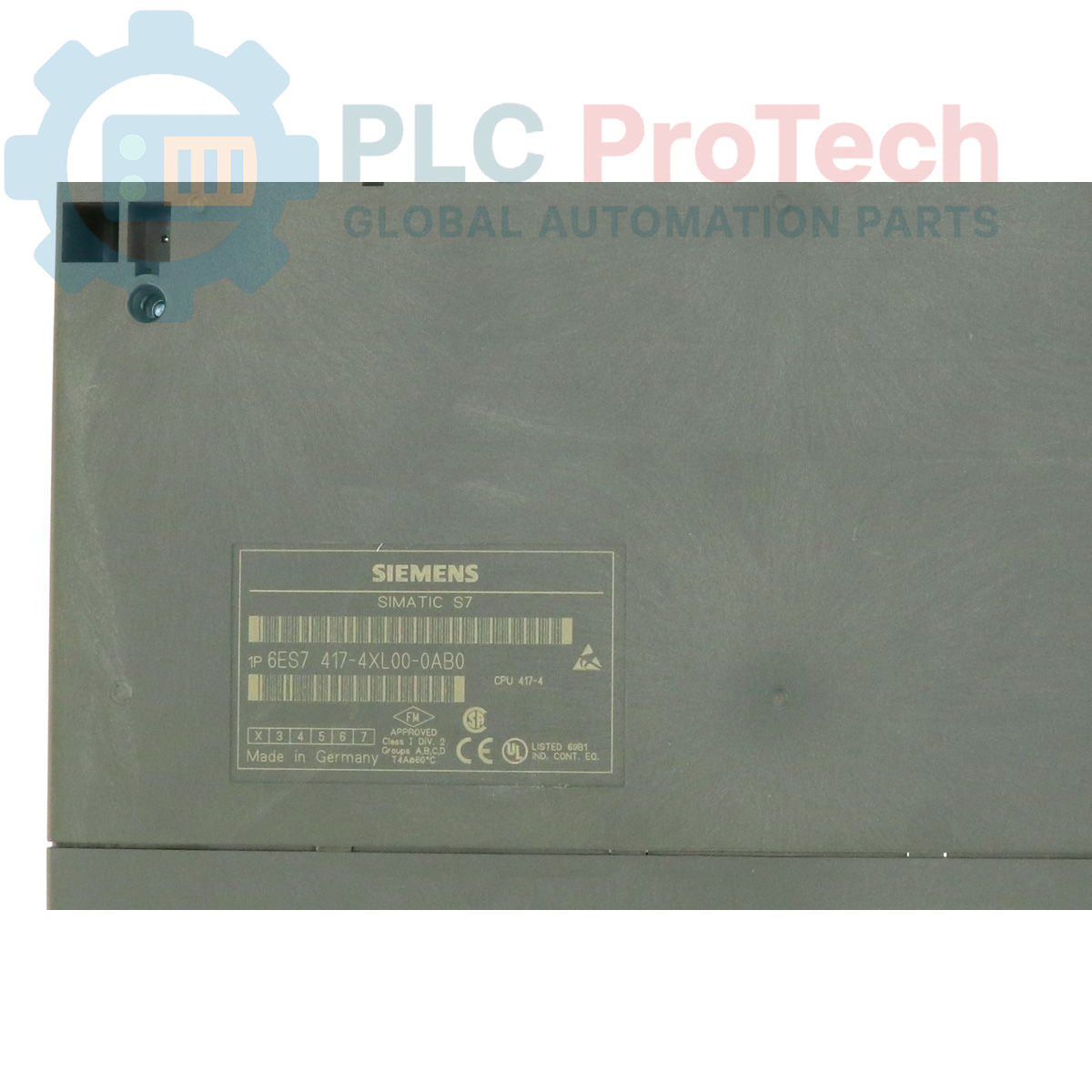

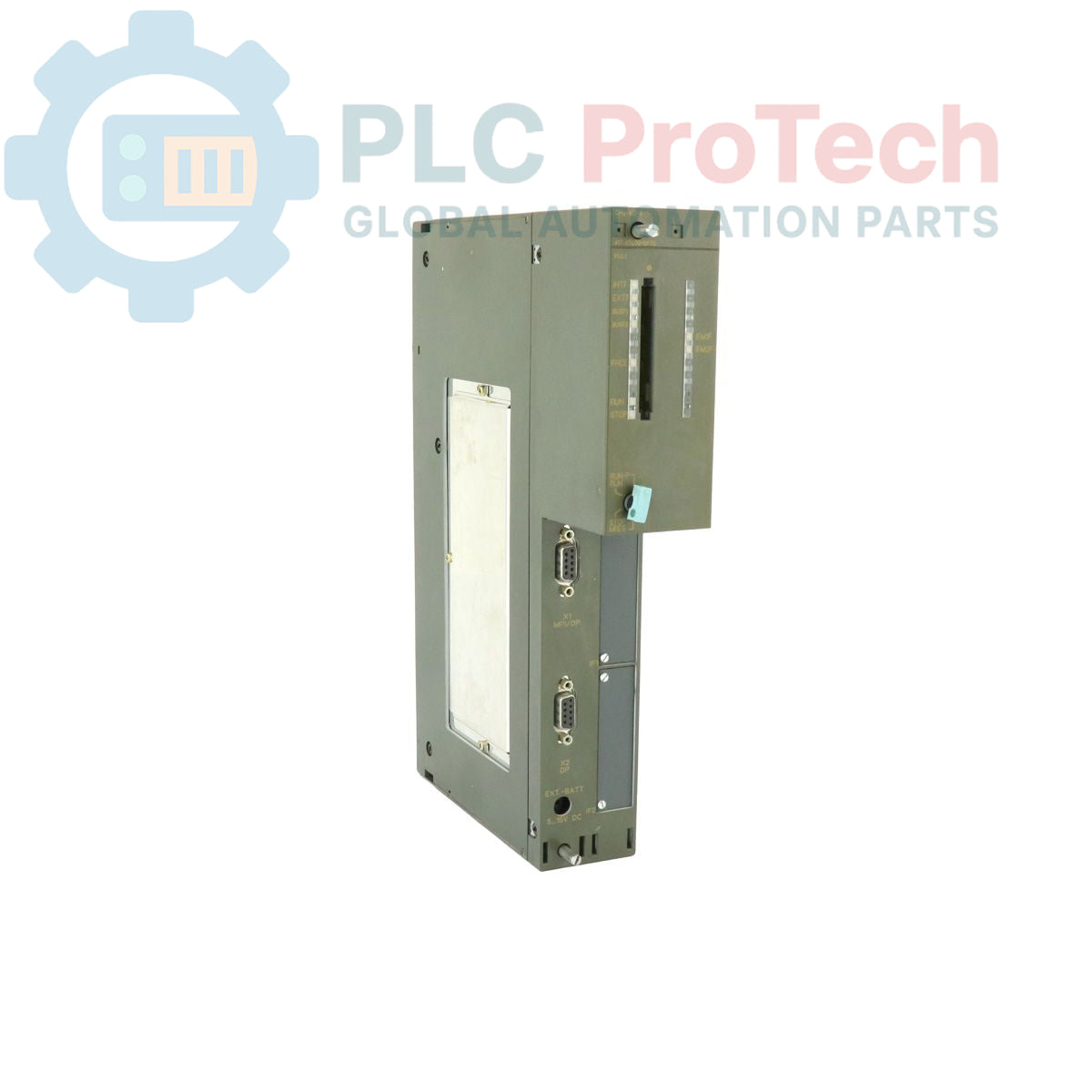

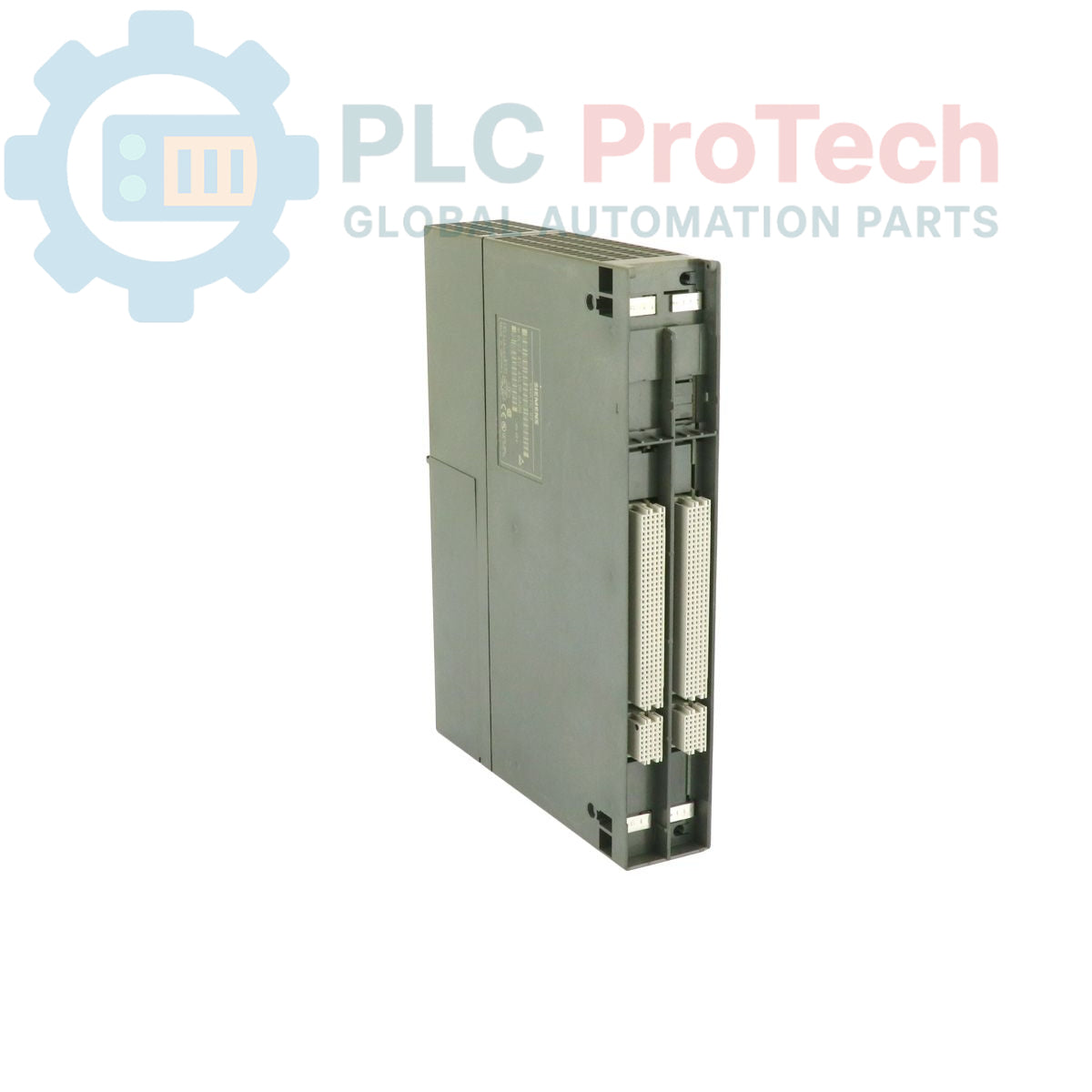

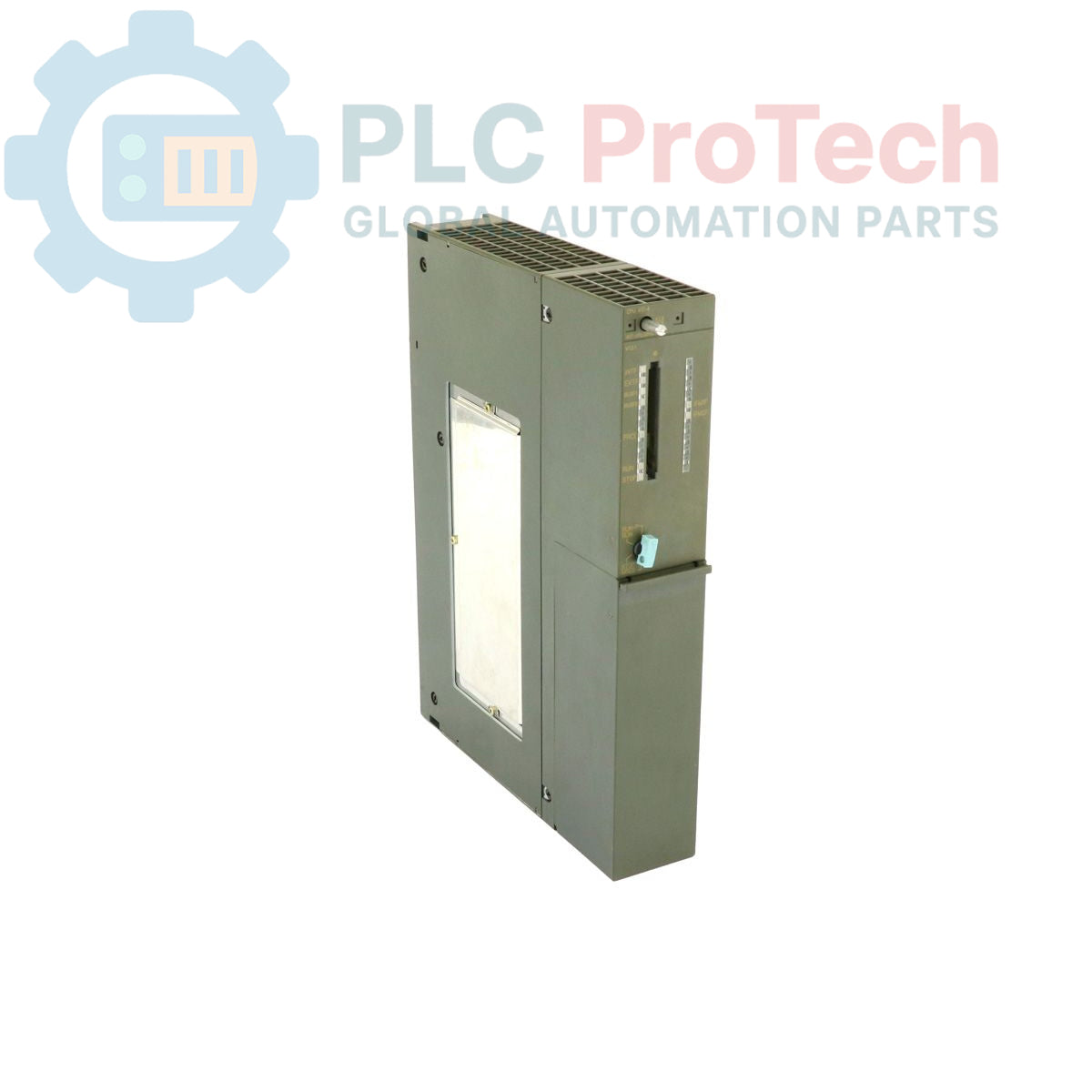

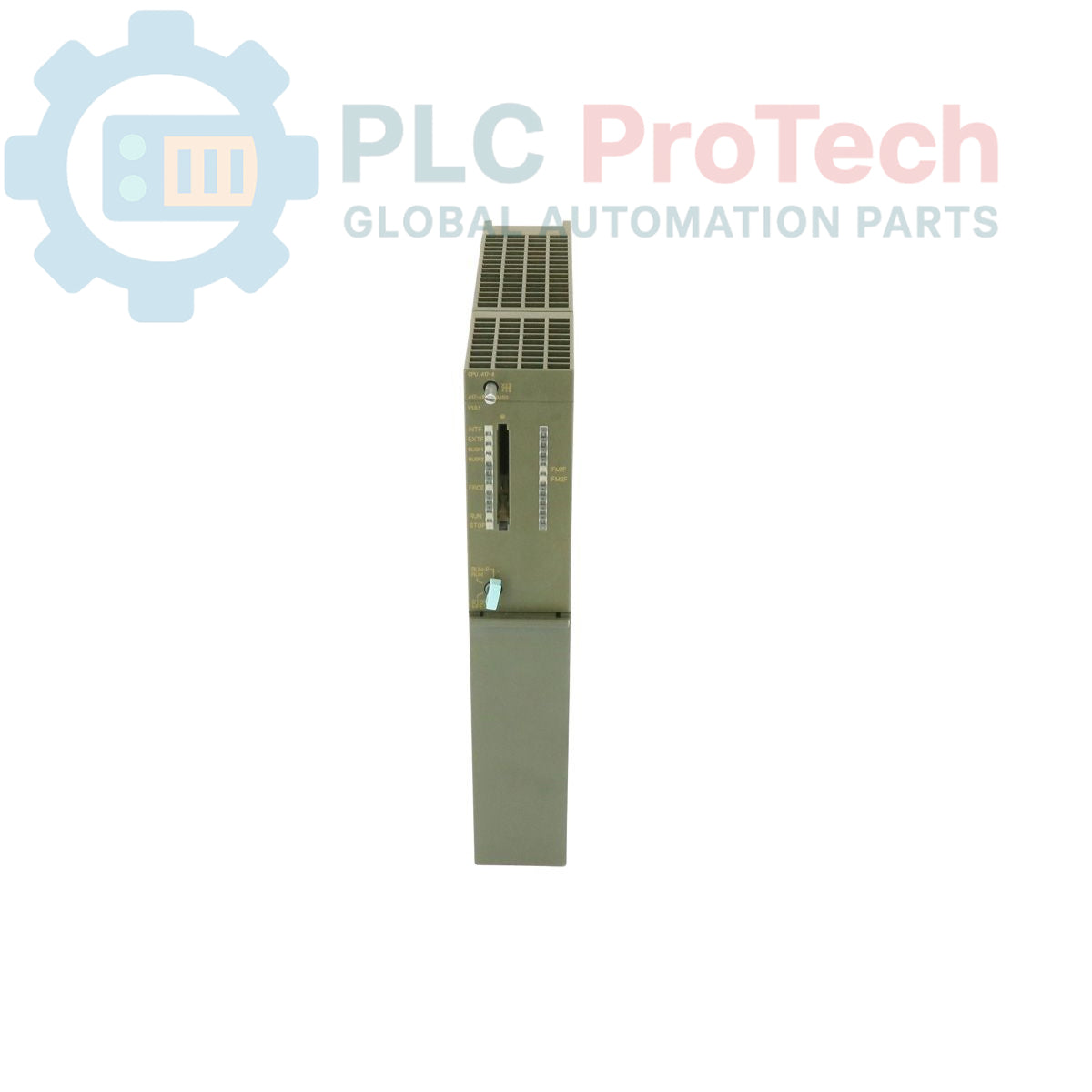

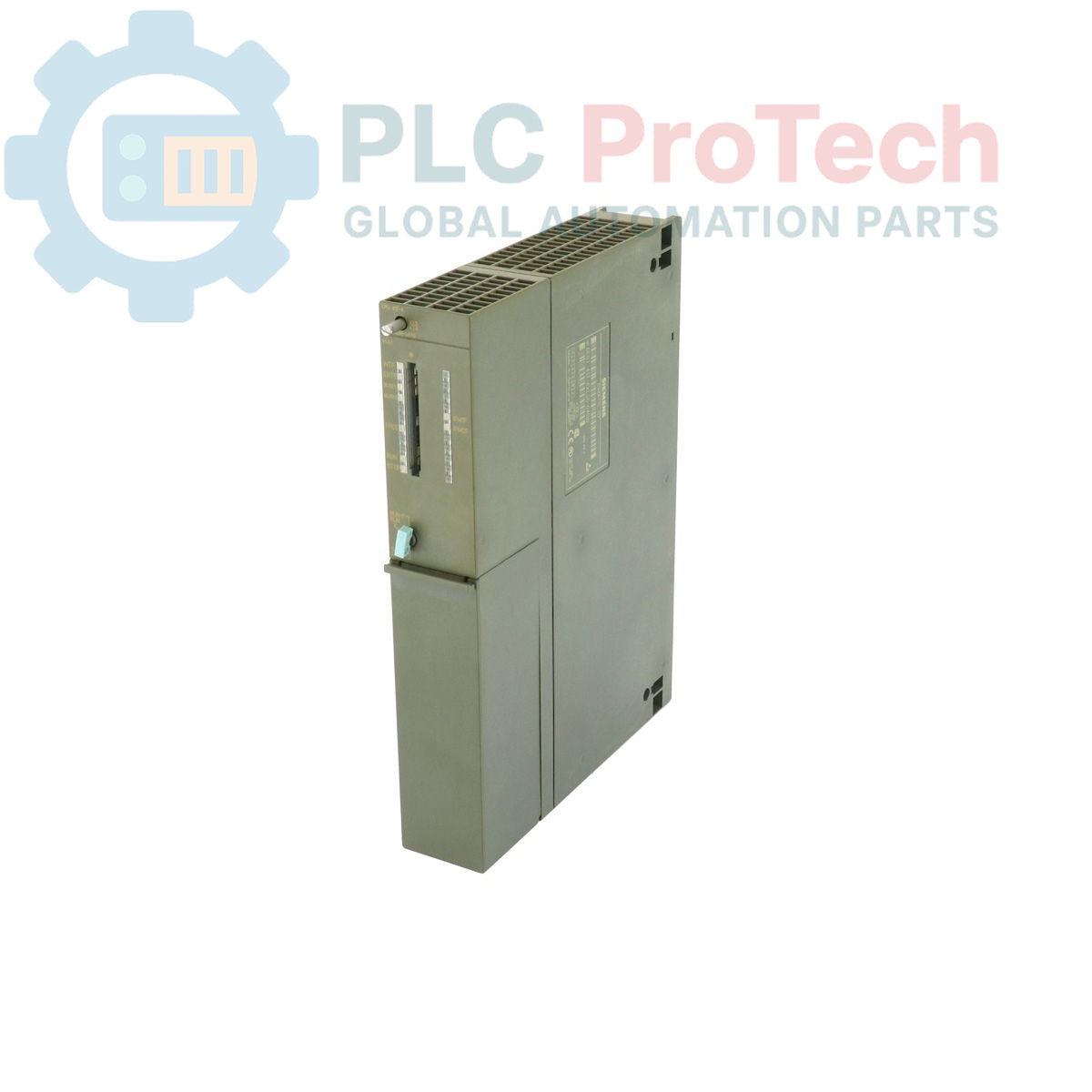

Siemens 6ES7417-4XL00-0AB0 SIMATIC S7-400 CPU Module

Description

The Siemens 6ES7417-4XL00-0AB0 is a SIMATIC S7-400 CPU 417-4 central processing unit designed for robust performance in industrial automation environments. This CPU module features 4 MB of work memory, allocated as 2 MB for program code and 2 MB for data, providing ample capacity for complex process control tasks. It integrates a built-in MPI interface supporting communication speeds up to 12 Mbit/s, alongside a PROFIBUS DP interface. Further connectivity is facilitated by a dedicated 3rd/4th interface plug-in IFM module, ensuring straightforward integration into diverse production systems. The 6ES7417-4XL00-0AB0 is engineered for dependable and scalable control solutions, contributing to operational efficiency in continuous production processes.

Features

• SIMATIC S7-400 CPU 417-4
• 4 MB work memory (2 MB code, 2 MB data)
• 1 MPI interface with 12 Mbit/s communication speed
• 1 PROFIBUS DP interface
• Supports 3rd/4th interface plug-in IFM module
• Designed for industrial automation environments

Applications

The Siemens 6ES7417-4XL00-0AB0 CPU is suitable for a wide range of industrial applications requiring high-performance control, including:

• Complex process control systems
• Large-scale manufacturing and production lines
• Distributed automation architectures
• Systems requiring robust and scalable control solutions
• Integration into existing SIMATIC S7-400 installations

Technical Specifications

Installation Guidelines

Proper installation of the Siemens SIMATIC S7-400 CPU module is crucial for reliable operation. Follow these general guidelines:

1. De-energize System: Ensure all power to the S7-400 rack and associated components is disconnected before installation or removal of any module.
2. Module Insertion: Carefully slide the CPU module into the designated slot in the S7-400 rack until it clicks securely into place. Ensure proper alignment with the backplane connector.
3. Wiring: Connect communication cables (MPI, PROFIBUS DP) to their respective ports. Ensure correct polarity and secure termination for all connections.
4. Grounding: Verify that the S7-400 rack and all connected components are properly grounded to minimize electrical noise and ensure safety.
5. Power-Up: After all modules are securely installed and wired, restore power to the system. Observe status indicators on the CPU for correct operation.
6. Configuration: Utilize appropriate Siemens engineering software (e.g., STEP 7) to configure the CPU, memory, and communication interfaces according to the application requirements.
