Siemens 6ES7633-1DF01-0AE3 SIMATIC C7 Compact Unit

SKU 6ES7633-1DF01-0AE3

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Siemens

  • Product No.: 6ES7633-1DF01-0AE3

  • Country of origin:Germany

  • Product Type: Compact Unit

  • Barcode: 85371091

  • Payment: T/T, Western Union

  • Weight: 1700g

  • Dimensions: 25.40 x 10.20 x 22.90 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

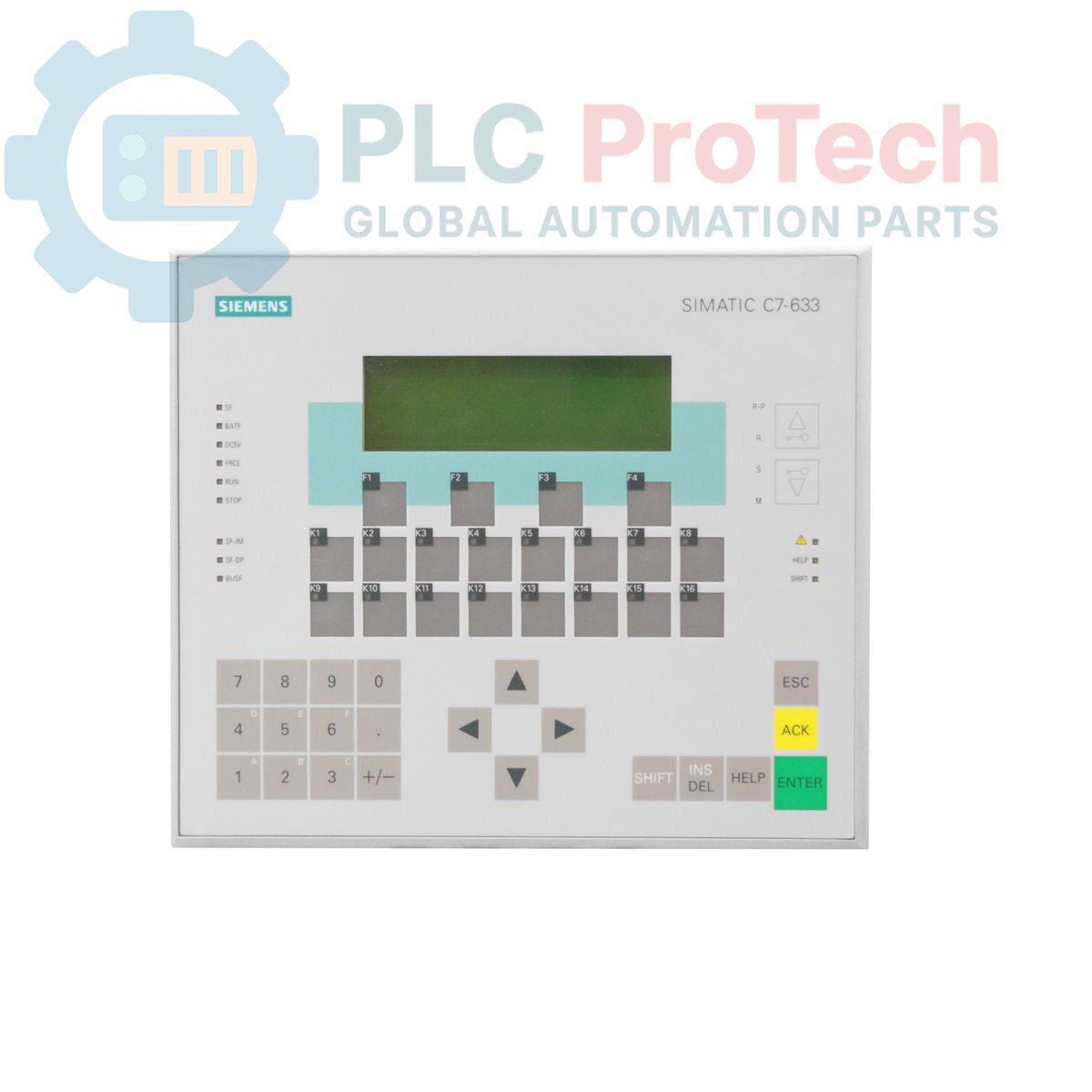

The Siemens 6ES7633-1DF01-0AE3 is a SIMATIC C7-633/P Compact Unit, an integrated solution designed for efficient control and monitoring within industrial automation environments. This unit combines a powerful S7-300 CPU 315, an OP7 operator panel, and essential I/O modules into a single, space-saving device. Featuring 16 digital inputs (DI), 16 digital outputs (DO), 4 analog inputs (AI), 4 analog outputs (AO), and 4 universal inputs (UI), the 6ES7633-1DF01-0AE3 offers extensive connectivity for various sensors and actuators, supporting flexible configuration in diverse production processes. It is suitable for project managers and production leaders requiring a robust, all-in-one controller with proven performance.

Features

  • Integrated S7-300 CPU 315 for control processing
  • Integrated OP7 operator panel for HMI functionality
  • Integrated I/O: 16 Digital Inputs, 16 Digital Outputs
  • Integrated I/O: 4 Analog Inputs, 4 Analog Outputs, 4 Universal Inputs
  • Compact, space-saving design for industrial cabinet mounting

Applications

The Siemens 6ES7633-1DF01-0AE3 is typically deployed in industrial automation settings for:
  • Machine control and monitoring
  • Process control systems
  • Distributed control applications
  • Small to medium-scale automation projects requiring integrated HMI and PLC functionality

Technical Specifications

Parameter Value
Manufacturer Siemens
Series SIMATIC C7
Product Type Compact Unit
Product Phase Obsolete
Integrated CPU S7-300 CPU 315
Integrated HMI OP7
Digital Inputs (DI) 16
Digital Outputs (DO) 16
Analog Inputs (AI) 4
Analog Outputs (AO) 4
Universal Inputs (UI) 4
Package Dimensions (Calculated) 25.40 x 10.20 x 22.90 cm
Shipping Weight 1.70 kg
Commodity Code 85371091
Export Control Regulations (ECCN) EAR99

Installation Guidelines

Installation of the Siemens 6ES7633-1DF01-0AE3 typically involves the following steps:
  1. Mounting: Securely mount the compact unit within a control cabinet, ensuring adequate ventilation and clearance for wiring.
  2. Power Connection: Connect the unit to a stable power supply, observing correct polarity and voltage requirements.
  3. I/O Wiring: Wire all digital inputs, digital outputs, analog inputs, analog outputs, and universal inputs according to the application's specific sensor and actuator requirements. Ensure proper shielding for analog signals to minimize noise.
  4. Grounding: Establish a robust grounding connection for the unit and the control cabinet to ensure electrical safety and signal integrity.
  5. Configuration: Utilize Siemens engineering software (e.g., STEP 7) to configure the CPU, OP7, and I/O modules according to the control program and HMI interface design.
  6. Testing: Perform thorough functional testing of all I/O, CPU logic, and HMI operations before commissioning the system.

FAQ

What components are integrated into the Siemens 6ES7633-1DF01-0AE3?
The unit integrates an S7-300 CPU 315, an OP7 operator panel, and an IM360 I/O module.

What types and quantities of I/O does this compact unit provide?
It provides 16 digital inputs, 16 digital outputs, 4 analog inputs, 4 analog outputs, and 4 universal inputs.

What is the primary application of the SIMATIC C7-633/P?
It is designed for efficient control and monitoring in industrial automation environments, suitable for various machine and process control tasks.

Is the 6ES7633-1DF01-0AE3 still actively manufactured by Siemens?
No, this product is currently in an obsolete phase according to its product lifecycle management status.

What warranty is typically offered for refurbished units?
Refurbished units typically come with a standard two-year warranty.
