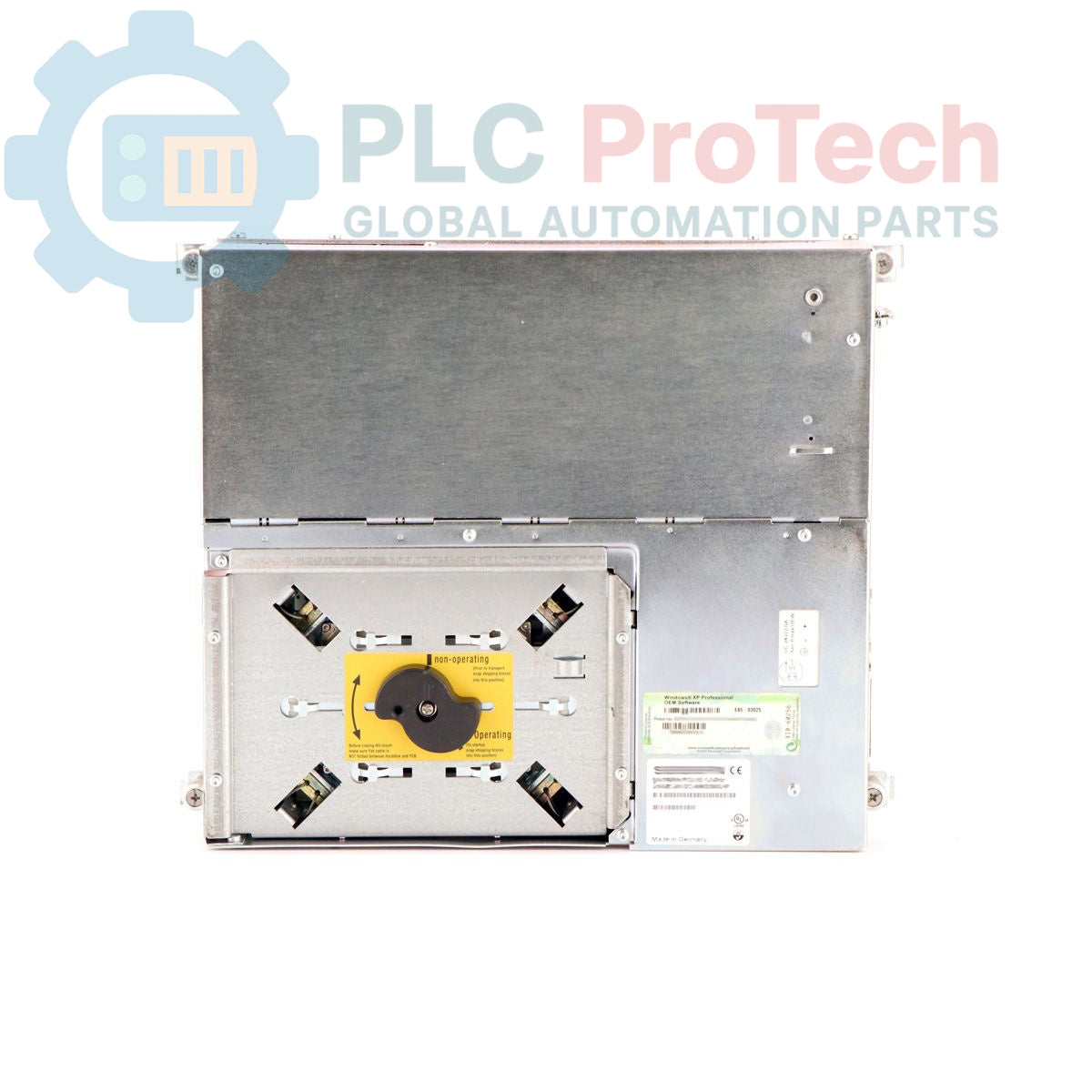

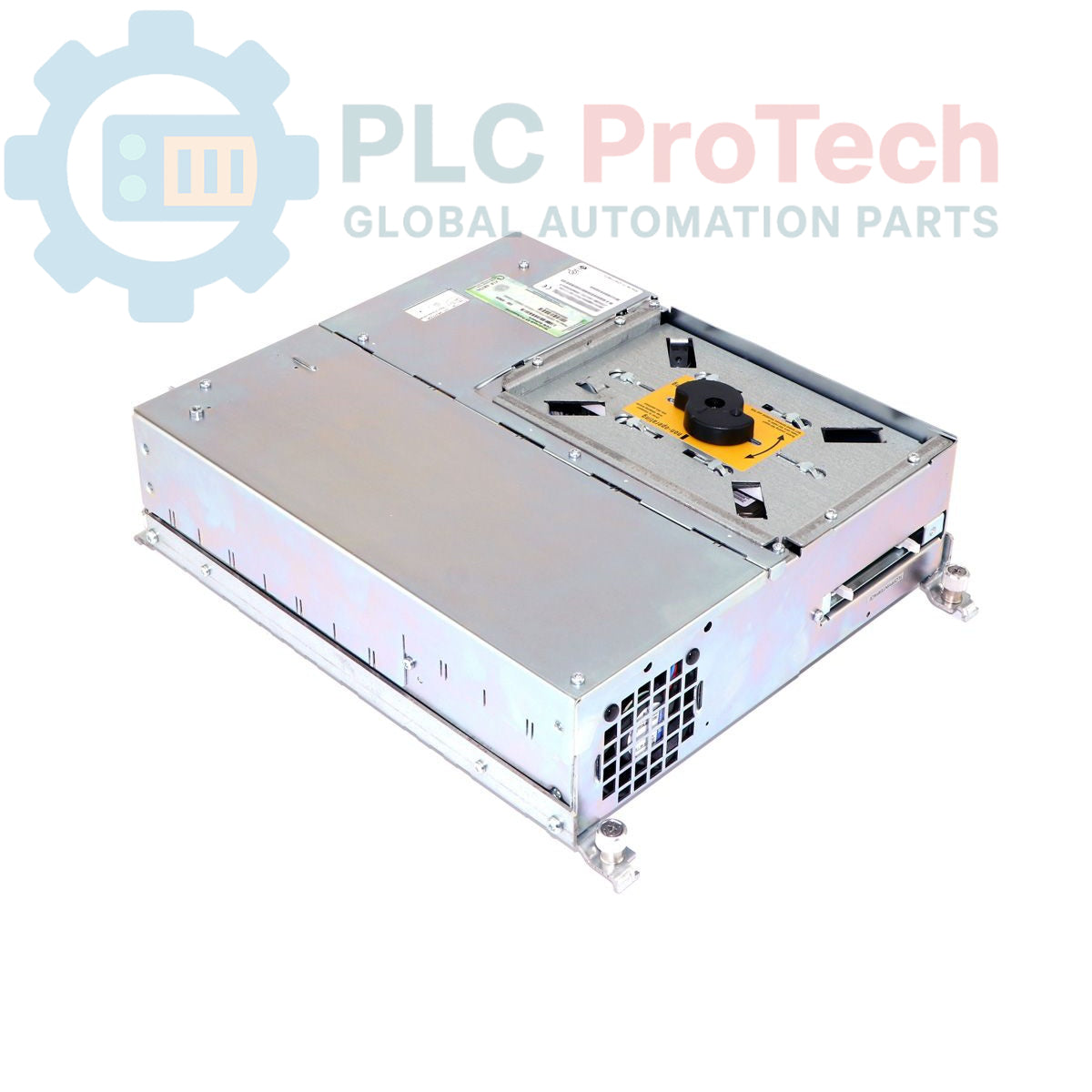

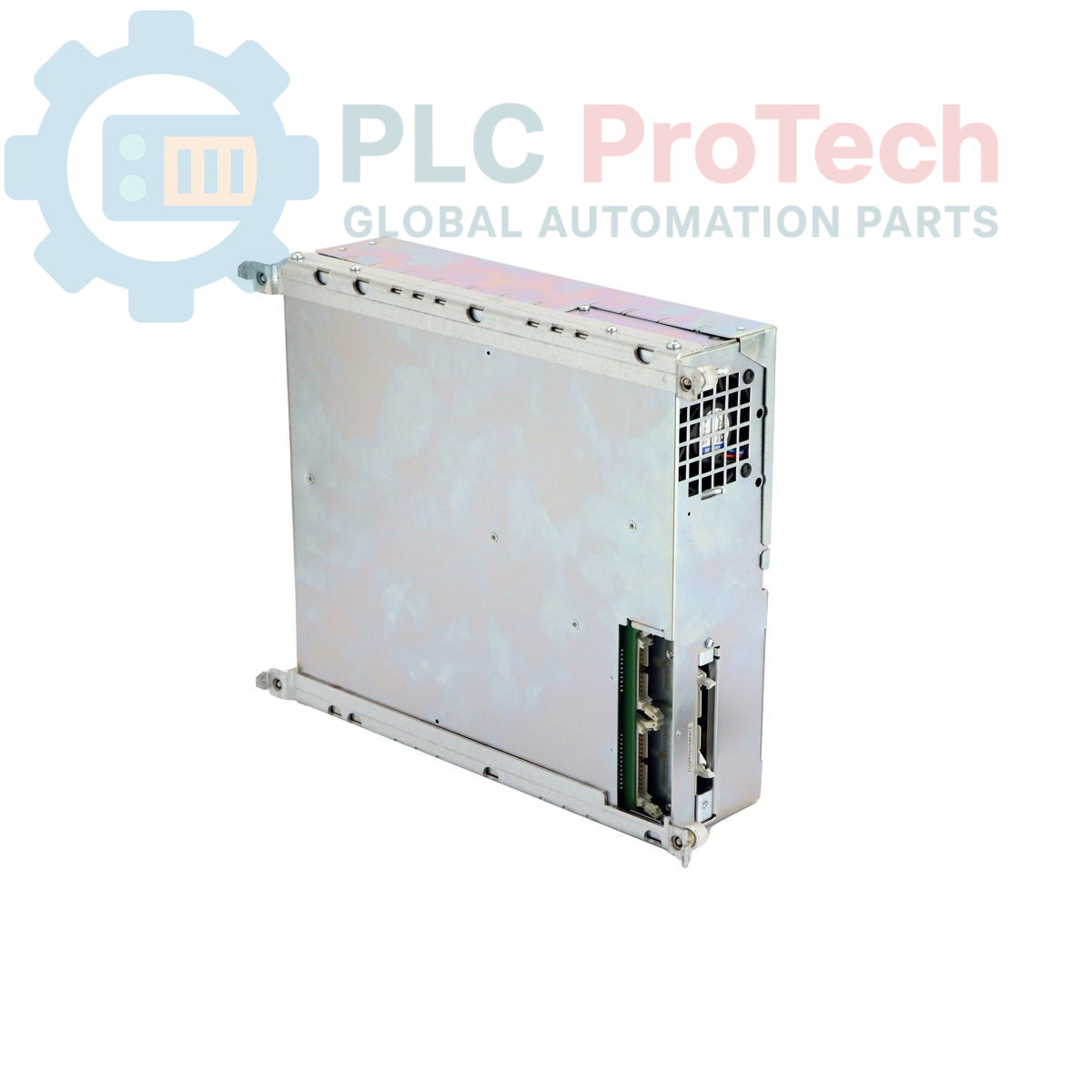

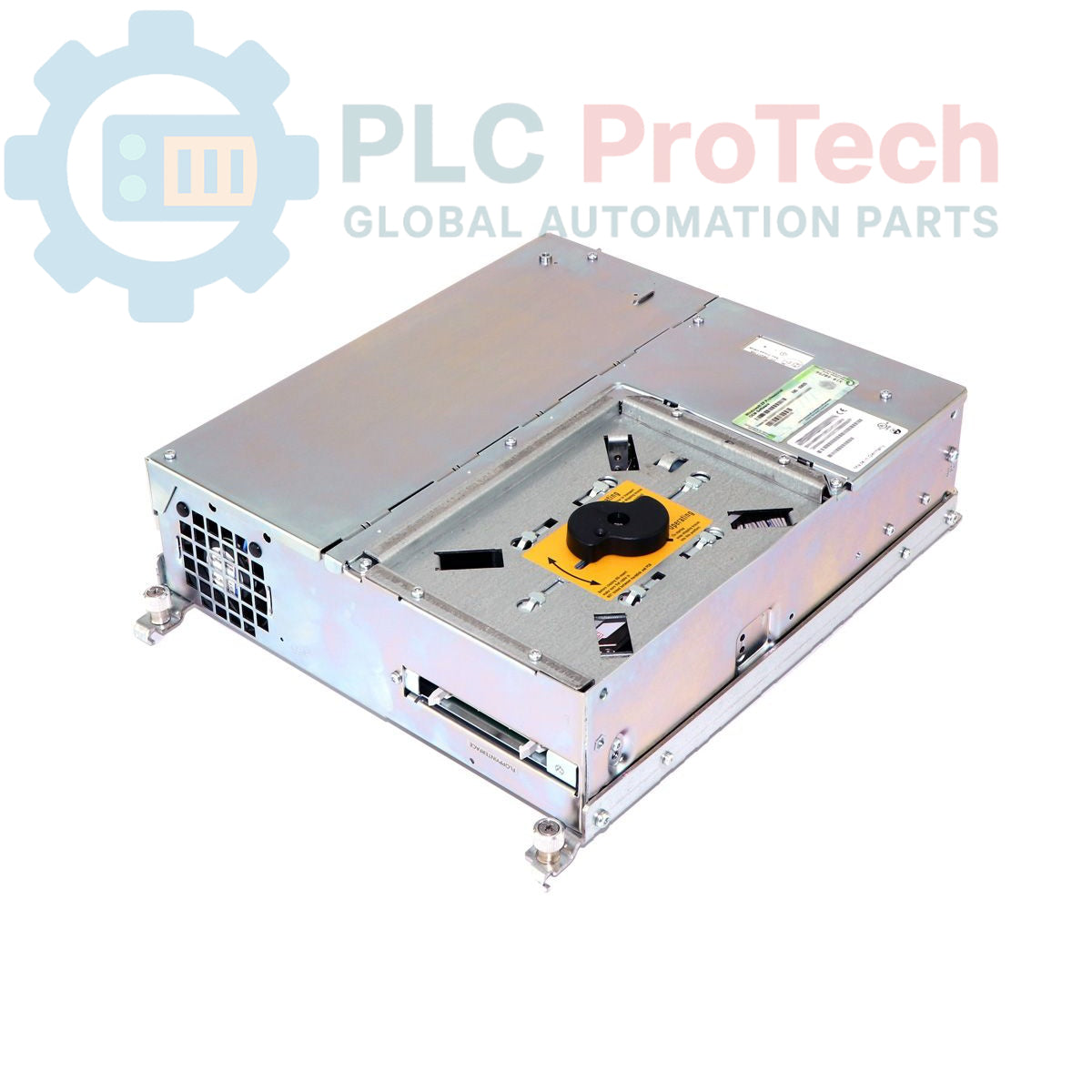

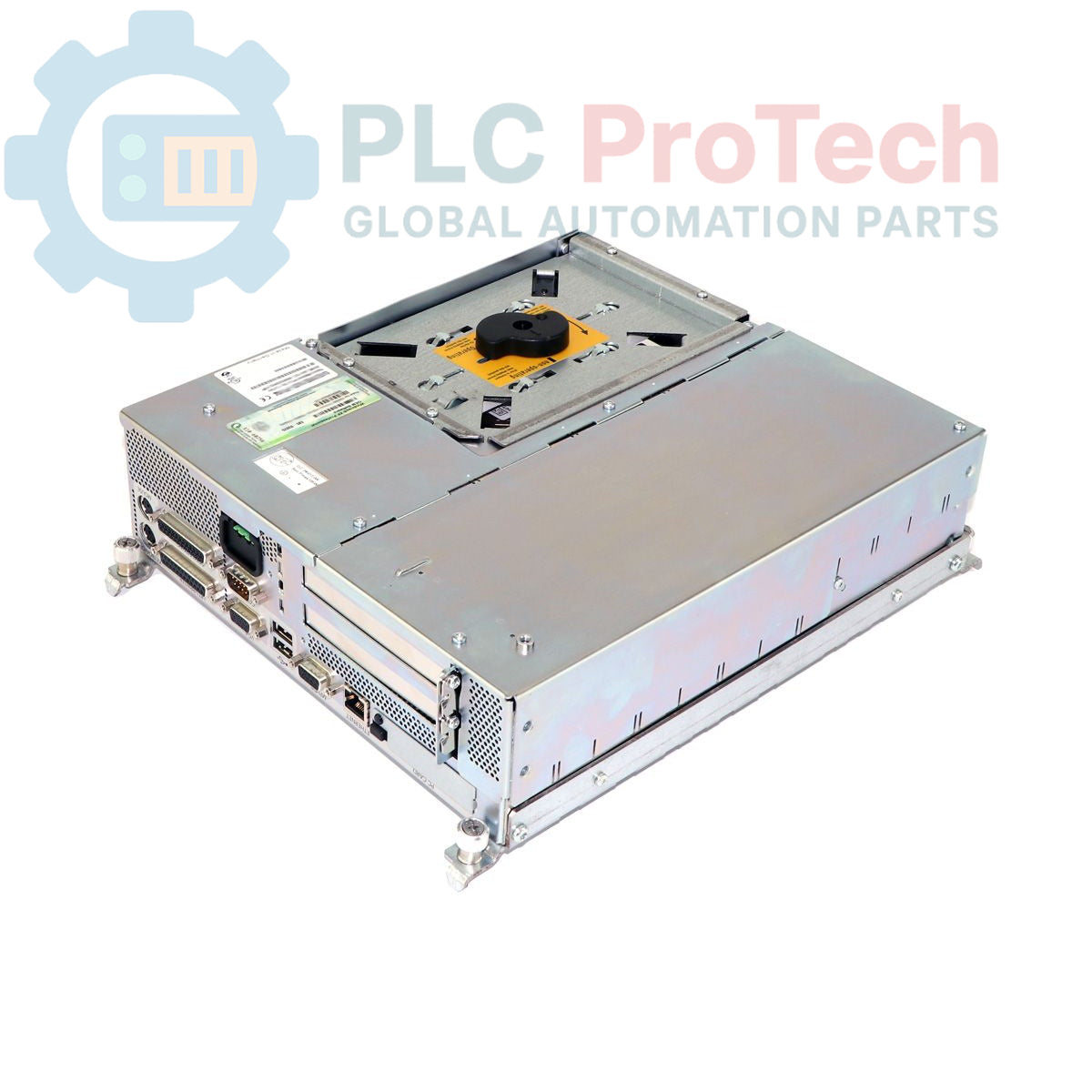

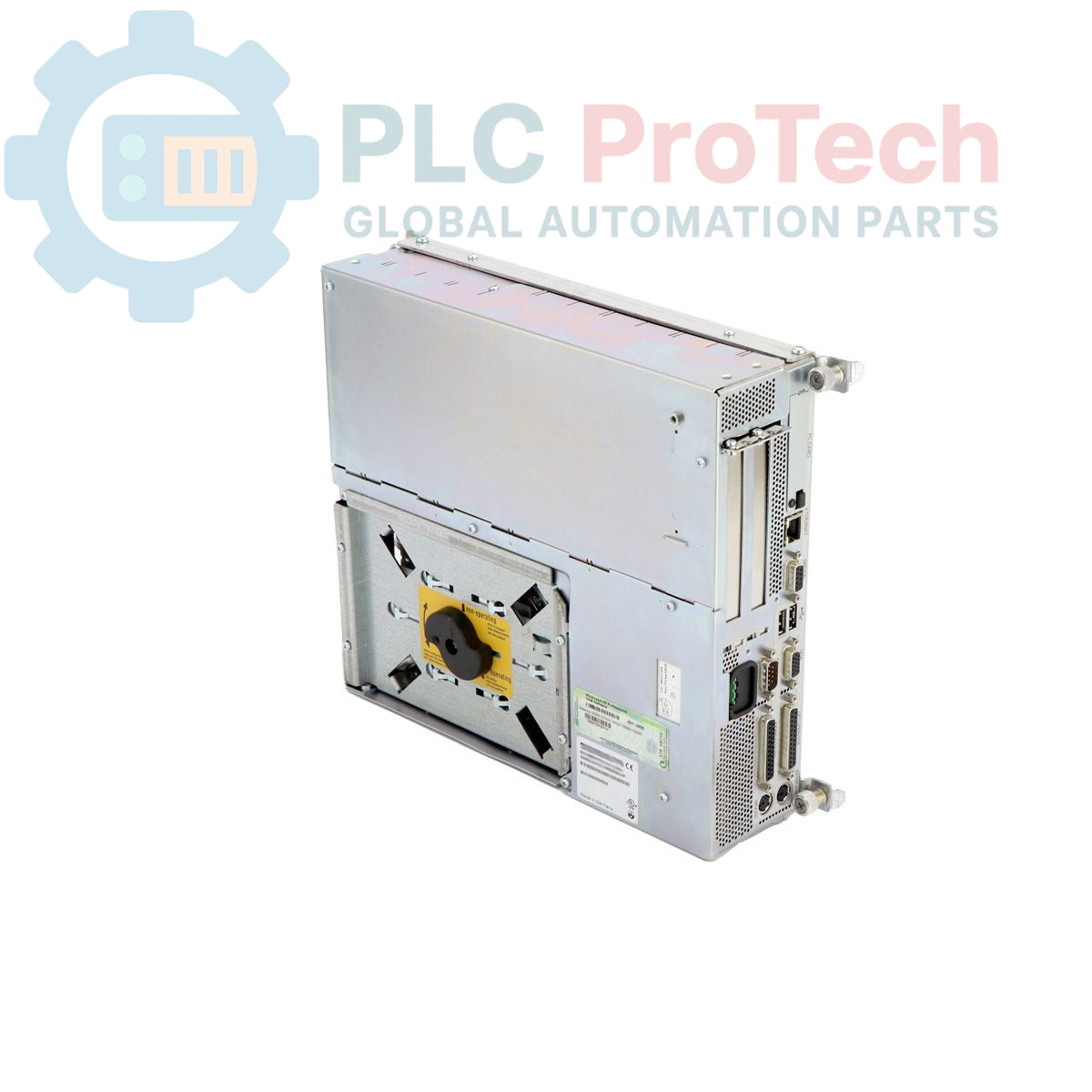

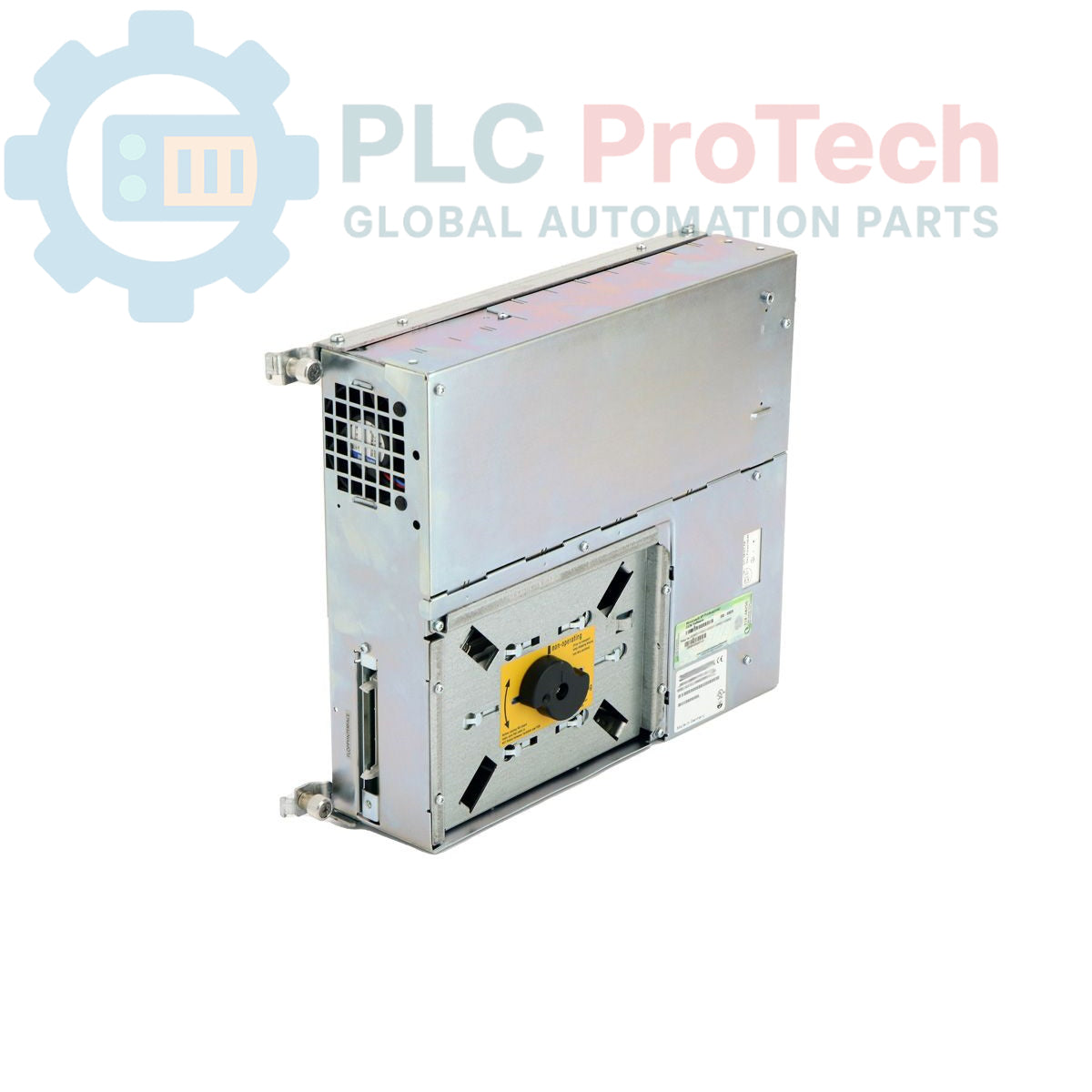

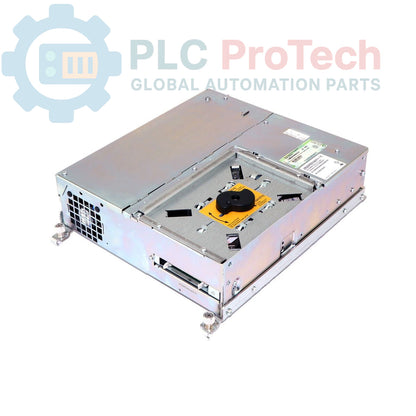

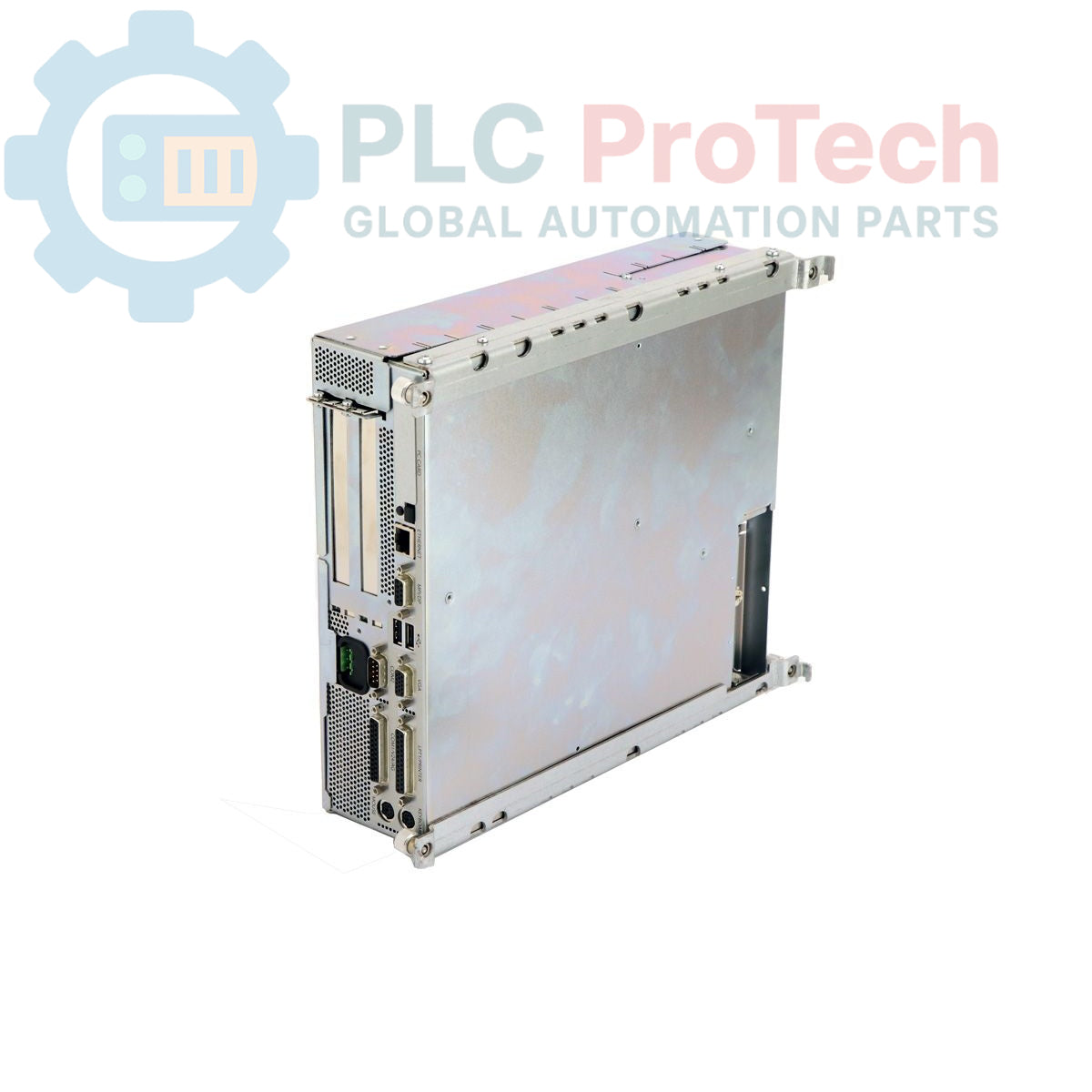

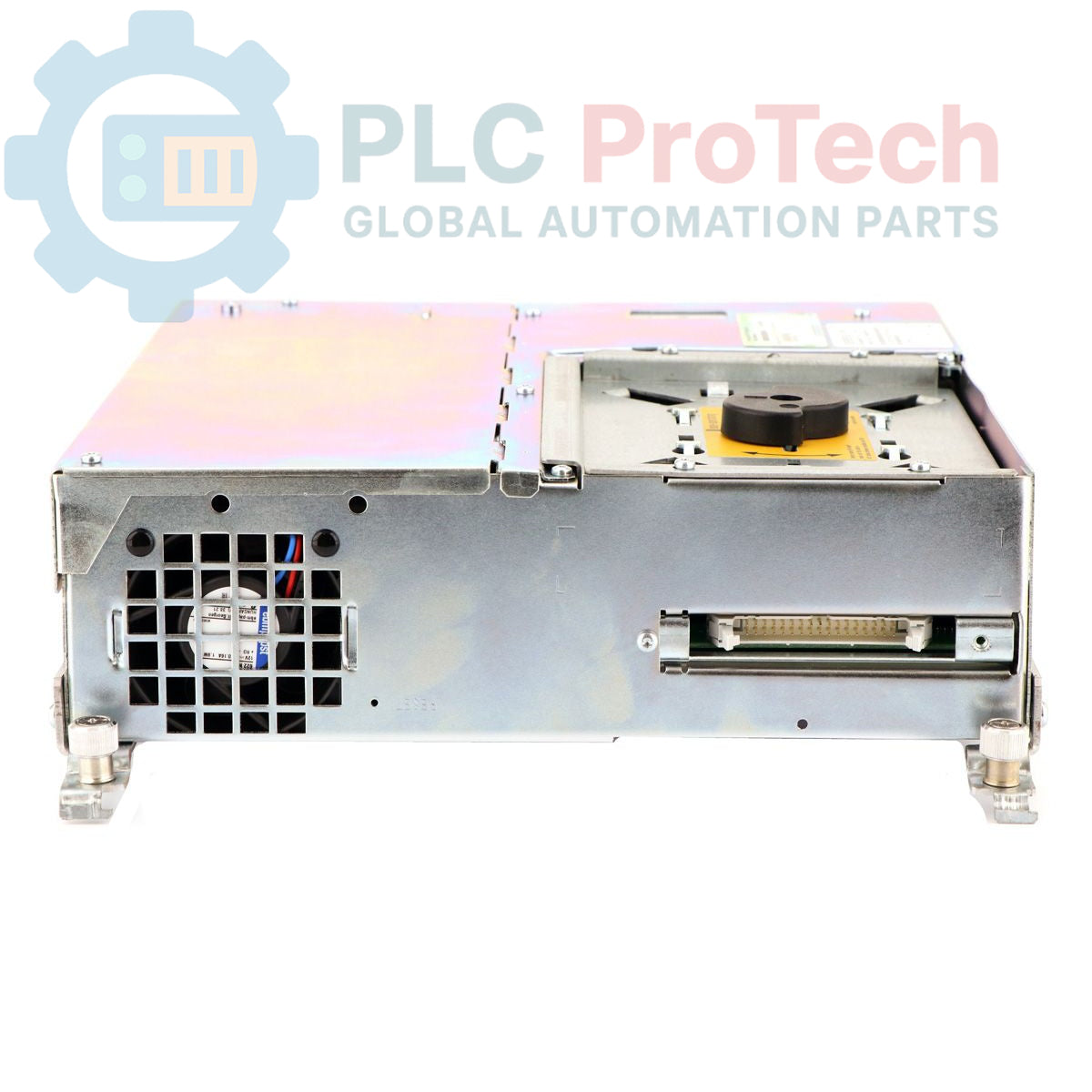

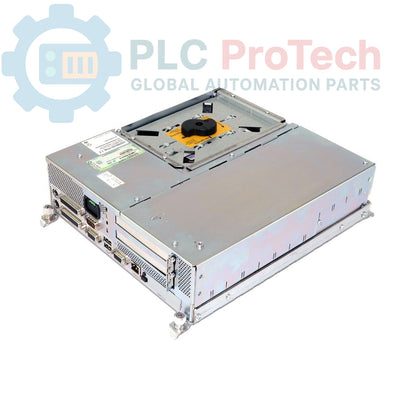

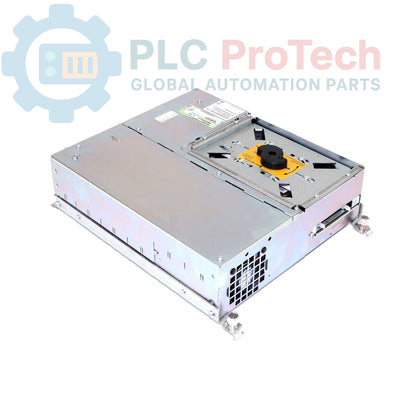

Siemens 6ES7647-5CE00-0CX0 SIMATIC Box PC 620

Description

The Siemens 6ES7647-5CE00-0CX0 is a SIMATIC Box PC 620, designed for industrial computing applications. This robust industrial PC features an onboard AGP graphics controller with configurable memory (8/16/32 MB) and a 10/100 Mbit/s Ethernet interface via an RJ45 port. It includes a Pentium III 866 MHz processor with 256KB SLC, 64 MByte SDRAM-133 RAM, a 40 GB EIDE hard disk drive, and a DVD-ROM drive. Communication capabilities are provided through PROFIBUS/MPI at 12 Mbit/s and TTY interfaces. The unit also offers expansion options with one PCI slot and one shared ISA/PCI slot, along with two USB ports and a PC Card (PCMCIA Type 3) slot. Integrated watchdog and temperature monitoring functions enhance system reliability. Power is supplied via a 110/230V industry power pack with NAMUR compatibility, and it comes pre-installed with Windows NT 4.0 Workstation English, SP 5.

Features

• AGP Graphics Onboard with 8/16/32 MB configurable memory
• 10/100 Mbit/s Ethernet interface (RJ45)
• PC Card (PCMCIA Type 3) slot
• Integrated Watchdog and Temperature Monitoring
• 2 x USB ports
• 1 x PCI slot and 1 x ISA/PCI free slot
• Pentium III 866 MHz Processor with 256KB SLC
• PROFIBUS/MPI 12 Mbit/s and TTY communication interfaces
• 40 GB EIDE Hard Disk Drive and DVD-ROM
• 64 MByte SDRAM-133 RAM
• 1.44 MB 3.5" Floppy Drive
• 110/230V Industry Power Pack with NAMUR support
• Pre-installed Windows NT 4.0 Workstation English, SP 5

Applications

The Siemens SIMATIC Box PC 620 is suitable for a variety of industrial automation tasks, including:

• Human Machine Interface (HMI) applications
• Data acquisition and logging
• Process visualization and control
• Communication gateway functions
• Machine control and monitoring
• Embedded computing solutions in harsh industrial environments

Technical Specifications

Connections / Interfaces

The Siemens 6ES7647-5CE00-0CX0 provides the following interfaces:

• Ethernet: RJ45 port for 10/100 Mbit/s network connectivity.
• USB: Two Universal Serial Bus ports for peripheral connections.
• PROFIBUS/MPI: Interface for industrial fieldbus communication at 12 Mbit/s.
• TTY: Teletype interface for serial communication.
• PC Card: PCMCIA Type 3 slot for expansion cards.
• Internal Expansion: PCI and ISA/PCI slots for additional hardware.

Installation Guidelines

Proper installation ensures reliable operation of the SIMATIC Box PC 620:

1. De-energize System: Ensure all power to the installation area is disconnected before beginning work.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation for heat dissipation.
3. Power Connection: Connect the 110/230V industry power pack to a stable power source. Verify correct voltage and grounding.
4. Grounding: Establish a robust protective earth (PE) connection to the chassis of the Box PC to minimize electrical noise and ensure safety.
5. Peripheral Connections: Connect necessary peripherals such as monitor, keyboard, and mouse to the appropriate ports (e.g., USB).
6. Network and Fieldbus: Connect the RJ45 Ethernet cable for network communication and PROFIBUS/MPI cables for fieldbus integration. Ensure proper shielding for communication cables.
7. Expansion Cards: If using expansion cards in the PCI or ISA/PCI slots, ensure they are correctly seated and secured.
8. Environmental Considerations: Operate the Box PC within its specified temperature and humidity ranges. Protect it from excessive dust, vibration, and moisture.
9. Power On: After all connections are verified, re-energize the system and observe for proper startup.
