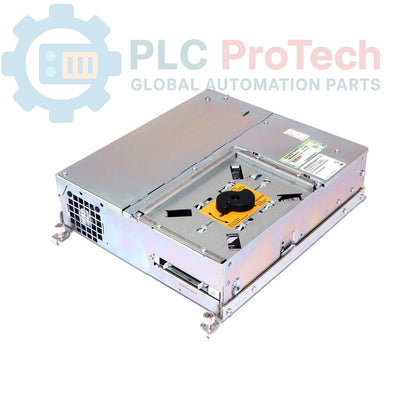

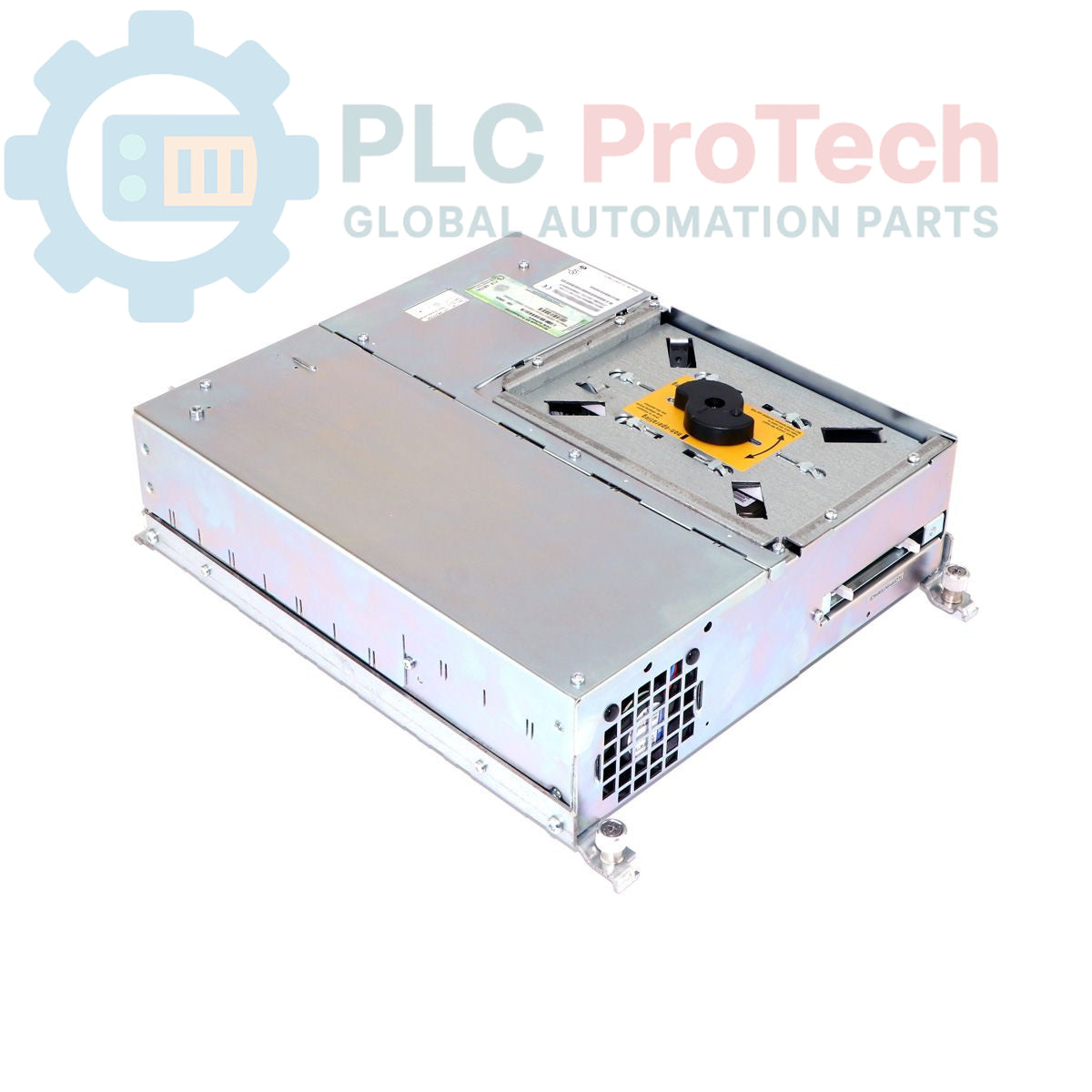

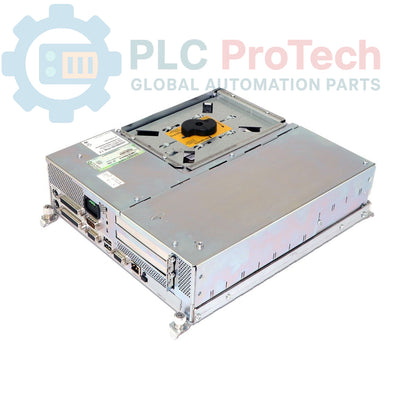

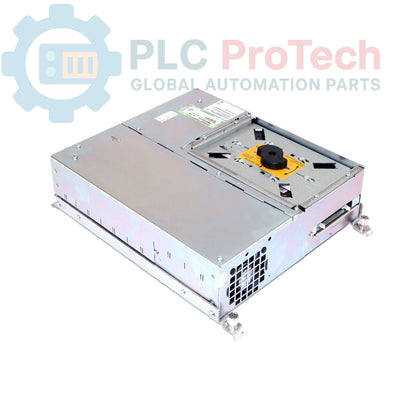

Siemens 6ES7647-5EG10-2CX0 SIMATIC Box PC 620 PC Box

Description

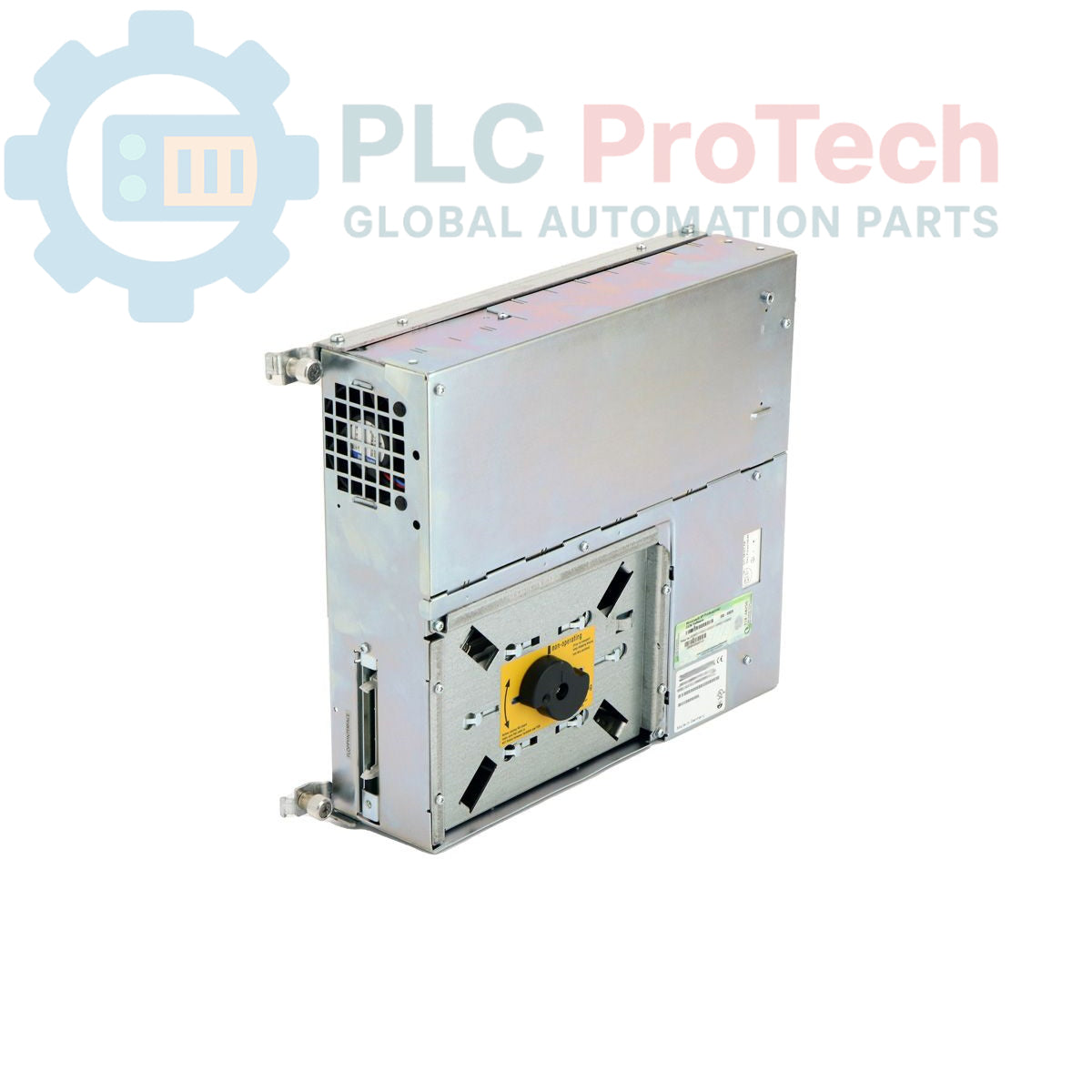

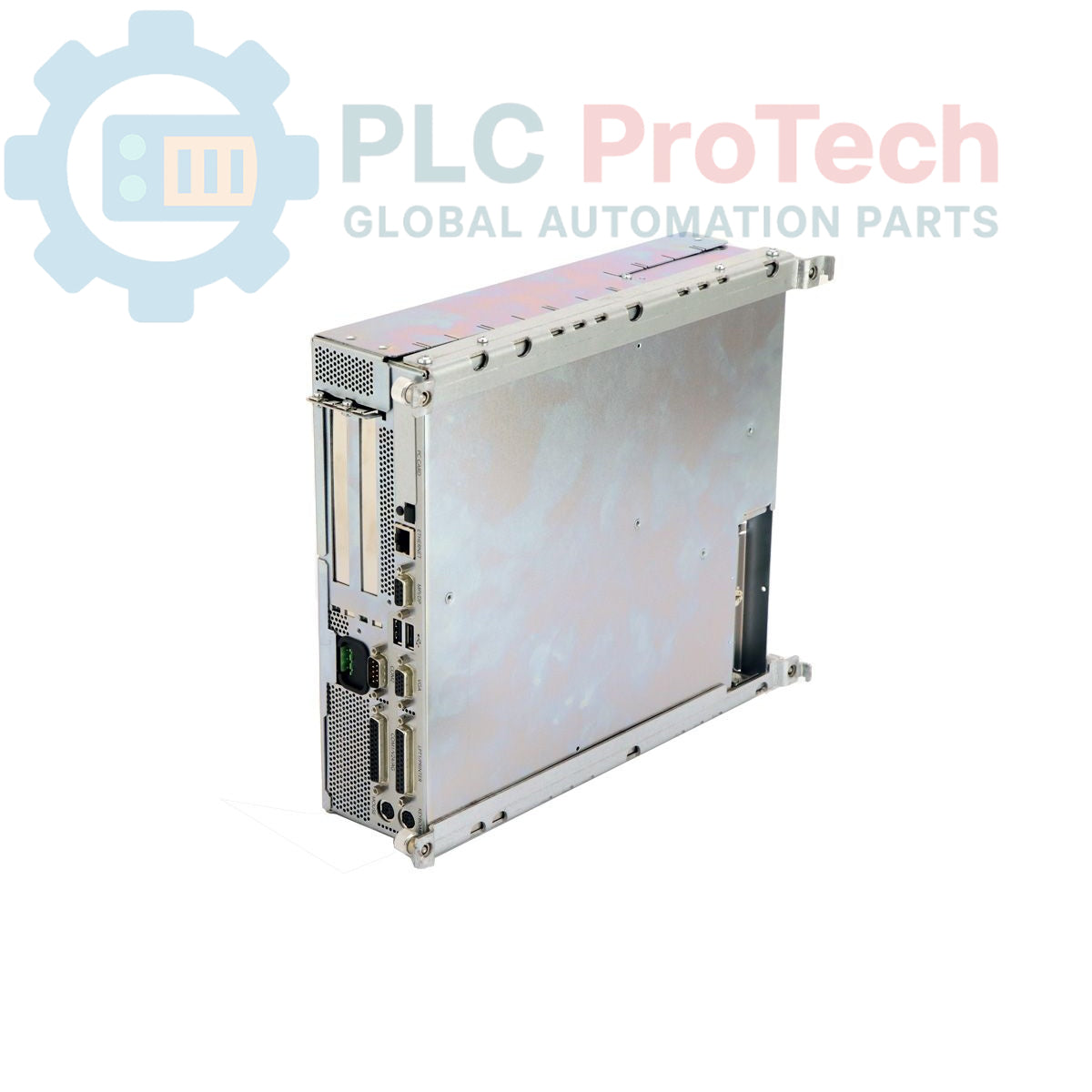

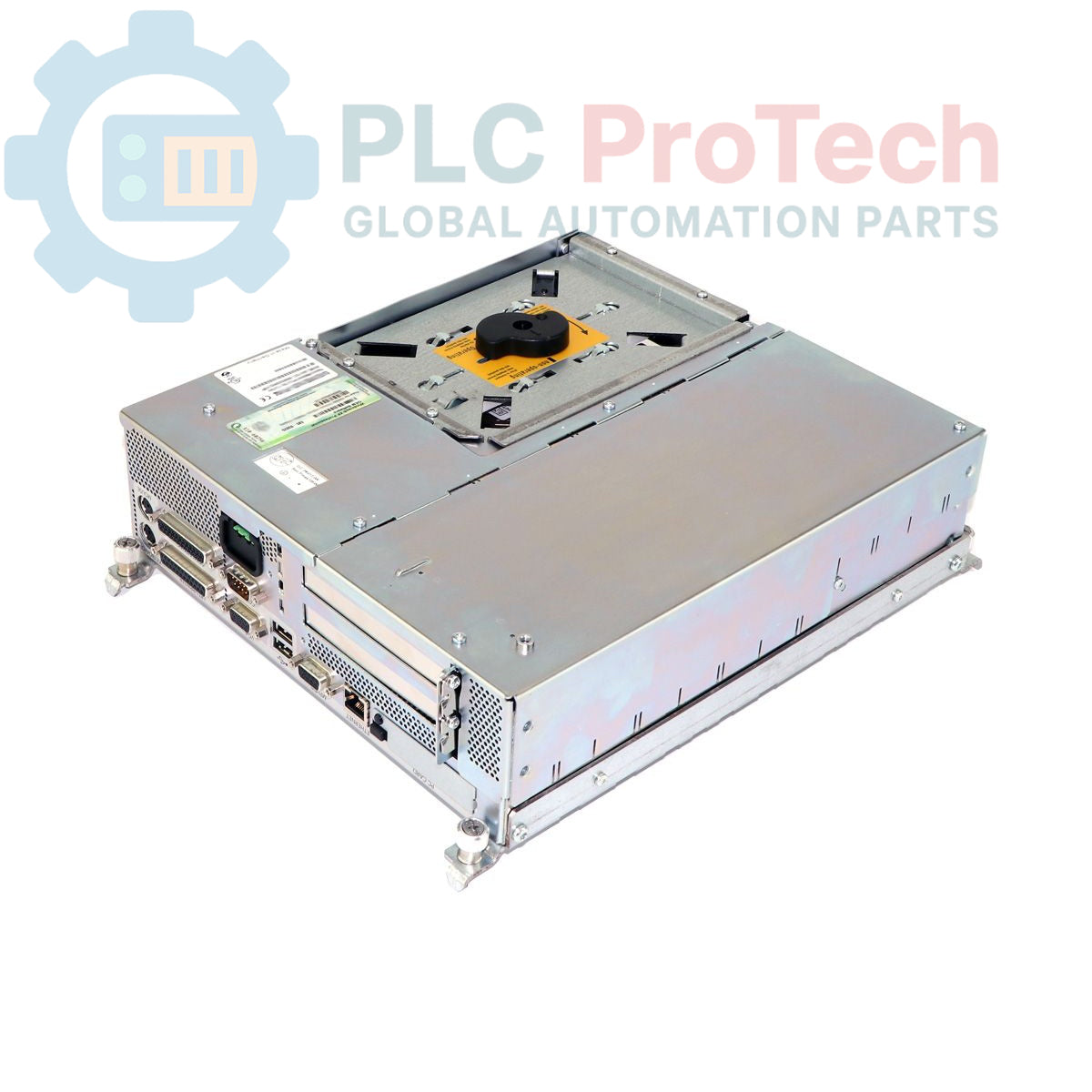

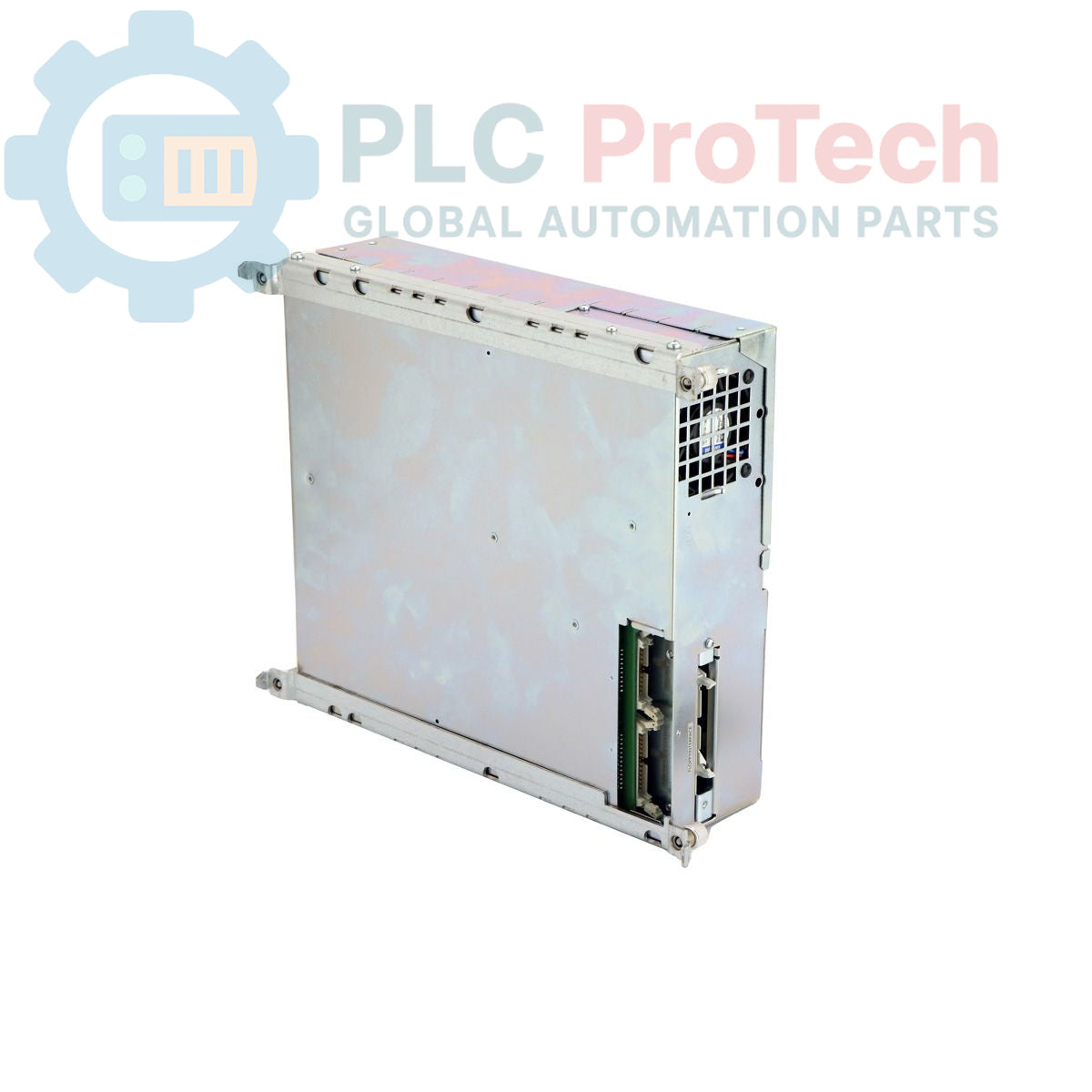

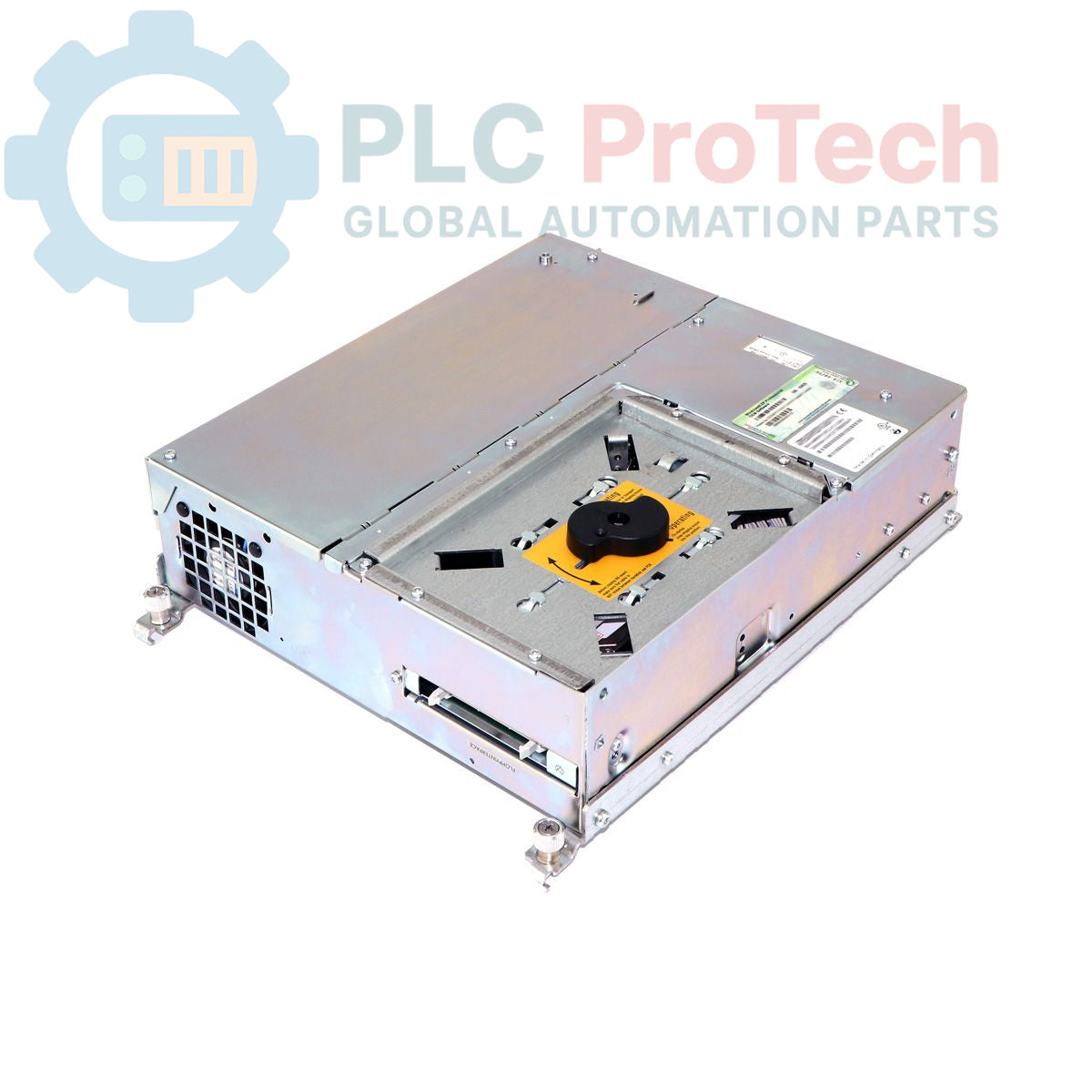

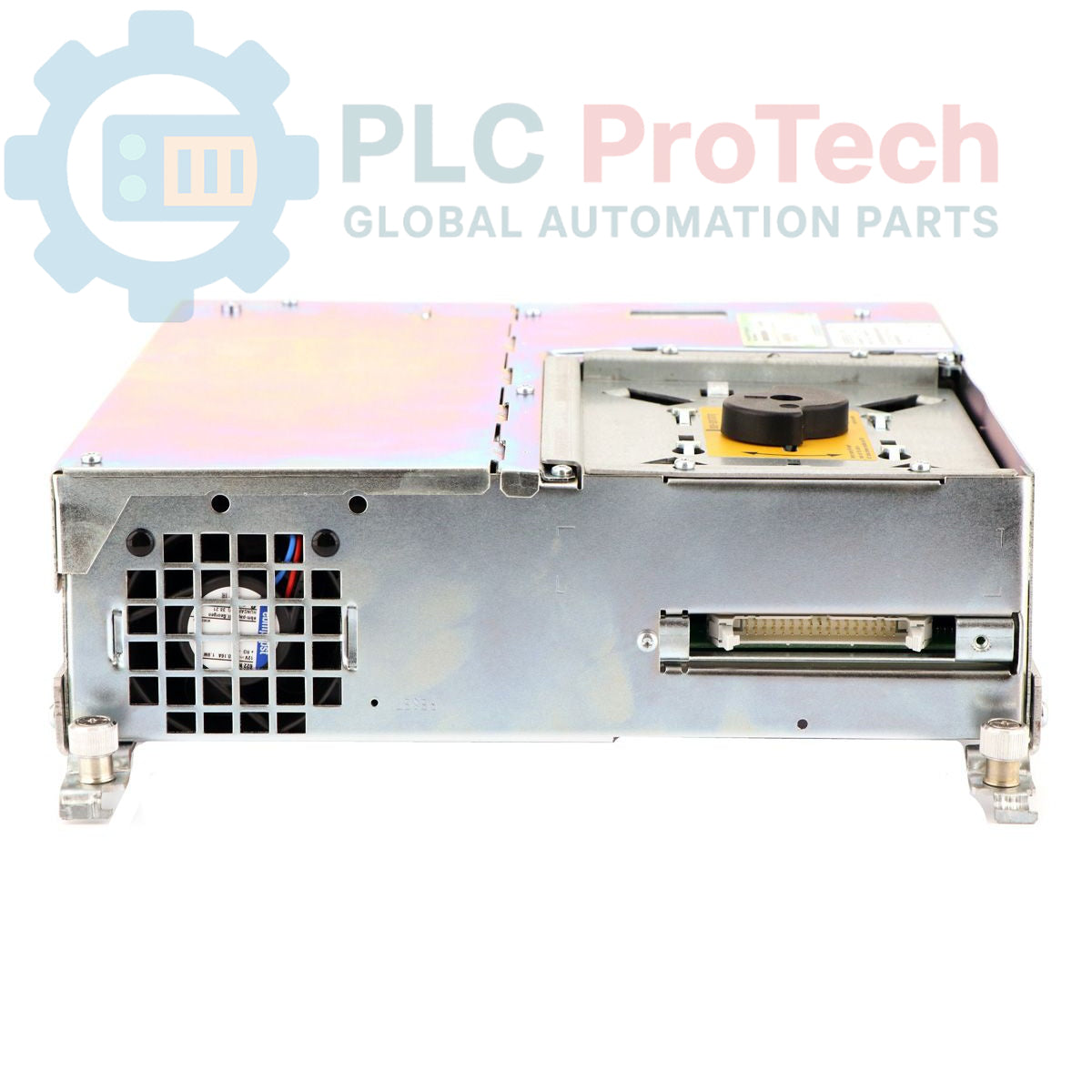

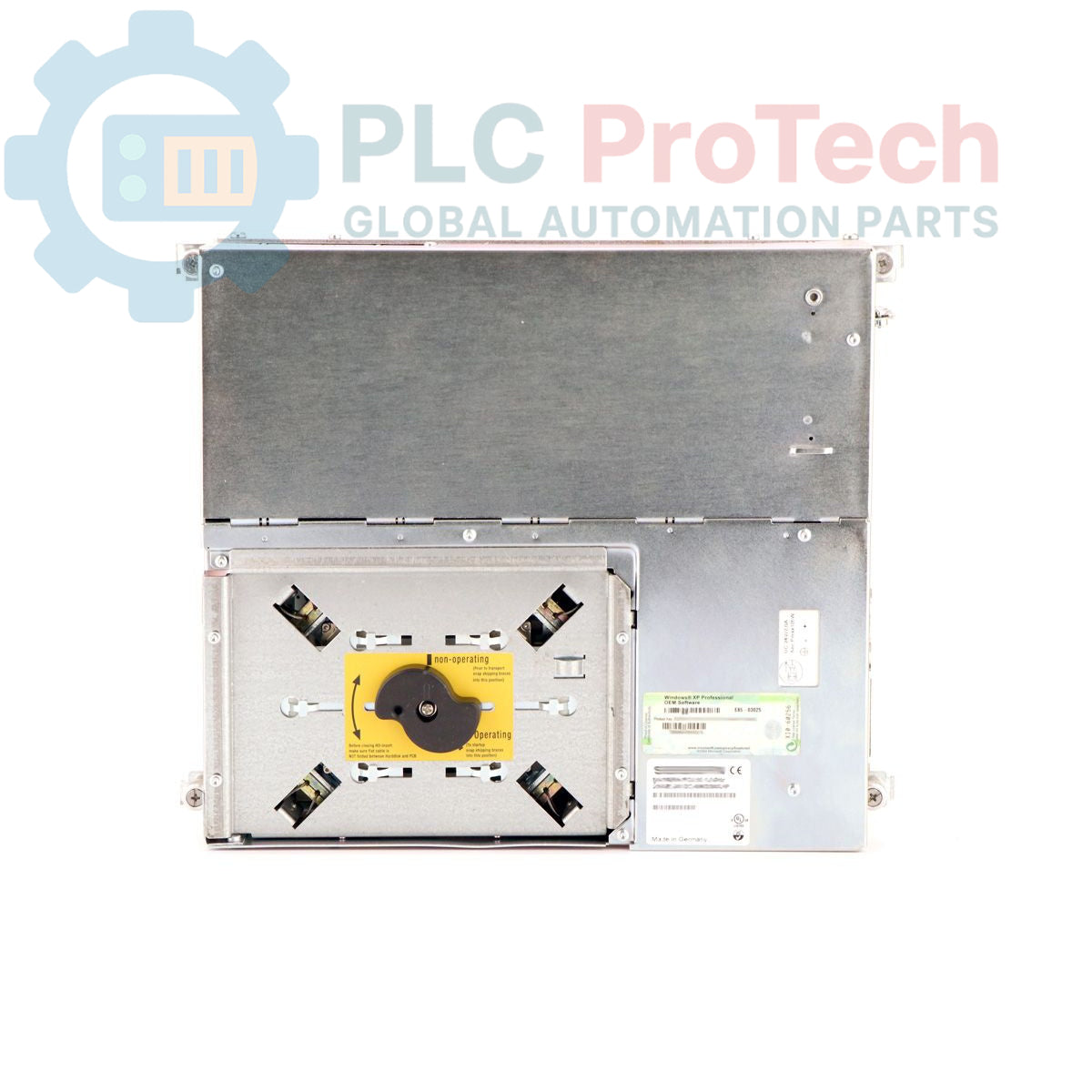

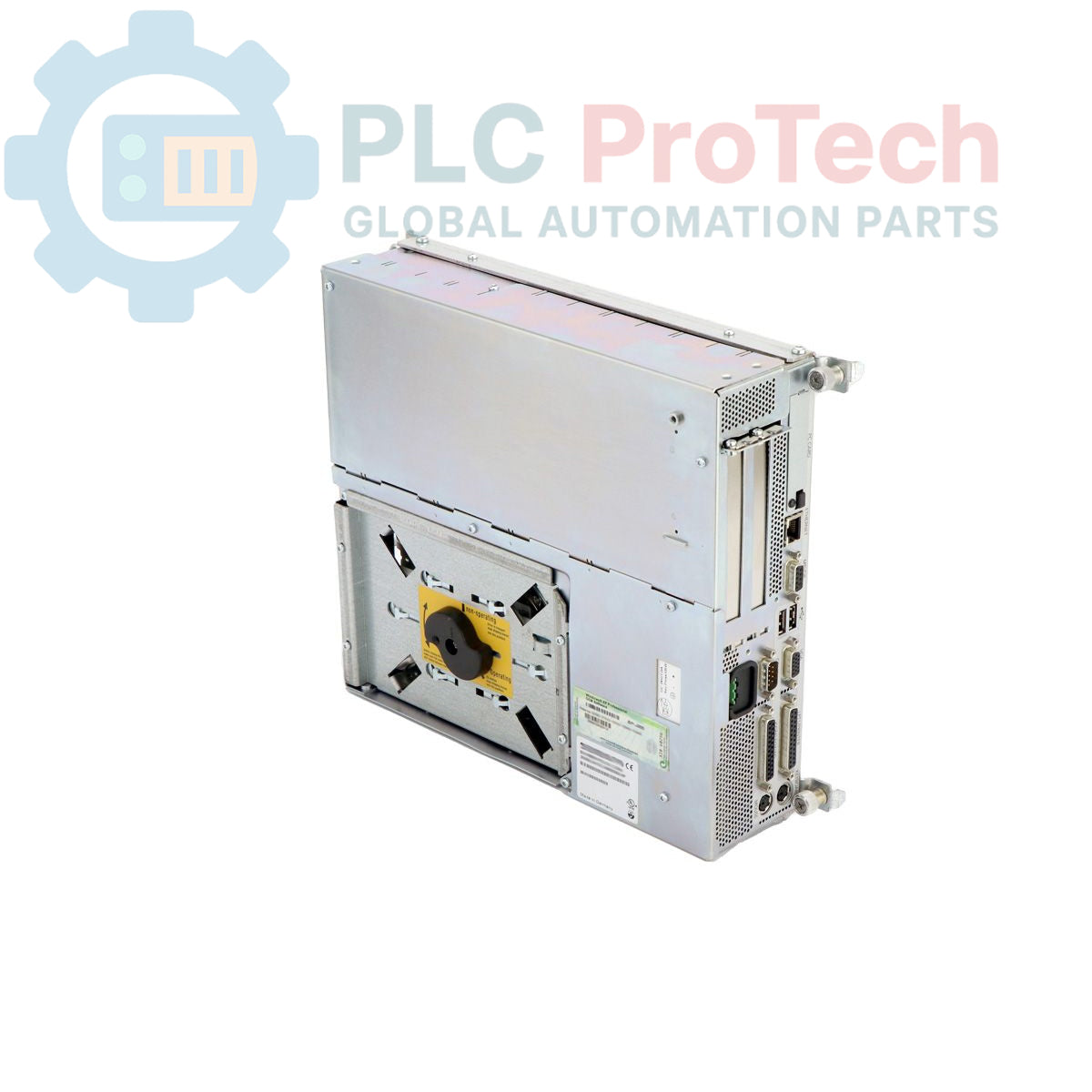

The Siemens 6ES7647-5EG10-2CX0 is a SIMATIC Box PC 620, an industrial personal computer designed for robust operation in automation environments. This PC box features an onboard AGP graphics controller with configurable memory (8/16/32 MB) and a 10/100 Mbit/s Ethernet interface via an RJ45 connector. It includes a PC Card (PCMCIA Type 3) slot, a watchdog timer, and temperature monitoring functions for enhanced reliability. Connectivity options include two USB ports and expansion slots comprising one PCI and one shared ISA/PCI slot. The system is powered by a Celeron 1.2 GHz processor with 256 KB SLC, and it integrates PROFIBUS/MPI at 12 Mbit/s, a TTY interface, a 40 GB EIDE hard disk drive, and 128 MB of SDRAM-133. A 1.44 MB, 3.5" floppy drive is also included. It operates on a 24 V DC industrial power supply and comes pre-installed with Windows NT 4.0 Workstation English, SP 5.

Features

• AGP Graphics Onboard (8/16/32 MB configurable)
• 10/100 Mbit/s Ethernet Interface (RJ45)
• PC Card (PCMCIA Type 3) Slot
• Integrated Watchdog and Temperature Monitoring
• 2 x USB Ports
• 1 x PCI Expansion Slot, 1 x ISA/PCI Shared Expansion Slot
• Celeron 1.2 GHz Processor with 256 KB SLC
• PROFIBUS/MPI 12 Mbit/s Interface
• TTY Interface
• 40 GB EIDE Hard Disk Drive
• 128 MB SDRAM-133
• 1.44 MB, 3.5" Floppy Drive
• 24 V DC Industrial Power Supply
• Pre-installed Windows NT 4.0 Workstation English, SP 5

Applications

The SIMATIC Box PC 620 is suitable for a range of industrial applications, including:

• Human Machine Interface (HMI) systems
• Data acquisition and processing
• Industrial control and monitoring
• Communication gateways in automation networks
• Process visualization and SCADA systems
• Machine control and embedded applications

Technical Specifications

Connections / Interfaces

The Siemens SIMATIC Box PC 620 provides a comprehensive set of interfaces for industrial integration:

• Ethernet: 10/100 Mbit/s RJ45 port for network connectivity.
• USB: Two USB ports for peripheral device connection.
• PC Card: One PCMCIA Type 3 slot for expansion cards.
• PROFIBUS/MPI: 12 Mbit/s interface for fieldbus communication.
• TTY: A serial TTY interface for specific communication needs.
• Expansion Slots: Includes one PCI slot and one shared ISA/PCI slot for additional hardware modules.

Installation Guidelines

Installation of the SIMATIC Box PC 620 should follow standard industrial practices to ensure reliable operation and safety.

1. De-energization: Before commencing installation, ensure all power to the system and associated equipment is de-energized and locked out.
2. Mounting: Securely mount the PC box in a suitable industrial enclosure or rack, ensuring adequate ventilation and access for cabling.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Grounding: Establish a proper protective earth (PE) connection to the chassis of the PC box to minimize electromagnetic interference and ensure electrical safety.
5. Interface Cabling: Connect Ethernet, USB, PROFIBUS/MPI, TTY, and any other required interface cables. Ensure cables are properly routed, secured, and shielded where necessary to prevent interference.
6. Expansion Cards: If using PCI or ISA/PCI expansion cards, install them carefully into the available slots, ensuring they are seated correctly and secured.
7. Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for industrial PC equipment. Avoid locations with excessive vibration, dust, or corrosive gases.
8. Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
