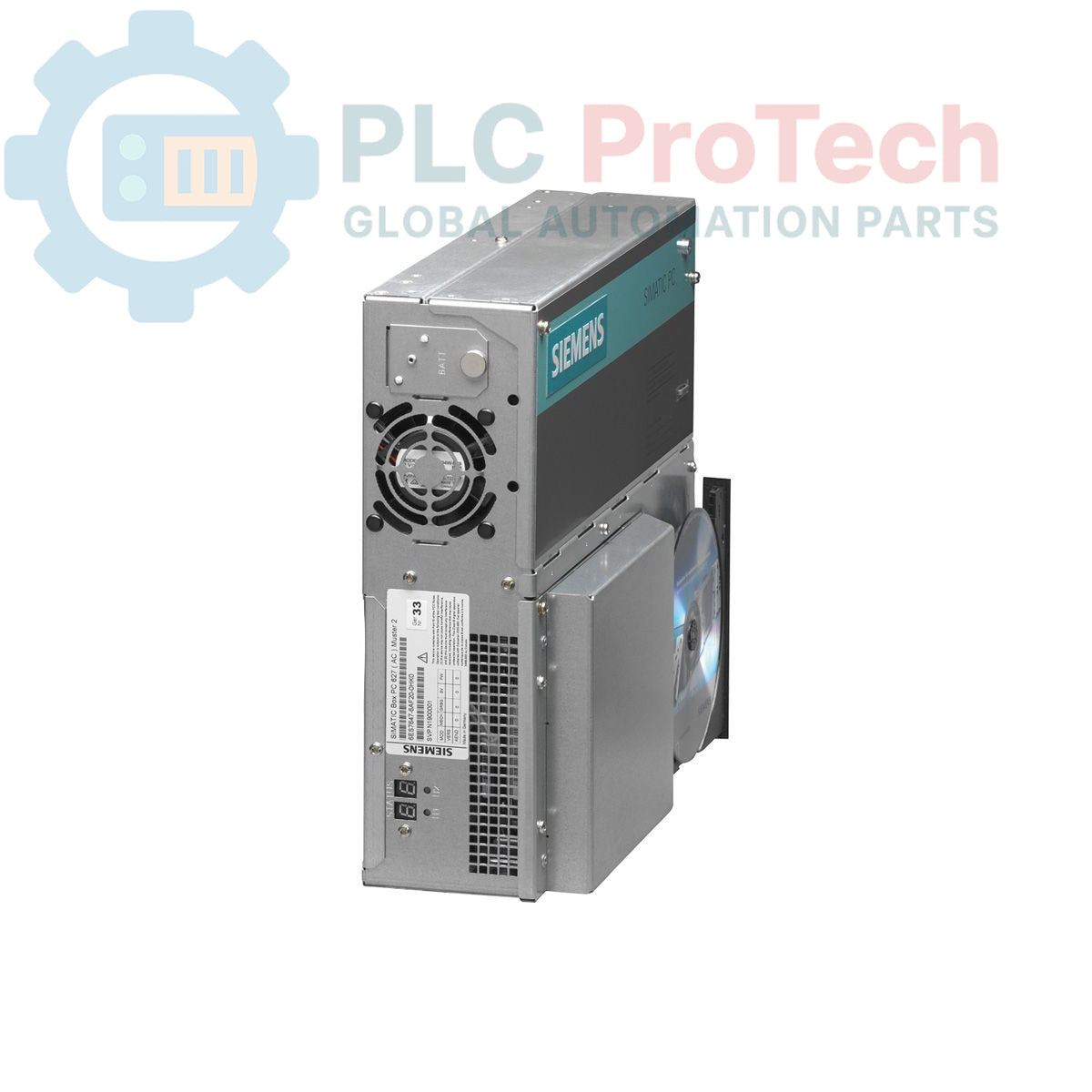

Siemens 6ES7647-6AB20-0AK0 SIMATIC Box PC 627 PC Box

Description

The Siemens 6ES7647-6AB20-0AK0 is a SIMATIC Box PC 627, an industrial personal computer designed for robust operation in automation environments. This unit features onboard AGP graphics with 8-128 MB shared memory, dual 10/100 Mbit/s Ethernet RJ45 ports, and four high-current USB V2.0 interfaces. It includes a serial COM1 port, an onboard RAID controller, and a slot for a Compact Flash drive. The system integrates a watchdog timer and temperature/fan monitoring for enhanced reliability. Powered by a Celeron M 370 1.5 GHz processor with a 400 MHz FSB and 1 MB SLC, it supports PROFIBUS/MPI communication. It comes equipped with 512 MByte DDR2 533 SODIMM RAM, an 80 GByte SATA HDD, and an AC 110/230V industrial power unit with NAMUR compatibility, supplied with a European power cable. The unit is pre-installed with Windows XP Professional Multi-Language SP2 (English, German, French, Italian, Spanish) and offers two free PCI slots for expansion.

Features

• AGP Graphics Onboard with 8-128 MB Shared Memory
• Dual 10/100 Mbit/s Ethernet RJ45 Interfaces
• Four High-Current USB V2.0 Ports
• One Serial (COM1) Port
• Onboard RAID Controller
• One Slot for Compact Flash Drive
• Integrated Watchdog Timer
• Temperature and Fan Monitoring
• Two Free PCI Expansion Slots
• Celeron M 370 1.5 GHz Processor (400 MHz FSB, 1 MB SLC)
• PROFIBUS/MPI Communication Support
• 512 MByte DDR2 533 SODIMM RAM
• AC 110/230V Industrial Power Unit with NAMUR
• 80 GByte SATA Hard Disk Drive
• Pre-installed Windows XP Professional Multi-Language SP2

Applications

The SIMATIC Box PC 627 is suitable for a variety of industrial automation tasks, including:

• Human-Machine Interface (HMI) applications
• Data acquisition and processing
• Process visualization and control
• Industrial communication gateways
• Machine control and monitoring systems
• Distributed control system (DCS) integration

Technical Specifications

Connections / Interfaces

The SIMATIC Box PC 627 provides the following external interfaces:

• Ethernet: Two RJ45 ports for 10/100 Mbit/s network connectivity.
• USB: Four USB V2.0 ports, designed for high current applications.
• Serial: One COM1 serial port for device communication.
• Industrial Bus: Integrated PROFIBUS/MPI interface for connection to industrial networks.

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the SIMATIC Box PC 627 in a suitable industrial enclosure or rack, ensuring adequate ventilation and access to ports.
3. Power Connection: Connect the AC 110/230V industrial power unit to a stable power source using the provided European power cable. Verify correct voltage and grounding.
4. Grounding: Establish a proper protective earth (PE) connection for the unit to ensure electrical safety and minimize electromagnetic interference.
5. Network Connections: Connect Ethernet cables to the RJ45 ports for network communication. Use shielded cables in noisy industrial environments.
6. Peripheral Connections: Connect USB devices, serial devices, and PROFIBUS/MPI cables as required by the application. Ensure proper cable routing to avoid strain and interference.
7. Environmental Considerations: Ensure the operating environment adheres to the specified temperature and humidity ranges for industrial PC equipment to maintain optimal performance and longevity.
8. Initial Power-Up: After all connections are verified, apply power to the unit. Monitor initial boot-up and system status indicators.
