Siemens 6ES7647-7AK20-0GA0 SIMATIC Microbox PC 427B

Description

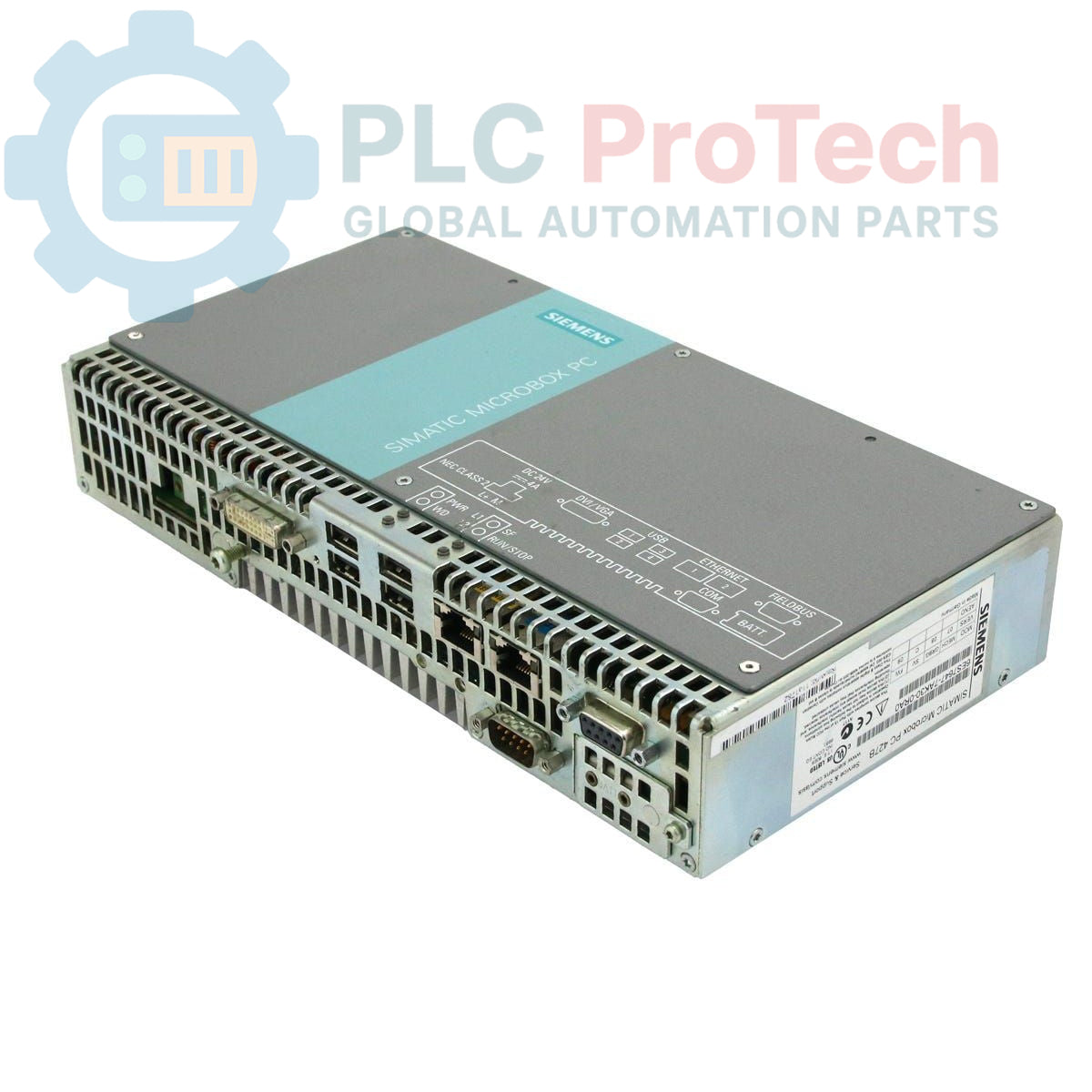

The Siemens 6ES7647-7AK20-0GA0 is a SIMATIC Microbox PC 427B, an industrial embedded computer engineered for automation applications. This unit features a Pentium M 1.4 GHz processor with a 400 MHz Front Side Bus (FSB) and 2 MB Second Level Cache (SLC). It is equipped with 512 MB DDR2 533 SODIMM memory, configured as one 512 MB module. For data storage, the device includes an internal, non-accessible 2 GB Compact-Flash drive. Industrial communication is facilitated via a PROFIBUS DP 12 interface. The Microbox PC comes with Windows XP Embedded preinstalled, though it is delivered without the embedded Windows software itself.

Features

• Processor: Pentium M 1.4 GHz, 400 MHz FSB, 2 MB SLC
• Memory: 512 MB DDR2 533 SODIMM (1 x 512 MB)
• Storage: 2 GB Compact-Flash (internal, not accessible)
• Communication Interface: PROFIBUS DP 12
• Operating System: Windows XP Embedded (preinstalled, software not included)
• No hardware extension

Applications

The Siemens SIMATIC Microbox PC 427B is suitable for a range of industrial applications requiring a robust and compact computing platform. Typical deployment scenarios include:

• Machine control and visualization systems
• Data acquisition and processing in harsh industrial environments
• Integration into Distributed Control Systems (DCS)
• Human-Machine Interface (HMI) tasks
• Embedded automation and edge computing solutions

Technical Specifications

Installation Guidelines

1. Safety First: Prior to any installation or maintenance, ensure that all power to the installation area is de-energized and secured according to lockout/tagout procedures.
2. Mounting: Mount the Microbox PC securely within a suitable industrial enclosure or control cabinet. Ensure adequate clearance around the unit for proper airflow and heat dissipation.
3. Power Connection: Connect the appropriate DC power supply to the designated power terminals, observing correct polarity. Verify that the power supply meets the specified voltage and current requirements for the unit.
4. Grounding: Establish a robust protective earth (PE) connection to the chassis of the Microbox PC. Proper grounding is essential for electrical safety and to minimize electromagnetic interference (EMI).
5. PROFIBUS DP Connection: Connect the PROFIBUS DP communication cable to the designated port. Adhere to standard PROFIBUS installation practices, including correct termination and shielding, to ensure reliable data transmission.
6. Peripheral Connections: Connect any necessary peripherals, such as display monitors, keyboards, or mice, to the available interface ports.
7. Cable Routing: Route all power and signal cables to prevent strain, abrasion, and potential interference. Segregate power cables from sensitive signal cables where possible.
8. Power Up: Once all connections have been verified for correctness and security, re-energize the power supply and observe the system startup sequence.
