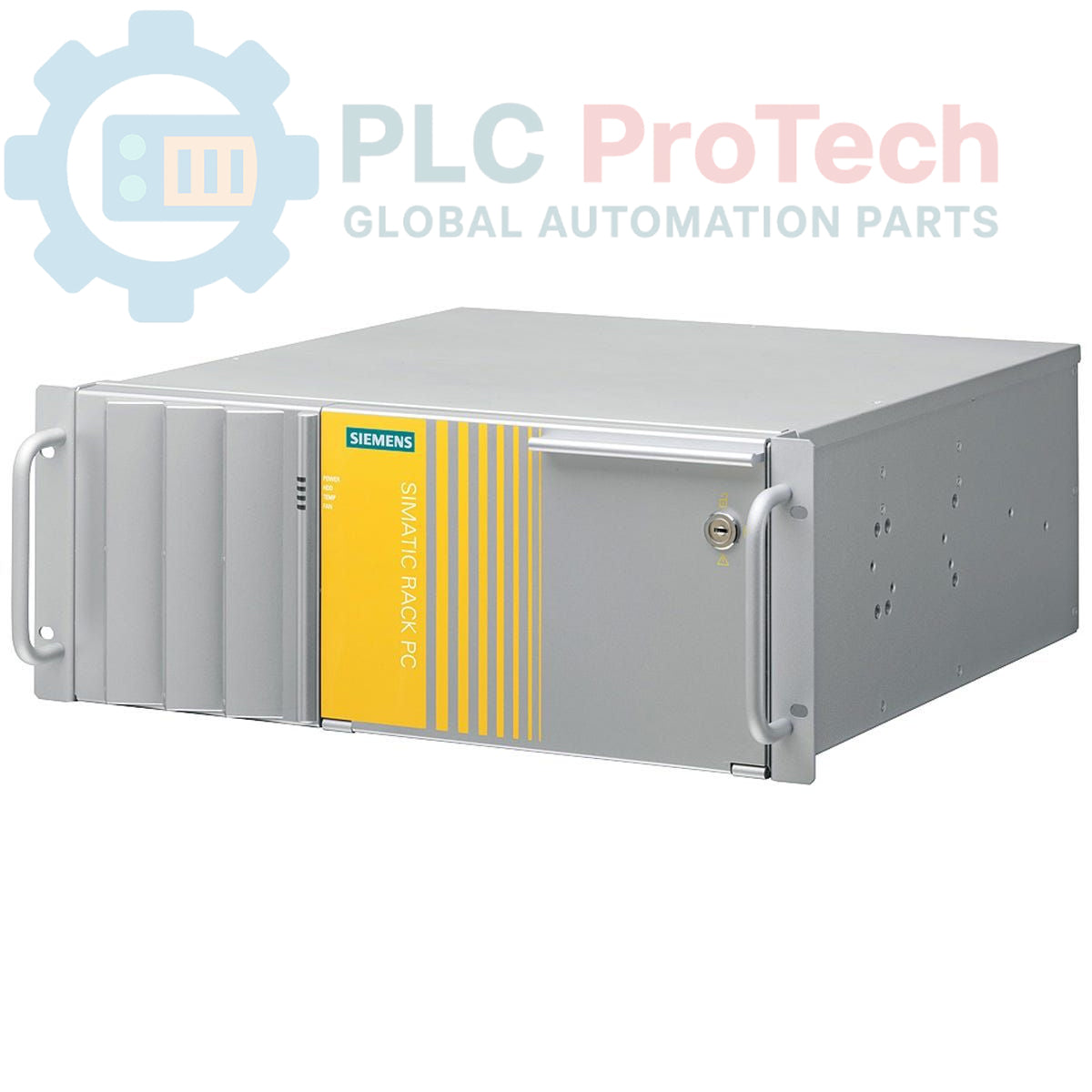

Siemens 6ES7660-0DC13-2BA0 SIMATIC IPC547C Industrial Workstation

SKU 6ES7660-0DC13-2BA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7660-0DC13-2BA0
Country of origin:Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 15g
Dimensions: 64.0 x 64.0 x 42.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7660-0DC13-2BA0 is a SIMATIC IPC547C industrial workstation designed for use as an OS Server within a SIMATIC PCS7 environment. This unit is equipped with an Intel Core 2 Duo E8400 processor, 2.0 GB of DDR2 SDRAM, and a redundant storage configuration. It comes pre-installed with SIMATIC PCS7 V7.1 SP3 software on a Windows Server 2003 Standard Edition operating system, making it a ready-to-deploy component for process control applications. The system includes an industrial-grade power supply and a European power cable.

Features

Processor: Intel Core 2 Duo E8400 (3.0 GHz, 1333 MHz FSB, 6 MB L2 Cache)
Memory: 2.0 GB DDR2 SDRAM (configured as 2 x 1.0 GB modules)
Storage: RAID1 configuration with two 250 GB SATA hard disk drives for data redundancy
Optical Drive: DVD+/-RW drive for software installation and data backup
Legacy Support: Includes a Floppy Disk Drive (FDD)
Pre-installed Software: SIMATIC PCS7 V7.1 with Service Pack 3
Operating System: Windows Server 2003 Standard Edition with 5 Client Access Licenses (CALs)
Power Supply: 110/230 V industrial power supply unit

Applications

Process Control Systems (PCS)
Supervisory Control and Data Acquisition (SCADA) servers
Human-Machine Interface (HMI) server stations
Industrial data logging and archiving
Engineering and configuration workstations

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC Rack PC
Model	IPC547C
Part Number	6ES7660-0DC13-2BA0
Processor	Intel Core 2 Duo E8400
CPU Clock Speed	3.0 GHz
Front Side Bus (FSB)	1333 MHz
L2 Cache	6 MB
Processor Features	EM64-T, VT
Memory (RAM)	2.0 GB DDR2 SDRAM (2 x 1.0 GB)
Storage Configuration	RAID1 (Mirroring)
Hard Drives	2 x 250 GB SATA HDD, internally mounted
Optical Drive	DVD+/-RW
Floppy Drive	Included
Pre-installed Software	SIMATIC PCS7 V7.1 + SP3
Operating System	Windows Server 2003 Standard Edition, MUI (en/de/fr/it/es/cn)
Client Access Licenses (CAL)	5
Power Supply	110/230 V AC Industrial Power Supply
Product Lifecycle Status	Obsolete
Shipping Weight	15.00 kg
Package Dimensions (Calculated)	64.0 x 64.0 x 42.0 cm
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Hazardous voltages are present. Installation must be performed by qualified personnel only. Ensure the unit is completely de-energized and locked out (LOTO) before handling, mounting, or connecting any cables. Failure to comply can result in severe injury or death.

1 Site Preparation: Verify the installation environment is within the specified operating temperature and humidity ranges. Ensure the 19-inch rack has adequate clearance for airflow and cable management.
2 ESD Precautions: Use an anti-static wrist strap connected to a verified earth ground point before handling the IPC. Electrostatic discharge can damage sensitive internal components.
3 Mounting: Securely install the IPC into the rack using all provided mounting points and appropriate hardware. Ensure the unit is level and fully supported by the rack rails.
4 Grounding: Connect the chassis grounding terminal to the cabinet's protective earth (PE) bus bar using a low-impedance conductor. This is critical for both safety and noise immunity.
5 Connections: Connect all required peripherals, such as monitors, keyboards, and network cables. Ensure all connectors are fully seated and secured.
6 Power Up: After verifying all connections, connect the power cord to a suitable, protected power source. Power on the unit and verify that the operating system boots correctly.

FAQ

What operating system is pre-installed on the 6ES7660-0DC13-2BA0?

This unit comes with Windows Server 2003 Standard Edition pre-installed. It includes a Multi-language User Interface (MUI) and 5 Client Access Licenses (CALs).

What is the storage configuration of this industrial PC?

It is configured with a RAID1 array, which uses two 250 GB SATA hard disk drives to mirror data for redundancy and improved data protection.

Does this workstation include SIMATIC software?

Yes, it is delivered with SIMATIC PCS7 Version 7.1, including Service Pack 3, pre-installed and ready for integration into a PCS7 system.

What processor is used in this IPC547C model?

This industrial workstation is equipped with an Intel Core 2 Duo E8400 processor, which operates at a clock speed of 3.0 GHz and has a 6 MB L2 cache.

Is this product still in active production by Siemens?

No, the product lifecycle status for the 6ES7660-0DC13-2BA0 is listed as Obsolete. It is available as a spare or replacement part.
