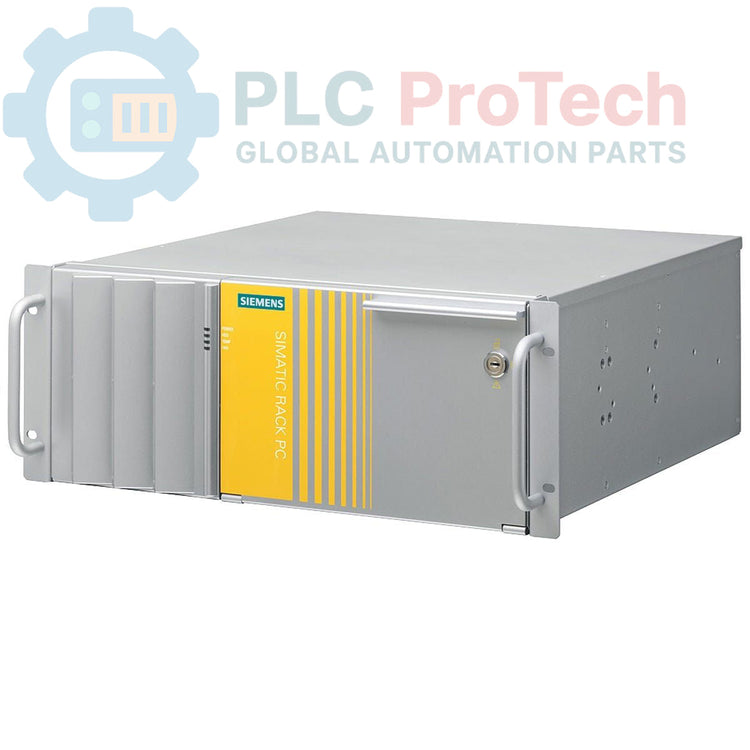

Siemens 6ES7660-0DE33-2BA0 SIMATIC Rack PC Industrial Workstation

SKU 6ES7660-0DE33-2BA0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7660-0DE33-2BA0
Country of origin:Germany
Product Type: Industrial Workstation
Barcode: 85371091
Payment: T/T, Western Union
Weight: 15g
Dimensions: 64.00 x 64.00 x 42.00 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7660-0DE33-2BA0 is a SIMATIC PCS7 Industrial Workstation, model IPC547C, designed for robust industrial environments. This rack-mounted PC features an Intel Core 2 Duo E8400 processor running at 3.0 GHz with a 1333 MHz FSB and 6 MB L2 cache, supporting EM64-T and VT technologies. It is configured with an OS Server IE RAID1 system, comprising two 250 GB SATA hard drives in a removable, hot-swappable frame. The workstation includes 4.0 GB of DDR2 SDRAM (2 x 2.0 GB) that is front-side mounted, a DVD+/RW drive, and an FDD. It comes with PCS7 V7.1 + SP3 pre-installed, alongside Windows Server 2003 Standard with MUI support (English, German, French, Italian, Spanish, Chinese) and 5 Client Access Licenses (CALs). Power is supplied via a 110/230 V industrial power supply unit, complete with a power supply cable for Europe.

Features

Intel Core 2 Duo E8400 Processor (3.0 GHz, 1333 MHz FSB, 6 MB L2 cache, EM64-T, VT)
OS Server IE RAID1 with 2 x 250 GB SATA HDDs
Removable and hot-swappable drive frame
4.0 GB DDR2 SDRAM (2 x 2.0 GB), front-side mounted
Integrated DVD+/RW drive and FDD
Pre-installed PCS7 V7.1 + SP3 software
Pre-installed Windows Server 2003 Standard (MUI, 5 CAL)
110/230 V Industrial Power Supply Unit

Applications

Industrial control systems requiring a robust workstation
SIMATIC PCS7 process control environments
Operating system server applications in industrial settings
Data acquisition and processing in automation systems

Technical Specifications

Brand	Siemens
Manufacturer	Siemens
Range	Simatic Rack PC
Subrange	IPC
Product Type	Industrial Workstation
PLM Product Phase	Obsolete
Processor	Intel Core 2 Duo E8400 (3.0 GHz, 1333 MHz FSB, 6 MB L2 cache, EM64-T, VT)
Operating System	Windows Server 2003 Standard, MUI (en/de/fr/it/es/cn), 5 CAL
Pre-installed Software	PCS7 V7.1 + SP3
Hard Drive Configuration	OS Server IE RAID1 (2 x 250 GB HDD SATA), removable, hot-swappable
RAM	4.0 GB DDR2 SDRAM (2 x 2.0 GB), front-side mounted
Optical Drive	DVD+/RW
Floppy Drive	FDD
Power Supply	110/230 V Industrial Power Supply Unit
Package Dimensions (Calculated)	64.00 x 64.00 x 42.00 cm
Shipping Weight	15.00 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Installation Guidelines

Safety First: Ensure all power to the rack and associated equipment is de-energized before installation or removal.
Rack Mounting: Securely mount the industrial workstation into a standard industrial rack using appropriate mounting hardware.
Power Connection: Connect the 110/230 V industrial power supply unit to a suitable power source. Verify correct voltage and grounding.
Peripheral Connections: Connect necessary peripherals such as monitor, keyboard, and mouse.
Network Cabling: Connect Ethernet cables for network integration, ensuring proper routing and strain relief.
Drive Installation: If installing or replacing hot-swappable drives, follow the system's procedure for safe removal and insertion to maintain data integrity.
Cooling: Ensure adequate airflow around the unit within the rack to prevent overheating, especially given its industrial application.
Initial Power-Up: After all connections are verified, apply power and monitor the system's boot sequence.

FAQ

What processor is included in the 6ES7660-0DE33-2BA0?

The workstation features an Intel Core 2 Duo E8400 processor, operating at 3.0 GHz with a 1333 MHz FSB and 6 MB L2 cache.

What operating system and software are pre-installed?

It comes with Windows Server 2003 Standard (MUI with 5 CALs) and PCS7 V7.1 + SP3 pre-installed.

What is the memory configuration of this industrial workstation?

The unit is equipped with 4.0 GB of DDR2 SDRAM, configured as two 2.0 GB modules, which are front-side mounted.

Does the hard drive system support hot-swapping?

Yes, the OS Server IE RAID1 system uses two 250 GB SATA HDDs in a removable, hot-swappable frame.

What are the power supply requirements for this unit?

It requires a 110/230 V industrial power supply unit, and a power supply cable for Europe is included.
