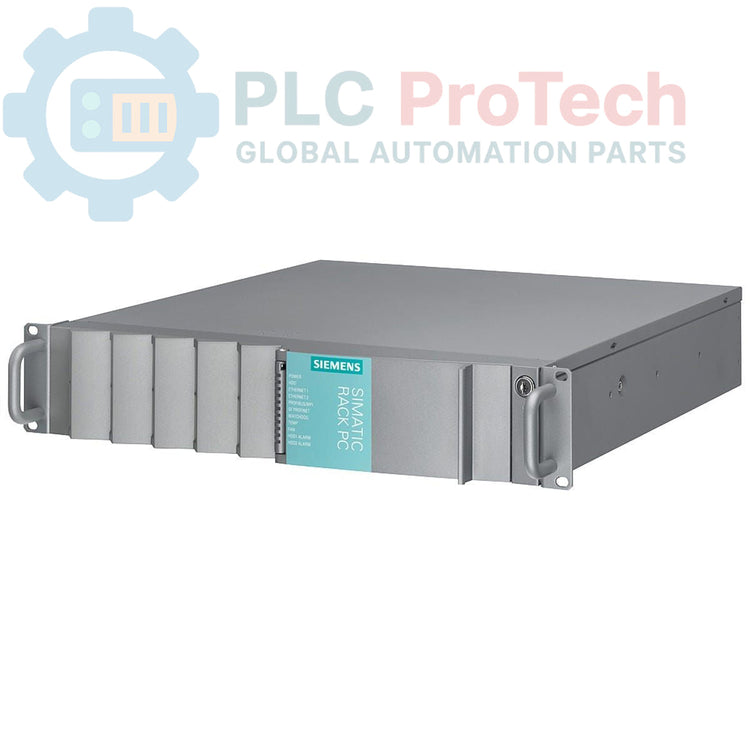

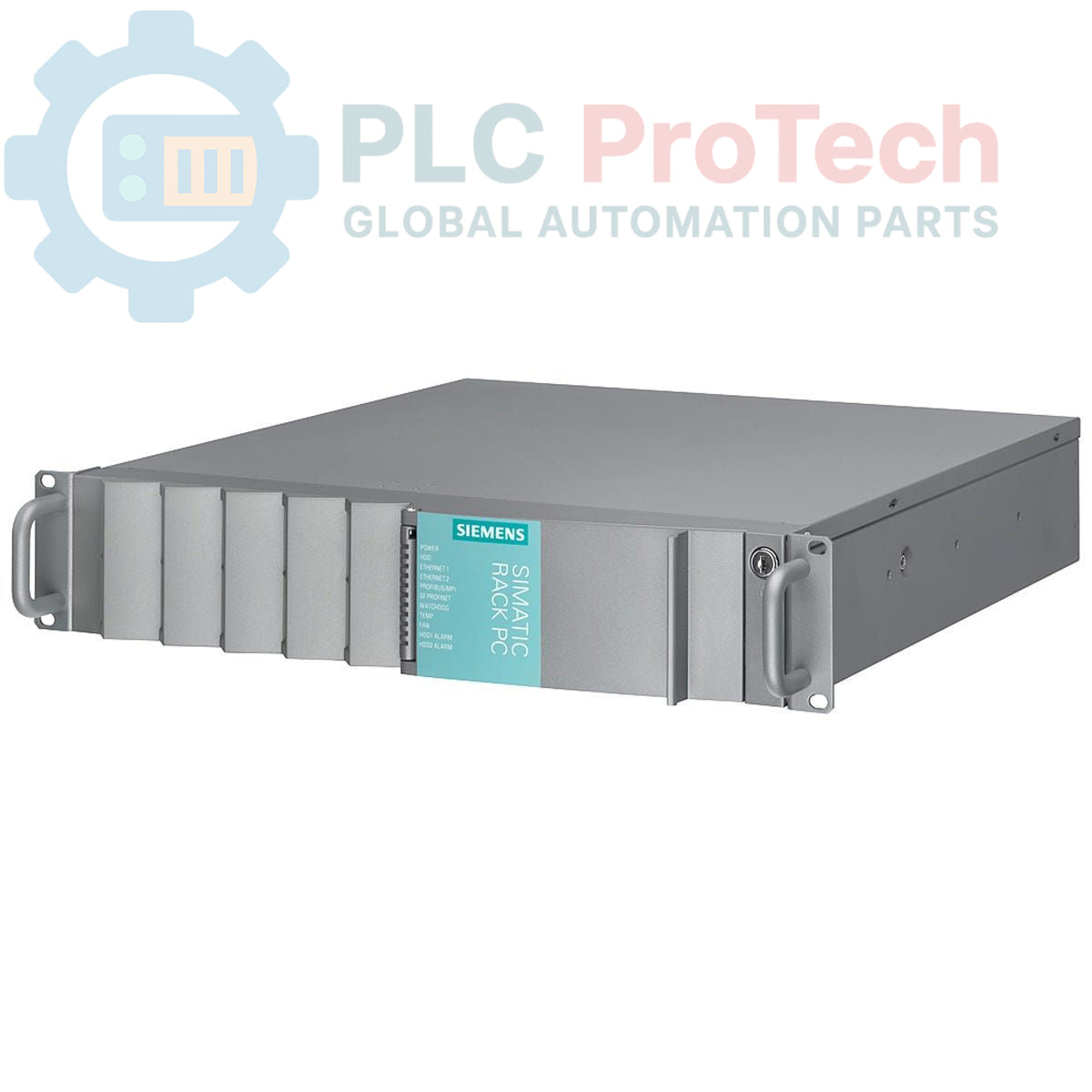

Siemens 6ES7660-1CB38-1CA0 SIMATIC Rack PC IPC647C Industrial Workstation

Description

The Siemens 6ES7660-1CB38-1CA0 is a SIMATIC PCS 7 Industrial Workstation IPC647C designed for robust industrial environments. This rack-mounted PC functions as an OS Client and is equipped with an INTEL Core I7-610E processor (2C/4T, 2.53 GHz, 4 MB cache, TB, VT-X, VT-D, EM64-T). It features 8 GB of DDR3 SDRAM (2 x 4 GB) in a DIMM, Dual Channel configuration, and a 1 x 500 GB SATA HDD with a removable frame mounted on the front. The workstation comes with PCS 7 V8.0 SP1 pre-installed and runs on Windows 7 Ultimate, 64 bit, with a Multi-User Interface (MUI) supporting English, German, French, Italian, Spanish, and Chinese. It includes a 110/230 V industrial power supply unit and a power supply cable for Europe, without additional system bus communication cards or extensions.

Features

• SIMATIC PCS 7 Industrial Workstation IPC647C
• INTEL Core I7-610E Processor (2C/4T, 2.53 GHz, 4 MB cache)
• 8 GB DDR3 SDRAM (2 x 4 GB), DIMM, Dual Channel
• 1 x 500 GB SATA HDD with removable front-mounted frame
• PCS 7 V8.0 SP1 pre-installed
• Windows 7 Ultimate, 64 bit, MUI (en/de/fr/it/es/cn)
• 110/230 V Industrial Power Supply Unit
• Designed for OS Client applications

Applications

The Siemens SIMATIC Rack PC IPC647C Industrial Workstation is typically deployed in:

• Process control systems as an Operator Station (OS Client) within SIMATIC PCS 7 environments.
• Industrial automation systems requiring a robust and reliable computing platform for visualization and control tasks.
• Data acquisition and processing in manufacturing and infrastructure applications.
• Supervisory control and data acquisition (SCADA) systems.

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the rack and associated equipment is de-energized and locked out before beginning installation.
2. Mounting: Securely mount the IPC647C into a standard industrial rack using appropriate mounting hardware. Verify stable and level placement.
3. Power Connection: Connect the provided Europe power supply cable to the 110/230 V industrial power supply unit. Ensure proper grounding of the rack and workstation to prevent electrical hazards and interference.
4. Peripheral Connections: Connect necessary peripherals such as monitors, keyboards, and mice.
5. Network Connections: If network connectivity is required, connect Ethernet cables to the integrated network interfaces. Ensure proper cable routing to avoid strain and interference.
6. Removable Disk Handling: When inserting or removing the front-mounted hard drive, follow the manufacturer's guidelines to ensure data integrity and prevent damage to the drive or bay.
7. Ventilation: Ensure adequate airflow around the workstation for proper cooling. Do not obstruct ventilation openings.
8. Power Up: After all connections are secure and verified, restore power to the system and observe for proper boot-up and operation.
