Siemens 6ES7660-5GB31-2AD0 SIMATIC Rack PC IPC647D Industrial Workstation

Description

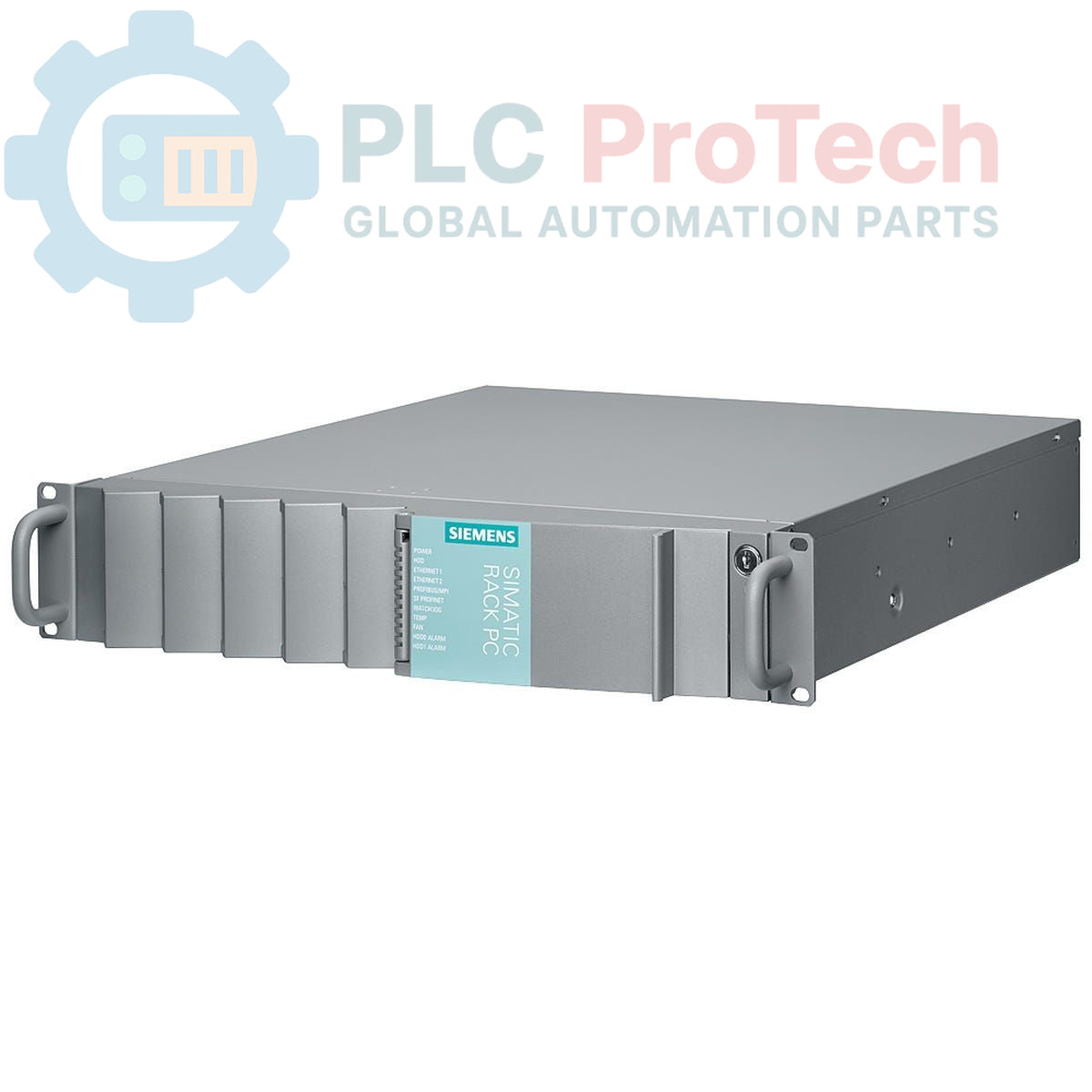

The Siemens 6ES7660-5GB31-2AD0 is a SIMATIC PCS 7 Industrial Workstation IPC647D, designed as a 19-inch, 2HE rack-mountable PC. This workstation is configured for use as an ES/OS Single Station within SIMATIC PCS 7 systems, featuring a Xeon E3-1268LV3 processor, 32 GB DDR3 SDRAM, and a 1 TB SATA HDD. It comes with PCS 7 V8.2 SP1 and Windows 7 Ultimate (64-bit, MUI) pre-installed. The unit provides comprehensive connectivity including multiple Gbit LAN, DVI-I, Display Port, COM, PS/2, Audio, and USB interfaces. It also includes an Industrial Ethernet (CP1623) module and a bus module with PCI and PCIe X16 slots for expansion. Integrated features like temperature and fan monitoring, watchdog, and a card retainer ensure reliable operation in industrial environments, supported by a 100/240V industrial power supply unit with NAMUR compatibility.

Features

• Xeon E3-1268LV3 Processor (4C/8T, 2.3 GHz, 8 MB cache, TB, VT-D, AMT)
• 32 GB DDR3 SDRAM (4 x 8 GB), Dual Channel
• 1 TB SATA Hard Disk Drive (internal)
• Pre-installed Windows 7 Ultimate, 64 bit, Multi-Language User Interface (MUI)
• Pre-installed SIMATIC PCS 7 V8.2 SP1
• Integrated Industrial Ethernet (CP1623)
• Multiple Gbit LAN, DVI-I, Display Port, COM, PS/2, Audio interfaces
• USB 3.0 and USB 2.0 ports (front, rear, internal)
• Bus module with 4 slots: 2x PCI, 2x PCIE X16 (8 lane)
• Slim DVD +/-RW optical drive
• Temperature and fan monitoring, Watchdog, card retainer
• 100/240V industrial power supply unit with NAMUR compatibility
• 19-inch, 2HE Rack PC form factor
• Rated for 0.5 G vibration and 5 G shock resistance

Applications

The Siemens 6ES7660-5GB31-2AD0 Industrial Workstation is typically deployed in:

• SIMATIC PCS 7 process control systems as an Engineering Station (ES) or Operator Station (OS)
• Industrial automation environments requiring robust computing power
• Data acquisition and processing in harsh industrial settings
• Supervisory control and data acquisition (SCADA) systems
• Machine control and visualization applications

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the rack and associated equipment is disconnected before beginning installation.
2. Rack Mounting: Install the 19-inch, 2HE rack PC into a standard industrial rack using appropriate mounting hardware. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the industrial power supply unit to a 100/240V AC source using the provided power supply cable (Europe type specified). Verify secure and correct polarity.
4. Interface Connections: Connect necessary peripherals and network cables to the Gbit LAN (RJ45), DVI-I, Display Port, COM, PS/2, Audio, and USB interfaces as required by the system architecture.
5. Expansion Cards: If installing additional PCI or PCIe X16 expansion cards, ensure they are correctly seated in the bus module slots and secured with the integrated card retainer mechanism.
6. Grounding: Ensure the rack PC and the industrial rack are properly grounded to prevent electrical interference and ensure safety.
7. Environmental Considerations: Position the workstation in an environment that respects its vibration (0.5 G) and shock (5 G) ratings. Ensure proper airflow for the integrated fan monitoring system.
8. Power On: After all connections are verified, re-energize the system and observe for proper startup.
