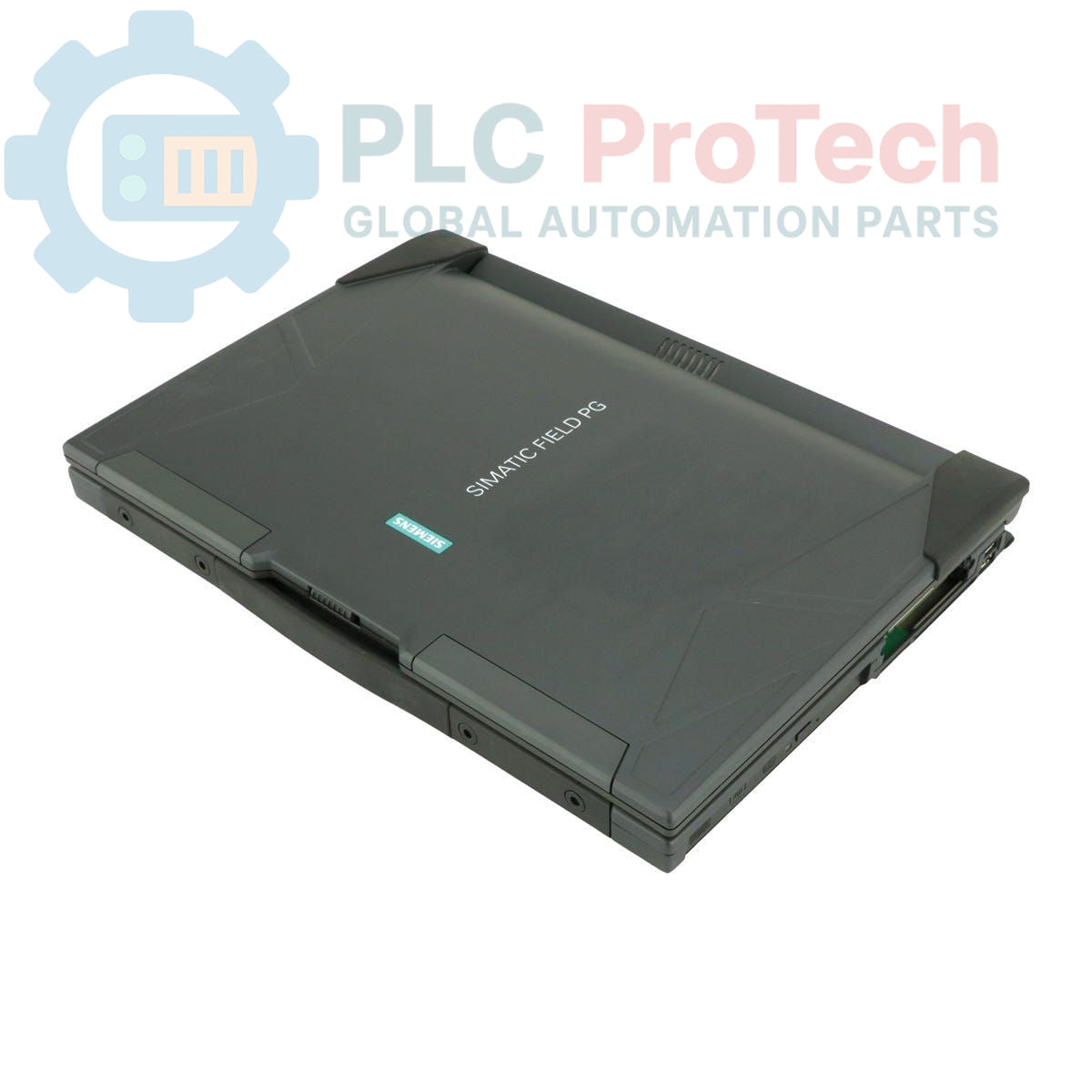

Siemens 6ES7715-1DD22-0CA0 SIMATIC Field PG M3 Industrial Programming Device

Description

This is the Siemens 6ES7715-1DD22-0CA0, a SIMATIC Field PG M3 industrial programming device in the Premium configuration. Engineered for mobile commissioning, service, and maintenance of automation systems, this rugged laptop is equipped with an Intel Core i5-520M processor, 8 GB of DDR3 RAM, and a 300 GB S-ATA Solid State Drive (SSD). It features a 15.6-inch Full HD display and comes pre-loaded with a 64-bit Windows 7 Ultimate SP1 image. This specific model is supplied with power cables for the USA and Japan and holds FCC and IC approvals. Please note that this unit does not include an S5 interface or S5-EPROMMER, and STEP 5 or STEP 7-Micro/WIN software is not pre-installed or executable under the provided Windows 7 environment.

Features

• Processor: Intel Core i5-520M operating at 2.4 GHz.
• Memory: 8 GB DDR3 RAM configured as two 4 GB modules.
• Storage: 300 GB S-ATA Solid State Drive (SSD).
• Display: 15.6-inch Full HD with a resolution of 1920 x 1080 pixels.
• Optical Drive: DL Multi-Standard DVD RW drive.
• Operating System: Windows 7 Ultimate SP1 (64-bit) with a multi-language image (EN/DE/FR/SP/IT).
• Keyboard: QWERTY layout with German character set.
• Included Software: Trial licenses for STEP 7 Professional and WinCC Flexible Advanced (Version 04/2010).
• Connectivity: Supplied with power cords for USA and Japan.
• Approvals: Certified for use in the USA (FCC) and Canada (IC).

Applications

• Commissioning and startup of PLC, HMI, and drive systems.
• On-site diagnostics, troubleshooting, and maintenance of industrial automation equipment.
• Mobile engineering workstation for plant floor and field service applications.
• Program development, modification, and backup for SIMATIC controllers.

Technical Specifications

Installation Guidelines

1. 1 Upon receipt, carefully inspect the packaging and the Field PG for any signs of shipping damage. Verify the contents against the packing list.
2. 2 Select the appropriate power supply cable (USA or Japan) provided with the unit. Connect it securely to the Field PG and to a stable, grounded AC power outlet.
3. 3 Power on the device and follow the on-screen prompts for the initial Windows 7 Ultimate setup, including selecting the desired language from the pre-loaded image.
4. 4 Activate the included trial software licenses for STEP 7 Professional and WinCC Flexible Advanced as required for your engineering tasks.
5. 5 Before connecting to any industrial network or PLC, ensure all communication parameters (e.g., IP address, baud rate) are correctly configured to prevent network conflicts.
