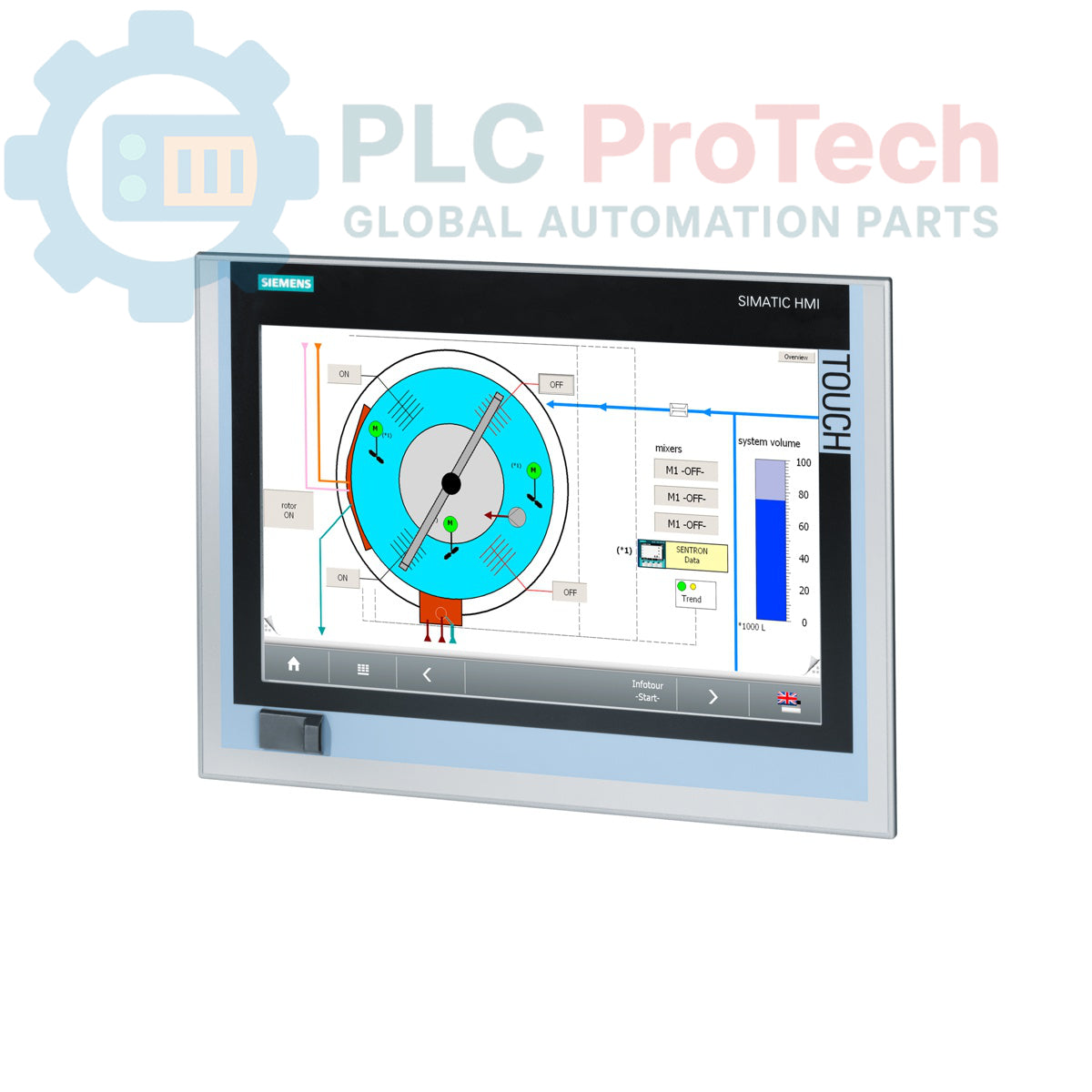

Siemens SIMATIC IPC277E 6AV7882-0DB20-0CA0 Panel PC

Description

This is a Siemens SIMATIC IPC277E Panel PC, model 6AV7882-0DB20-0CA0, designed for industrial HMI and control applications. It features a 15-inch Touch TFT display driven by an integrated Intel Celeron N2930 processor with 4 GB of RAM. For storage, the unit is equipped with a 240 GB Solid-State Drive (SSD). Connectivity is provided through dual Gigabit Ethernet ports, multiple USB 3.0 and 2.0 ports, a serial port, and a Display Port for external video. This Panel PC operates on a 24 V DC power supply and is delivered without a pre-installed operating system or SIMATIC software, offering a flexible platform for custom application deployment.

Features

• 15-inch Touch TFT display for operator interface
• Intel Celeron N2930 processor (4 Cores / 4 Threads)
• 4 GB of installed RAM
• 240 GB Solid-State Drive for fast boot and data access
• Dual 10/100/1000 Mbps RJ45 Ethernet ports
• One Display Port for connecting an external monitor
• Multiple USB ports, including USB 3.0 and a front-accessible port
• CFAST card slot for storage expansion
• Requires a 24 V DC power source

Applications

• Human-Machine Interface (HMI) for process visualization and control
• SCADA client terminals in manufacturing and utility environments
• Data acquisition and logging stations
• Machine-level control and monitoring systems
• Integration into industrial control panels and cabinets

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is de-energized and locked out (LOTO). Verify the absence of voltage before proceeding.
2. 2 Prepare the panel cutout according to the mechanical drawings for the IPC277E. Ensure all metal shavings are removed from the enclosure.
3. 3 Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps. Tighten clamps to the manufacturer's specified torque to ensure a proper seal.
4. 4 Connect a stable, correctly rated 24 V DC power supply to the designated power terminals. Verify correct polarity (+/-) before connecting.
5. 5 Connect the chassis grounding point to the cabinet's protective earth (PE) busbar using a low-impedance conductor.
6. 6 Connect Ethernet, USB, Display Port, and any other required peripheral cables. Ensure proper cable routing and strain relief.
7. 7 Once all connections are verified, remove the lockout/tagout devices and re-energize the cabinet to begin software installation and commissioning.
