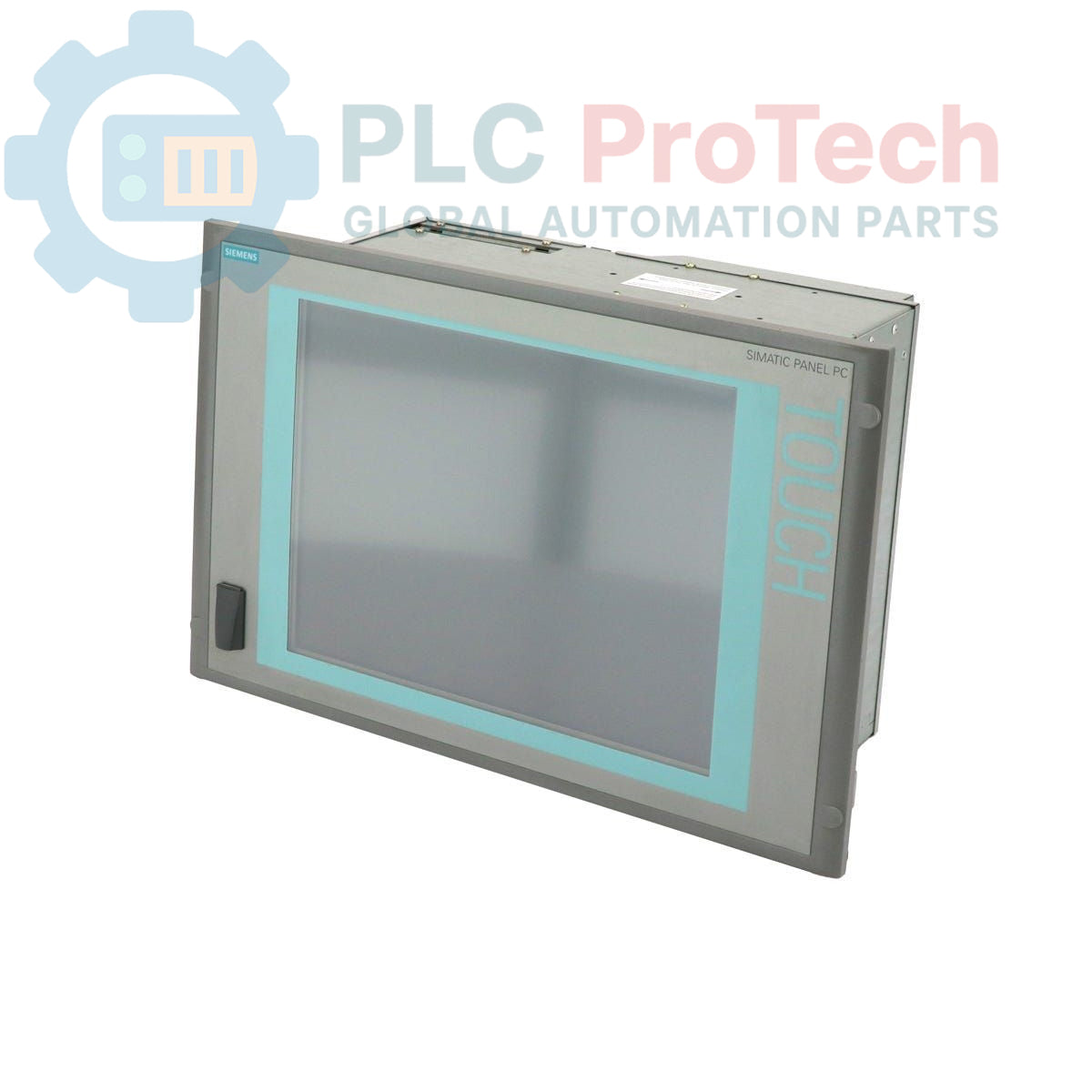

Siemens SIMATIC Panel PC 577 6AV7820-0AA00-1AB0

Description

This Siemens SIMATIC Panel PC 577, model 6AV7820-0AA00-1AB0, is an industrial human-machine interface (HMI) with an integrated computing unit designed for machine-level control and visualization tasks. It features a 12-inch touch display, a Celeron 2.0 GHz processor, and 256 MB of DDR400 SDRAM. The unit is equipped with a DVD-ROM drive and comes pre-installed with the Windows 2000 SP4 Professional Multi-language User Interface (MUI) operating system.

Features

• 12-inch color touch display for operator interaction.
• Integrated Celeron processor operating at 2.0 GHz.
• 256 MB of DDR400 SDRAM for application processing.
• Built-in DVD-ROM optical drive.
• Pre-loaded with Windows 2000 SP4 Professional MUI.

Applications

• Machine control and process visualization.
• Supervisory Control and Data Acquisition (SCADA) clients.
• Data logging and reporting stations.
• Factory floor information terminals.

Technical Specifications

Installation Guidelines

1. 1 Verify that the panel cutout dimensions match the PC 577's mounting requirements. Ensure the mounting surface is flat, clean, and can support the unit's weight.
2. 2 Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to ensure a proper seal against the panel gasket.
3. 3 Connect a low-impedance protective earth (PE) ground wire to the designated grounding terminal on the Panel PC chassis. This is critical for safety and noise immunity.
4. 4 Connect the main power supply to the unit's power input terminal, ensuring the voltage matches the rating specified on the device label.
5. 5 Connect all required communication and peripheral cables (e.g., Ethernet, USB, serial). Ensure proper cable strain relief and routing to prevent accidental disconnection.
