Siemens SIMOVERT MASTERDRIVES 6SE7016-1EA61 Vector Control Inverters

Description

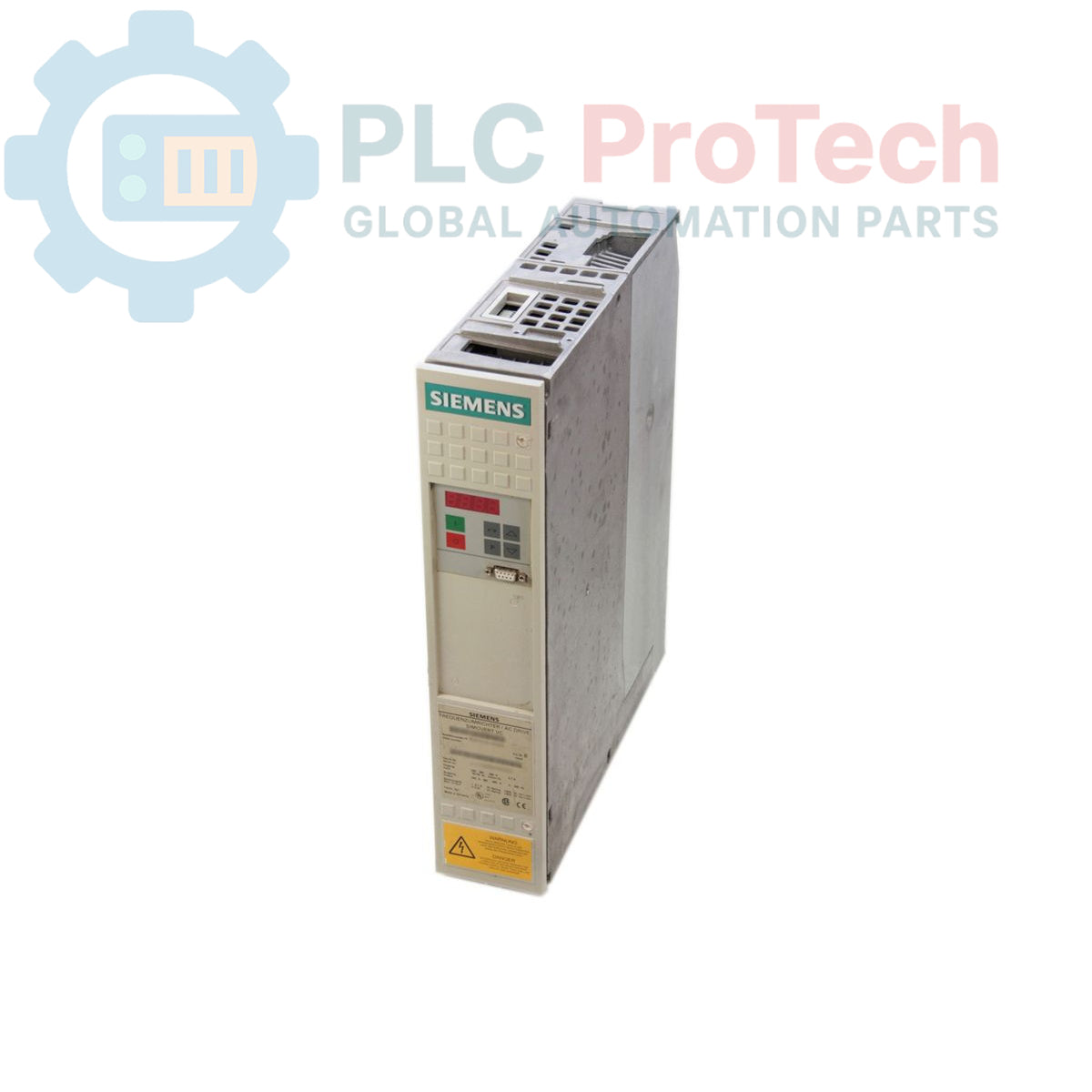

The Siemens SIMOVERT MASTERDRIVES 6SE7016-1EA61 is a SIMOVERT MASTERDRIVES VECTOR CONTROL CONVERTER COMPACT UNIT, IP20 3 380-480V AC, 50/60HZ, 6.1 A NOM. POWER RATINGS: 2.2KW DOCUMENTATION ON CD engineered by Siemens for high-precision industrial motor control applications. Part of the SIMOVERT MASTERDRIVES range, this compact converter operates on a 3-phase supply voltage of 380-480 V AC at 50/60 Hz, delivering a nominal output current of 6.1 A and a power rating of 2.2 kW. Housed in an IP20 enclosure suitable for control cabinet mounting, the 6SE7016-1EA61 includes documentation on CD for setup support. With dimensions of 48.00 x 36.00 x 6.00 cm and a weight of 11.00 kg, this phase-out lifecycle unit requires prompt evaluation for legacy system maintenance.

Features

• SIMOVERT MASTERDRIVES VECTOR CONTROL CONVERTER COMPACT UNIT, IP20 3 380-480V AC, 50/60HZ, 6.1 A NOM. POWER RATINGS: 2.2KW DOCUMENTATION ON CD design for precision vector control
• 3-phase input supply voltage range of 380-480 V AC at 50/60 Hz
• Nominal output current of 6.1 A with a power rating of 2.2 kW
• IP20 degree of protection for cabinet installation
• Dimensions of 48.00 x 36.00 x 6.00 cm and 11.00 kg weight
• Phase-out product lifecycle status for legacy system support

Applications

• Industrial conveyor and material handling drive systems
• Pump and fan variable speed motor control
• Legacy SIMOVERT MASTERDRIVES system maintenance and replacements
• Manufacturing automation production line drives

Technical Specifications

Installation Guidelines

• Mount the converter vertically inside a clean, ventilated control cabinet to maintain the IP20 rating and ensure proper thermal management.
• Verify that the 3-phase incoming supply voltage matches the 380-480 V AC specification and ensure proper protective earth grounding.
• Maintain recommended clearance distances around the 11.00 kg assembly to support airflow and heat dissipation during operation.
• Follow standard industrial control wiring practices to separate power lines from control signal cables, preventing electromagnetic interference.
