Siemens

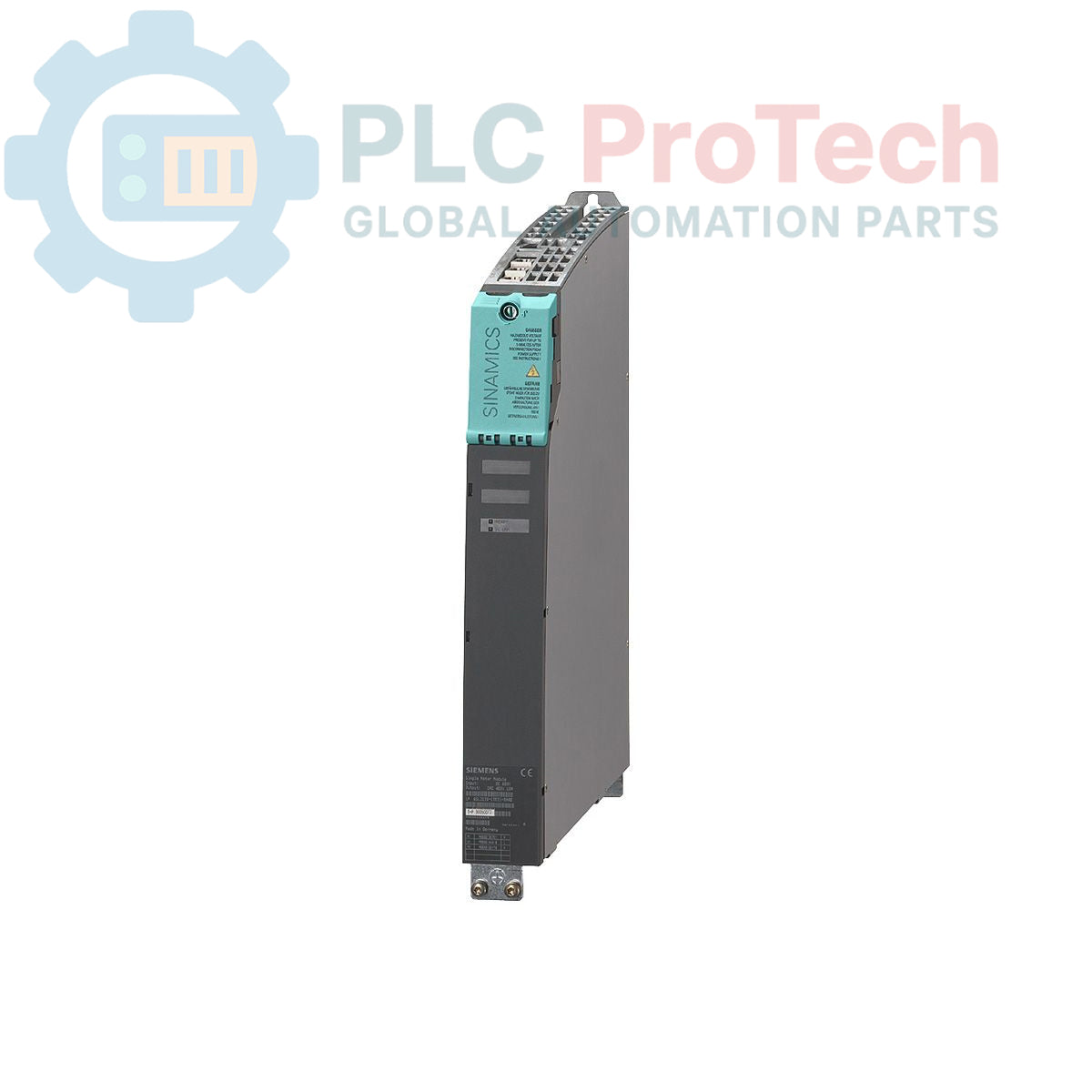

Siemens Sinamics S120 6SL3126-1TE23-0AA0 Single Motor Modules

SKU 6SL3126-1TE23-0AA0

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Siemens

  • Product No.: 6SL3126-1TE23-0AA0

  • Country of origin:Germany

  • Product Type: Single Motor Modules

  • Barcode: 85049090

  • Payment: T/T, Western Union

  • Weight: 6710g

  • Dimensions: 33.50cm x 29.40cm x 10.50cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The Siemens Sinamics S120 6SL3126-1TE23-0AA0 is a SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 30 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE engineered by Siemens for high-performance multi-axis drive systems. Part of the Sinamics S120 range, this single motor module accepts a 600 V DC input and delivers a 3-phase 400 V output at 30 A. Equipped with cold-plate cooling for advanced thermal management and supplied with an integrated DRIVE-CLiQ cable, the 6SL3126-1TE23-0AA0 ensures efficient component communication and reliable motor control. With dimensions of 33.50 x 29.40 x 10.50 cm and a weight of 6.71 kg, this phase-out lifecycle unit requires timely evaluation for legacy system maintenance.

Features

  • SINAMICS SINGLE MOTOR MODULE INPUT: 600 V DC OUTPUT: 3-PH. 400 V, 30 A COLD-PLATE COOLING INCL. DRIVE-CLIQ CABLE design for precision motion control
  • 600 V DC input voltage with a 3-phase 400 V output at 30 A
  • Cold-plate cooling architecture for optimized cabinet thermal dissipation
  • Included DRIVE-CLiQ cable for seamless system communication
  • Dimensions of 33.50 x 29.40 x 10.50 cm and 6.71 kg weight
  • Phase-out product lifecycle status for legacy system support

Applications

  • Multi-axis machine tool servo drive systems
  • High-performance industrial automation production lines
  • Legacy Sinamics S120 drive system maintenance and retrofits

Technical Specifications

Technical Parameter Specification
Manufacturer Siemens
Brands Siemens
Range Sinamics
Subrange S120
Type of Product Single Motor Modules
Product Model 6SL3126-1TE23-0AA0
Product Phase Phase-Out
DC Input Voltage 600 V DC
AC Output 3-Phase, 400 V, 30 A
Cooling Type Cold-Plate Cooling
Included Accessories DRIVE-CLiQ Cable
Dimensions 33.50 x 29.40 x 10.50 cm
Weight 6.71 kg
Commodity Code 85049090
Export Control Regulations (ECCN) EAR99

Installation Guidelines

  • Mount the single motor module securely onto a compatible cold-plate cooling surface within the control enclosure to ensure proper thermal transfer.
  • Connect the 600 V DC busbar supply and 3-phase motor output terminals securely, ensuring correct phase matching.
  • Connect the included DRIVE-CLiQ cable to link the module with the Control Unit and other drive components.
  • Route power and signal cables separately to maintain electrical noise immunity and stable communication.

FAQ

What are the input and output electrical ratings for the 6SL3126-1TE23-0AA0 module?
It accepts a 600 V DC input and delivers a 3-phase 400 V output at 30 A.

What type of cooling system does this single motor module use?
It uses cold-plate cooling for thermal management.

What accessory is included with the module?
It includes a DRIVE-CLiQ cable.

What are the dimensions and weight of this unit?
The dimensions are 33.50 x 29.40 x 10.50 cm and the weight is 6.71 kg.
