Manufacturer: ABB
Product No.: 3BSE004253R1
Country of origin:Sweden
Product Type: Power Switch and Distribution Unit
Barcode: 85389091
Payment: T/T, Western Union
Weight: 2250g
Dimensions: 180 x 90 x 162
Shipping port: Xiamen
Warranty: 12 months

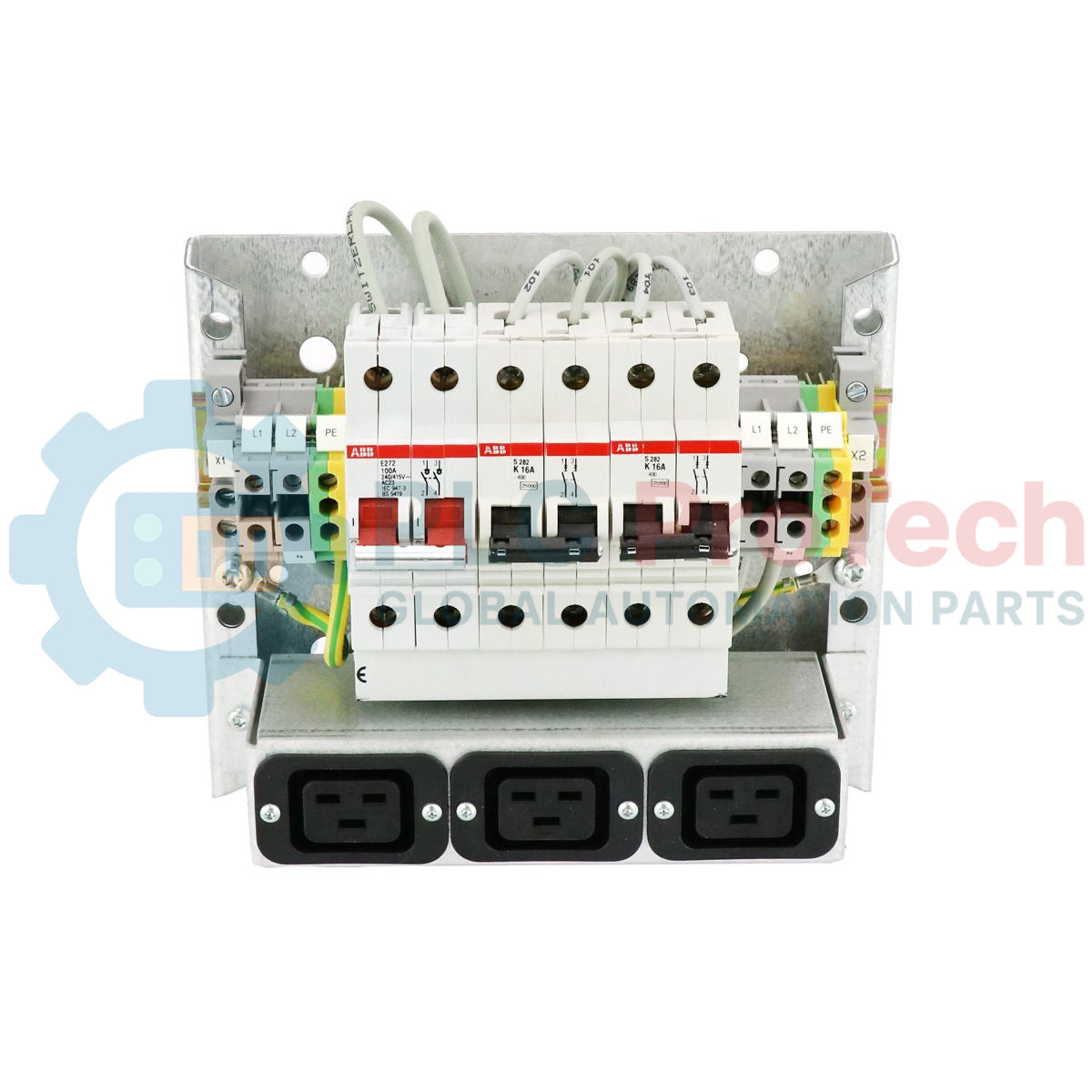

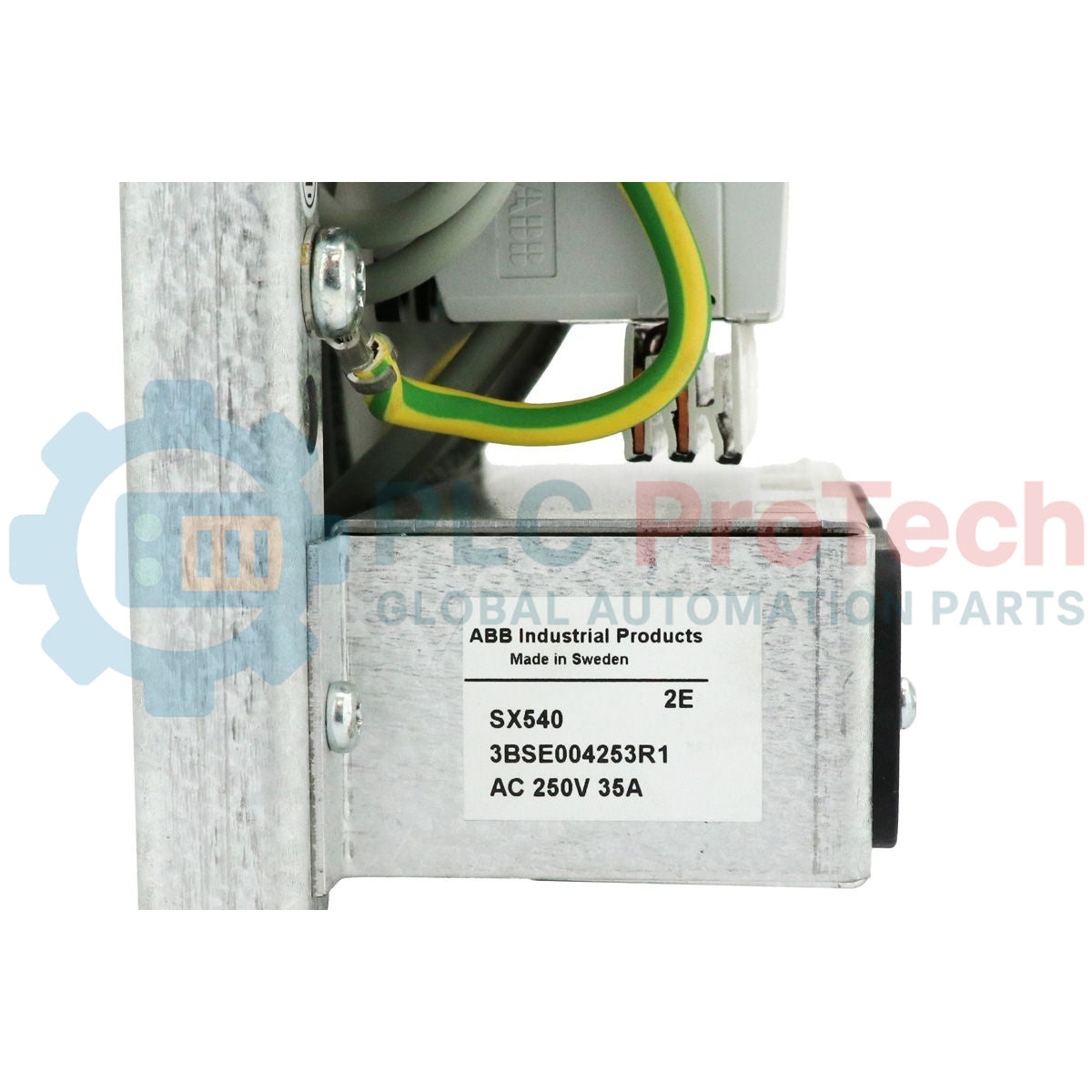

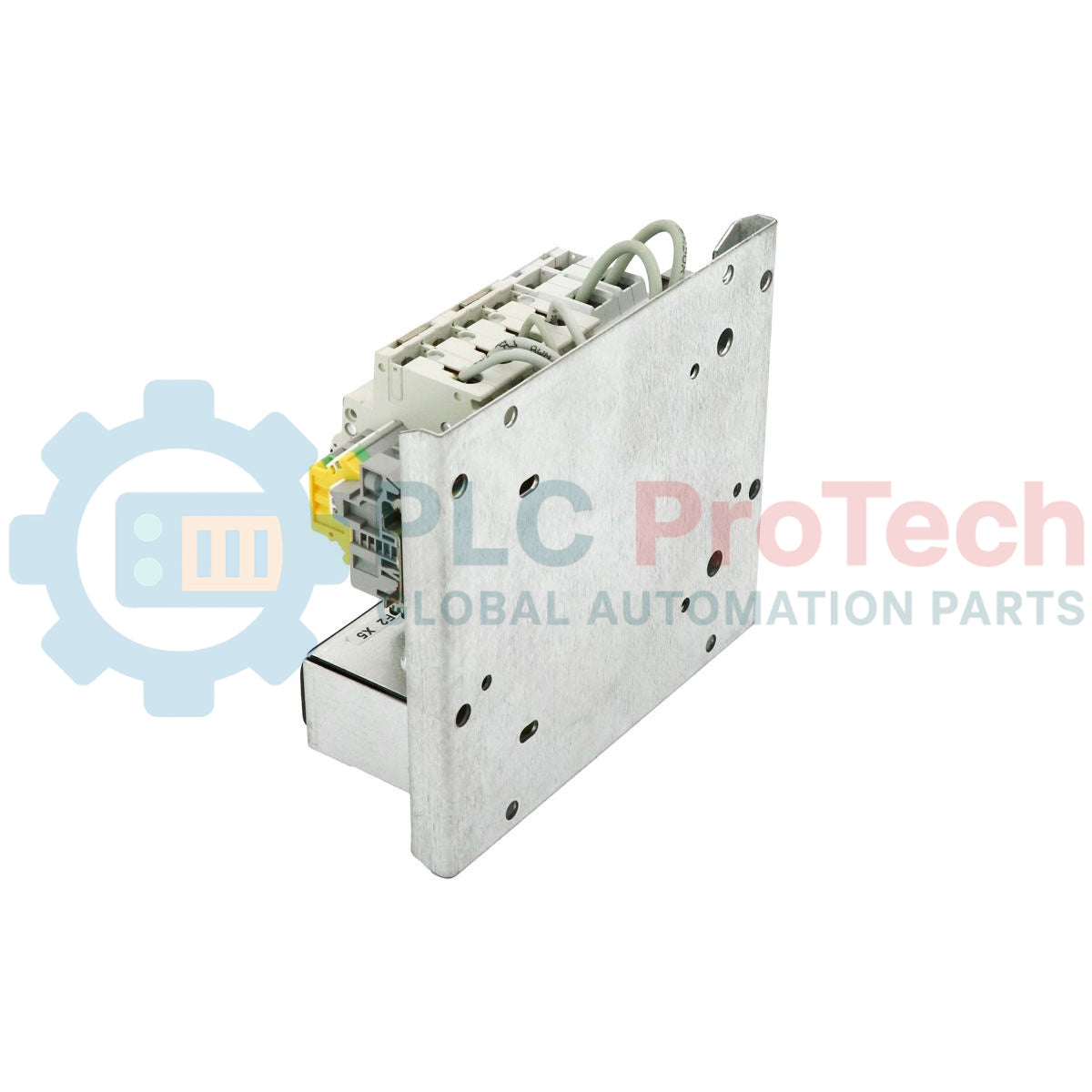

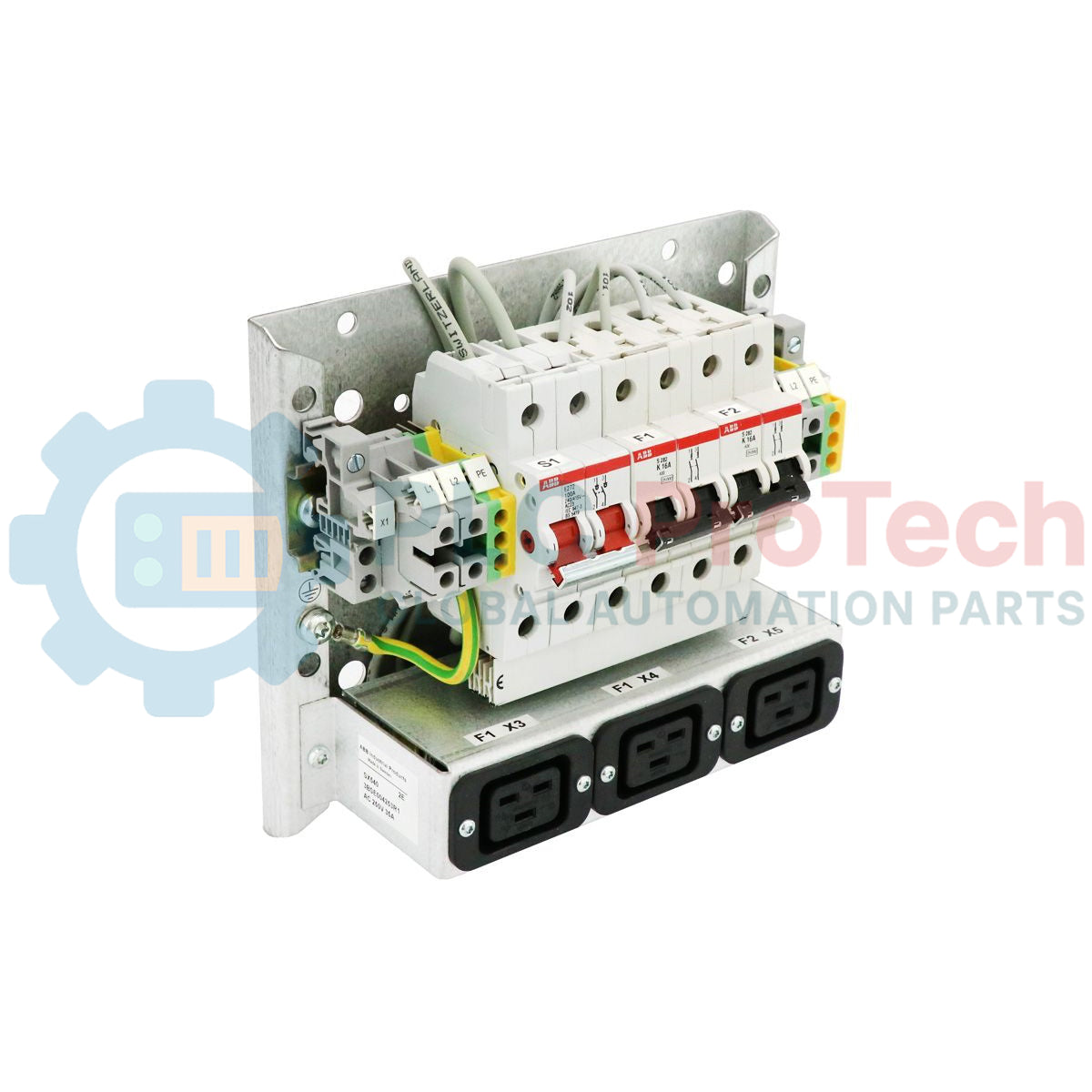

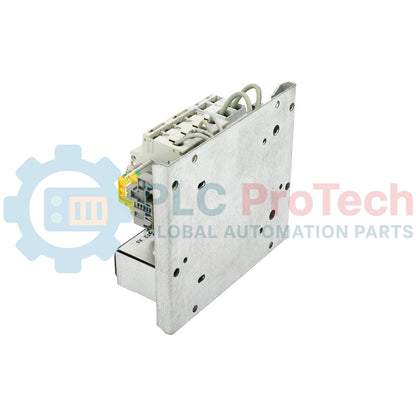

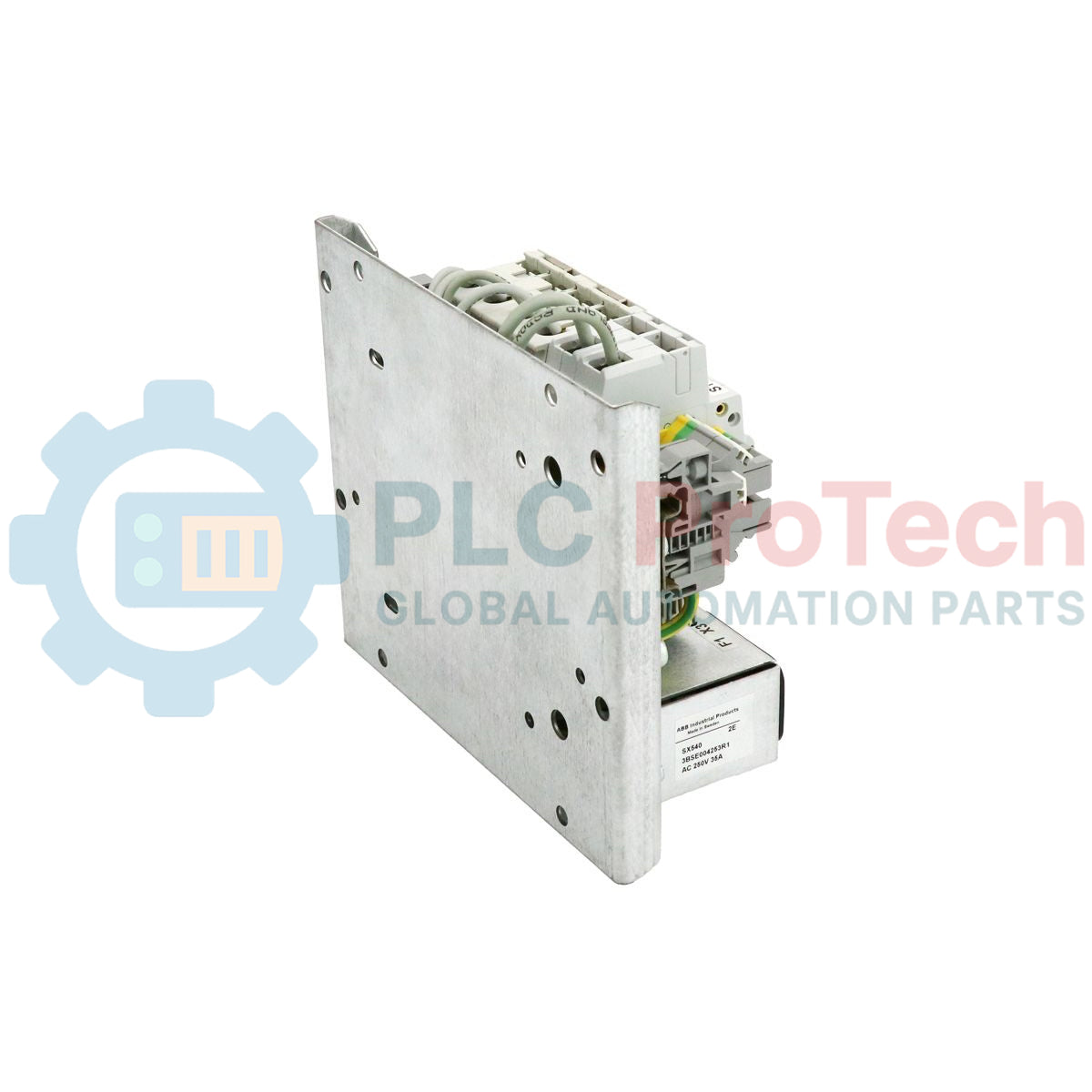

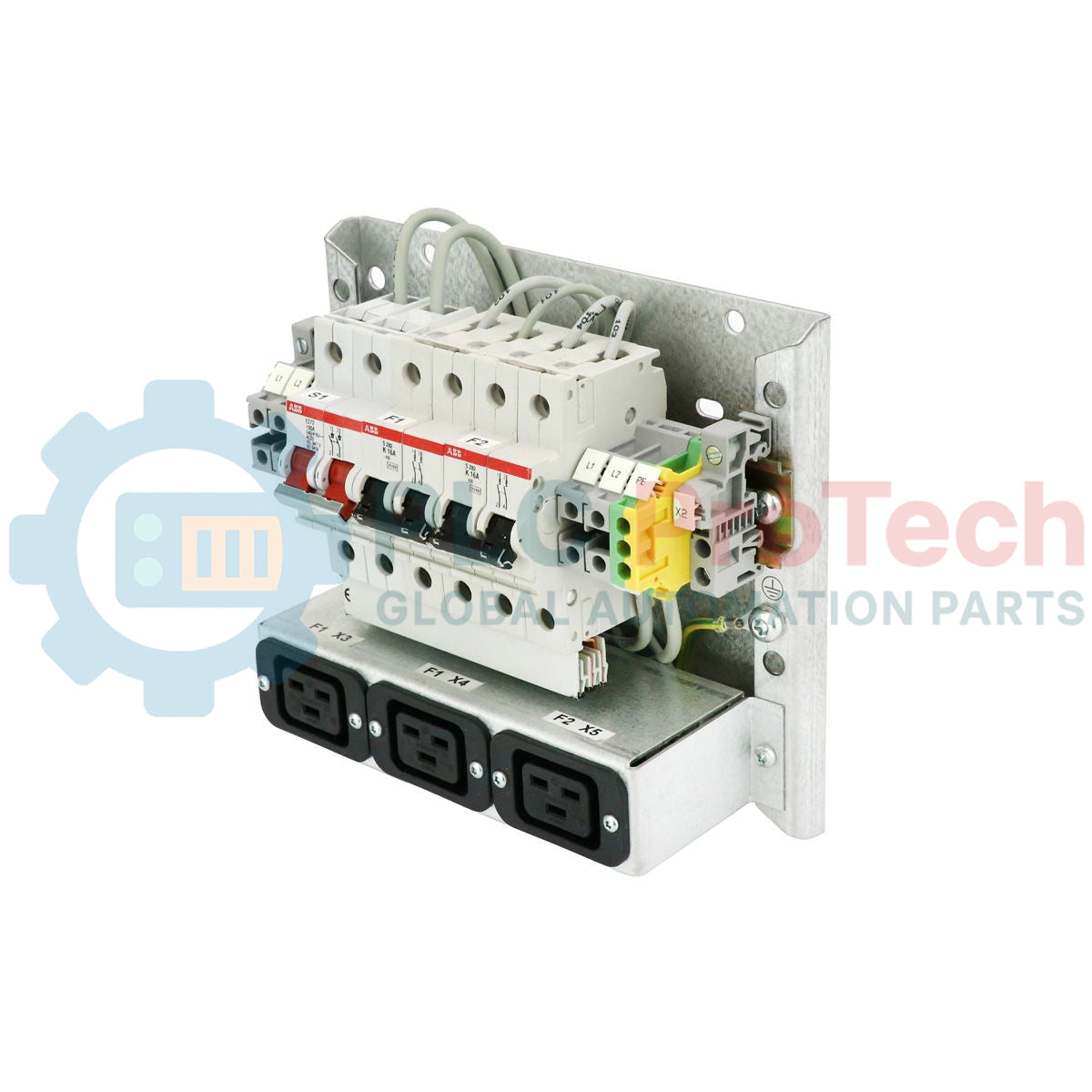

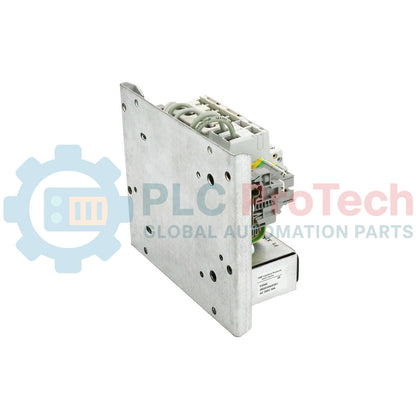

The SX540 (3BSE004253R1) is a heavy-duty Power Switch and Distribution Unit engineered specifically for the ABB Advant Master process control system. Designed to manage high-current AC power routing, this unit acts as the primary electrical gateway for Advant Controller 400 series (including AC 410 and AC 450) and MOD 300 systems. Rated for AC 250V at a robust 35A capacity, the SX540 (3BSE004253R1) provides the critical power switching and circuit protection required to maintain continuous operation in power plants, refineries, and chemical processing facilities. By centralizing power distribution and providing a reliable manual disconnect, it simplifies maintenance procedures and enhances system safety, ensuring that power delivery to critical CPU racks and I/O subracks remains stable even in the face of varying industrial electrical loads.
The SX540 is built as a high-reliability control system accessory, focusing on power density and mechanical durability:
High Current Handling: Engineered to manage up to 35A continuously, making it suitable for powering large, fully populated controller cabinets.
System Compatibility: Seamlessly integrates with the Advant Power accessory line, specifically tuned for Advant Controller 450 Version 2.3 and 450RMC environments.
Dual-Pole Switching: Provides simultaneous switching of line and neutral to ensure complete electrical isolation during maintenance.
Rugged Mechanical Design: Features a heavy-duty chassis (2.25 kg) designed to withstand the thermal and mechanical stresses of high-current power distribution.
RoHS Exemption Status: This part is exempted from the scope of 2011/65/EU (RoHS) under Article 2(4), confirming its specialized status as a "large-scale fixed installation" component within the Advant Master ecosystem.
| Feature | Specification Details |
| Model | SX540 (3BSE004253R1) |
| Brand | ABB |
| Product Type | Power Switch and Distribution Unit |
| Voltage Rating | AC 250V |
| Current Rating | 35A |
| Application | Advant OCS / Master / MOD 300 |
| Product Net Weight | 2.25 kg |
| Dimensions (W x H x D) | 180 mm x 90 mm x 162 mm |
| HS Code | 85389091 |
| WEEE Category | 5. Small Equipment |
Can the SX540 be used for DC power distribution?
The SX540 is specifically rated and optimized for AC 250V applications. Using it for high-current DC switching is not recommended, as the arc-extinguishing properties of AC switches differ significantly from DC-rated components, which could lead to contact welding.
Is this unit compatible with Advant Controller 110/160 systems?
Yes, it is listed as a valid power supply accessory for AC 110, AC 160 (v2.2), and AC 410 systems, providing a unified power entry point for multiple generations of Advant Master hardware.
Does the SX540 contain any internal batteries for backup?
No, this unit is a mechanical power switch and distribution block (0 batteries). It does not provide UPS functionality or energy storage; its role is purely to switch and distribute incoming line power to the sub-power modules of the controller.
Wiring and Connection Integrity
Due to the high 35A current rating, use only appropriately gauged industrial power cables (minimum 6 mm squared or 10 AWG). All connections must be tightened to the specified torque to prevent resistive heating at the terminals. High-current distribution points are susceptible to thermal expansion; we recommend an annual infrared thermography scan of the SX540 terminals to identify potential hot spots before they lead to failure.
Mounting and Heat Dissipation
The SX540 should be mounted in a well-ventilated section of the control cabinet. While it is a switch, the internal busbars generate heat when operating at full load. Ensure that no heat-sensitive components (such as communication cables or low-voltage sensors) are routed directly against the unit's chassis. Maintain at least 50 mm of clearance around the unit to ensure natural convection.
Safety Precautions
Before performing any maintenance on the SX540, verify that the upstream main breaker is locked out and tagged out (LOTO). Always use a calibrated voltage tester to confirm the absence of power on both the input and output sides of the distribution unit, as dual-feed configurations in Advant systems can sometimes result in back-fed voltage.
