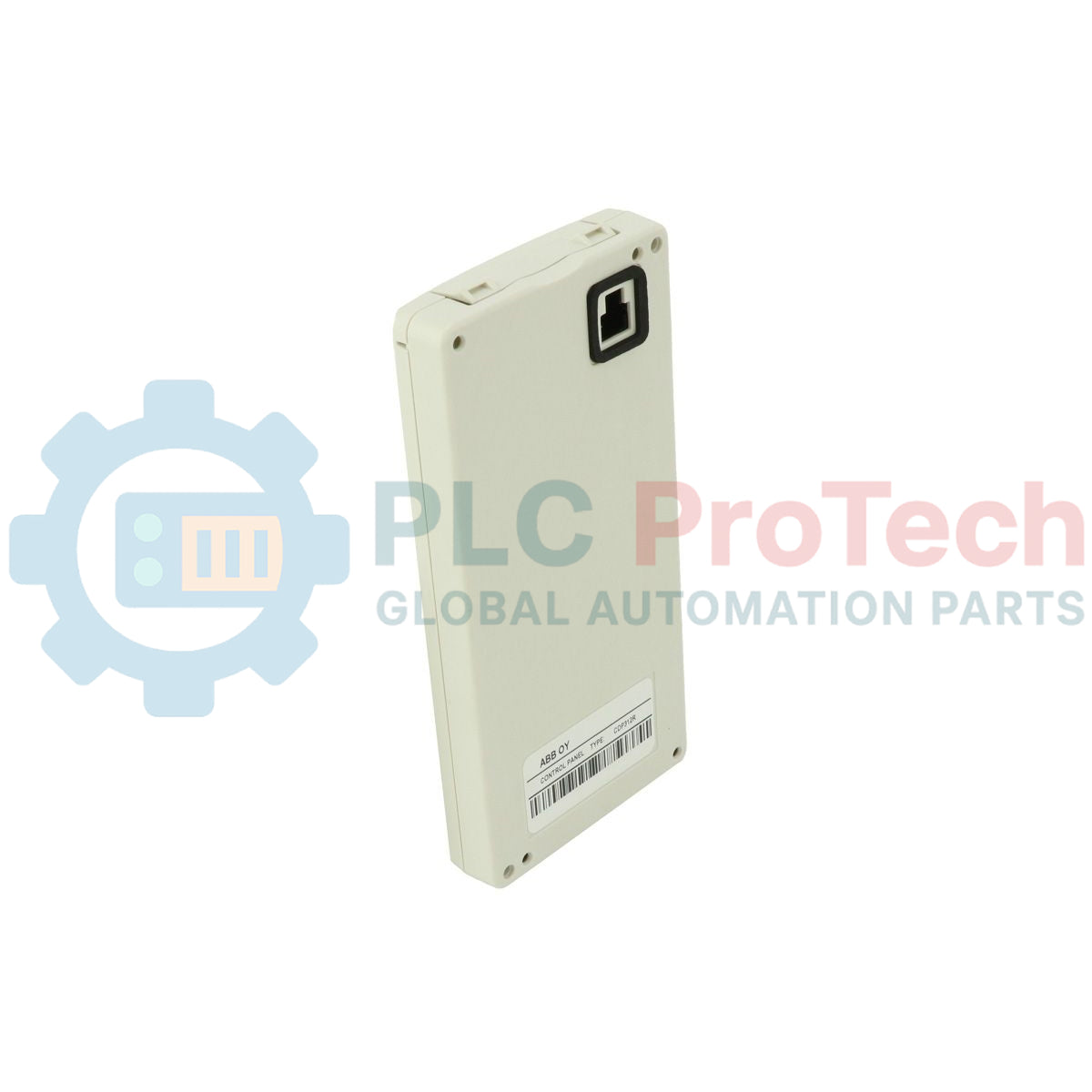

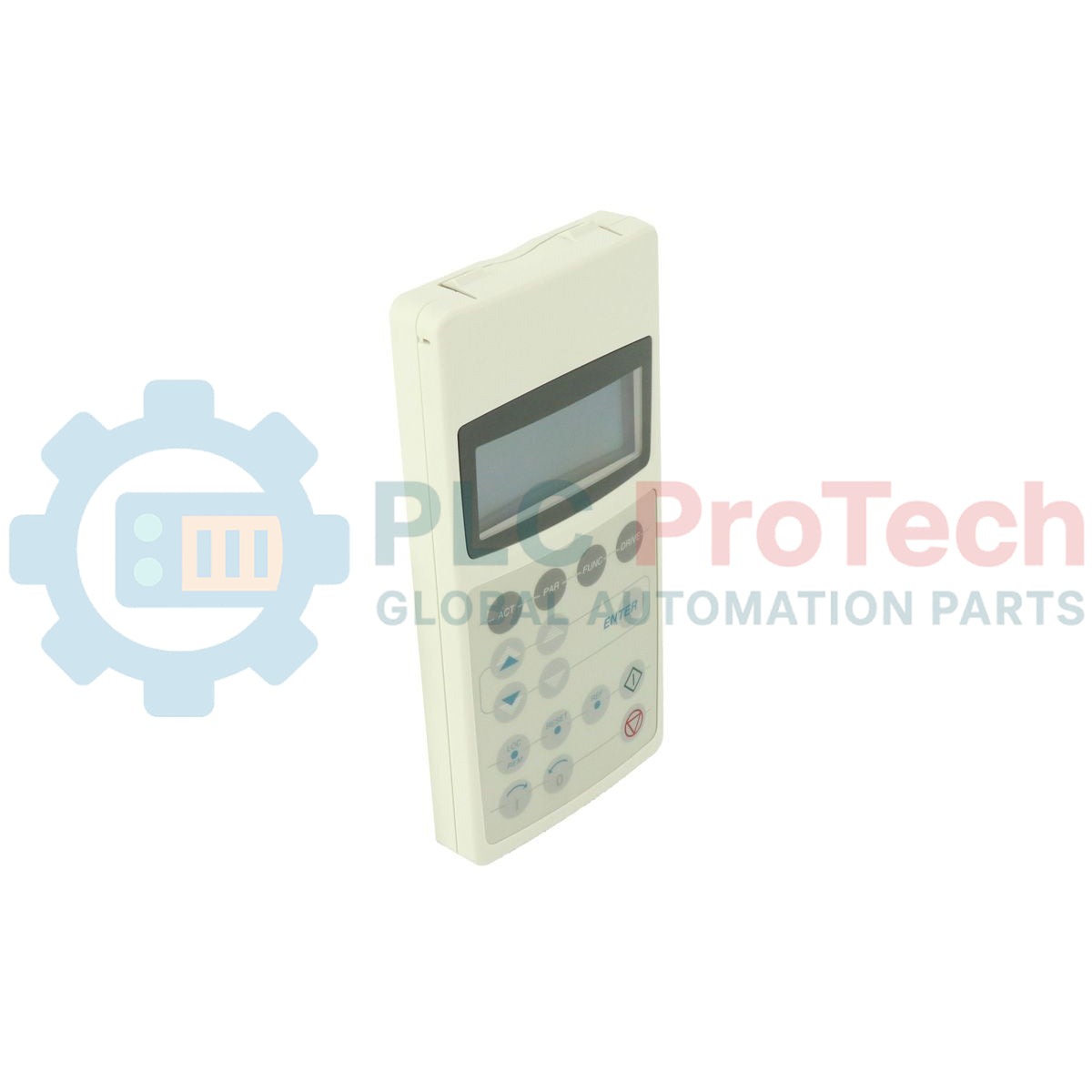

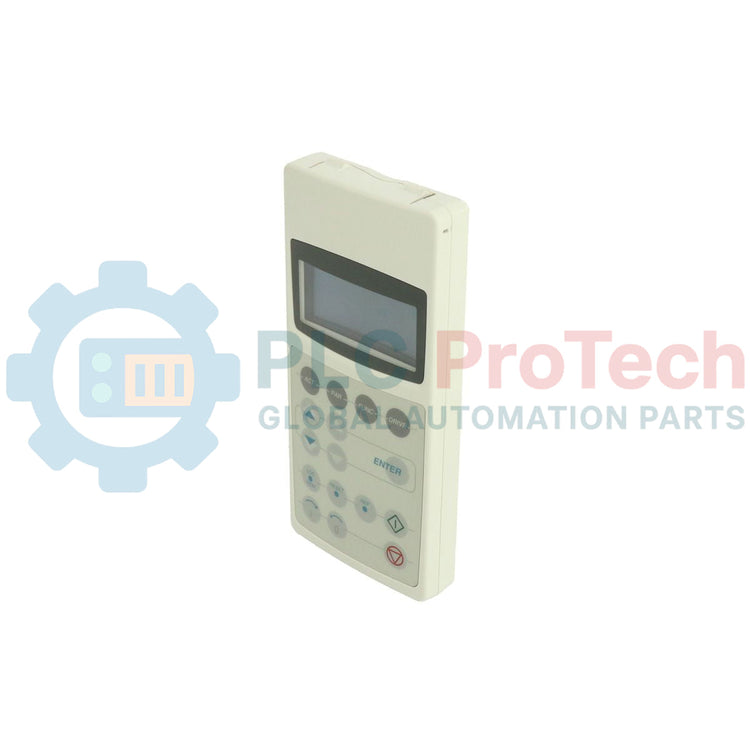

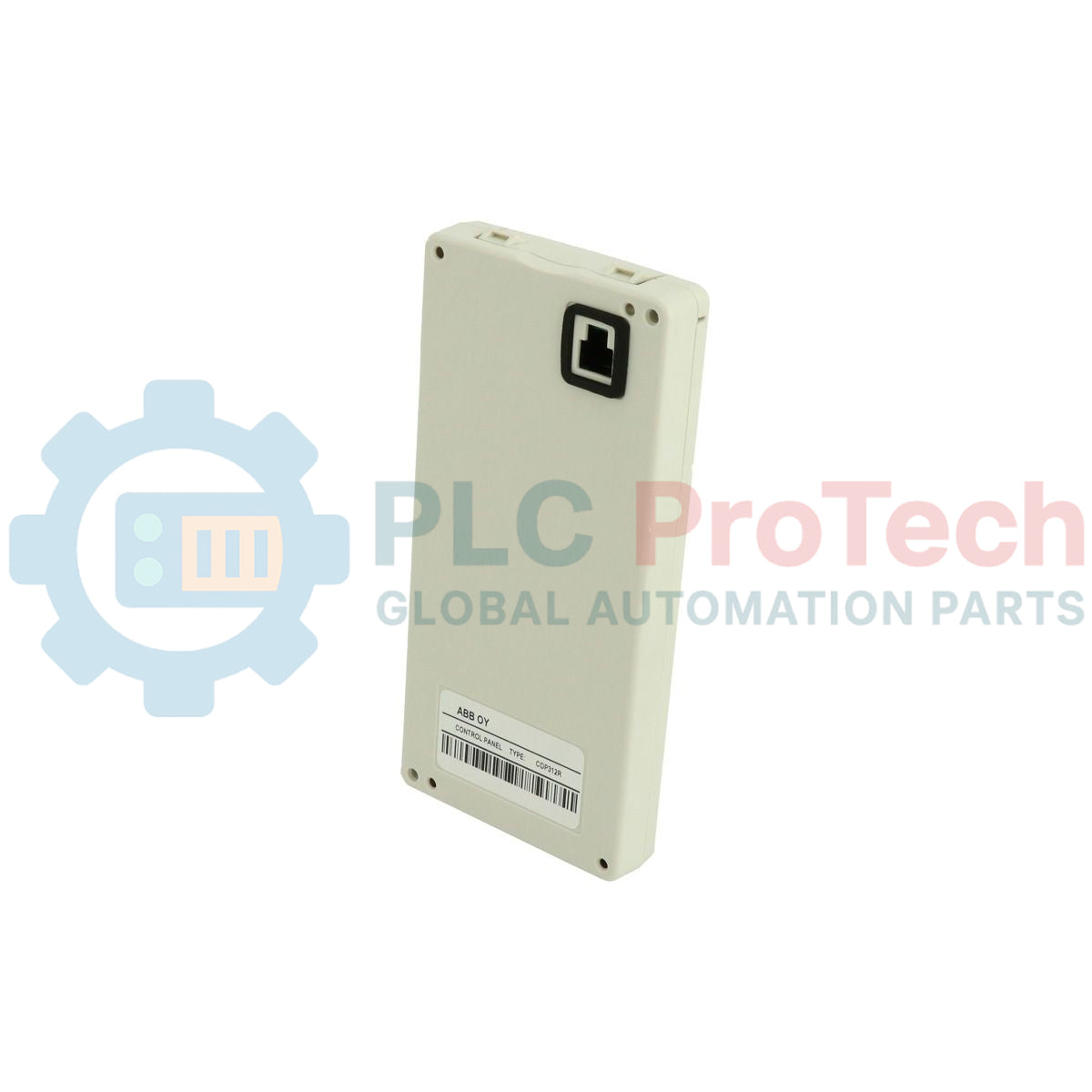

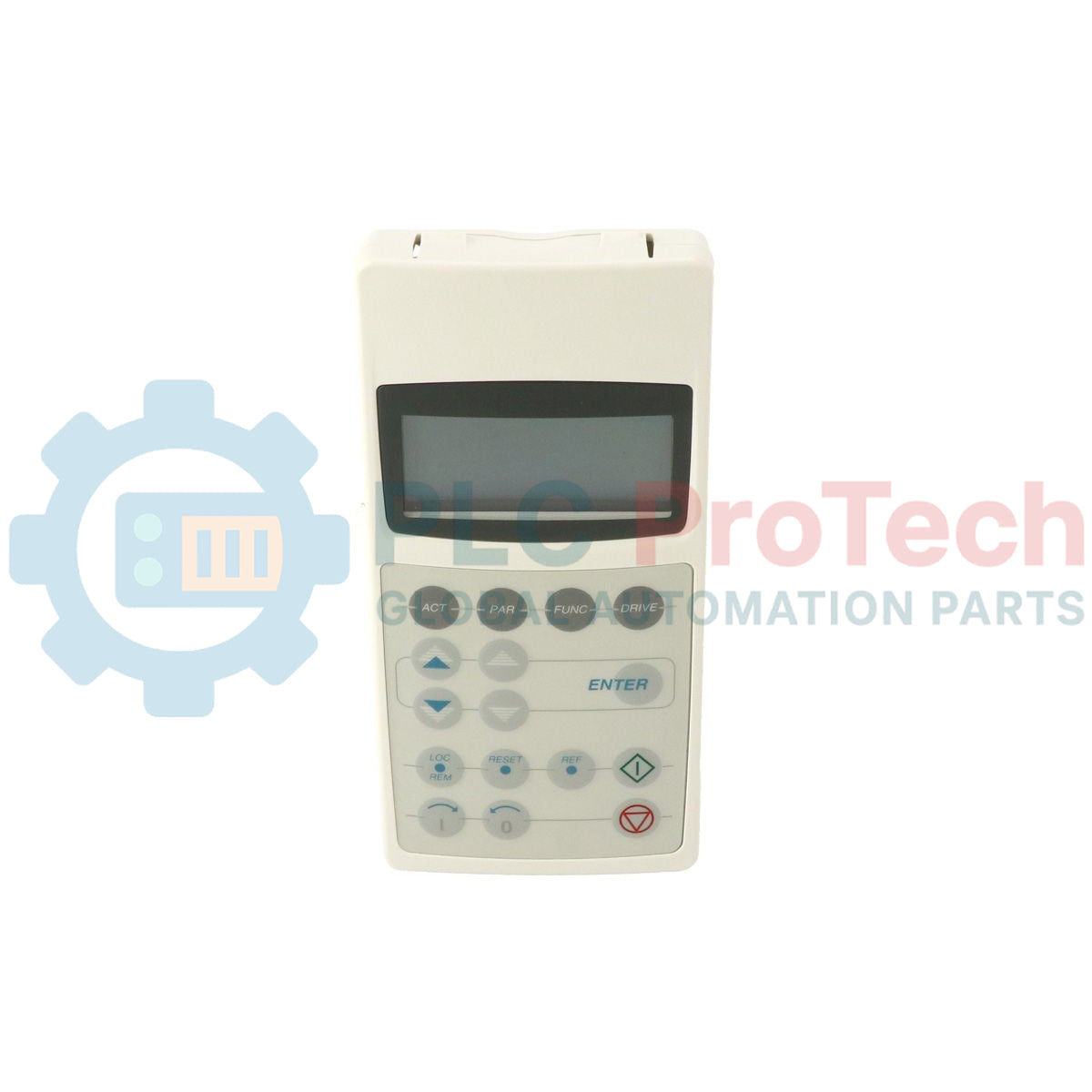

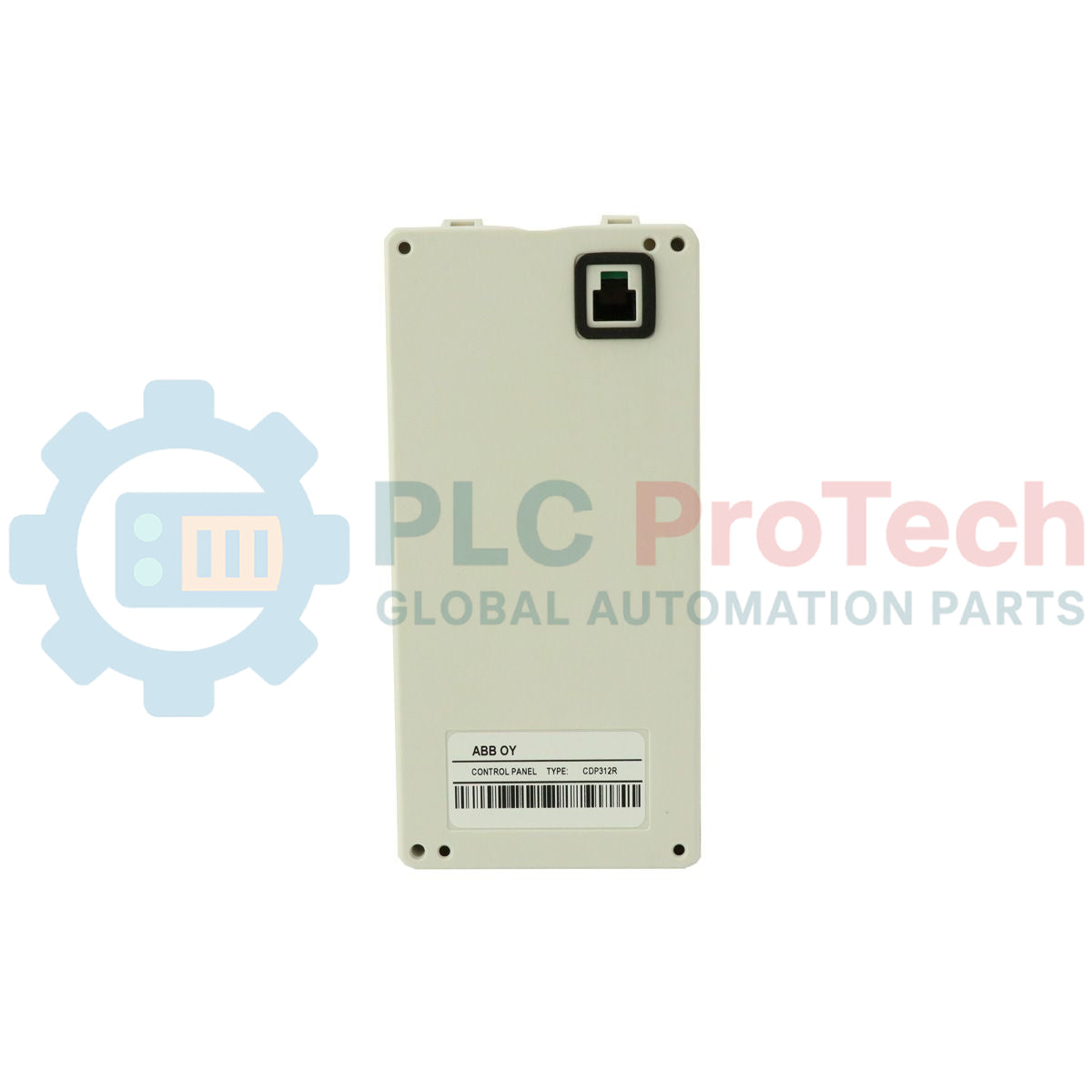

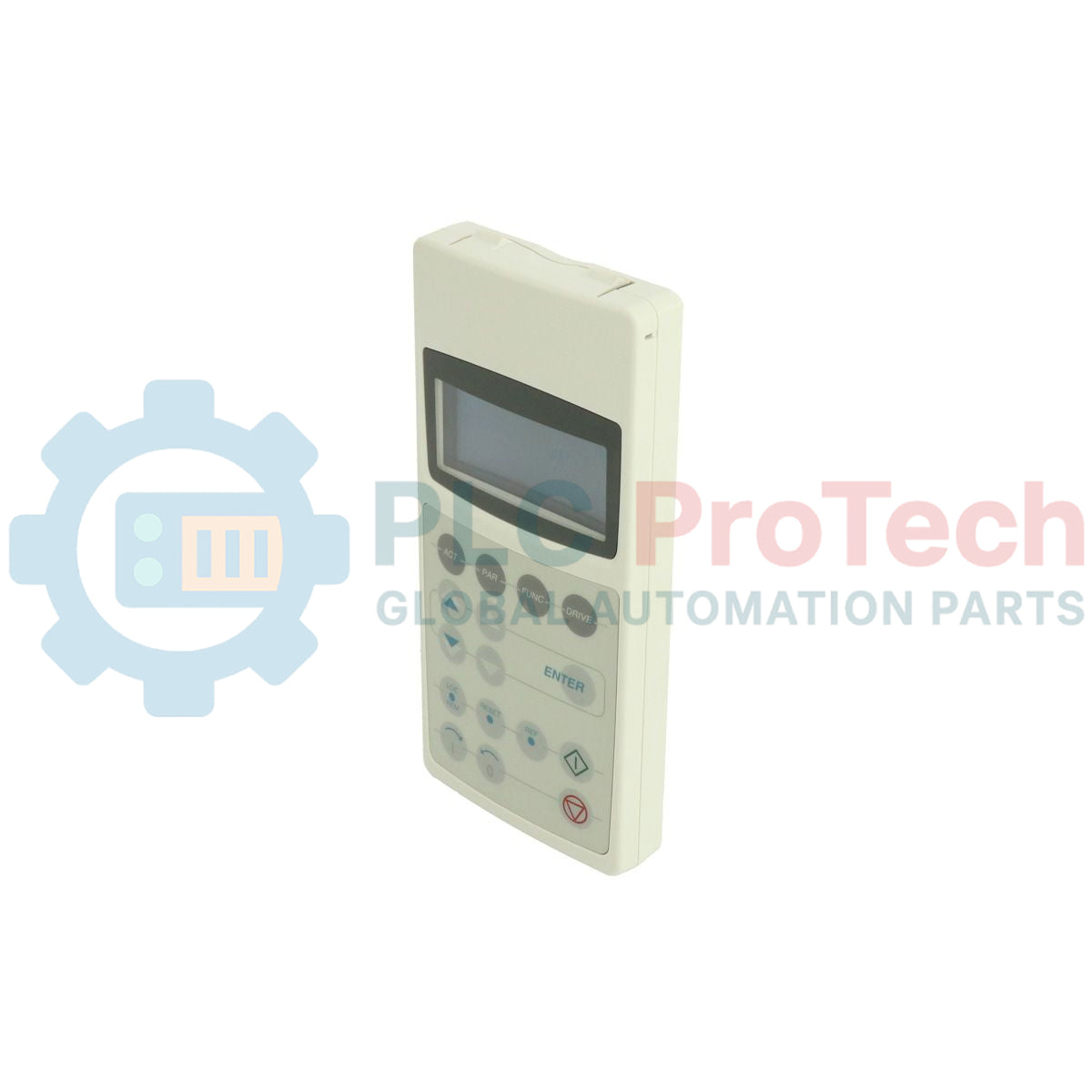

ABB 3ABD64378660 CDP-312R ACS600 Control Panel

Description

The ABB 3ABD64378660 CDP-312R is a specialized drive operator keypad and human-machine user interface panel designed for local monitoring, parameter configuration, and control of compatible ABB industrial variable speed drives. Categorized under the CDP312 family, this control panel acts as a direct interface between maintenance personnel and drive control electronics.

Featuring a compact handheld and door-mountable form factor, the CDP-312R provides access to operating status, fault diagnostic logs, speed reference adjustments, and functional drive parameters. The panel incorporates a built-in display screen along with tactile control keys for navigating menus and executing start/stop and direction commands.

Engineered specifically as a drive option within the ACS600 hardware series ecosystem, the ABB 3ABD64378660 panel facilitates efficient commissioning, parameter cloning, and fault troubleshooting. With a physical depth of only 21 mm and a net weight of 0.5 kg, it provides an ergonomic interface suitable for both direct drive slot attachment and panel door mounting.

Features

• Integrated multi-line display screen for clear visibility of operational parameters and diagnostic messages.
• Tactile keypad interface dedicated to drive menu navigation, speed adjustments, and local control commands.
• Direct compatibility with ABB ACS600 series variable frequency drives.
• Slim profile measuring 170 mm in height, 80 mm in width, and 21 mm in depth.
• Lightweight construction (0.5 kg net weight) designed for handheld use or door mounting.

Applications

• Local drive operator interface for ACS600 series industrial variable speed drives.
• Commissioning tool for motor control setup, parameter configuration, and tuning.
• Diagnostic terminal for reviewing alarm history, active faults, and operating metrics.
• Cabinet door user interface for motor control center (MCC) panels and drive enclosures.

Technical Specifications

General

Mechanical & Physical

Classifications & Standards

Installation Guidelines

1. Pre-Installation Inspection: Unpack the CDP-312R control panel and inspect the casing and rear connector pins for any visual damage before connecting.
2. Drive Attachment: Align the panel with the panel slot on the drive's control unit or mounting platform and press firmly until the locking mechanism engages.
3. Door Mounting (Option): If mounting on a cabinet door, use the corresponding panel door mounting kit and shielded cable assembly to ensure ground continuity and noise suppression.
4. Connection Verification: Ensure the communication interface cable is firmly seated to prevent intermittent connection faults during operation.
5. Power-Up Check: Apply power to the host drive and verify that the control panel screen initializes and displays the drive status screen.

Configuration / Replacement

• Parameter Backup: Utilize the panel's internal memory functions to upload and back up drive parameter sets before performing firmware updates or motor retuning.
• Replacement Procedure: To replace an existing CDP-312R keypad, safely switch off local drive control, unclip the old panel from its holder, attach the new 3ABD64378660 unit, and restore connection.
• Parameter Download: If replacing a panel on a newly installed drive, download the backed-up parameter set directly from the panel memory into the drive controller.
