Woodward 5466-318 MicroNet TMR Kernel Power Supply Module

SKU 5466-318

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Woodward
  • Product No.: 5466-318
  • Origin United States
  • Product Type: Power Supply Modules
  • Payment: T/T, Western Union
  • Weight: 1.2 kg
  • Dimensions: 40.0 mm x 260.0 mm x 280.0 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

MicroNet TMR Power Supply Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Woodward 5466-318 MicroNet TMR Kernel Power Supply Module

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

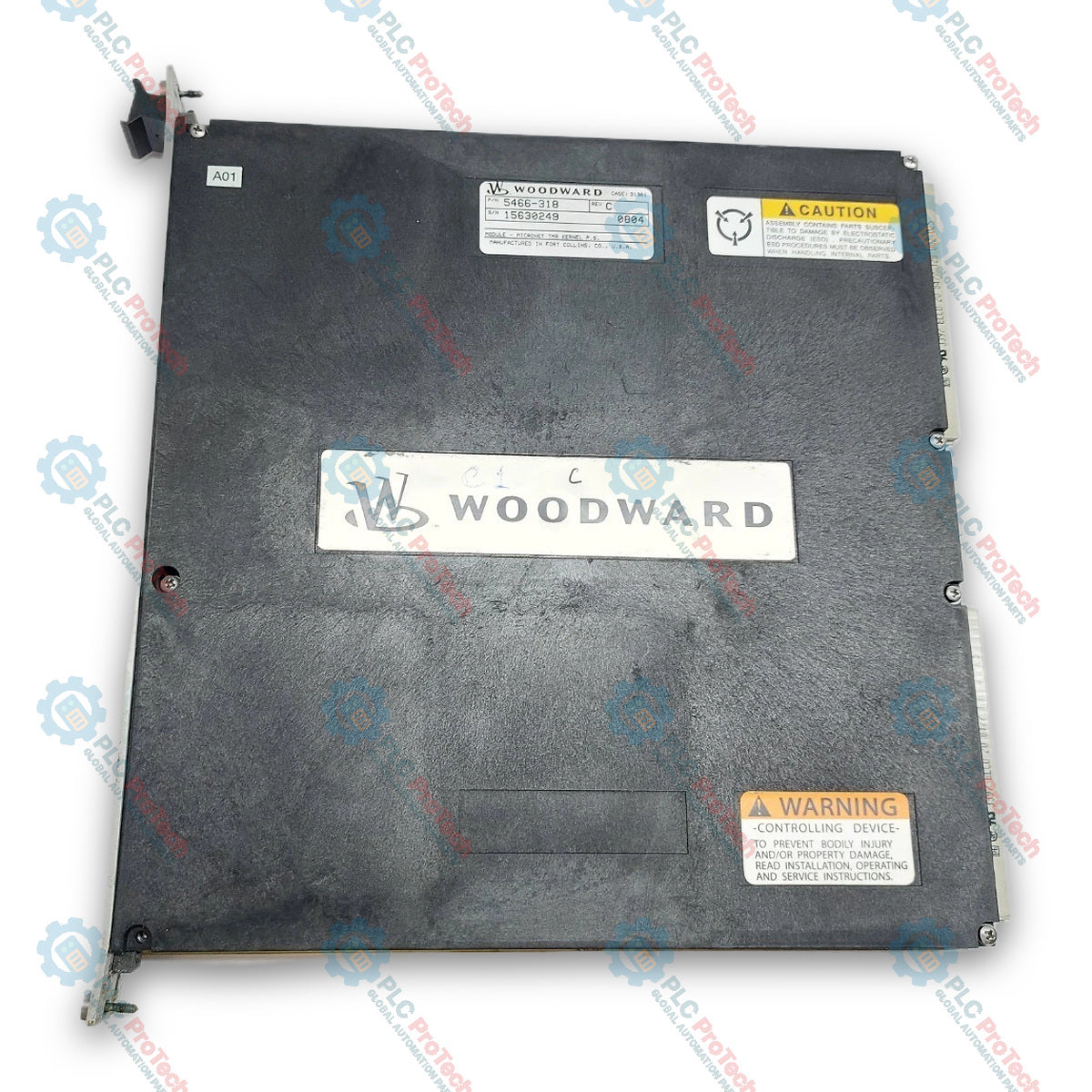

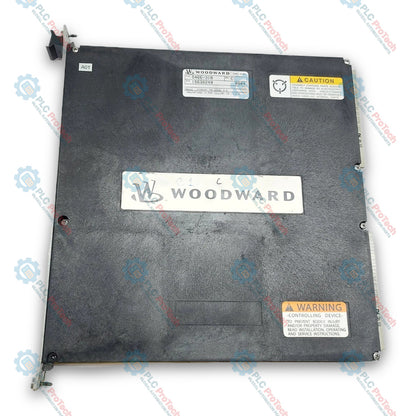

The Woodward 5466-318 is a Kernel Power Supply Module designed for Triple Modular Redundant (TMR) Kernel sections in MicroNet Digital Control systems. Serving as one of three kernel power supplies in a TMR configuration, the unit is inserted into the first slot of the kernel section to process power received from the main MicroNet power source. It operates on a 24 VDC input to regulate and deliver a regulated 5 VDC output or up to 10 A output for the kernel section, working alongside TMR040 CPU assemblies.

Features

  • Operates as one of three kernel power supplies in a MicroNet TMR chassis configuration
  • Converts 24 VDC system input to regulated 5 VDC output for kernel section electronics
  • Supplies an output current up to a maximum of 10 A

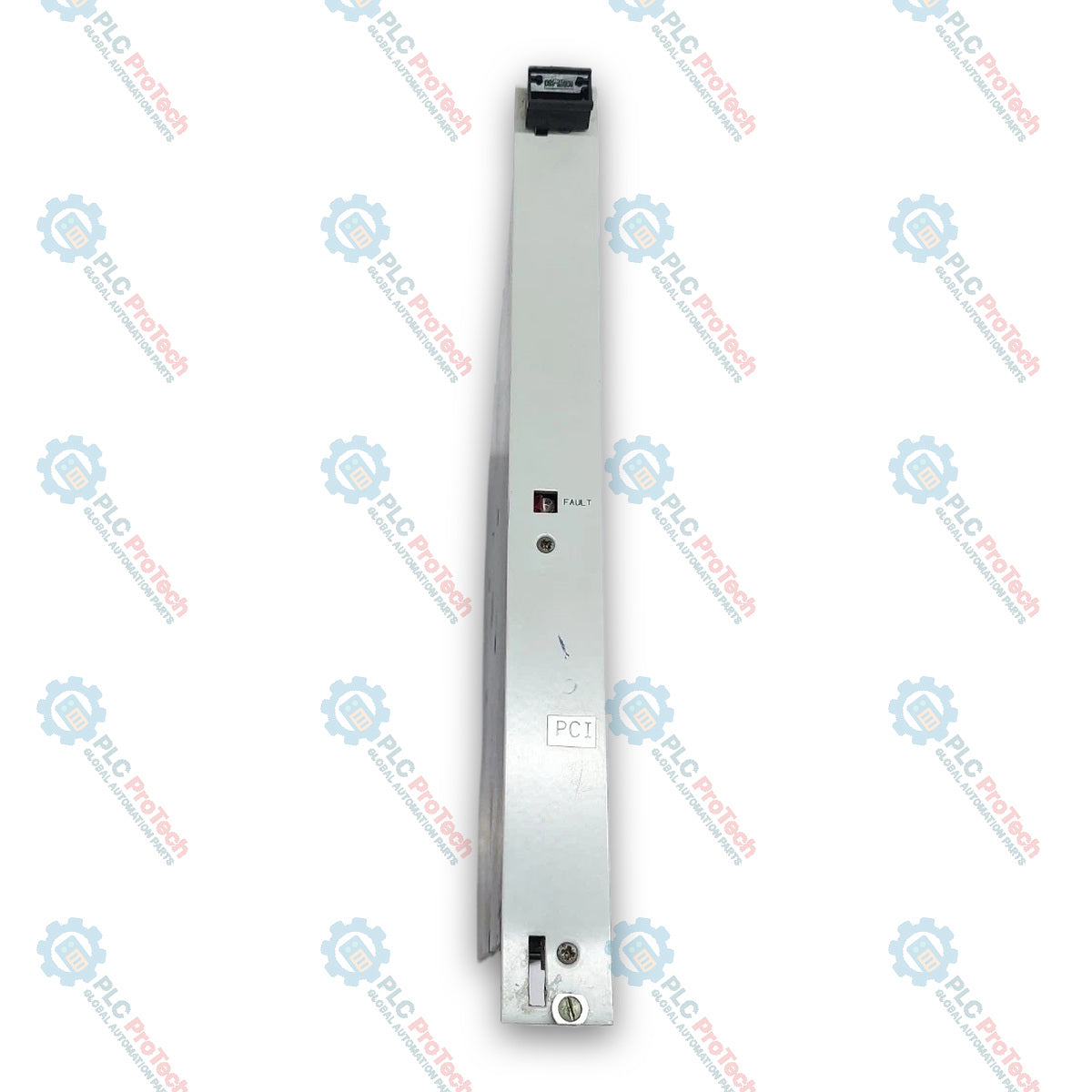

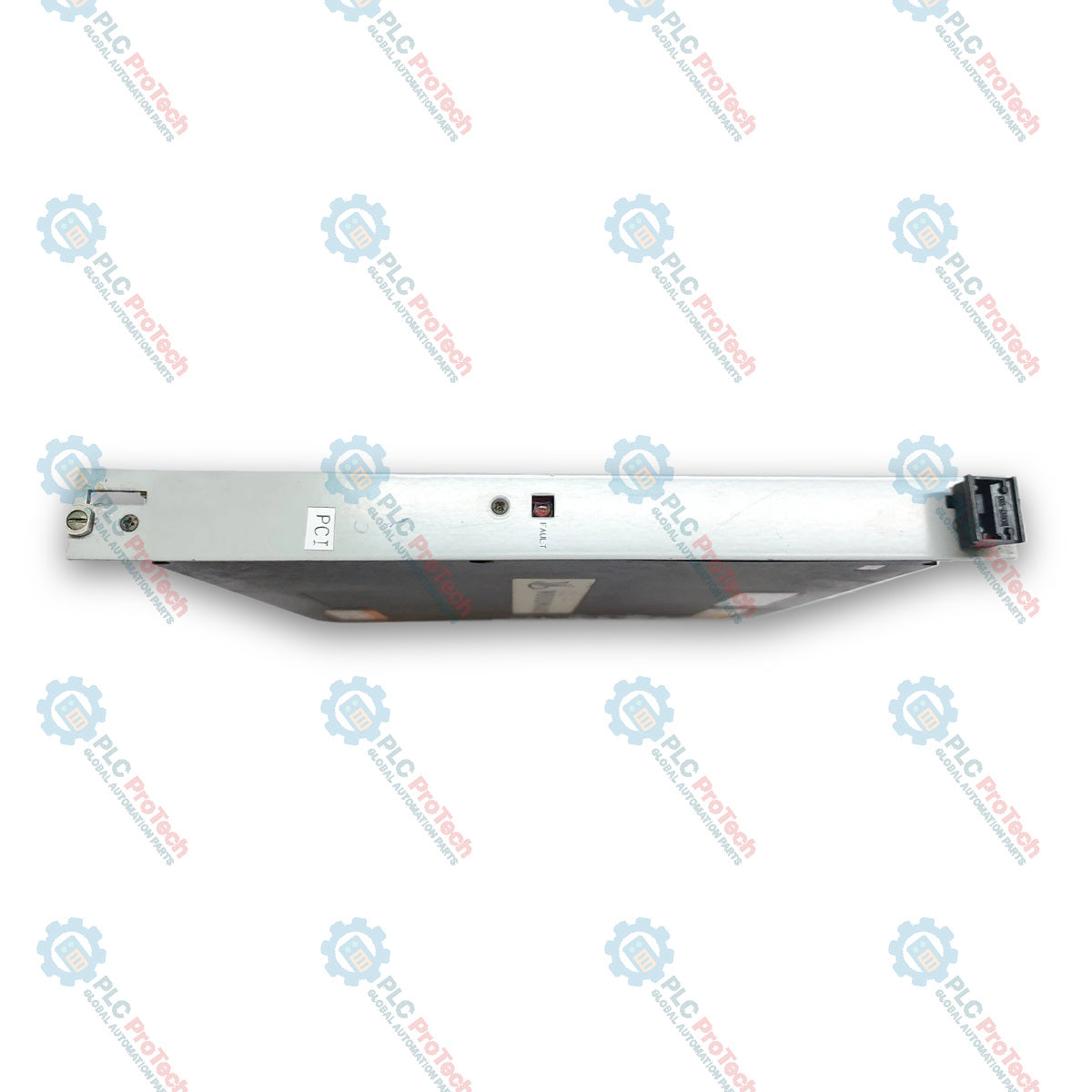

  • Features a metal enclosure equipped with a single front-panel LED for power supply health status
  • Installs in the first slot position of the TMR kernel chassis section

Applications

  • MicroNet TMR Digital Control System kernel chassis power distribution
  • Non-hazardous industrial control locations
  • Class I, Groups A, B, C, D, Division 2 hazardous locations

Technical Specifications

Parameter Specification
Model Details
Functional Part Number 5466-318
Description MicroNet TMR Kernel Power Supply Module
System Compatibility
System Architecture MicroNet TMR Chassis
CPU Compatibility TMR040
Electrical
Input Voltage 24 VDC +/-10%
Power Consumption 24 VDC
Output Voltage 5 VDC +/-5%
Maximum Output Current 10 A

Installation Guidelines

  • Ensure all modules within the MicroNet TMR Kernel Power Supply section are removed prior to servicing or replacing the module.
  • Install the module into the designated first slot position of the TMR kernel section.
  • Verify that operating locations meet non-hazardous or Class I, Groups A, B, C, D, Division 2 environment requirements to prevent potential operational errors.
  • Maintain stable 24 VDC main power feed within specified +/-10% input tolerance limits.

Compliance and Certifications

  • CE (EMC)
  • CSA
  • Class I, Groups A, B, C, D, Division 2
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Which slot location does the power module occupy within the kernel chassis?
The module installs in the first slot position of the TMR kernel section.
