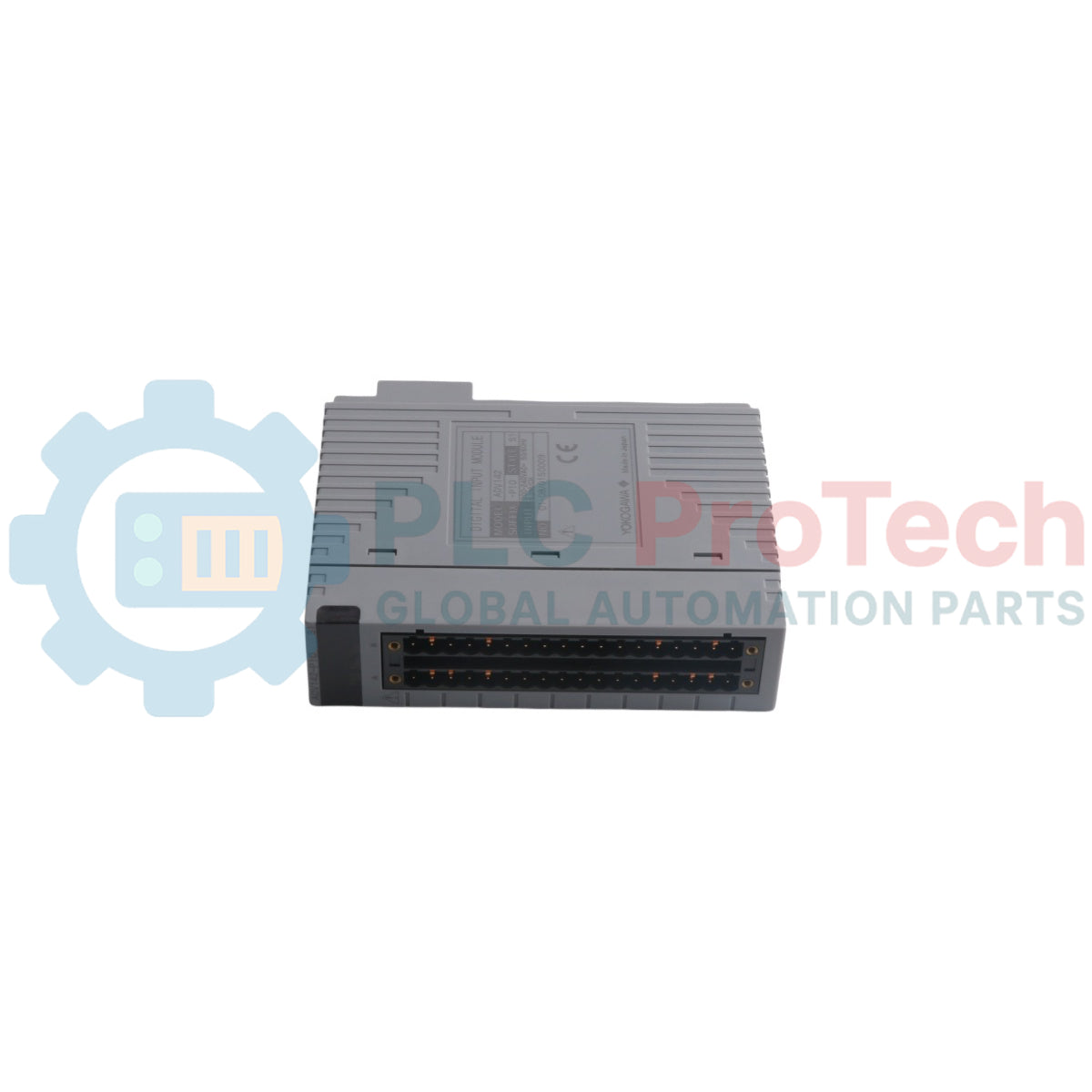

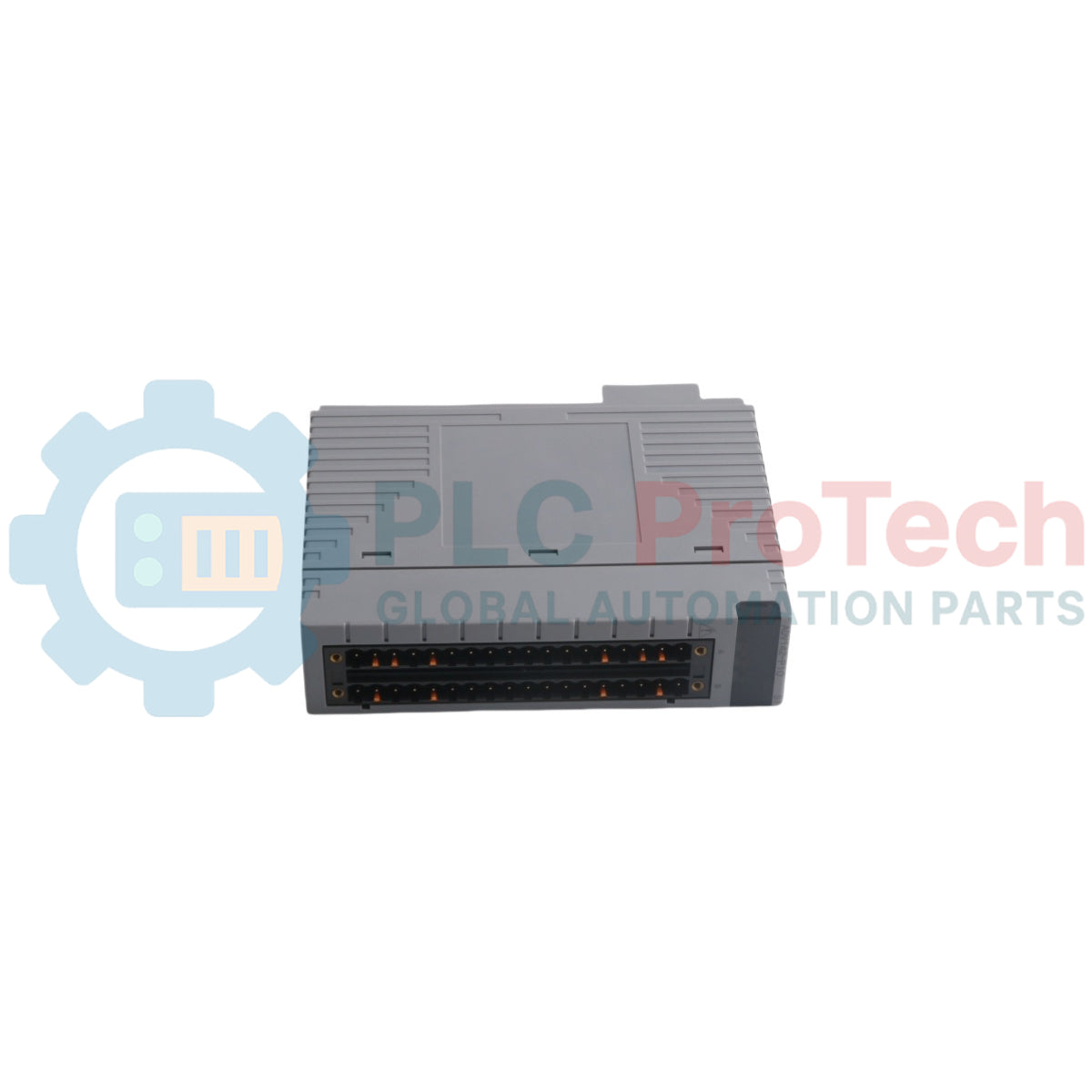

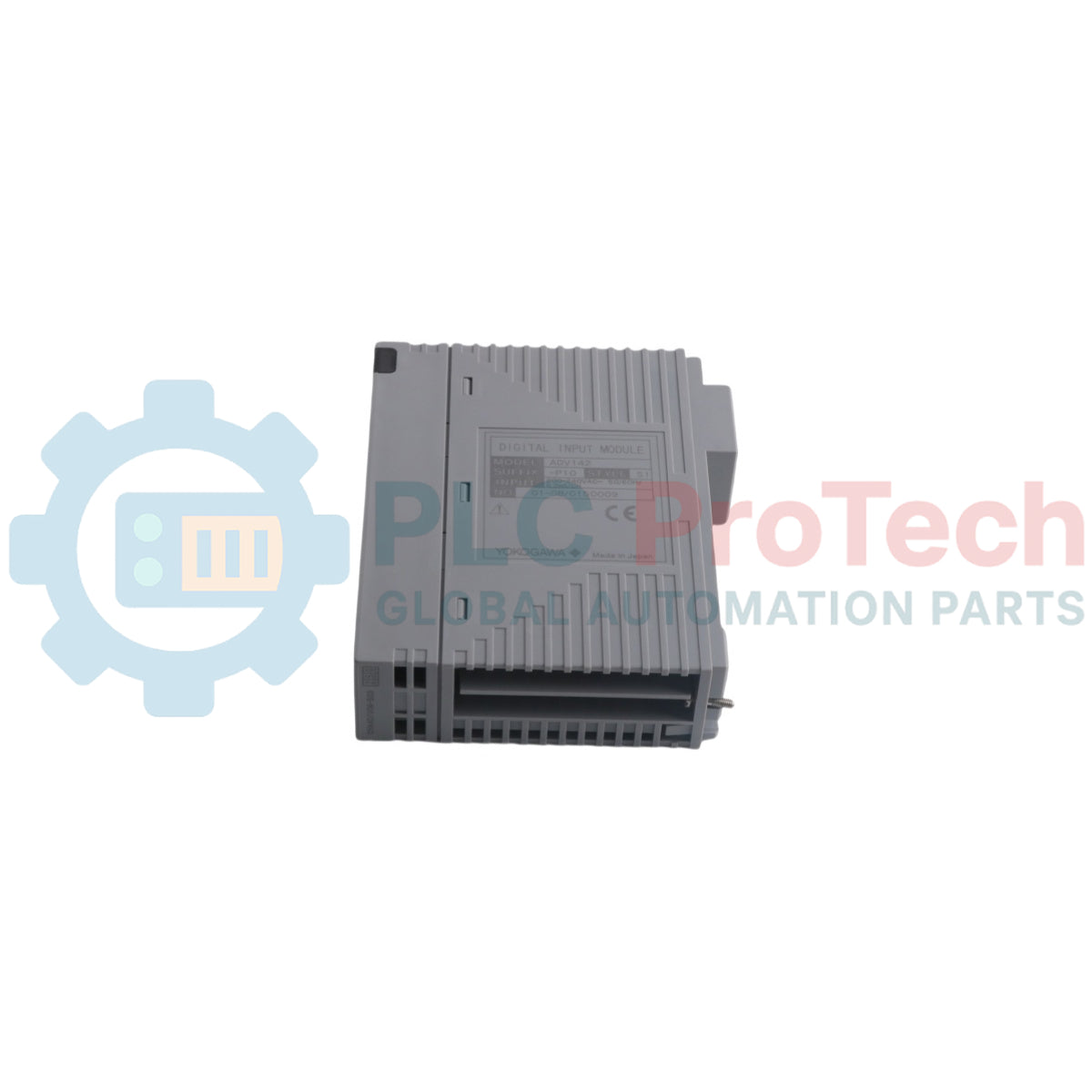

Yokogawa ADV142-P10 S1 CENTUM VP AC Digital Input Module

Product Overview

The ADV142-P10 (ADV142) is a high-voltage 16-channel digital input module purpose-built for the Yokogawa CENTUM VP distributed control system (DCS). Engineered to interface with 200 V to 240 V AC field signals, this module provides robust status monitoring for heavy-duty industrial equipment such as large motor starters, power distribution breakers, and high-voltage actuators. The ADV142 features integrated pushbutton input functionality, allowing it to accurately count pulse edges for manual operator interfaces. With a focus on process continuity, the module supports dual-redundant configurations, ensuring that critical safety and status data remain available even in the event of a hardware failure. Its high withstanding voltage and group-based isolation make it an essential component for power plants and heavy manufacturing facilities where electrical noise and high-voltage transients are prevalent.

Suffix Breakdown

The suffix codes for the ADV142-P10 define its specific functional and environmental configuration:

• -P: Includes the specialized pushbutton input function, enabling the module to detect and count pushbutton edges with a dedicated minimum detection time of 200 ms.

• 1: Designates the module as a General-purpose type, suitable for standard industrial environments without specialized explosion protection requirements.

• 0: Indicates the Basic type hardware revision, providing the essential input processing logic and connectivity for the FIO subsystem.

• S1: Designated as a standard type with specific hardware revision optimizations for CENTUM VP integration.

Technical Specifications

Technical FAQs

What is the critical wiring requirement for AC inputs sharing the same common?

When multiple AC input signals are connected to the same common terminal (grouped every 8 channels), they must be on the same phase. Mixing phases on a single common minus (-) side can cause hardware damage and unpredictable signal behavior.

How does the input current for the ADV142 compare to lower voltage modules?

The ADV142 is designed for higher voltage thresholds; it typically draws 6.2 mA per channel at 240 V/60 Hz. This higher current draw ensures a stable "ON" state and improves noise immunity in environments with high electromagnetic interference.

What is the difference between status input and pushbutton input response?

Standard status inputs have a response time of 160 ms for state detection. However, when utilizing the pushbutton function, the module requires a minimum ON detection time of 200 ms and can handle a maximum ON/OFF cycle of 2.5 Hz to ensure pulse accuracy.

Engineering & Installation Guide

• High-Voltage Safety: The ADV142 operates at potentials up to 264 V AC. During installation or maintenance, ensure that all field-side power is locked out before accessing the pressure clamp terminals. Use insulated tools and verify that the terminal cover is securely fastened to prevent accidental contact.

• Isolation Management: The module provides 2 kV AC isolation between the input signal and the system logic, and 1.35 kV AC between commons. When wiring the 16 channels, ensure the two 8-channel groups are logically separated if they represent different power segments of the plant.

• Thermal Management: AC input modules generate more heat than DC equivalents due to higher power dissipation per channel. Ensure the CENTUM VP node unit has at least 50 mm of clearance for airflow. If installing multiple ADV142 modules in a single rack, monitor cabinet temperatures to ensure they do not exceed the 70 deg C limit.

• Cable Selection: For high-density wiring, use the Yokogawa AKB333 dedicated cable. This cable is specifically rated for the 220 V AC signals processed by the ADV142, providing the necessary insulation thickness and shielding to maintain signal integrity over long distances.
