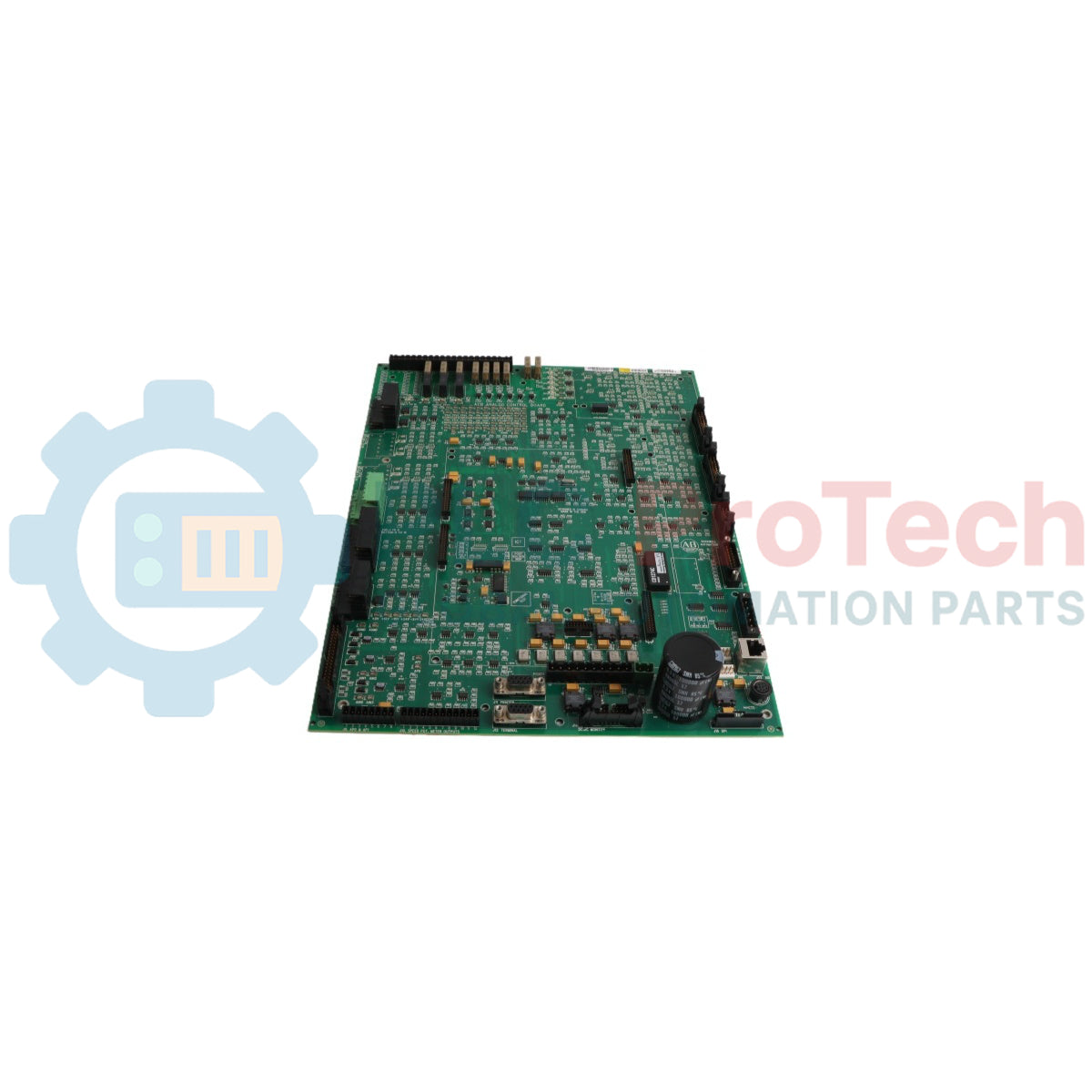

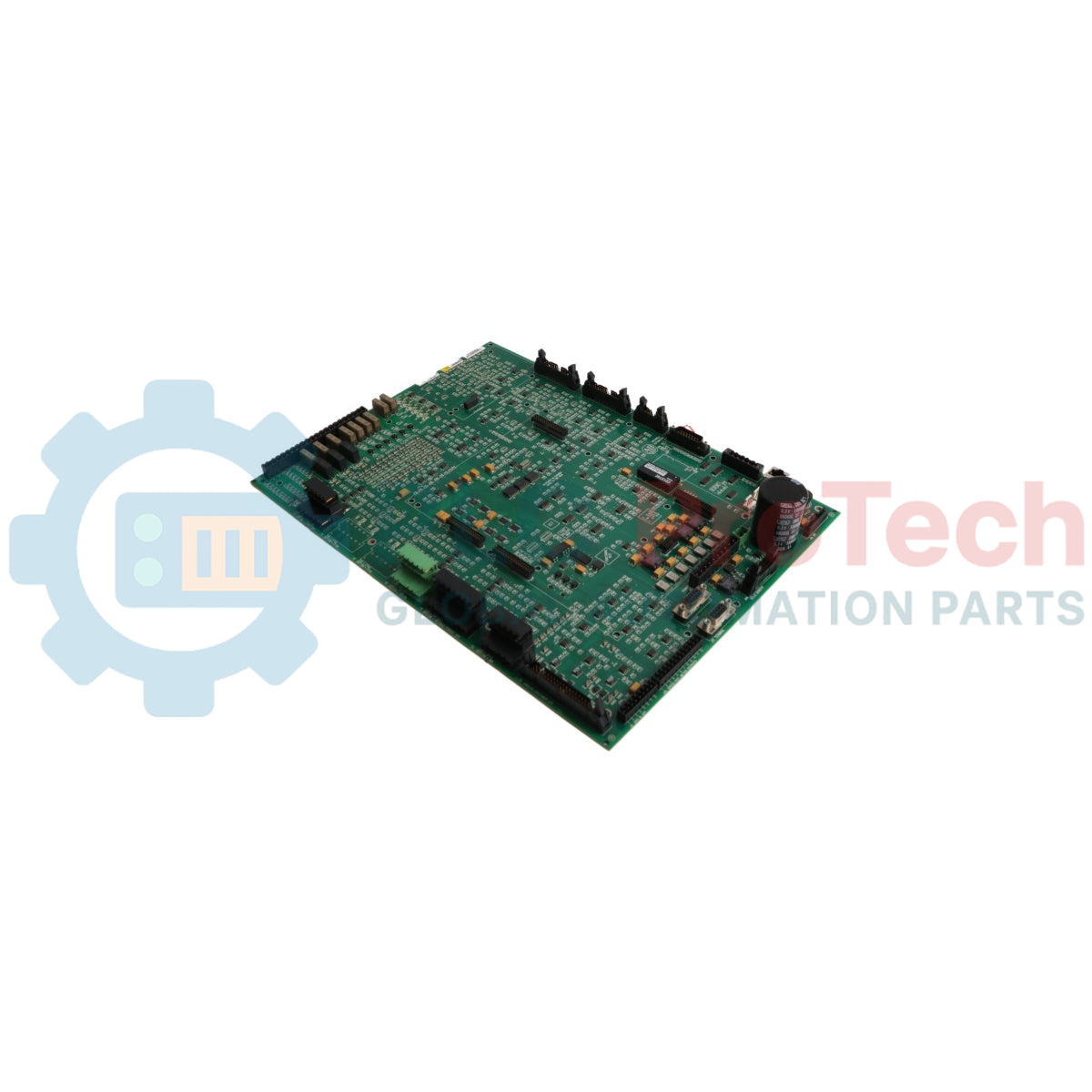

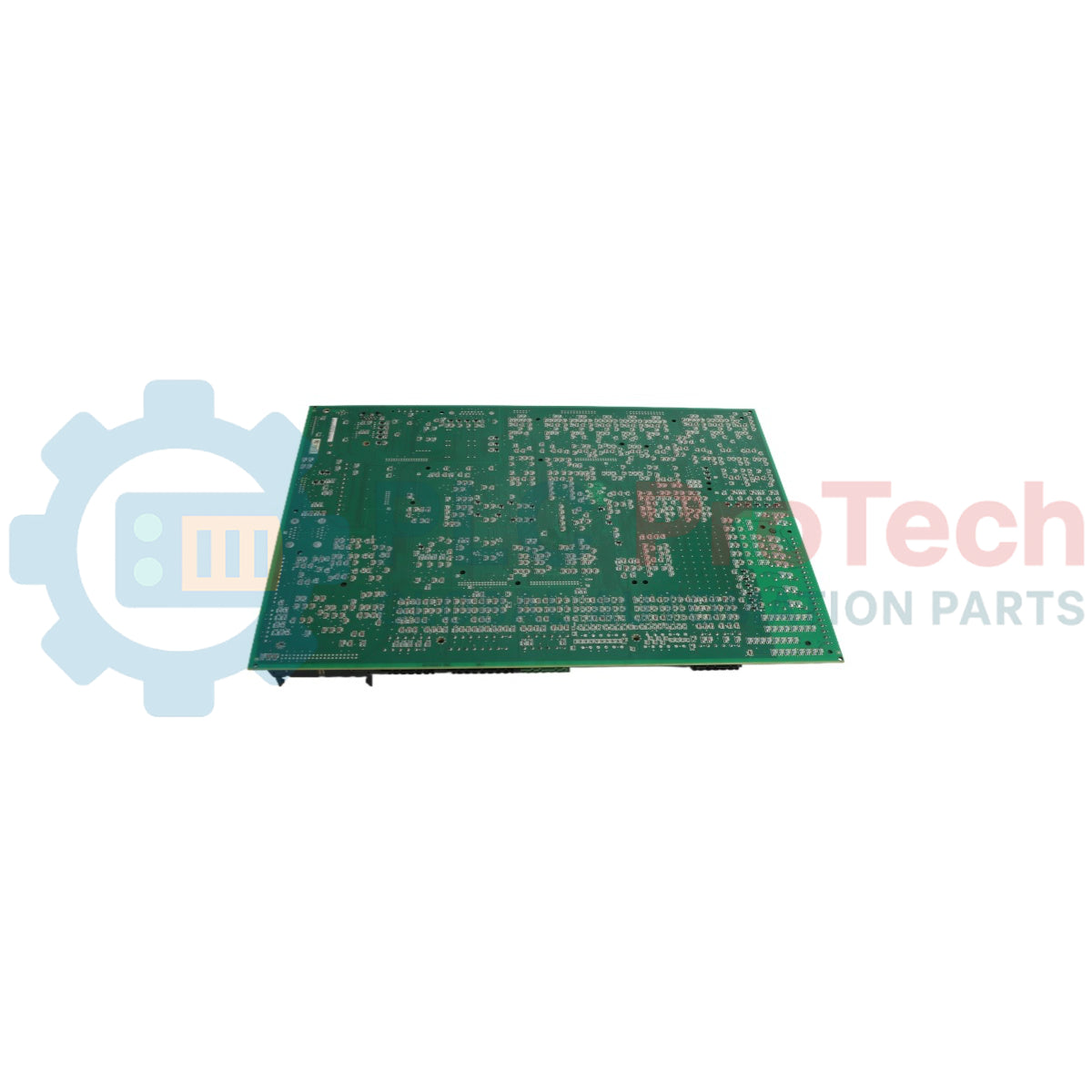

Allen-Bradley 80190-560-02-R PowerFlex 7000 Analog Control Board

The Allen-Bradley 80190-560-02-R is a Packaged Customer Analog Control Board (ACB) configured exclusively for Pulse Width Modulated (PWM ONLY) operations within medium voltage drive systems. This assembly serves as a critical control component designed to process analog regulation signals and execute precise pulse width modulation sequences to manage the power switching frequency and voltage outputs of the drive. The 80190-560-02-R interfaces directly with the main drive processor module (DPM) and fiber-optic peripheral links to maintain stable synchronous motor control and deliver real-time operational feedback.

Features

• Dedicated Pulse Width Modulated (PWM) analog control loop processing
• Direct integration interface with PowerFlex Drive Processor Modules (DPM)
• Multi-pin terminal block connections for secure control signal routing
• Designed for low-latency analog signal conditioning in medium voltage drive control layers

Applications

• PowerFlex 7000 Medium Voltage AC Drive control systems
• Industrial motor control center (MCC) applications
• Pulse width modulation inverter control loops

Technical Specifications

Installation Guidelines

• Electrostatic Discharge (ESD) Protection: This assembly contains static-sensitive components. Utilize a grounded static-dissipative wrist strap and an ESD-safe mat during unboxing and installation procedures.
• Lockout-Tagout (LOTO): Isolate the drive from all medium voltage input lines. Verify that internal DC link capacitors and snubber networks are completely discharged prior to servicing the board.
• Harness Realignment: Check all multi-pin terminal blocks and cable routing connections for alignment. Ensure pins are not bent during mating to prevent intermittent signal distortion or control communication faults.
