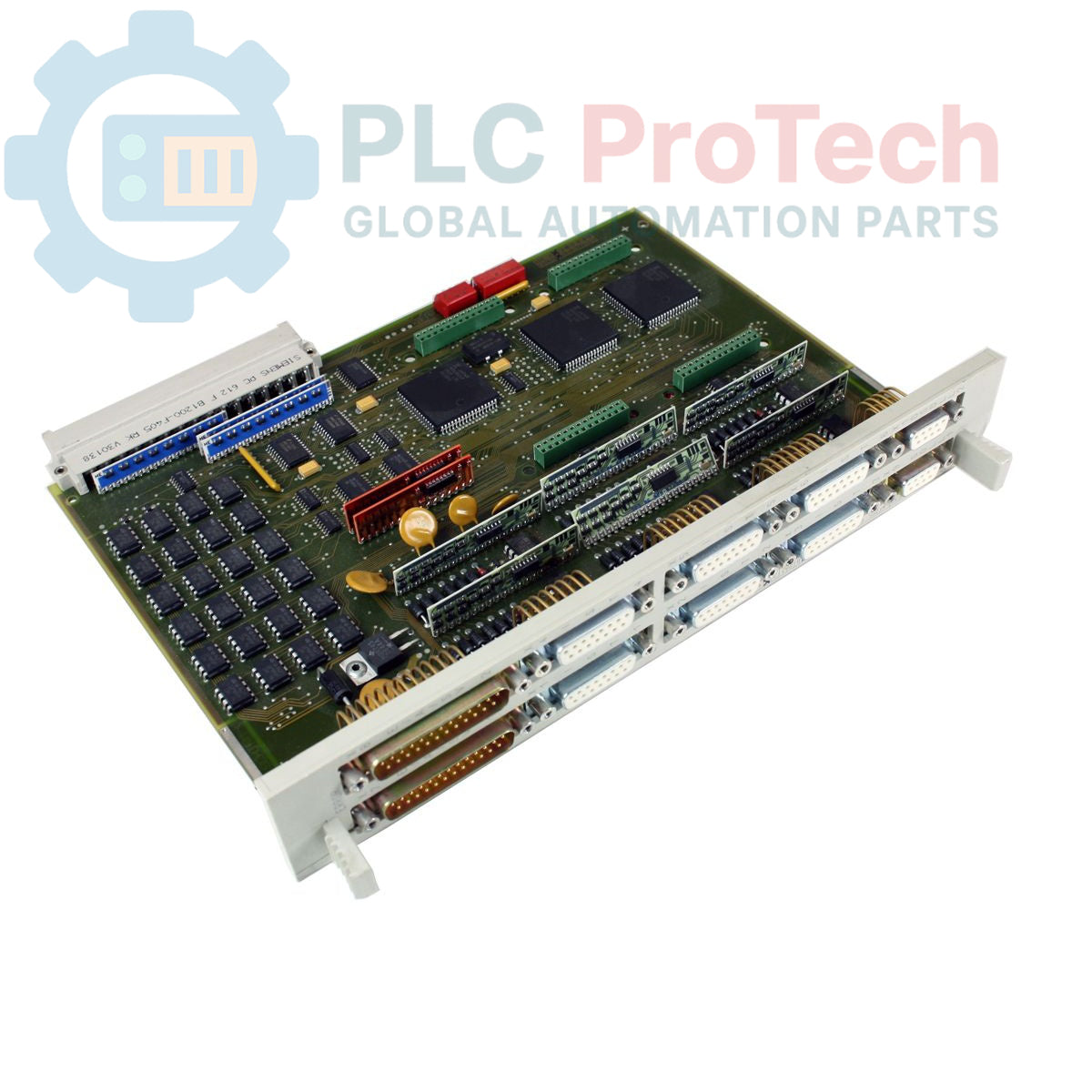

Siemens 6FM1706-3AB20 SIMATIC S5 WF 706 Módulo de Posicionamento e Contagem

Description

The 6FM1706-3AB20 is a specialized WF 706 Positioning and Counting Module designed for integration into SIMATIC S5-135/155 automation systems. This module provides 6 independent channels capable of performing high-precision positioning and counting tasks essential for industrial motion control. The architecture supports system scalability, allowing for expansion with one or two additional analog modules to accommodate more complex process requirements. Its reliable, robust design makes the 6FM1706-3AB20 a critical component for managing high-speed or multi-axis automated machinery within legacy S5 production environments.

Features

• 6-channel independent positioning and counting capability
• Designed for SIMATIC S5-135/155 PLC systems
• Expandable via one or two additional analog modules
• Robust construction for reliable industrial performance
• Compact modular design for simplified rack integration

Applications

• Multi-axis industrial positioning systems
• High-speed industrial counting applications
• Precision motion control for legacy S5-based machinery
• Automated process sequencing and monitoring

Technical Specifications

Installation Guidelines

• Rack Mounting: The module is designed to slide directly into the SIMATIC S5-135/155 rack. Ensure all backplane pins are aligned before engaging the module fully.
• Wiring: Utilize shielded cabling for all positioning and counting signal inputs to prevent electromagnetic noise from interfering with count accuracy.
• Expansion: If installing additional analog modules, ensure they are correctly addressed in the system configuration software to allow the base WF 706 module to communicate with them correctly.
• Safety: Always power down the PLC rack before inserting or removing the module to prevent electrical damage to the backplane or the module's internal circuitry.
