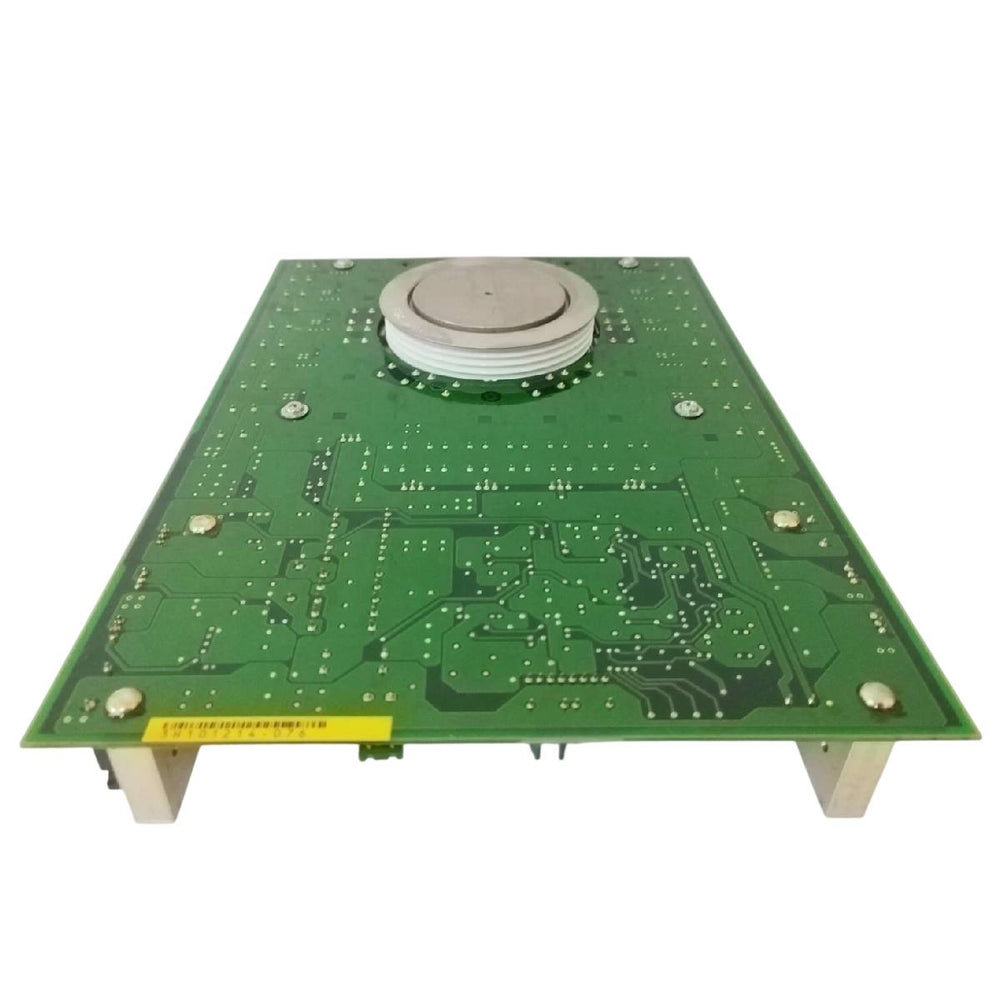

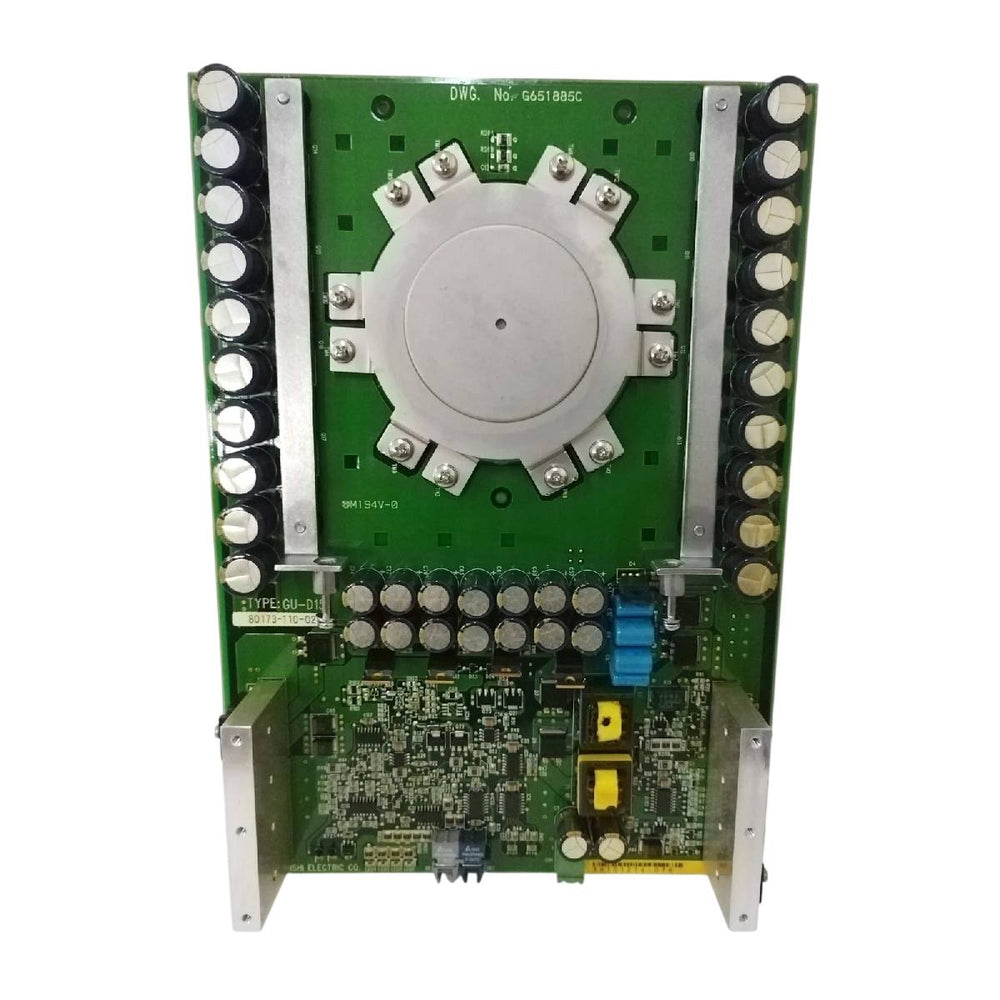

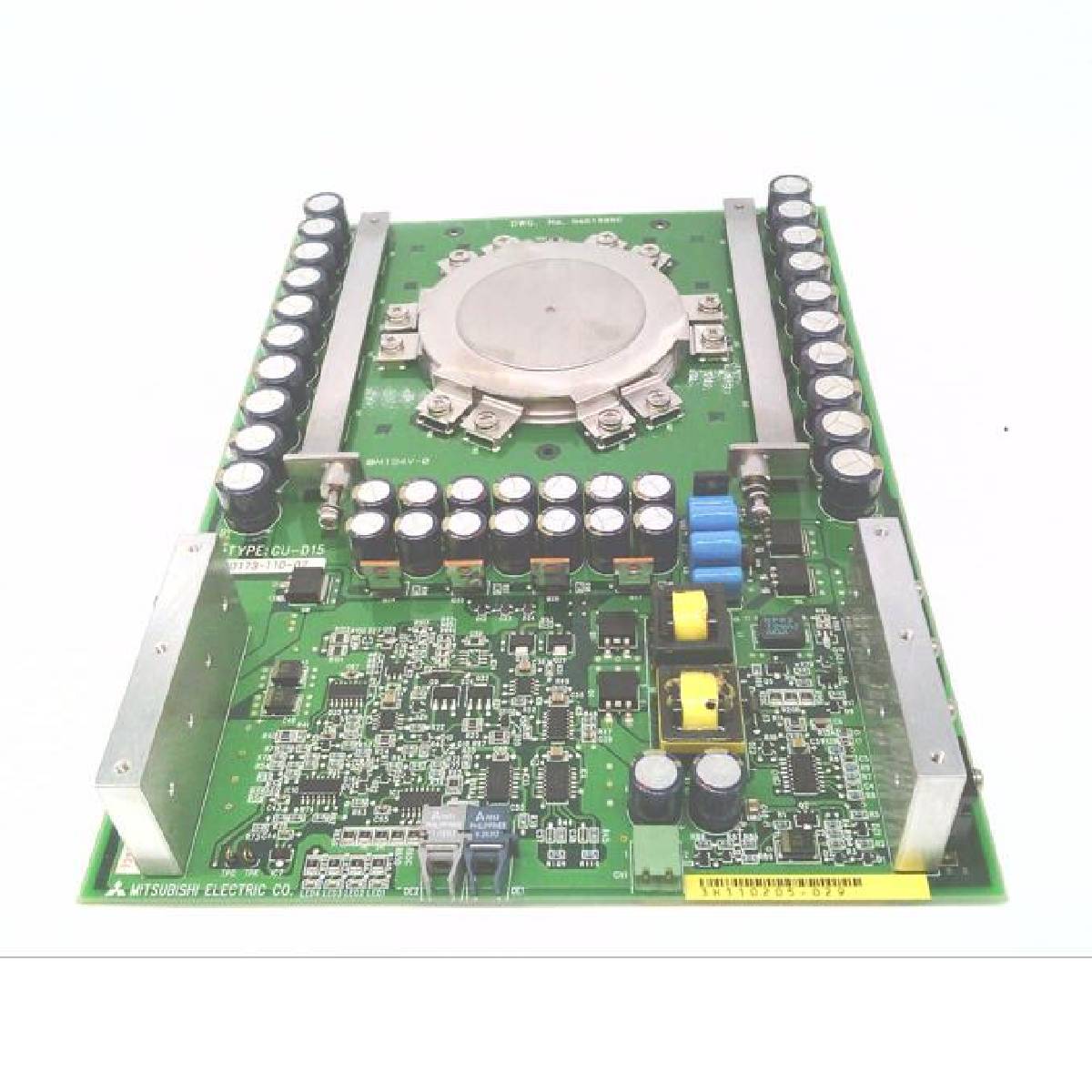

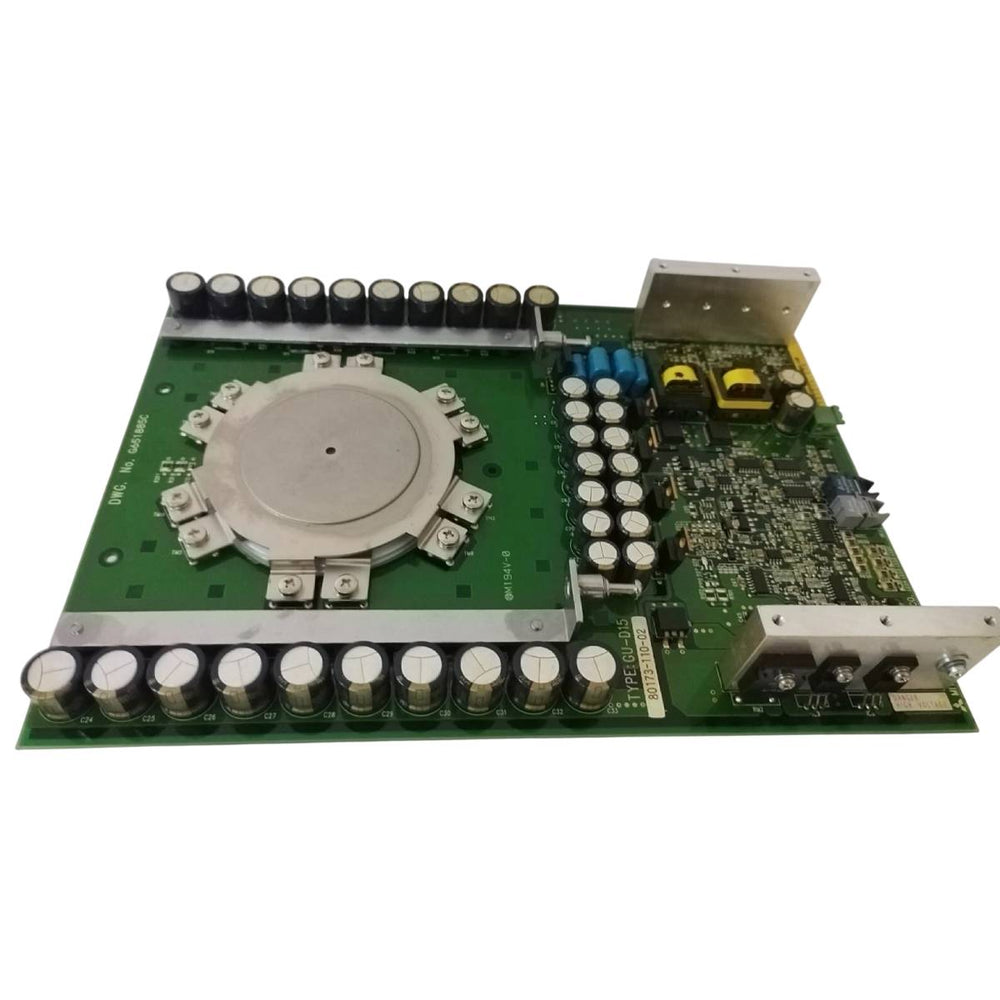

Тиристорная плата Mitsubishi GU-D15 80173-110-02

Description

The Mitsubishi GU-D15 (also designated by part number 80173-110-02) is a gate commutated thyristor board sub-assembly designed for high-power industrial converter systems. This thyristor board interfaces with and drives a 1500 A Symmetrical Gate-Commutated Thyristor (SGCT) or Integrated Gate-Commutated Thyristor (IGCT) module assembly. The primary role of the GU-D15 is to deliver precise high-current gating pulses to trigger and turn off the solid-state switching elements in medium-voltage AC motor drives or power converters, isolating control-side logic circuits from the high-power mains paths.

Features

• Optimized specifically for driving high-capacity 1500 A SGCT semiconductor switches
• Gate commutated switching layout configured for precise turning transitions under heavy inductive loads
• Direct board replacement compatibility with original power module assemblies using alternate part number 80173-110-02

Applications

• High-power semiconductor gating in industrial medium-voltage AC drives
• Multi-phase power converter assemblies requiring synchronous SGCT triggering
• Heavy-duty industrial motor drive phase modules and power inverter components

Technical Specifications

Installation Guidelines

• Electrostatic Discharge Safety: Always handle the card within a designated static-controlled work area, as the gate commutated logic tracks are highly prone to damage from ESD.
• Bus Discharge Verification: Ensure all main DC bus capacitors are fully discharged and tested before mounting or servicing the board within the thyristor stack enclosure.
• Fastener Torque Check: Ensure all gate-to-thyristor connection points and mounting screws are tightened to specified operational values to prevent high-contact resistance and thermal breakdown.
