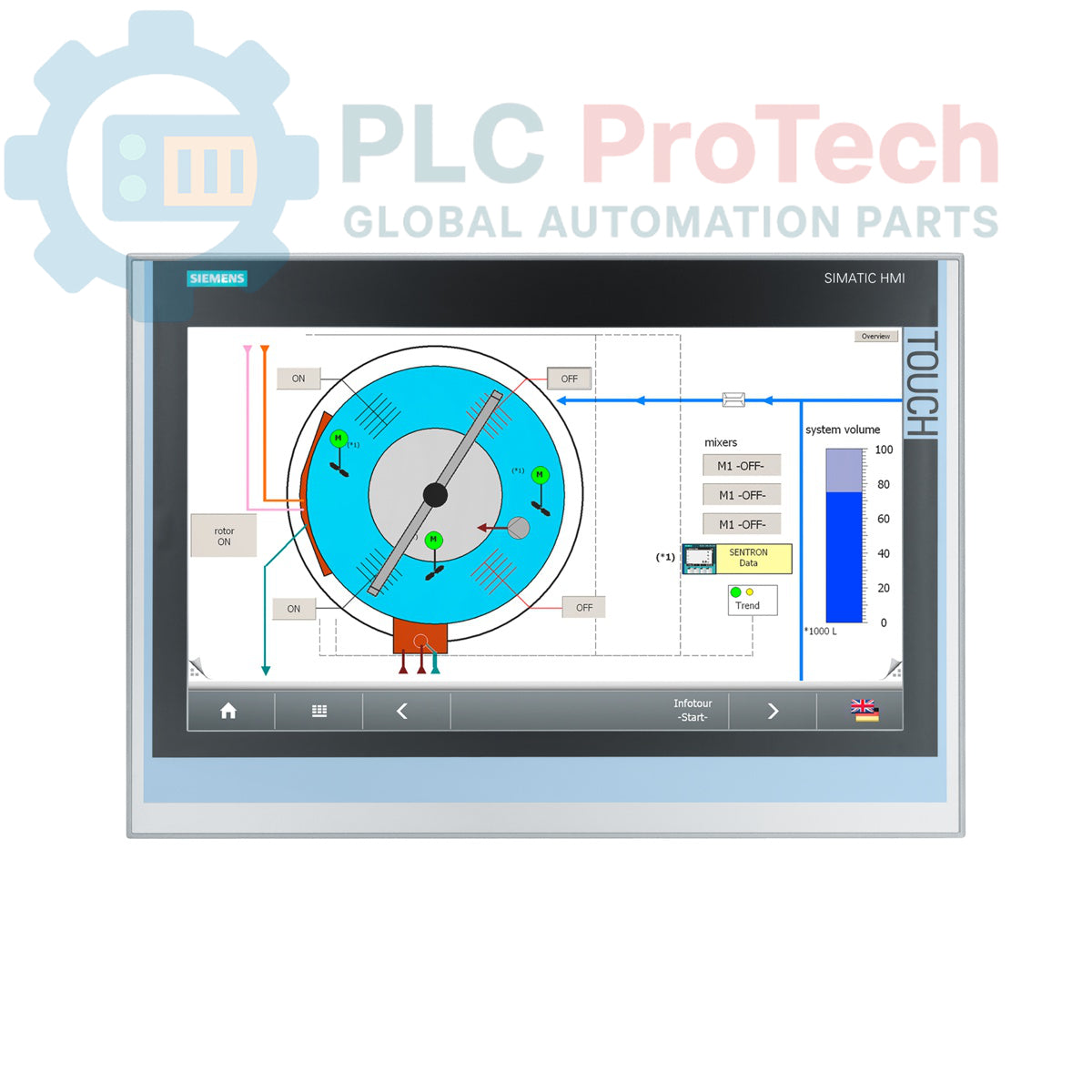

Siemens 6AV7863-3AB10-0AA0 SIMATIC IFP1900 плоский панельный дисплей

The 6AV7863-3AB10-0AA0 is a SIMATIC IFP1900 flat panel display designed for high-clarity industrial visualization. This 19-inch widescreen (16:9) monitor offers a resolution of 1366 x 768 pixels and is categorized as a "display only" unit, meaning it does not feature integrated touch functionality. Engineered as an extended version, this panel supports cable distances of up to 30 meters, providing flexibility for remote installation in control rooms or production floor operator stations. It utilizes DisplayPort and DVI interfaces for robust signal transmission and is compatible with both 24V DC and 100-240V AC power inputs.

Features

• Display Size: 19-inch widescreen (16:9).
• Resolution: 1366 x 768 pixels.
• Operation: Non-touch (display only).
• Extended Reach: Supports transmission distances up to 30 meters.
• Interfaces: DisplayPort and DVI.
• Power Compatibility: Supports both 24V DC and 100-240V AC supplies.
• Included Accessories: DVI/USB cable (1.8 meters).

Applications

• Industrial process visualization and monitoring stations.
• Control room status displays.
• Remote operator terminals in manufacturing environments.
• Large-scale production floor information dashboards.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the panel is mounted on a stable surface or support arm capable of sustaining the 8.22 kg weight.
• Cable Management: Use the provided 1.8m cable for standard setups; for extended distances (up to 30m), ensure shielded cabling is used to maintain signal integrity over the DisplayPort/DVI lines.
• Power Connection: Verify that the supply voltage matches the configured input (24V DC or 100-240V AC) before connecting to power terminals.
• Ventilation: Maintain adequate airflow around the unit to prevent thermal stress during long-term operation.
• EMI/RFI: Keep signal cables separated from heavy-duty power lines to prevent electromagnetic interference.
