Siemens 6AV7883-7AH30-4BX0 SIMATIC HMI IPC477C PRO Промышленный ПК

Description

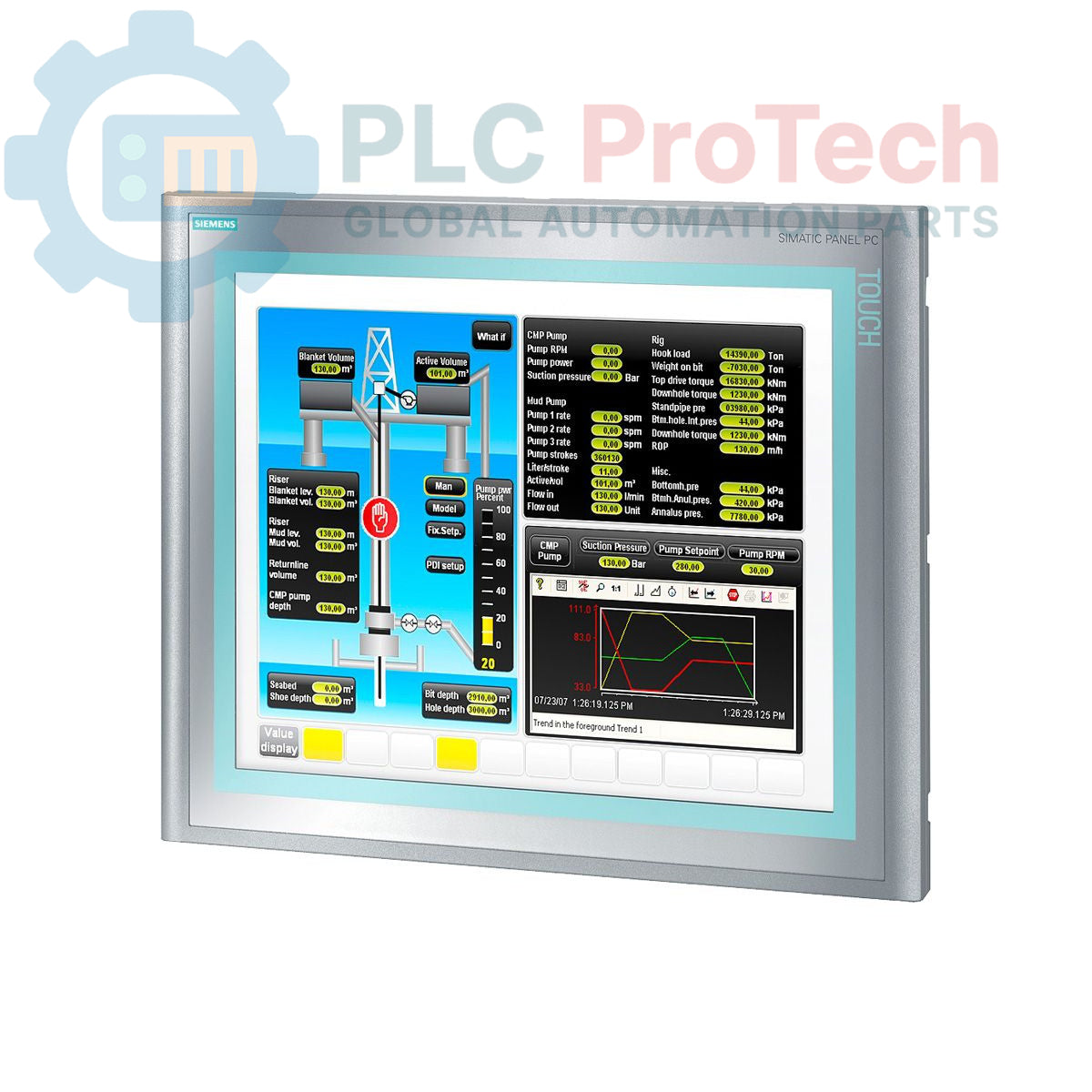

The Siemens 6AV7883-7AH30-4BX0 is a SIMATIC HMI IPC477C PRO Industrial PC, designed for robust operation in industrial environments. This unit features a 19-inch touch display with a resolution of 1280x1024 pixels and is powered by an Intel Core2Duo 1.2 GHz processor with 4 GB of SDRAM (DDR3). It offers comprehensive connectivity including two 1 Gbit/s Ethernet ports, one PROFIBUS DP12 interface, and four USB 2.0 ports (500mA), alongside a single RS232 (COM1) serial port. The IPC operates on a DC 24V power supply and comes equipped with an 8 GByte CF card, with an additional free CF slot available. It is pre-installed with Windows Embedded Standard 2009 and WinCC RT V7.0 SP2, including a 128-point WinCC RT license, though the embedded Windows software is not delivered with the unit.

Features

• 19-inch Touch Display with 1280x1024 Resolution
• Intel Core2Duo 1.2 GHz Processor
• 4 GB SDRAM (DDR3)
• 2 x Ethernet 1 Gbit/s Ports
• 1 x PROFIBUS DP12 Interface
• 4 x USB 2.0 Ports (500mA)
• 1 x RS232 (COM1) Serial Port
• DC 24V Power Supply
• 1 x Free CF Slot, 8 GByte CF Card Included
• Pre-installed with WinCC RT V7.0 SP2 (128-point license)
• Windows Embedded Standard 2009 (delivered without embedded Windows software)

Applications

The Siemens SIMATIC HMI IPC477C PRO is suitable for a wide range of industrial automation applications requiring robust visualization and control. Typical deployments include:

• Machine operation and monitoring in manufacturing environments.
• Process visualization and data acquisition in discrete and process industries.
• Human-Machine Interface (HMI) for complex control systems.
• Data logging and supervisory control in harsh industrial settings.

Technical Specifications

Connections / Interfaces

The 6AV7883-7AH30-4BX0 provides the following industrial and standard interfaces:

• Ethernet: Two 1 Gbit/s ports for network integration.
• PROFIBUS: One DP12 port for fieldbus communication.
• USB: Four USB 2.0 ports, each providing 500mA.
• Serial: One RS232 (COM1) port for point-to-point connections.

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and secured before beginning any work.
2. Mounting: Mount the SIMATIC HMI IPC477C PRO securely into a panel cutout or suitable enclosure. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the DC 24V power supply to the designated terminals, observing correct polarity. Use appropriate gauge wiring for the power input.
4. Grounding: Establish a proper protective earth (PE) connection to the device's grounding terminal to ensure electrical safety and minimize electromagnetic interference.
5. Network Connections: Connect Ethernet cables to the 1 Gbit/s ports for network integration. Ensure industrial-grade shielded cables are used in noisy environments.
6. Fieldbus Connection: Connect the PROFIBUS DP12 cable, ensuring correct termination and shielding practices are followed for reliable communication.
7. Peripheral Connections: Connect USB and RS232 devices as required.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings for the IPC. Avoid direct exposure to excessive heat, moisture, or corrosive substances.
9. Ventilation: Maintain clear airflow around the unit to prevent overheating, especially in enclosed panels.
