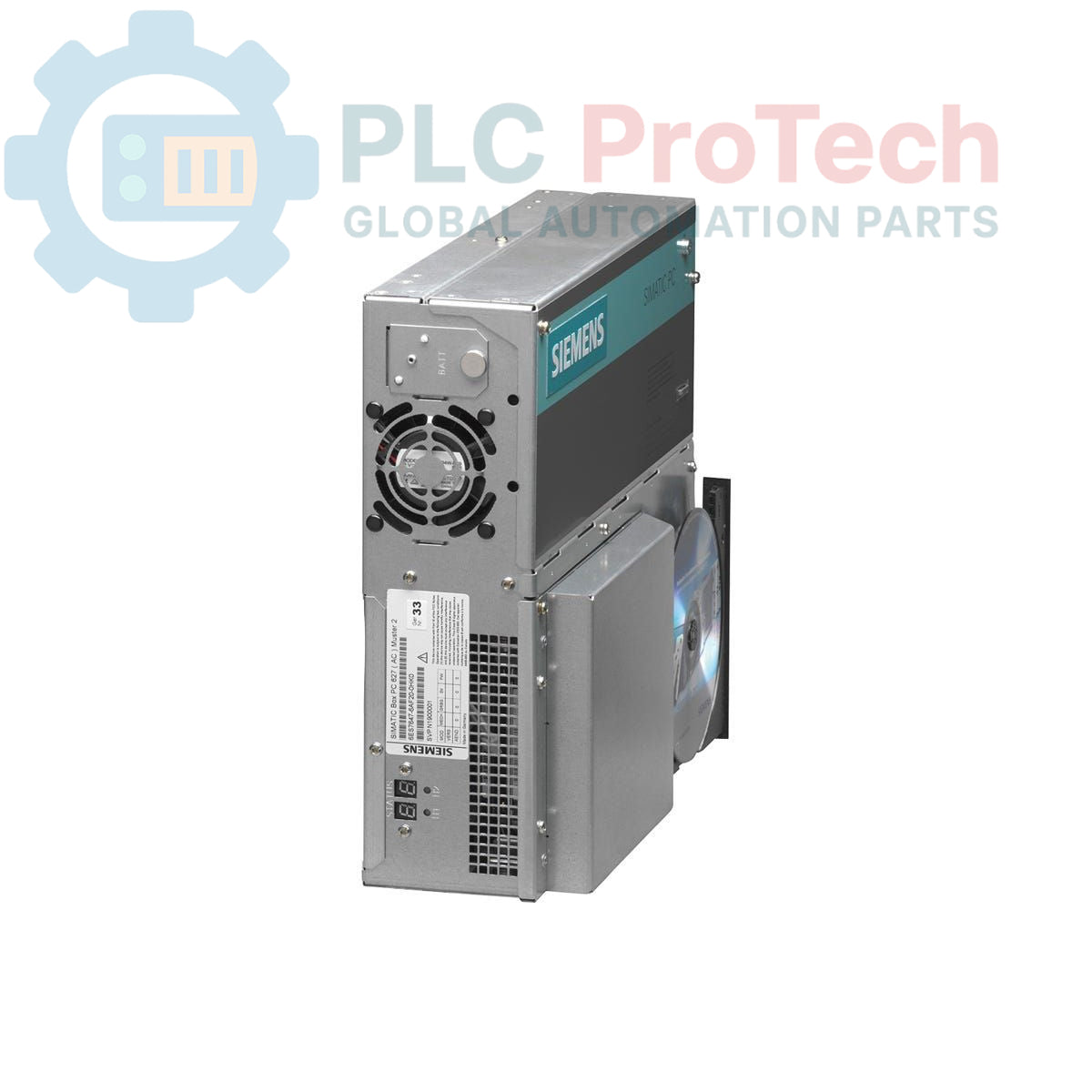

Siemens 6ES7647-6AC10-0AX0 SIMATIC Box PC 627 Корпусной ПК

Description

The Siemens 6ES7647-6AC10-0AX0 is a SIMATIC Box PC 627, designed as a robust industrial personal computer for various automation applications. This unit features onboard AGP graphics with 8-128 MB of shared memory, providing visual output capabilities. For network connectivity, it includes two 10/100 Mbit/s Ethernet RJ45 ports, alongside four high-current USB V2.0 ports and one serial (COM1) port for peripheral integration. An onboard RAID controller enhances data integrity and storage flexibility. The PC 627 also includes a slot for a Compact Flash drive, a watchdog timer, and temperature/fan monitoring for reliable operation in industrial environments. It is equipped with a Pentium M 730 1.6 GHz CPU, 256 MByte DDR2 533 SODIMM RAM, and an 80 GByte SATA HDD (without an operating system). Power is supplied via an AC 110/230V industrial power unit with NAMUR compatibility, and it comes with a PCI-interface card providing additional COM2 and LPT1 ports.

Features

• AGP Graphics Onboard with 8-128 MB Shared Memory
• 2x 10/100 Mbit/s Ethernet RJ45 Ports
• 4x USB V2.0 (High Current) Ports
• 1x Serial (COM1) Port
• Integrated RAID Controller
• 1x Slot for Compact Flash Drive
• Watchdog, Temperature, and Fan Monitoring
• 2x Free PCI Expansion Slots
• Pentium M 730 1.6 GHz CPU, 533 MHz FSB, 2 MB SLC
• 256 MByte DDR2 533 SODIMM RAM
• AC 110/230V Industrial Power Unit with NAMUR
• PCI-Interface Card with COM2 and LPT1 Ports
• 80 GByte SATA Hard Disk Drive (without operating system)

Applications

The Siemens SIMATIC Box PC 627 is suitable for a wide range of industrial automation applications, including:

• Human-Machine Interface (HMI) systems
• Data acquisition and processing
• Machine control and visualization
• Industrial communication gateways
• Distributed control systems (DCS) support
• Manufacturing execution systems (MES) integration

Technical Specifications

Connections / Interfaces

• Ethernet: 2x RJ45 (10/100 Mbit/s)
• USB: 4x USB V2.0 (High Current)
• Serial: 1x COM1 (onboard), 1x COM2 (via PCI card)
• Parallel: 1x LPT1 (via PCI card)
• Storage: SATA HDD, Compact Flash Slot

Installation Guidelines

1. De-energize System: Before installation, ensure all power to the system and associated equipment is disconnected and locked out according to safety procedures.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the AC 110/230V industrial power supply to a stable and protected power source. Verify correct voltage and grounding.
4. Grounding: Ensure proper grounding of the unit to the enclosure's ground bus to minimize electrical noise and enhance safety.
5. Peripheral Connections: Connect Ethernet cables to the RJ45 ports, USB devices to the USB ports, and serial/parallel devices to the respective COM/LPT ports as required by the application.
6. Cable Management: Route all cables neatly, separating power and signal cables to prevent interference. Use strain relief where necessary.
7. Cooling: Verify that the cooling fans are unobstructed and functioning correctly to maintain optimal operating temperature.
8. Initial Power-Up: After all connections are secure, re-energize the system and observe for proper boot-up and indicator status.
