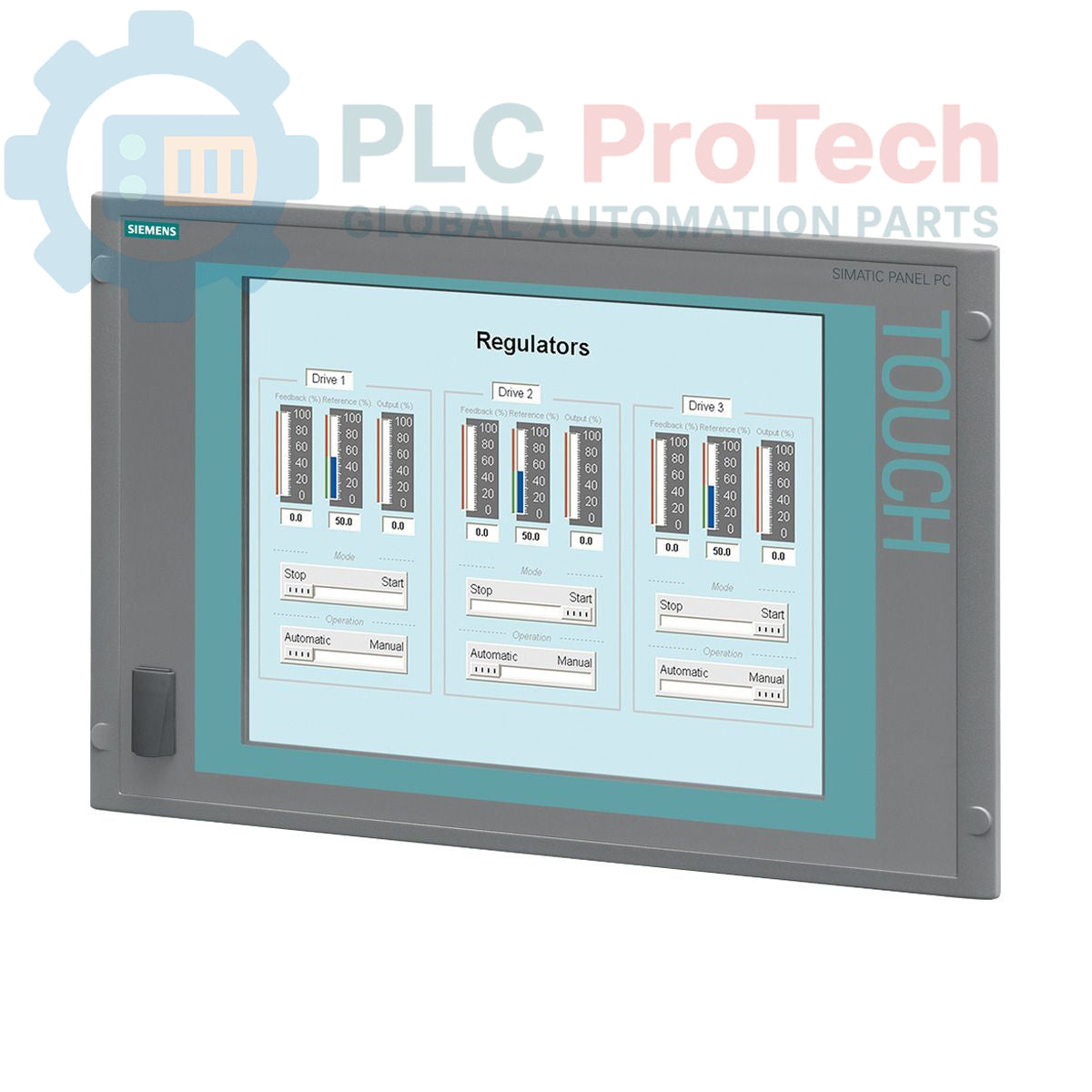

Siemens 6ES7676-3BA00-0BE0 SIMATIC Panel PC 477B

Остался только 4 товар(ы) на складе

Производитель: Siemens
Номер продукта: 6ES7676-3BA00-0BE0
Страна происхождения:Германия
Тип продукта: Panel PC
Штрихкод: 85371091
Оплата: Т/Т, Western Union
Вес: 8г
Размеры: 66.50 x 52.00 x 22.00 cm
Порт отгрузки: Сямынь
Гарантия: 12 месяцев

Description

The Siemens 6ES7676-3BA00-0BE0 is a SIMATIC Panel PC 477B designed for industrial visualization and control applications. It features a 15-inch touch display with a resolution of 1024x768, a standard front with a USB interface, and is powered by an Intel Celeron M 1.0 GHz processor. The unit includes 1 GB DDR2 RAM, PROFIBUS DP 12 connectivity, two 1 Gbit/s Ethernet ports, four USB 2.0 ports (500mA), and one RS232 interface. It operates on a DC 24V power supply and provides two CF-slots, one of which is pre-installed with a 1 GB Compact-Flash card. The system is pre-configured with WinCC Flexible RT 2048PT, including archives and recipes, and is delivered without embedded Windows software.

Features

15-inch touch display with 1024x768 resolution
Intel Celeron M 1.0 GHz processor
1 GB DDR2 RAM
PROFIBUS DP 12 interface
Two 1 Gbit/s Ethernet ports
Four USB 2.0 ports (500mA)
One RS232 interface
DC 24V power supply
Two CF-slots, one with pre-installed 1 GB Compact-Flash
Pre-installed WinCC Flexible RT 2048PT (incl. archives & recipes)

Applications

Industrial visualization and HMI tasks
Machine control and monitoring
Process automation systems
Data acquisition and recipe management

Technical Specifications

Manufacturer	Siemens
Product Series	SIMATIC Panel PC
Sub-Series	PC477B
Product Type	Panel PC
Model Number	6ES7676-3BA00-0BE0
Display Type	Touch Display
Display Size	15 inches
Resolution	1024x768
Processor	Intel Celeron M 1.0 GHz
RAM	1 GB DDR2
Communication Interfaces	PROFIBUS DP 12, 2x Ethernet (1 Gbit/s), 4x USB 2.0 (500mA), 1x RS232
Power Supply	DC 24V
Storage Slots	2x CF-slots
Pre-installed Storage	1x 1 GB Compact-Flash
Pre-installed Software	WinCC Flexible RT 2048PT (incl. archives & recipes)
Operating System (not included)	Windows XP Embedded
Product Phase	Obsolete
Package Dimensions (Calculated)	66.50 x 52.00 x 22.00 cm
Shipping Weight	8.00 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	5D002

Installation Guidelines

Ensure all power to the system and associated equipment is de-energized before beginning installation.
Prepare the panel cutout according to the specified dimensions for the Panel PC 477B.
Mount the Panel PC securely into the prepared panel cutout, ensuring proper sealing and stability.
Connect the DC 24V power supply to the designated terminals, observing correct polarity to prevent damage.
Connect necessary communication cables for Ethernet, PROFIBUS DP, USB, and RS232 interfaces to their respective ports.
Ensure proper grounding of the Panel PC to the system's protective earth.
Verify all electrical and communication connections are secure and correctly terminated before re-energizing the system.

Key Features:

#Panel PC #SIMATIC Panel PC

What is the display size and resolution of the Panel PC?

The Panel PC features a 15-inch touch display with a resolution of 1024x768 pixels.

What type of processor is used in this unit?

It is equipped with an Intel Celeron M 1.0 GHz processor.

What communication interfaces are available?

The Panel PC includes PROFIBUS DP 12, two 1 Gbit/s Ethernet ports, four USB 2.0 ports, and one RS232 interface.

Does this Panel PC come with an operating system?

The unit is delivered without embedded Windows software, but it is pre-configured with WinCC Flexible RT 2048PT.

What is the required power supply?

The Panel PC operates on a DC 24V power supply.
