ABB Bailey Infi 90 IIMCL01 Multibus Communication Link

Product Overview

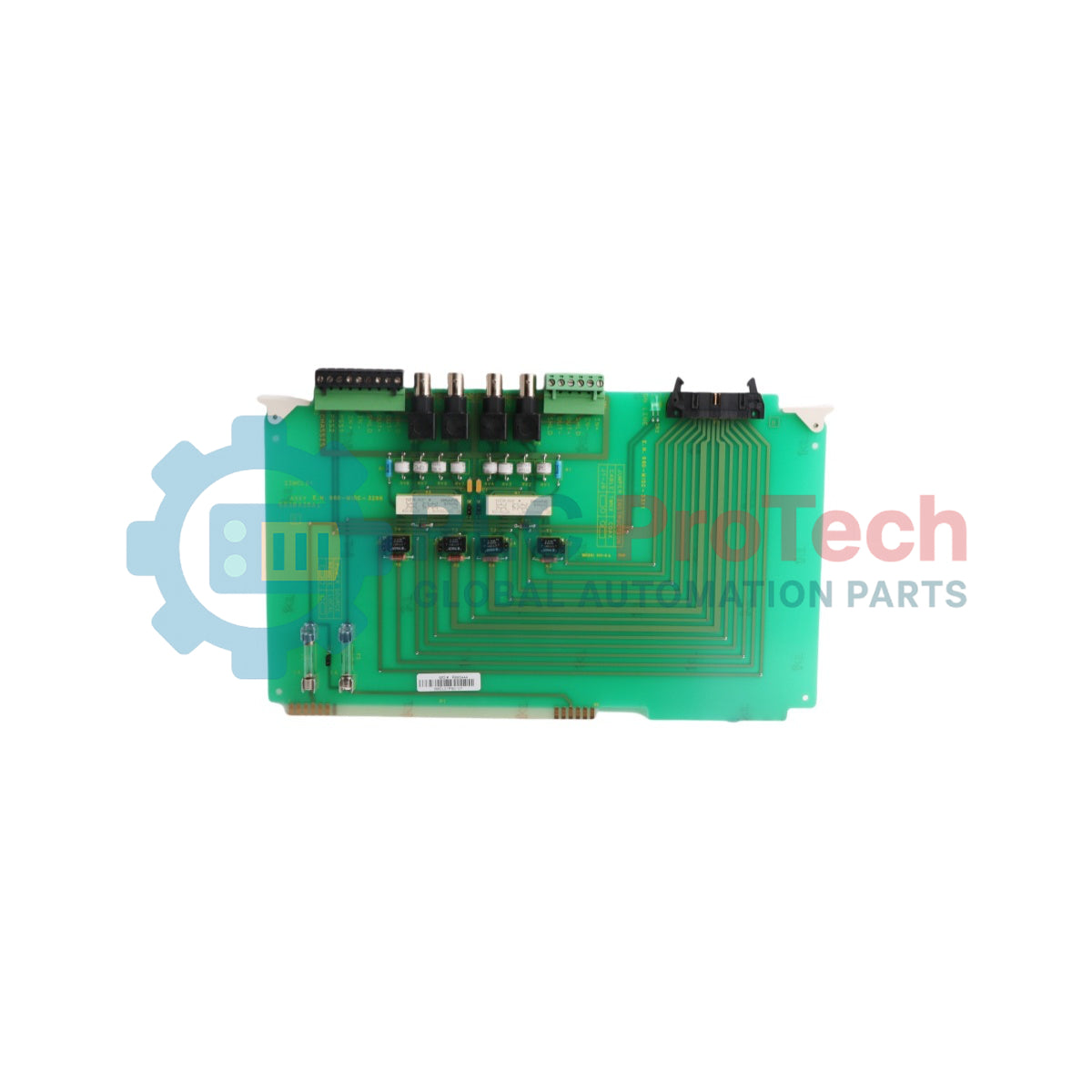

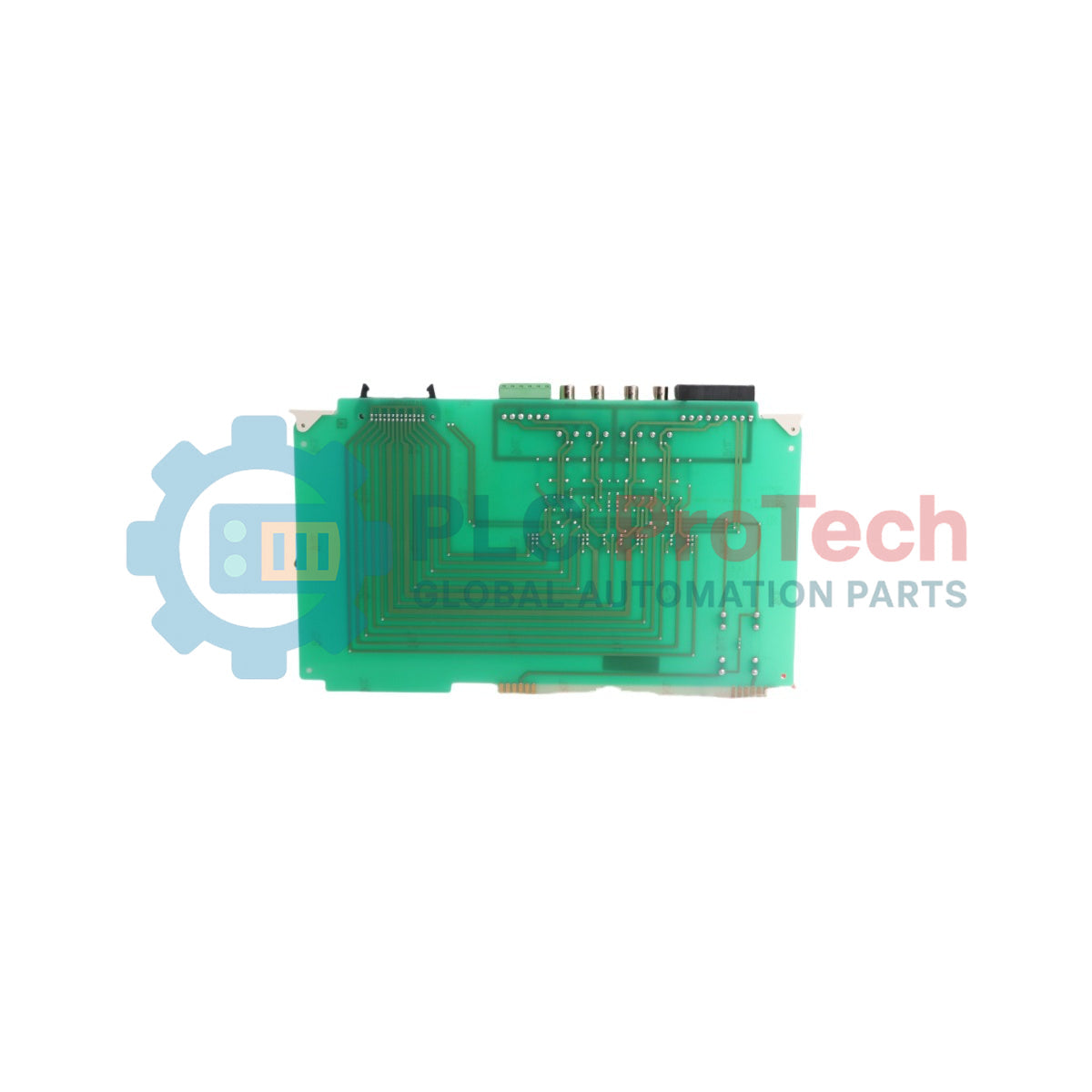

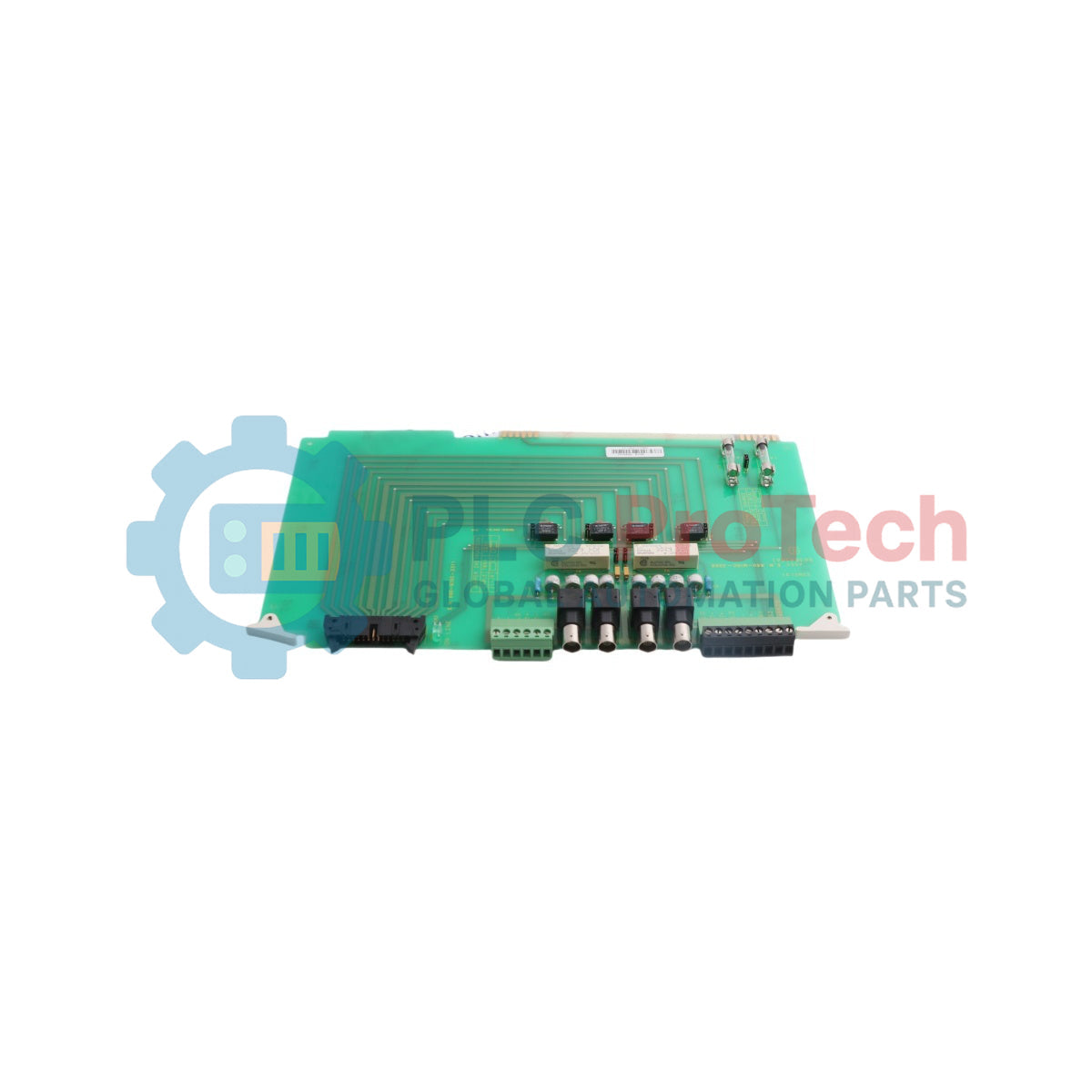

The IIMCL01 is a high-reliability Multibus Communication Link termination module engineered by ABB Bailey for the legacy Infi 90 and Network 90 distributed control system (DCS) architectures. Serving as the primary physical termination interface for high-capacity industrial workstations, this module works alongside the IIMLM01 multi-bus loop module to establish a seamless, high-speed data bridge between multi-bus communication processors (such as the IIMCP01 or IIMCP02) and the broader INFI-NET or Plant Loop communication highway. Heavy continuous-process facilities—including automated thermal power generation stations, pulp and paper processing plants, and oil refining complexes—rely on the IIMCL01 to sustain deterministic data highways for Operator Interface Stations (OIS). By providing dedicated mechanical termination and precise line impedance matching for redundant communication channels, this interface card stabilizes data throughput, eliminates signal reflection faults, and cuts down on unprogrammed plant downtime.

Communication Architecture & Node Integration

The underlying circuit topography, hardware compatibility pathways, and network routing logic of the IIMCL01 termination link maintain strict data determinism within the DCS framework.

• Workstation Highway Interfacing: Provides direct network termination paths specifically optimized for all legacy OIS setups, allowing supervisory engineering consoles to read real-time process graphics.

• Processor-to-Network Bridging: Connects directly with the IIMLM01 multi-bus loop card to route processed logic commands from the local IIMCP01 or IIMCP02 communication processors out to the main plant network.

• Signal Reflection Mitigation: Outfitted with specialized onboard termination resistors that match the characteristic impedance of the INFI-NET and Plant Loop twinaxial or coaxial cable runs.

• Galvanic Noise Isolation: Features advanced electrical isolation logic to shield delicate multi-bus processor components from high-voltage surge transients or inductive ground noise present on long external cable runs.

Technical Specifications

Network Communication & Troubleshooting FAQs

How do engineers isolate a communication dropout between the IIMCP02 processor and the IIMCL01 link?

Technicians should first verify the status indicators on the companion IIMLM01 loop module and check the physical ribbon cables connecting the processor to the IIMCL01 termination module. If the multi-bus processor cannot detect the termination link, it will flag a bus error code. Inspecting the terminal connections for loose wire strands or measuring the line resistance often reveals bad signal paths or improper grounding.

Can the IIMCL01 termination module be used on both twinaxial and coaxial versions of the INFI-NET highway?

Yes. The board acts as the structural termination block for the communication highway inside the rack. However, the external terminal assembly and dip-switch options must be set correctly to match either the coaxial or twinaxial network line configuration, ensuring proper line impedance and signal levels across the loop.

What are the consequences of removing an active IIMCL01 termination module from a running network?

Removing an active termination board breaks the continuity of the INFI-NET or Plant Loop highway, causing immediate signal reflection and open-circuit errors across the network. This disruption can cause adjacent Operator Interface Stations to lose their data links, interrupting the live tracking of industrial processes.

Field Engineering & Installation Guide

• Twinaxial Cable Landing and Ground Shield Separation:

  When landing the INFI-NET or Plant Loop communication cables onto the IIMCL01 block, separate and ground the outer wire shields strictly according to the system layout instructions. Connect the shield to the designated panel earth ground at a single terminal point only. Leaving cable shields ungrounded or establishing multiple ground points creates ground loops that inject high-frequency noise into the data lines, corrupting process packets.

• Ribbon Cable Strain Relief and Connector Retention:

  Ensure the high-density ribbon cables routing from the internal IIMLM01 loop module are seated completely into the header pins of the IIMCL01. Snap the plastic side retention levers inward to lock the connectors in place. Route the cable bundles carefully inside the wireways to avoid sharp right-angle bends, protecting the copper conductors from micro-fractures under long-term cabinet vibration.

• Cabinet Thermal Clearance and Environmental Housekeeping:

  The IIMCL01 operates reliably over a standard continuous temperature window of 0 to +70 deg C. To ensure adequate cooling, avoid overcrowding the termination area with heavy field wiring that could block the natural convection currents inside the rack. Periodically clean away dust or non-conductive dirt to prevent heat retention and preserve the module's long-term performance.
