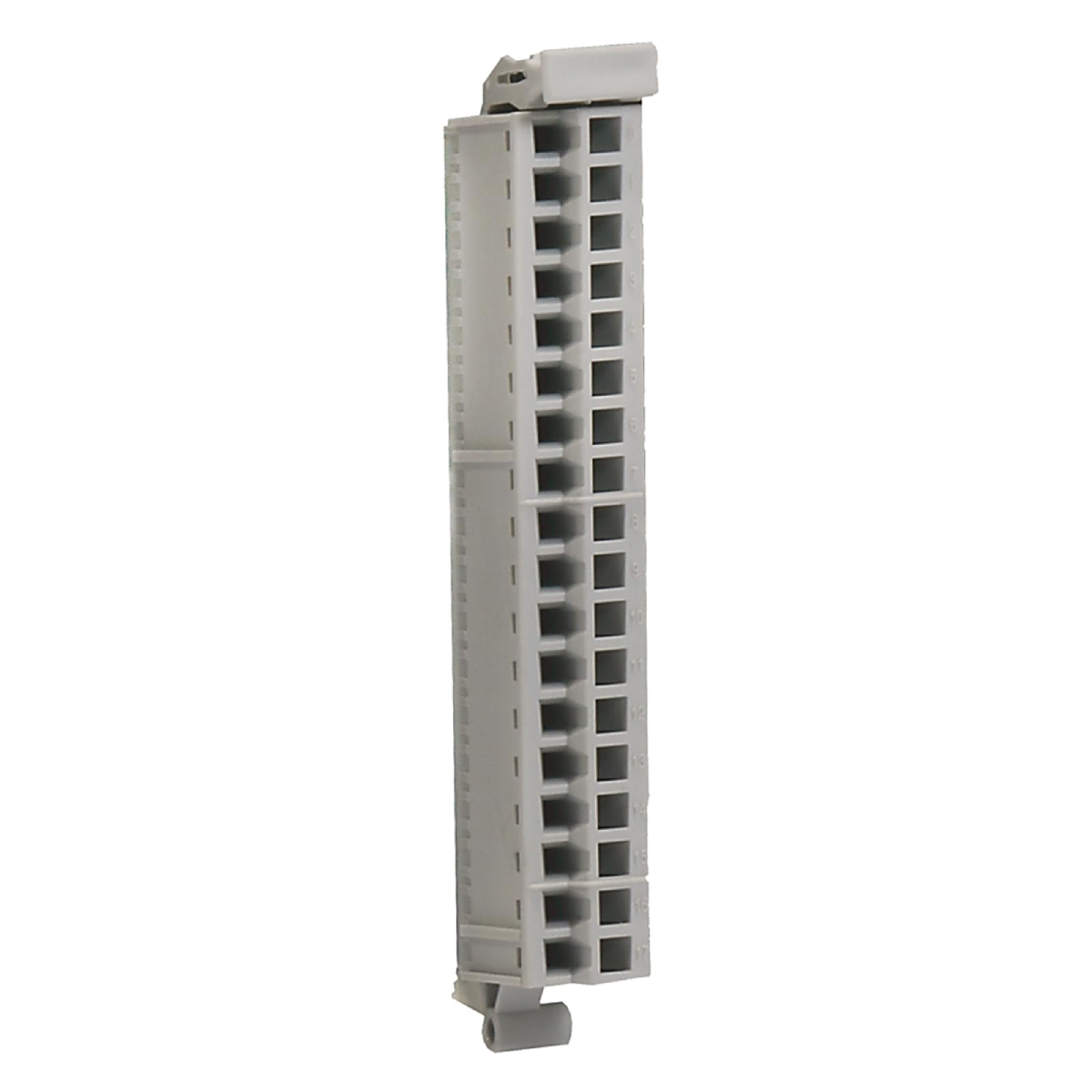

Allen-Bradley 5069-RTB18-SCREW Removable Terminal Block

The 5069-RTB18-SCREW is a specialized 18-pin removable terminal block (RTB) designed for the Compact 5000 I/O and CompactLogix 5380 platform. It serves as the physical interface between the field-side wiring and the I/O modules or controllers. The "SCREW" designation indicates that this model utilizes traditional screw-clamp terminations, providing a high-torque, secure connection for industrial environments where vibration resistance and wiring reliability are paramount.

Key Technical Specifications

Core Functionalities

1. High-Density Connectivity

The 18-pin layout is designed to match the high-density architecture of the 5069 I/O series. It allows for the termination of multiple signal and return wires on a single block, maximizing cabinet space.

2. Removable Architecture (RIUP)

A key feature of the 5069-RTB18-SCREW is its support for Removal and Insertion Under Power (RIUP). This allows maintenance personnel to replace a faulty I/O module without disconnecting the field wiring, significantly reducing Mean Time to Repair (MTTR) and preventing wiring errors during hardware swaps.

3. Secure Screw Termination

Unlike the "SPRING" (push-in) variants, the screw-clamp mechanism ensures a gas-tight connection that is highly resistant to mechanical loosening. This makes the 5069-RTB18-SCREW the preferred choice for applications in heavy manufacturing, mining, and oil & gas where equipment is subject to constant physical stress.

Technical FAQs

Is the 5069-RTB18-SCREW compatible with all 5069 modules?

It is compatible with many 5069 discrete and analog modules, but you must verify the pin count. Some specialized modules require 14-pin blocks (5069-RTB14). Always check the specific I/O module's technical data sheet to ensure 18 pins are supported.

Can I mix screw and spring terminal blocks in the same rack?

Yes. The choice of RTB is module-specific. You can use a screw-type RTB for an analog input module and a spring-type RTB for a discrete output module within the same CompactLogix 5380 system.

Do I need a special tool for wiring?

A standard small flat-head screwdriver (typically 3.5 mm) is required to tighten the clamps to the recommended torque of 0.4 N·m.

Engineering & Installation Guide

• Torque Compliance: Over-tightening can damage the internal clamp, while under-tightening can lead to intermittent signals or arcing. Using a calibrated torque screwdriver is recommended for safety-critical circuits.

• Wire Preparation: Strip the wire insulation back approximately 10–12 mm. For stranded wire, the use of ferrules is highly recommended to prevent fraying and ensure a clean insertion into the clamp.

• Keying: The 5069 series supports mechanical keying. It is best practice to use the keying tabs to prevent an RTB wired for high voltage from being accidentally inserted into a low-voltage analog module.

Engineering Advantages

The 5069-RTB18-SCREW is favored for its Robustness and Versatility. In global industrial markets, screw terminals are often mandated by local electrical standards for their visibility—an engineer can visually verify that a screw is tightened, providing an extra layer of confidence during commissioning. By isolating the wiring from the electronic module, Rockwell has created a modular system that simplifies both the initial build and long-term maintenance of the control cabinet.
