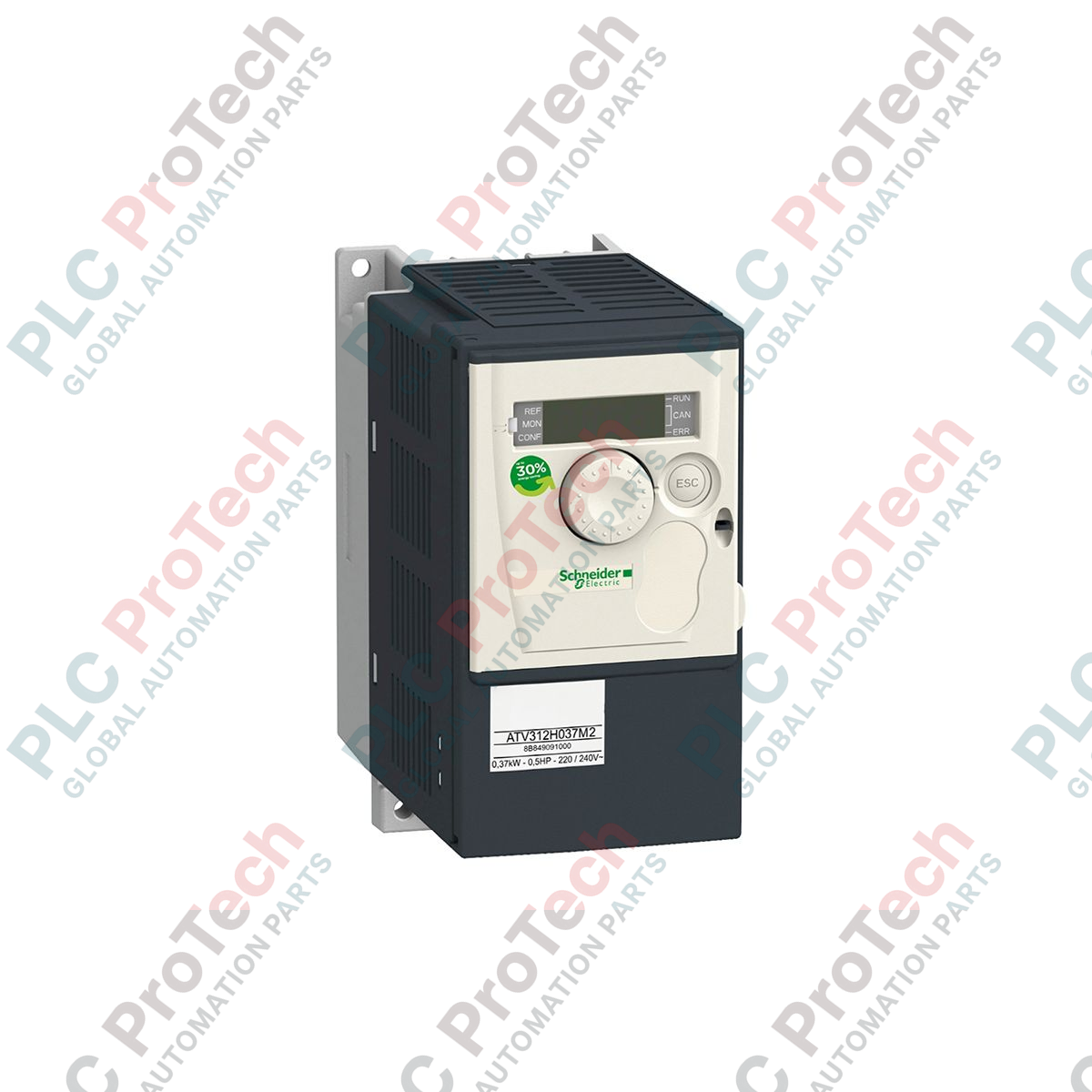

Schneider Altivar 312 ATV312H018M2 Variable Frequency Drive

Description

The ATV312H018M2 is a variable frequency drive (VFD) from the Altivar 312 range, specifically designed for general-purpose asynchronous motor control. This compact unit is engineered for 1-phase 200-240 V power supplies and provides a rated power output of 0.18 kW with a continuous output current of 1.5 A. It is a reliable solution for various industrial applications, such as material handling, packaging, and small machine automation, offering integrated EMC filtering and sensorless flux vector control for efficient torque management.

Features

• 0.18 kW rated power
• 1-phase 200-240 V input voltage
• 1.5 A continuous output current
• Sensorless flux vector control
• Integrated EMC filter
• Modbus and CANopen communication support
• Compact design for space-saving installation

Applications

• Material handling and conveyors
• Packaging and textile machinery
• Industrial pumps and fans
• Small-scale machine automation
• General-purpose motor speed regulation

Technical Specifications

Installation Guidelines

• Mounting: Mount the drive vertically to allow for proper heat dissipation. Ensure adequate clearance is maintained around the unit in accordance with installation manual guidelines.
• Wiring: Connect the 1-phase supply to L1/L2 and the motor to U/V/W terminals. Use shielded cables for motor connections to minimize electromagnetic interference.
• Environment: Ensure the ambient temperature remains within the rated operating range (up to 50 degC). Protect the unit from dust, moisture, and corrosive gases.
• Grounding: Verify that the drive chassis and motor frame are securely connected to a common system earth to prevent electrical hazards and ensure signal integrity.
• Safety: Disconnect all power sources and wait 15 minutes for the DC bus capacitors to discharge before servicing the unit.
