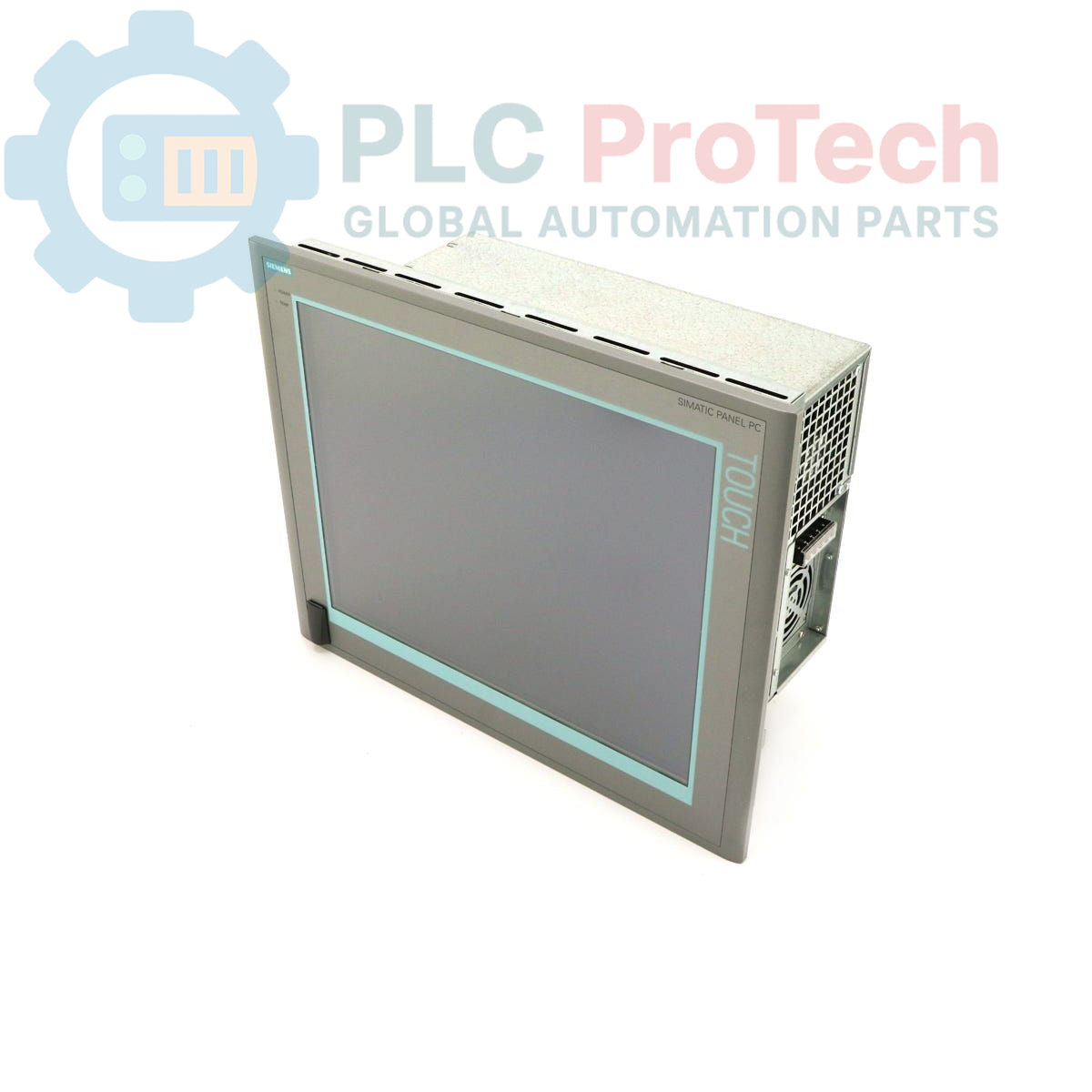

Siemens 6AV7812-1BB11-2AB0 SIMATIC Panel PC 877 Touch

Description

The Siemens 6AV7812-1BB11-2AB0 is a SIMATIC Panel PC 877, designed for industrial human-machine interface (HMI) and control applications. This Panel PC features a 15-inch touch display with a resolution of 1024x768 pixels. It is configured without a front-side USB interface and operates on an AC110-230V power supply, supplied with a power cable suitable for Europe. Internally, the unit is equipped with a Pentium 4 processor running at 2.8 GHz with a 533 MHz Front Side Bus (FSB), 512KB SLC cache, and 512MB of DDR266 SDRAM (1x512MB). Storage is provided by an 80 GBYTE EIDE 3.5-inch Hard Disk Drive (HDD) and an integrated CD-R/RW/DVD (COMBO) optical drive. The system comes pre-installed with Windows 2000 Professional Multi-User Interface (MUI), supporting English, German, French, Italian, Spanish, Japanese, Chinese, and Korean languages, making it suitable for diverse industrial environments requiring robust computing and visualization capabilities.

Features

• 15-inch Touch Display
• 1024x768 Pixel Resolution
• Pentium 4 2.8 GHz Processor
• 533 MHz FSB and 512KB SLC Cache
• 512MB DDR266 SDRAM (1x512MB)
• 80 GBYTE EIDE 3.5-inch HDD
• Integrated CD-R/RW/DVD (COMBO) Drive
• AC110-230V Power Input
• Pre-installed Windows 2000 Professional MUI
• No Front-Side USB Interface

Applications

• Industrial Human-Machine Interface (HMI)
• Machine Control and Visualization Systems
• Process Monitoring and Data Acquisition
• Factory Automation and Production Line Management
• Operator Control Stations in Manufacturing

Technical Specifications

Installation Guidelines

1. Power De-energization: Before commencing installation, ensure all power to the installation area and the Panel PC is de-energized and locked out according to safety procedures.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate space for ventilation and cable routing. Refer to the specific mounting instructions for the SIMATIC Panel PC 877 series.
3. Power Connection: Connect the AC110-230V power supply to the designated power input terminals on the Panel PC using the provided Europe power cable. Verify correct voltage and polarity before applying power.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure safety and minimize electromagnetic interference.
5. Cable Routing: Route all power, data, and peripheral cables to prevent strain, interference, and damage. Use appropriate cable glands and conduits where necessary.
6. Ventilation: Ensure that the installation location provides sufficient airflow to prevent overheating, especially given the internal components like the processor and hard drive.
7. Peripheral Connections: Connect any required industrial peripherals, such as keyboards, mice, or other devices, to the available interfaces on the Panel PC. Note that this specific model does not include a front-side USB interface.
8. System Startup: After all connections are verified, re-energize the system and power on the Panel PC. Monitor the startup sequence to confirm proper operation of the display and operating system.
