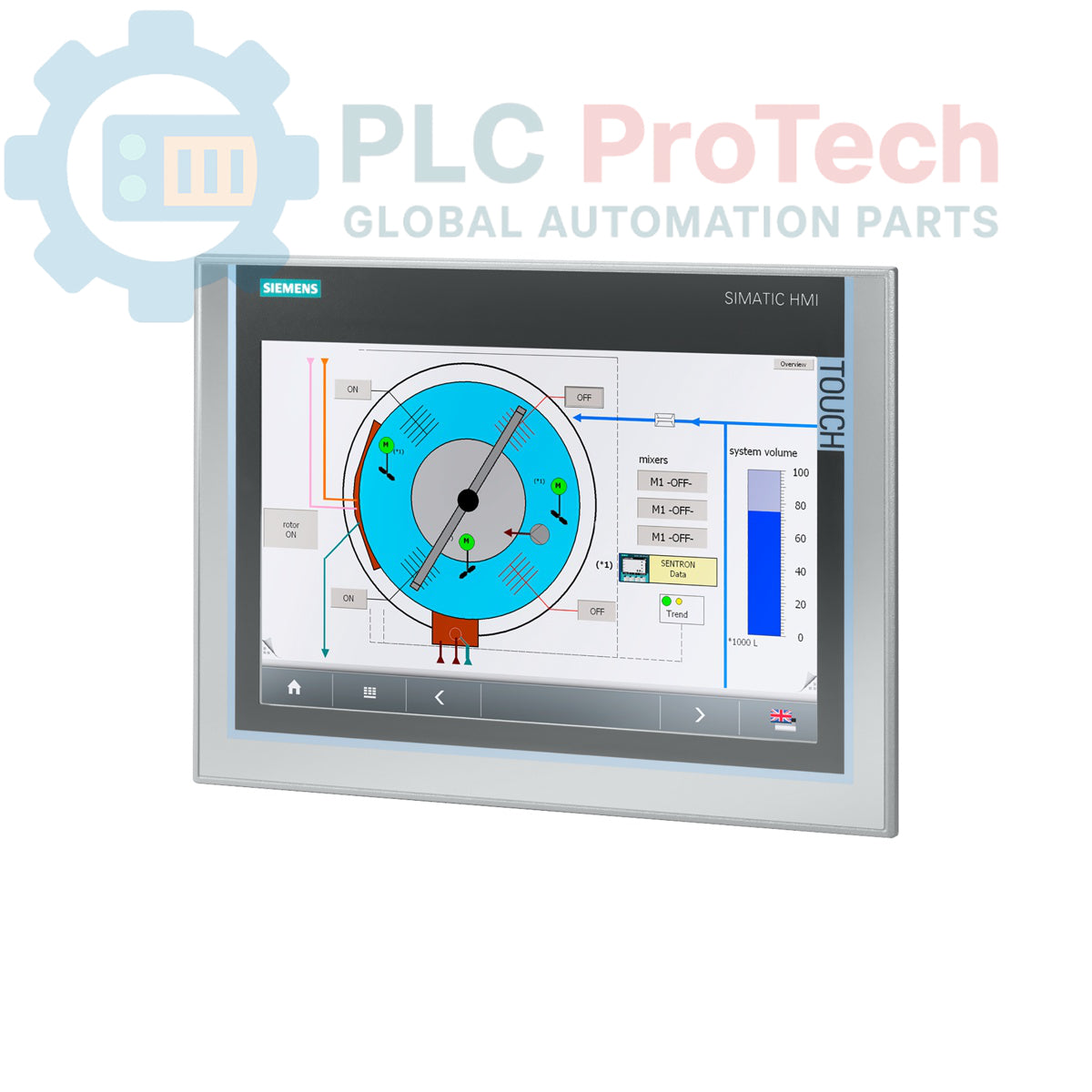

Siemens 6AV7882-0CD20-2MA0 SIMATIC IPC277E Nanopanel PC

Description

The 6AV7882-0CD20-2MA0 is a SIMATIC IPC277E Nanopanel PC from Siemens, designed for robust industrial HMI and control applications. This unit features a 12-inch touch TFT display and is powered by an Intel Celeron N2930 (4C/4T) processor with Trusted Platform Module (TPM) support and 4 GB of RAM. It includes a 16 GB CFast card pre-loaded with Windows Embedded Standard 7E SP1 (64-bit, English) and requires a 24 V DC power supply for operation. The device provides extensive connectivity with dual Gigabit Ethernet ports, multiple USB interfaces, and a DisplayPort for external video. This model is delivered without any pre-installed SIMATIC software, offering a flexible platform for custom application deployment.

Features

• 12-inch Touch TFT Display
• Intel Celeron N2930 (4-core/4-thread) Processor with TPM
• 4 GB installed RAM
• 16 GB CFast storage included
• Windows Embedded Standard 7E SP1 (64-bit, English) pre-installed
• Dual 10/100/1000 Mbps Ethernet ports
• Multiple USB ports (1x USB 3.0, 3x USB 2.0)
• DisplayPort and Serial (COM1) interfaces
• Operates on a 24 V DC power supply

Applications

• Human-Machine Interface (HMI) for process control
• Data acquisition and logging at the machine level
• Supervisory control in manufacturing cells
• Industrial gateway for plant floor networks
• Visualization tasks in factory automation

Technical Specifications

Installation Guidelines

1. 1 Verify the panel cutout dimensions are correct for the IPC277E chassis. Ensure the mounting surface is clean, flat, and can support the device weight.
2. 2 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal.
3. 3 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the device chassis. This is critical for operator safety and EMI protection.
4. 4 Connect the 24 V DC power supply to the power input connector, ensuring correct polarity. Use appropriately sized wiring from a stable, filtered power source.
5. 5 Connect Ethernet, USB, DisplayPort, and any other required peripheral cables. Ensure all connectors are fully seated and secured.
6. 6 After verifying all connections are correct and secure, re-apply power to the system. Proceed with initial boot-up and operating system configuration as required for your application.
