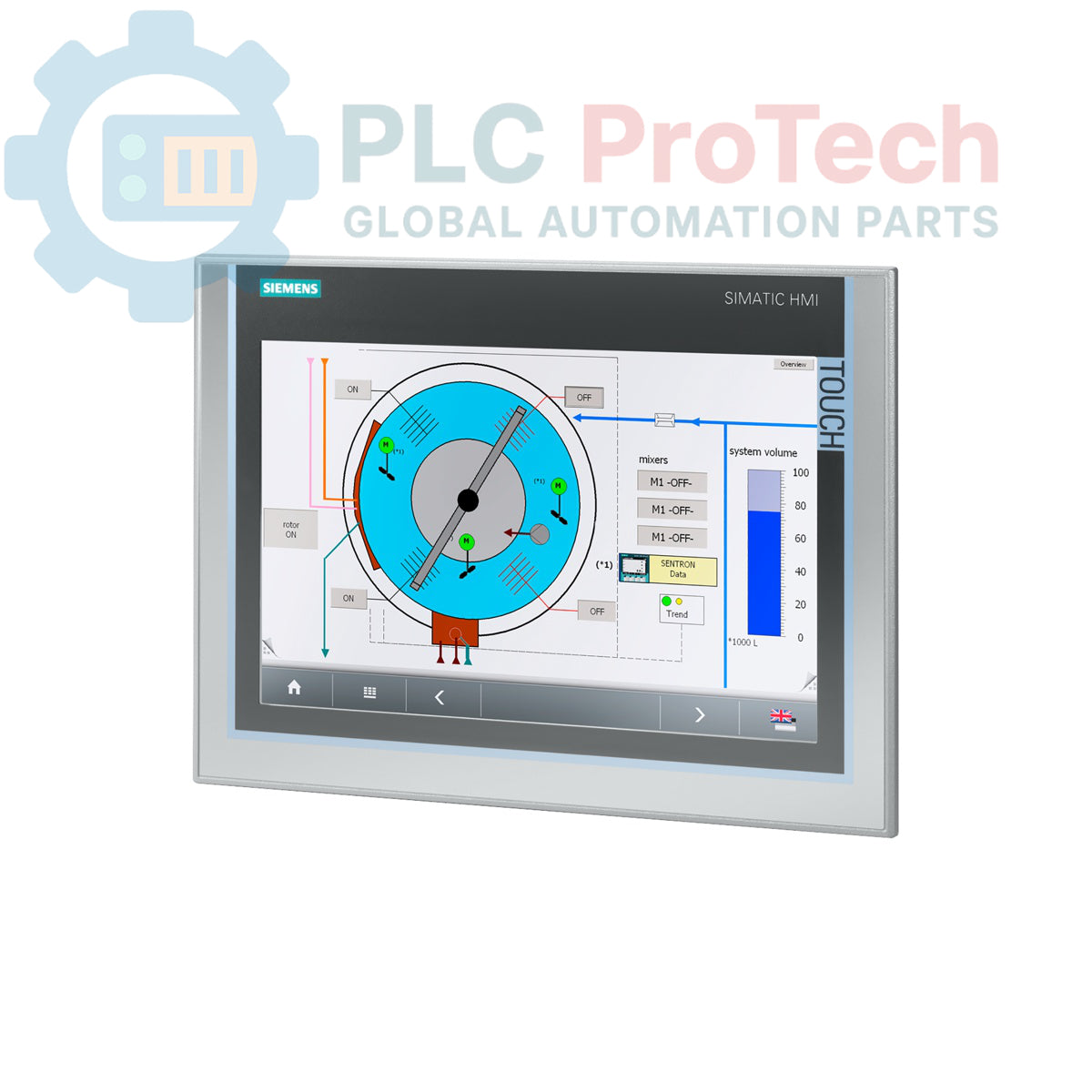

Siemens 6AV7882-0CD20-8CA0 SIMATIC IPC277E Nanopanel PC

Description

The Siemens 6AV7882-0CD20-8CA0 is a SIMATIC IPC277E Nanopanel PC designed for embedded machine control and visualization tasks. This unit is equipped with a 12-inch TFT touch display, an Intel Celeron N2930 processor, and a 240 GB SSD for reliable, fanless operation. It provides extensive connectivity through dual Gigabit Ethernet ports, multiple USB interfaces, and a DisplayPort output, all powered by a standard 24 V DC supply. The system comes pre-installed with Windows 10 Enterprise 2019 LTSC, offering a stable platform for industrial applications.

Features

• 12-inch TFT resistive touch screen display
• Intel Celeron N2930 processor (4 cores, 4 threads)
• 4 GB of installed RAM
• 240 GB Solid-State Drive (SSD) for storage
• Dual 10/100/1000 Mbps Ethernet ports for network redundancy or separation
• Integrated Trusted Platform Module (TPM) for enhanced security
• Pre-installed Windows 10 Enterprise 2019 LTSC (64-bit)
• CFast slot for removable storage media

Applications

• Human-Machine Interface (HMI) for machine control
• Data acquisition and logging at the machine level
• Process visualization and monitoring in manufacturing
• Embedded control systems in harsh industrial environments
• Gateway applications for IIoT and data communication

Technical Specifications

Connections and Interfaces

Installation Guidelines

1. 1 Ensure the control cabinet or panel is de-energized and locked out according to safety procedures.
2. 2 Verify the panel cutout dimensions match the IPC277E's mounting requirements. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect a stable, correctly rated 24 V DC power supply to the power input terminal. Verify correct polarity before energizing.
5. 5 Connect the chassis to a low-impedance functional earth (FE) or protective earth (PE) ground point within the cabinet to minimize electrical noise.
6. 6 Connect all required network, USB, display, and serial cables. Ensure proper cable strain relief and routing away from high-voltage lines.
