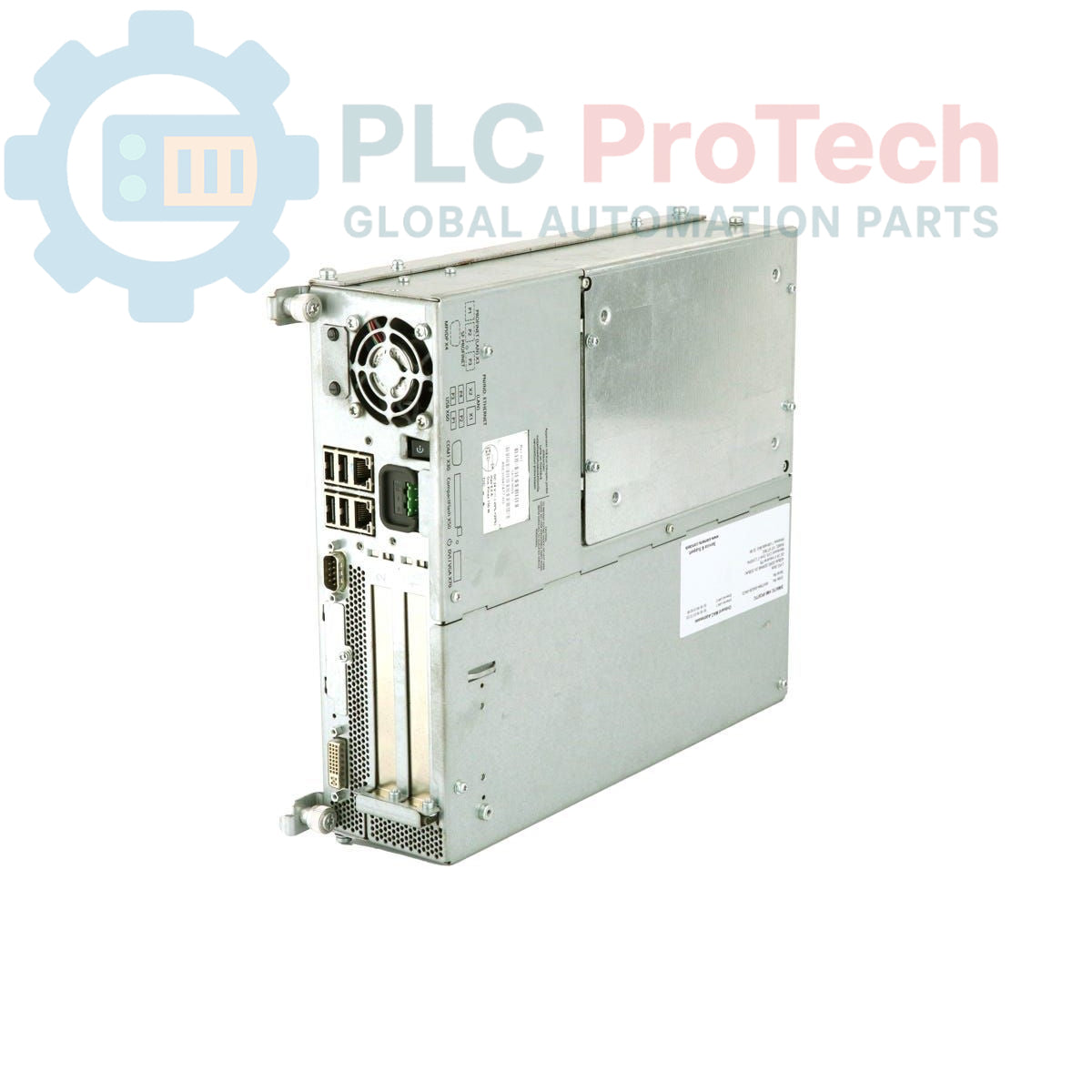

Siemens 6AV7893-1AG32-0AA0 SIMATIC IPC677C Panel PC

Description

The Siemens 6AV7893-1AG32-0AA0 is a SIMATIC IPC677C Panel PC, an integrated human-machine interface (HMI) solution for demanding industrial environments. This unit features a 15-inch display with keypad input and is powered by an Intel Core i7-610E processor. It is configured with 4 GB of DDR3 RAM and a redundant RAID1 storage system using two 320 GB SATA hard drives. Integrated monitoring for watchdog, temperature, and fan status ensures high operational reliability. Connectivity is provided through dual Gigabit Ethernet ports, four USB 2.0 ports, and a serial interface, all powered by a 24 V DC supply.

Features

• 15-inch display with 1024 x 768 resolution and keypad
• Intel Core i7-610E dual-core processor (2.53 GHz)
• Onboard RAID controller with RAID1 disk mirroring for data redundancy
• Integrated system monitoring for watchdog, temperature, and fan
• Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
• Four rear-mounted USB 2.0 ports and one serial (COM1) port
• Two free PCI slots for hardware expansion
• Robust design for industrial applications

Applications

• Process visualization and control (SCADA)
• Machine-level operator control and monitoring
• Data acquisition and logging systems
• Factory automation and plant floor management
• Industrial IT gateway applications

Technical Specifications

Installation Guidelines

1. 1
   Panel Mounting: Ensure the control cabinet cutout dimensions match the IPC677C specifications. Secure the unit into the panel using all provided mounting clamps, tightening them evenly to the manufacturer's recommended torque to ensure a proper seal (IP rating).
2. 2
   Protective Earth (PE) Connection: Connect the chassis PE terminal to the main protective earth busbar of the cabinet using a low-impedance conductor. This is critical for operator safety and electromagnetic compatibility (EMC).
3. 3
   Power Supply Wiring: Connect a stable, filtered 24 V DC power source to the designated power supply terminals. Use appropriately sized wiring for the current draw and ensure correct polarity. It is recommended to use a dedicated circuit breaker for the Panel PC.
4. 4
   I/O and Network Cabling: Route all communication cables (Ethernet, USB, Serial) away from high-voltage power lines to minimize electrical noise. Use shielded cables for all data connections where specified, and ensure shields are properly terminated at one end to the cabinet ground.
5. 5
   Ventilation and Clearance: Maintain adequate clearance around the rear of the unit as specified by the manufacturer to ensure proper airflow for cooling. Do not block ventilation openings. Verify cabinet cooling is sufficient for the total heat load.
