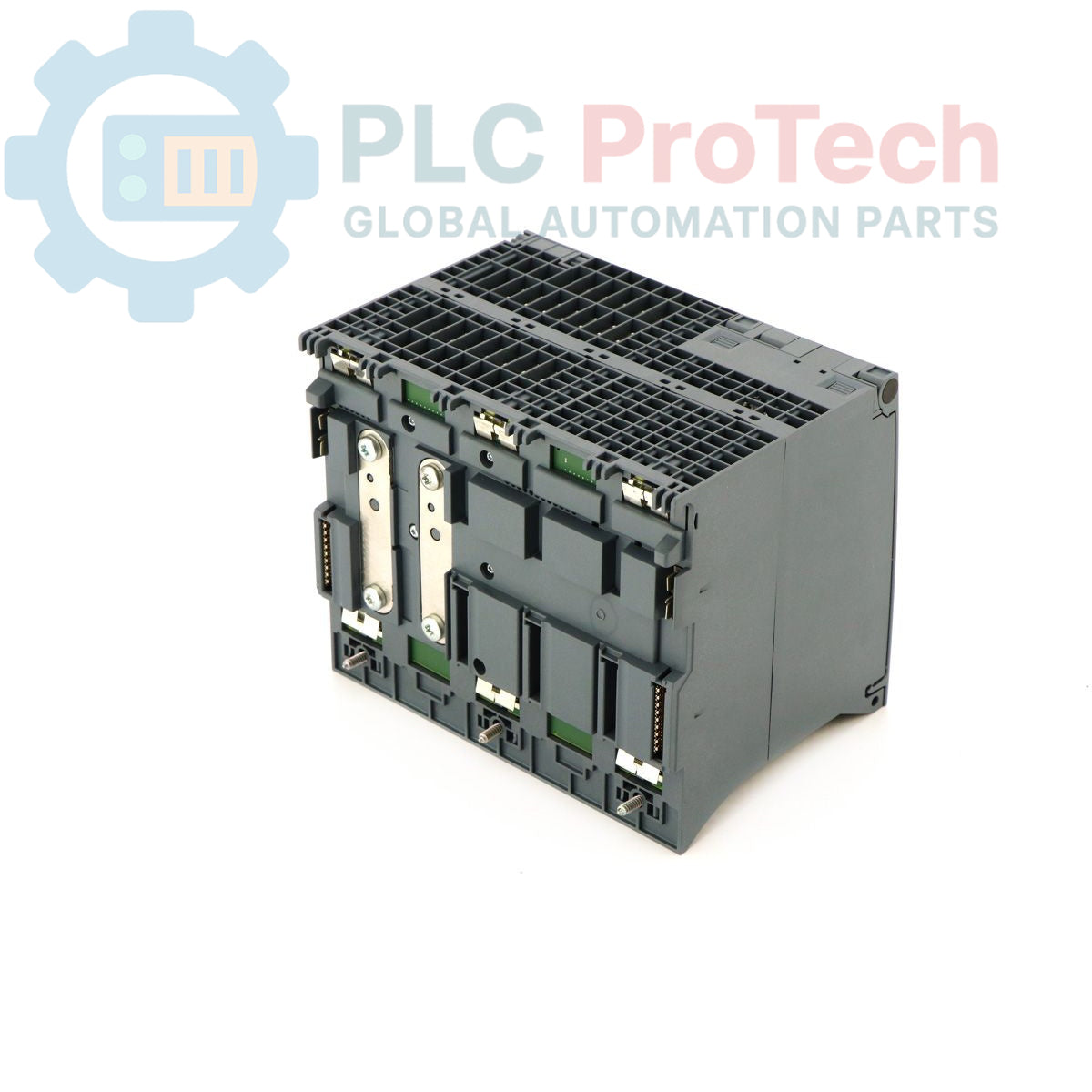

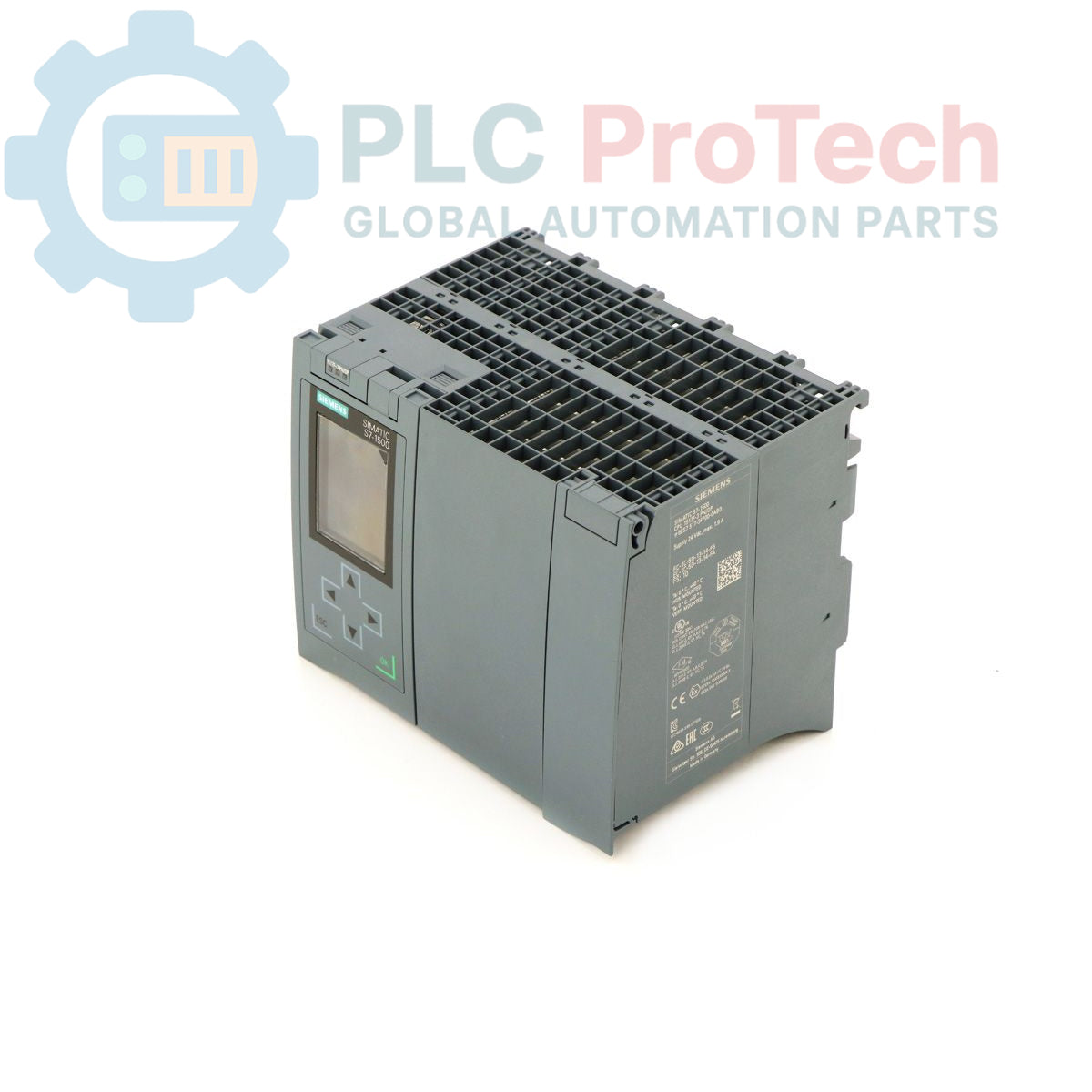

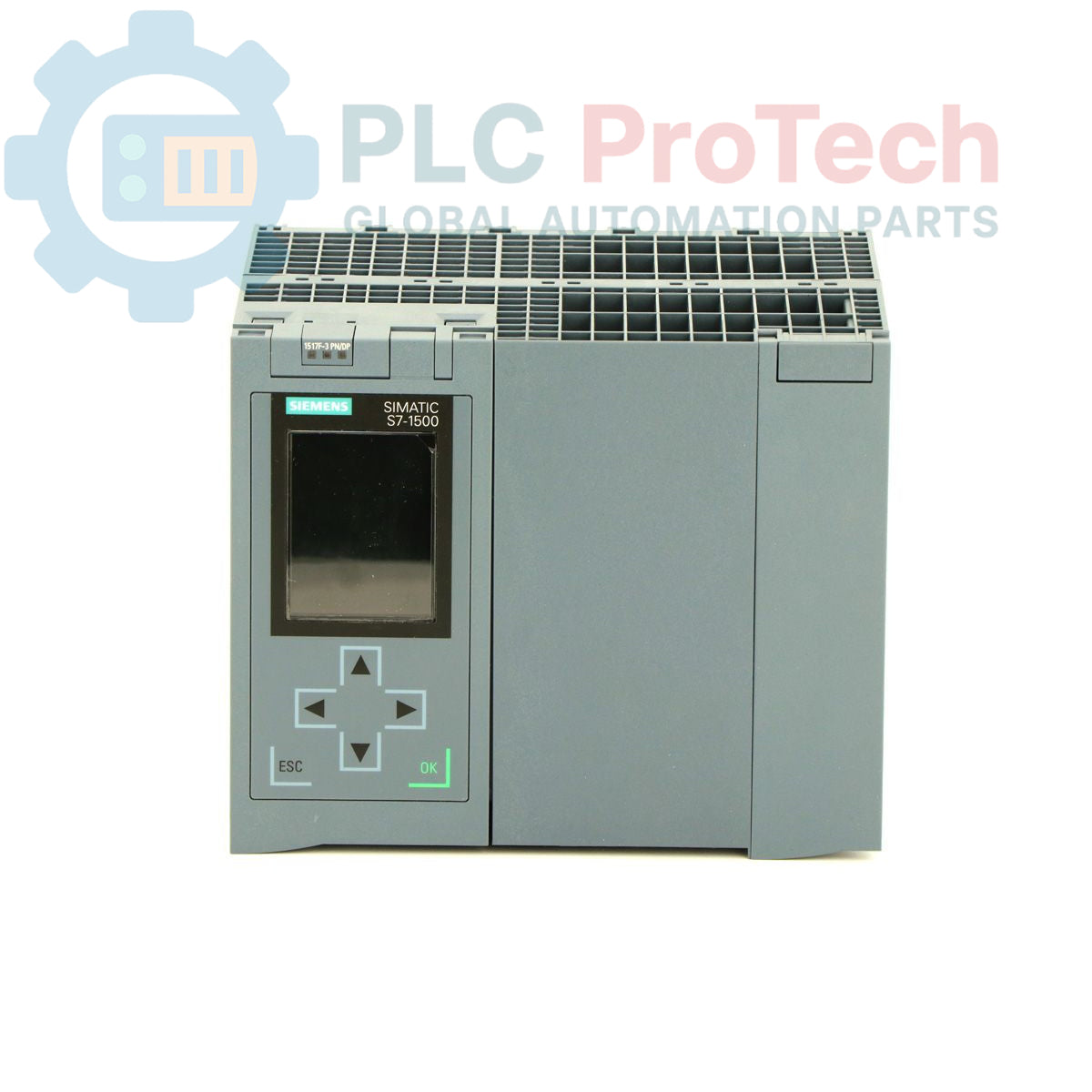

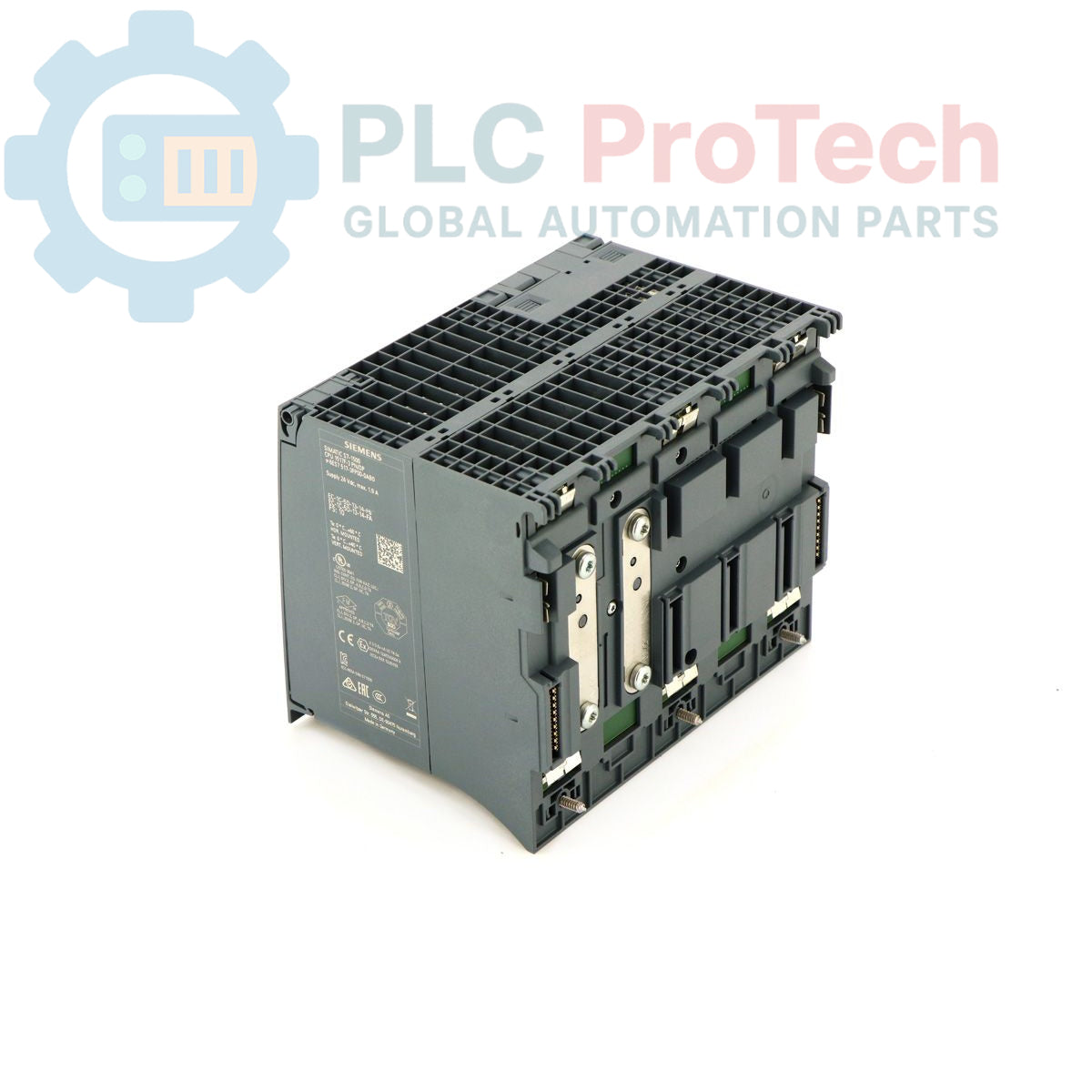

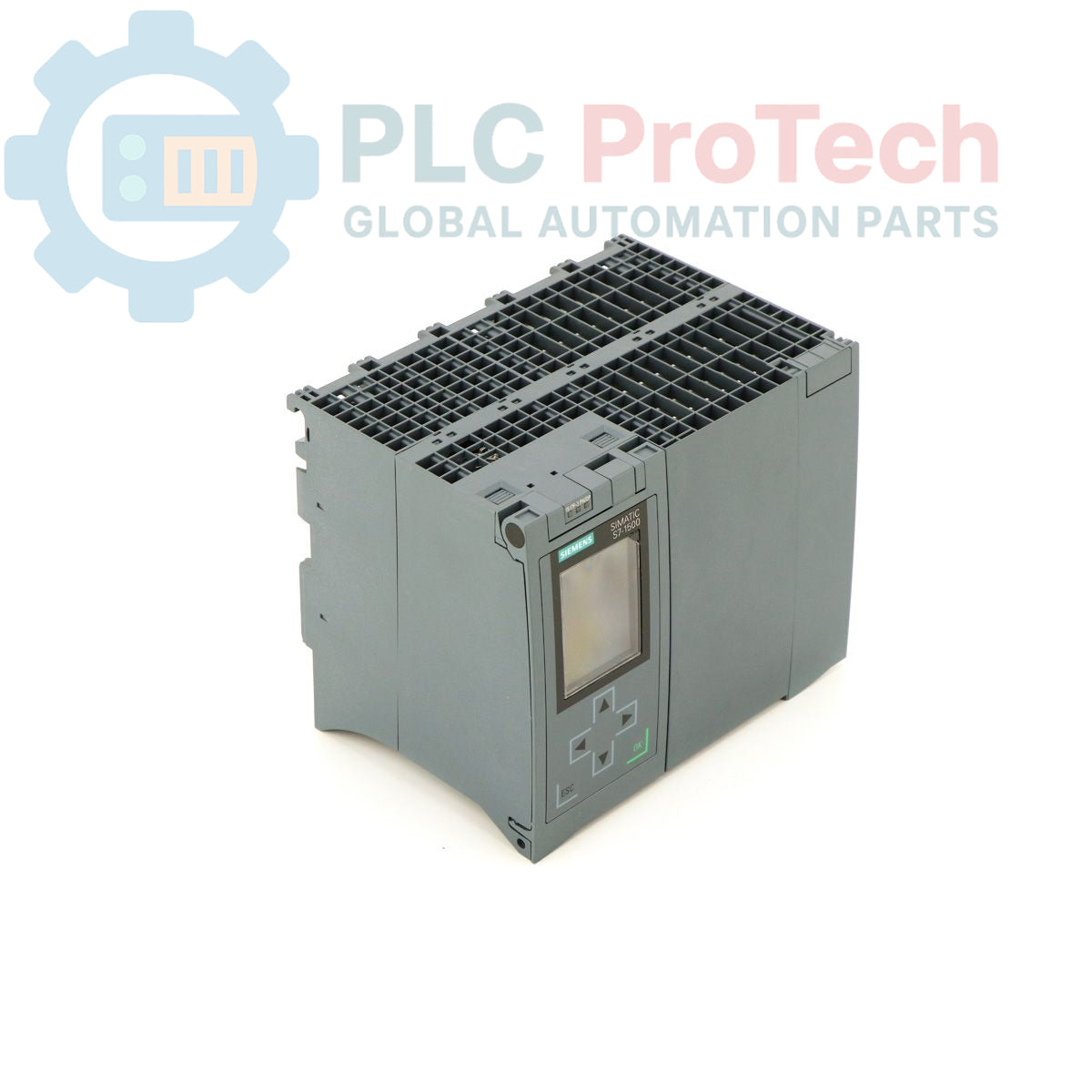

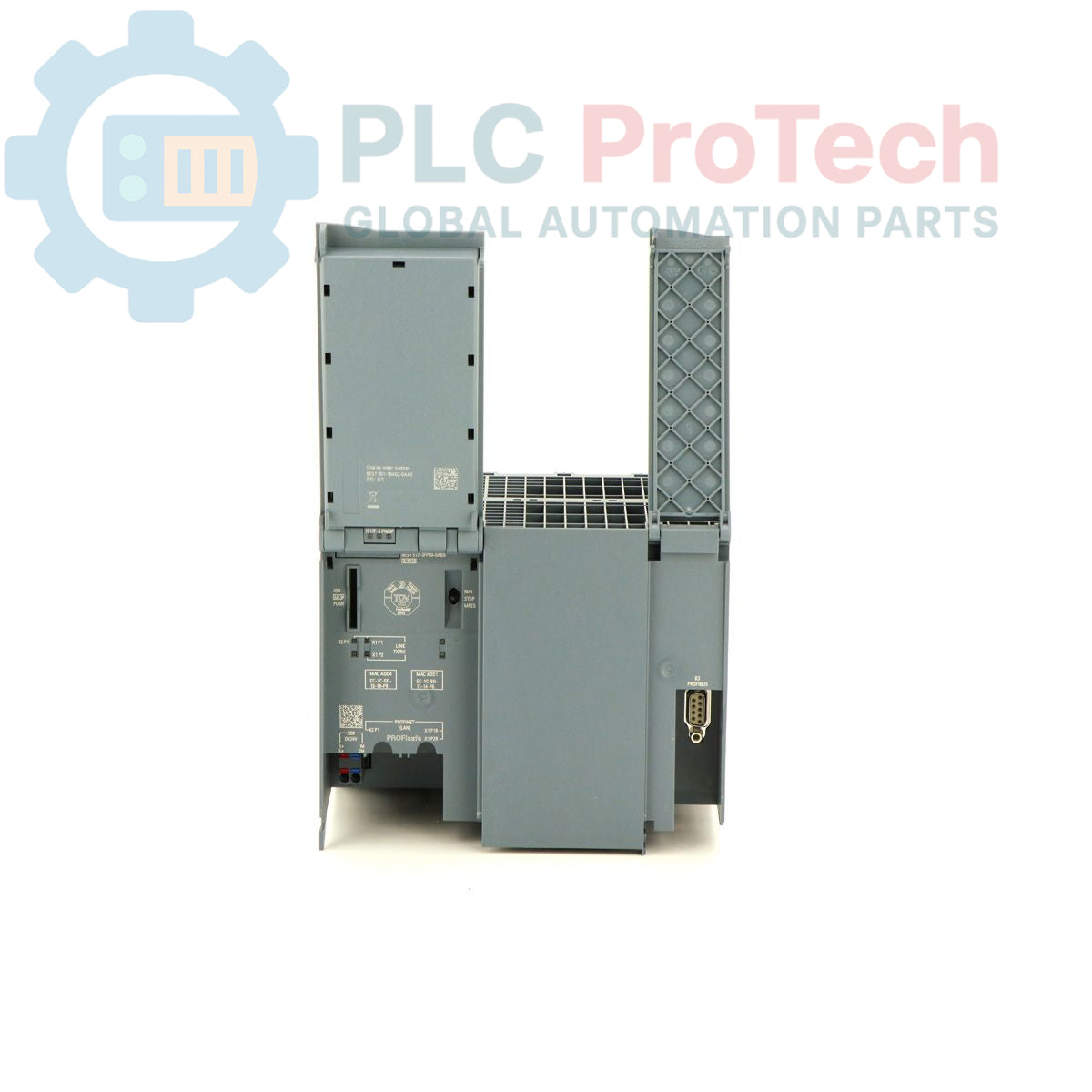

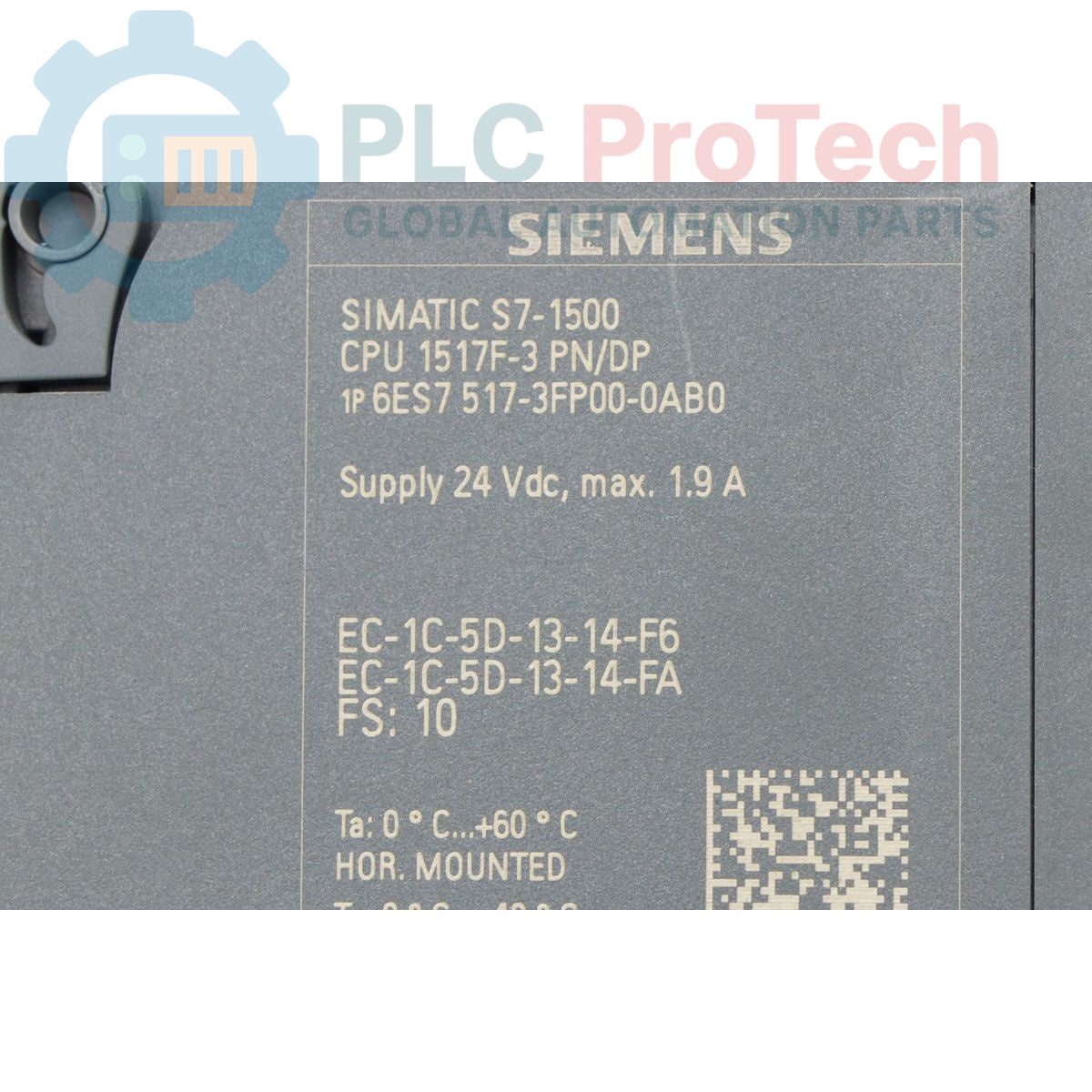

Siemens 6ES7517-3FP00-0AB0 SIMATIC S7-1500F CPU 1517F-3 PN/DP Fail-safe Central Processing Unit

Description

This Siemens 6ES7517-3FP00-0AB0 is a SIMATIC S7-1500F series fail-safe central processing unit, model CPU 1517F-3 PN/DP, designed for demanding automation and safety-integrated applications. The module provides substantial memory capacity with 3 MB for program and 8 MB for data, enabling it to manage complex logic and large datasets efficiently. It offers versatile connectivity through three integrated interfaces: a primary PROFINET IRT interface with a 2-port switch, a secondary PROFINET RT interface, and a PROFIBUS interface. With a high-speed processing capability of 2 ns bit performance, this CPU delivers the precision required for high-performance machinery and process control. Operation of this unit requires a Siemens SIMATIC Memory Card.

Features

• Fail-safe CPU (F-CPU) for safety-related applications
• 3 MB of integrated work memory for program execution
• 8 MB of integrated work memory for data storage
• Interface 1: PROFINET IRT with an integrated 2-port switch
• Interface 2: PROFINET RT for standard real-time communication
• Interface 3: PROFIBUS for legacy and fieldbus integration
• High-speed 2 ns bit processing performance
• Requires a SIMATIC Memory Card for operation and data storage

Applications

• Complex process automation and control
• High-speed manufacturing and packaging lines
• Machine safety and functional safety (SIL) systems
• Automotive production and assembly
• Material handling and logistics systems

Technical Specifications

Installation Guidelines

1. 1 Securely mount the CPU module onto the S7-1500 DIN rail, ensuring it clicks firmly into place and is adjacent to the power supply or preceding module.
2. 2 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the module or mounting rail to ensure proper system grounding.
3. 3 Wire the 24 VDC power supply to the correct terminals on the S7-1500 power supply module, observing correct polarity. Do not apply power at this stage.
4. 4 Connect the PROFINET and PROFIBUS network cables to the corresponding RJ45 and D-sub 9-pin ports. Ensure proper cable shielding is terminated according to network standards.
5. 5 Insert the required Siemens SIMATIC Memory Card into the designated slot on the CPU. The CPU will not operate without a valid memory card.
6. 6 After verifying all connections are secure and correct, close the control panel, remove LOTO devices, and apply power to the system for commissioning.
