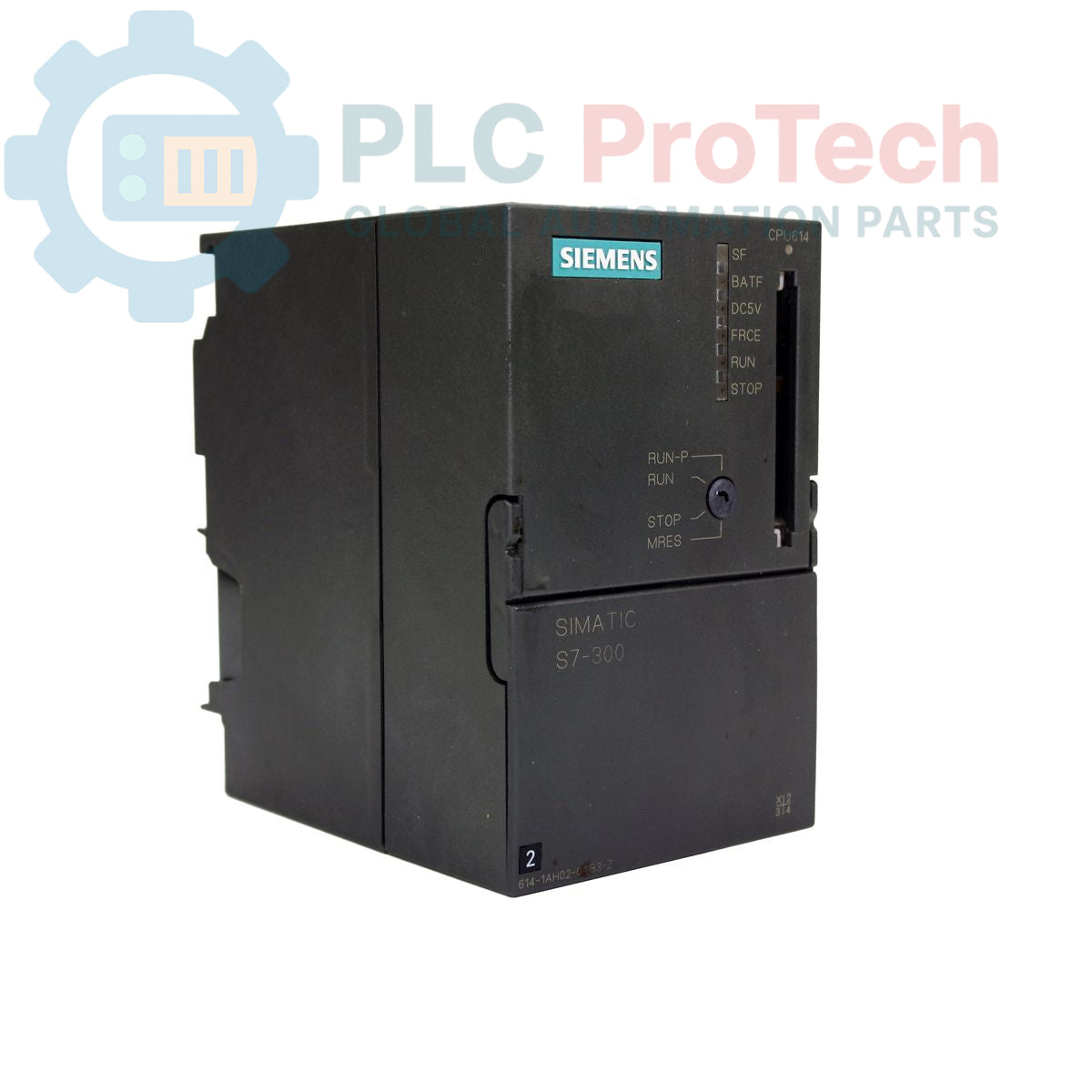

Siemens 6ES7614-1AH02-0AB3-Z SIMATIC S7-300 Special CPU

Description

The Siemens 6ES7614-1AH02-0AB3-Z is a specialized CPU module designed for integration into the SIMATIC S7-300 automation system. This CPU 614 unit features 128 KB of onboard memory, enabling it to support demanding industrial automation tasks. It provides reliable control and high-speed processing for modern production environments, ensuring stable and scalable solutions for continuous use in production lines. Its compact form factor facilitates seamless installation within existing SIMATIC S7-300 racks, supporting fast data processing, real-time control, and efficient memory management for uninterrupted operation of automation processes.

Features

• 128 KB onboard memory
• Specialized CPU 614 unit
• Designed for SIMATIC S7-300 system integration
• Supports fast data processing and real-time control
• Efficient memory management capabilities
• Compact form factor for seamless installation

Applications

• General industrial automation tasks
• Modern production environments requiring reliable control
• Production lines needing high-speed processing
• Systems requiring stable and scalable automation solutions

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure that the SIMATIC S7-300 rack and associated power supplies are completely de-energized to prevent electrical hazards.
2. Select Slot: Identify an available and appropriate slot within the SIMATIC S7-300 rack for the CPU module.
3. Mount Module: Carefully insert the 6ES7614-1AH02-0AB3-Z CPU module into the selected slot. Ensure it is fully seated and secured by engaging any locking mechanisms or screws provided by the rack system.
4. Connect Power: Connect the necessary power supply to the rack, ensuring correct polarity and secure termination.
5. Connect Communication: If applicable, connect any required communication cables (e.g., MPI, PROFIBUS) to the CPU module's interfaces. Ensure cables are properly routed and shielded to minimize interference.
6. Grounding: Verify that the SIMATIC S7-300 rack system is properly grounded according to industrial standards to ensure stable operation and safety.
7. Re-energize and Test: After all connections are secure, re-energize the system and perform functional tests to confirm proper operation of the CPU and connected I/O.
