Siemens 6GK1561-3AA01 SIMATIC NET CP 5613 A2 Communications Processor

Description

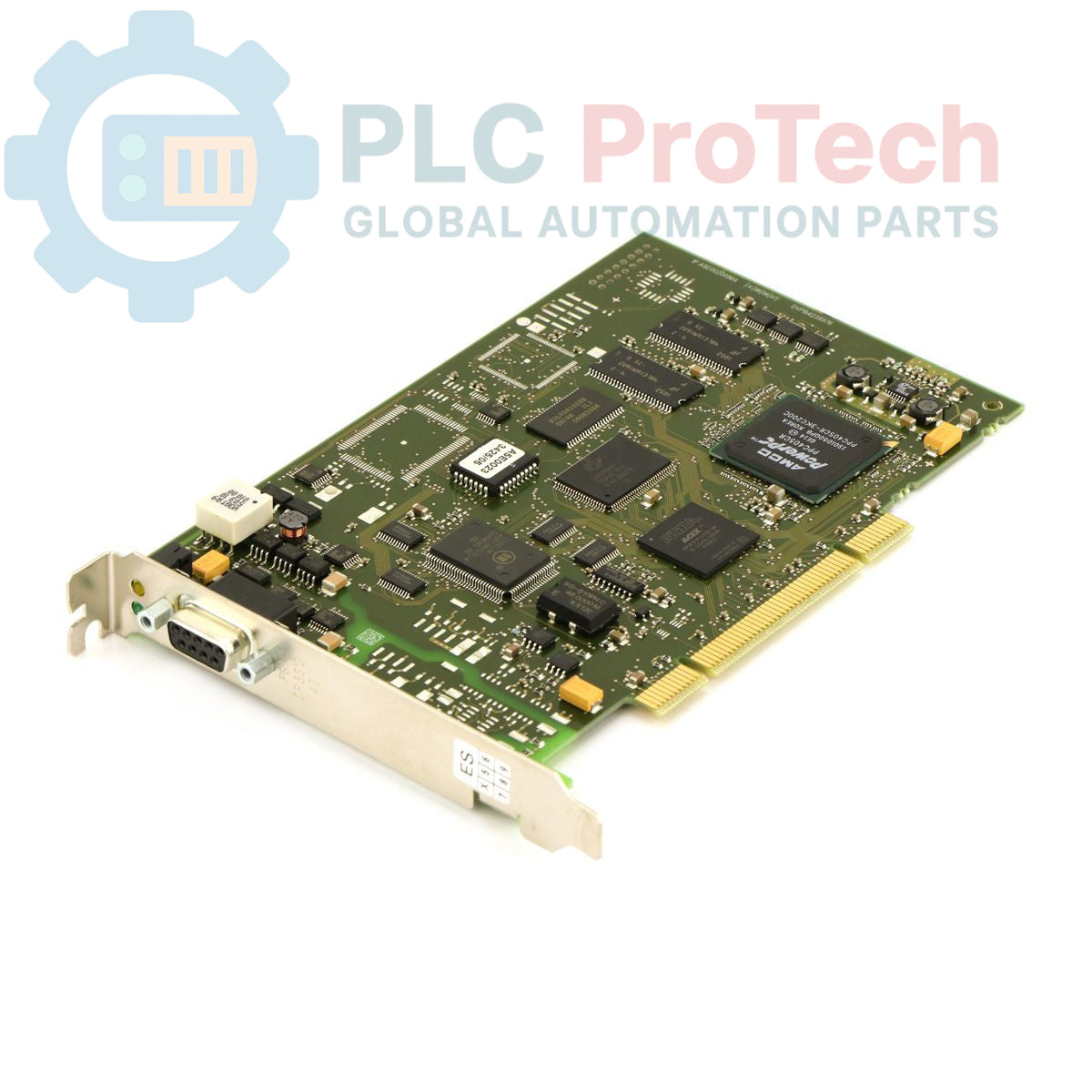

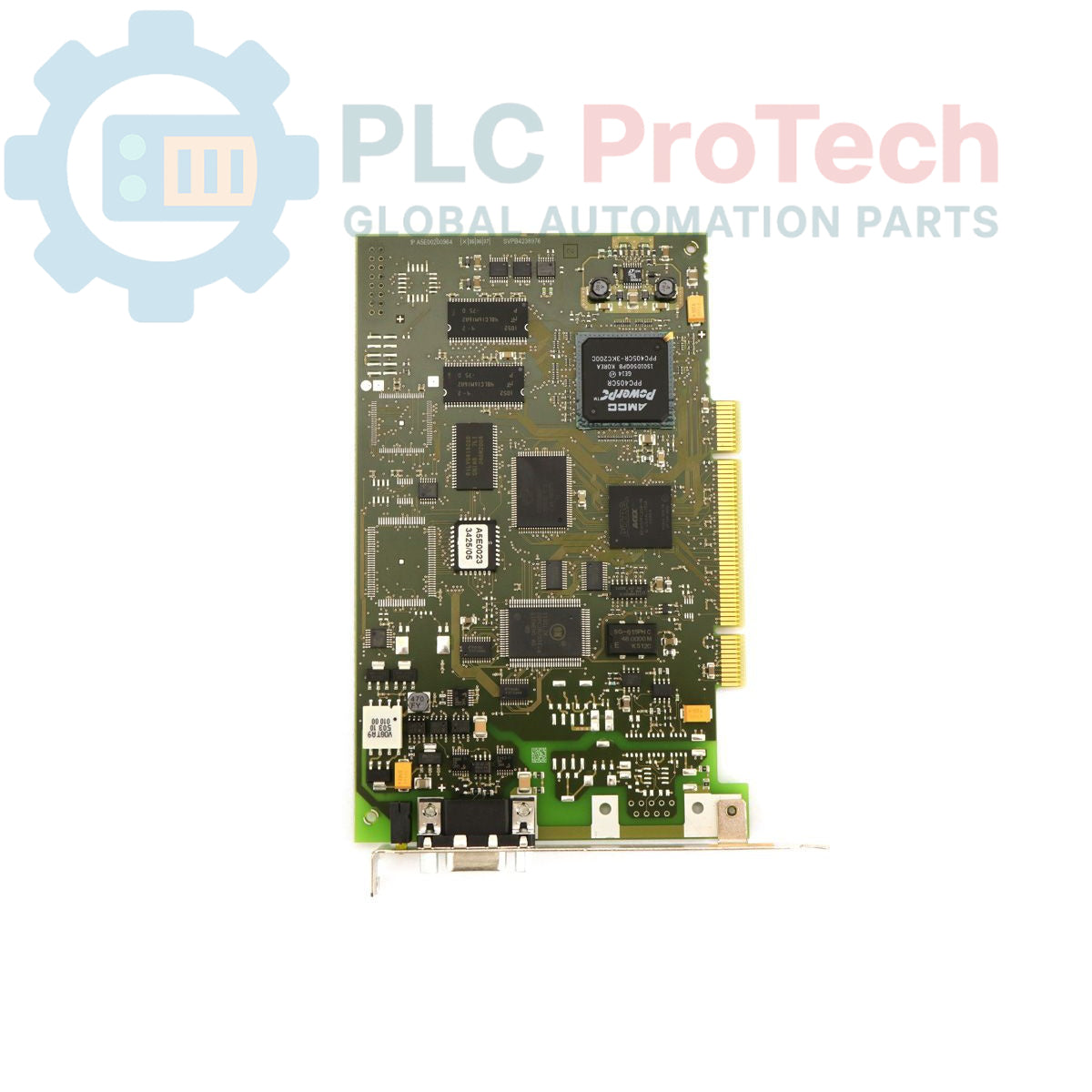

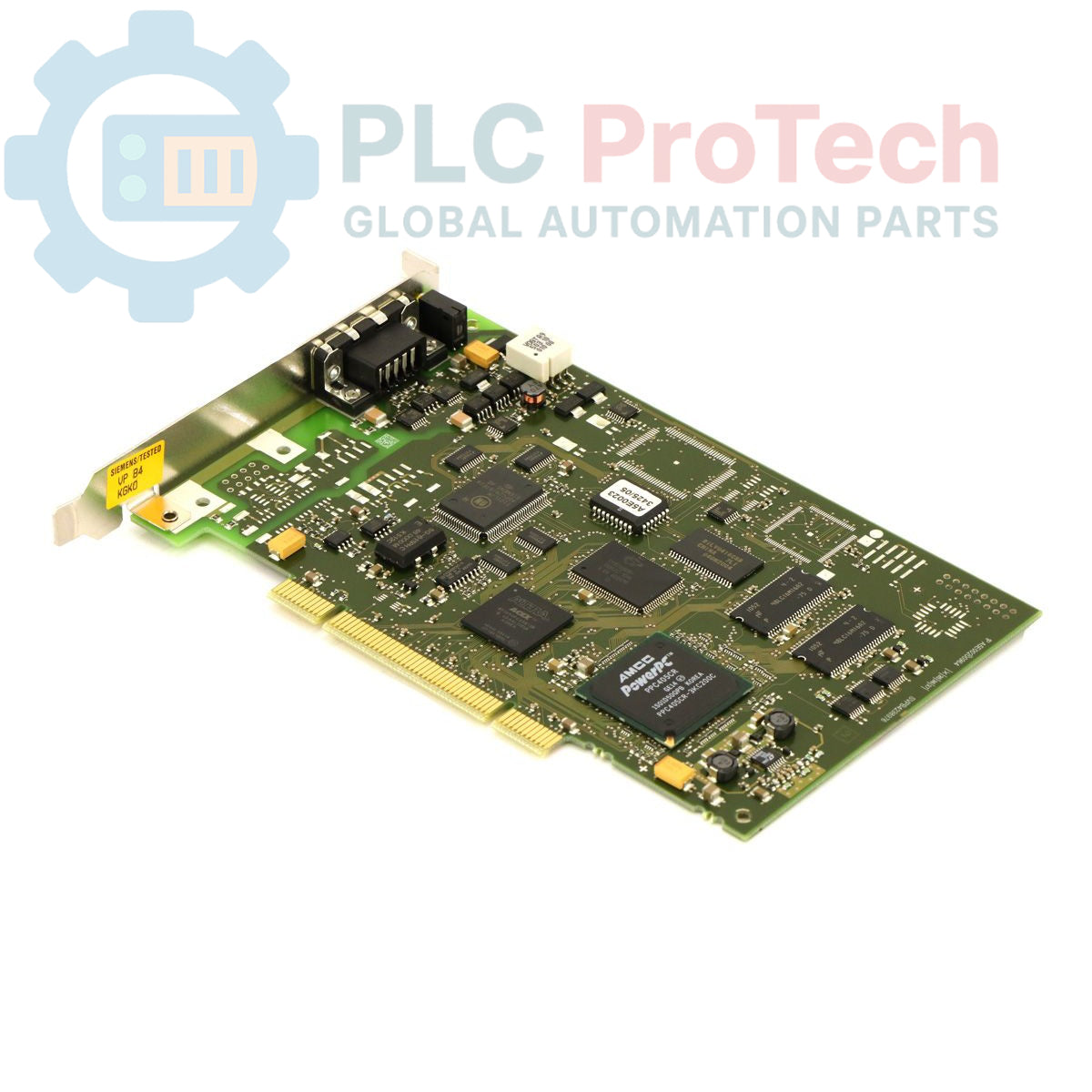

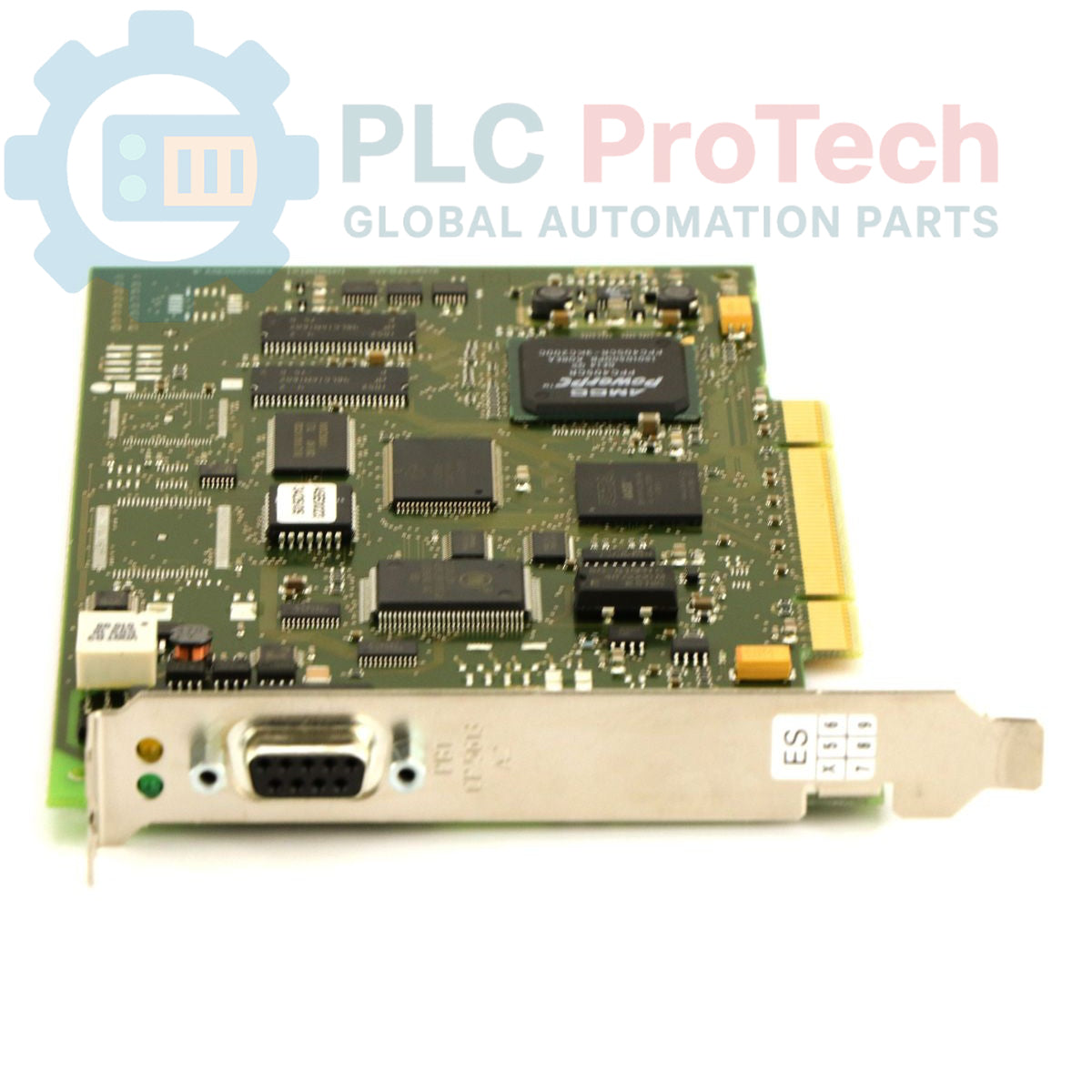

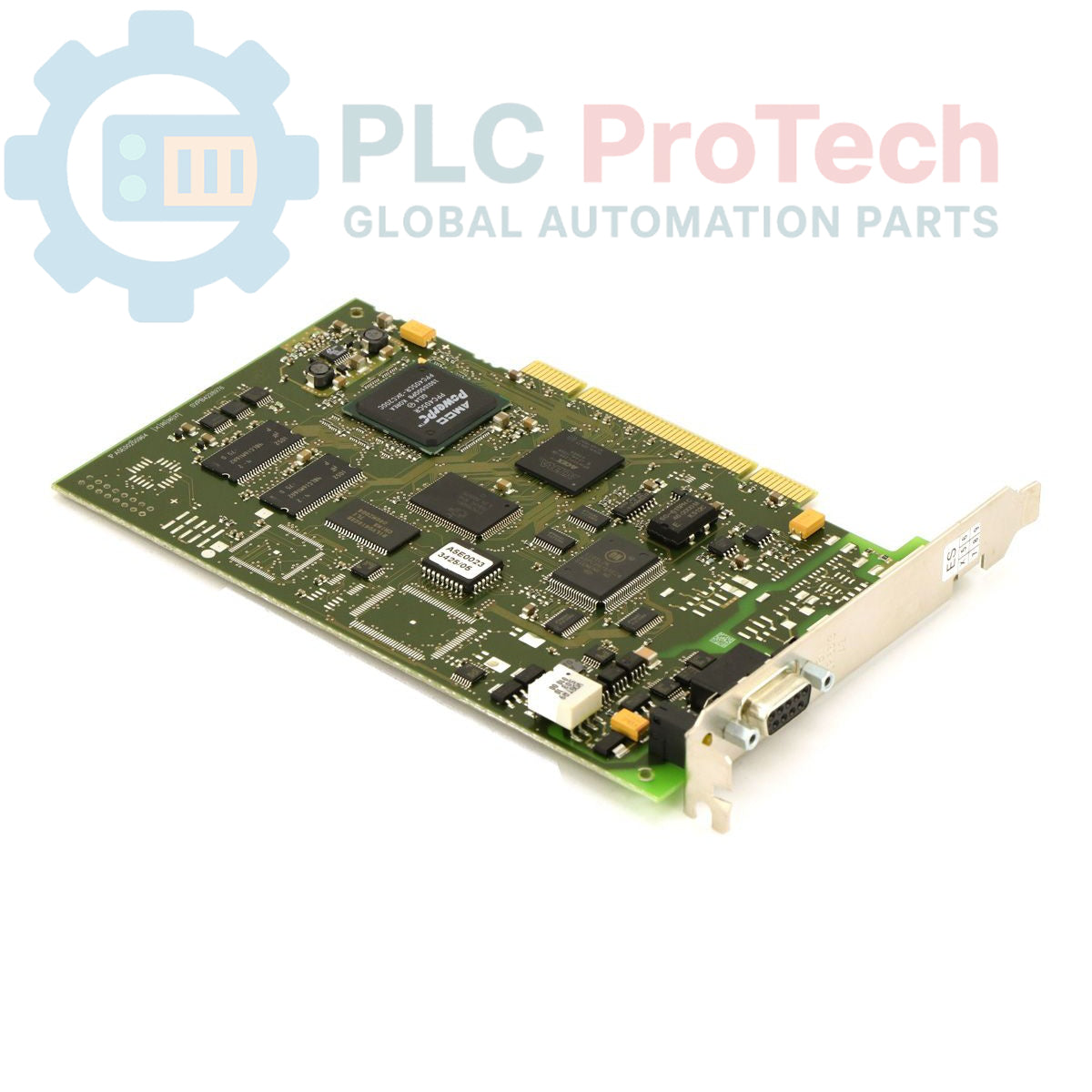

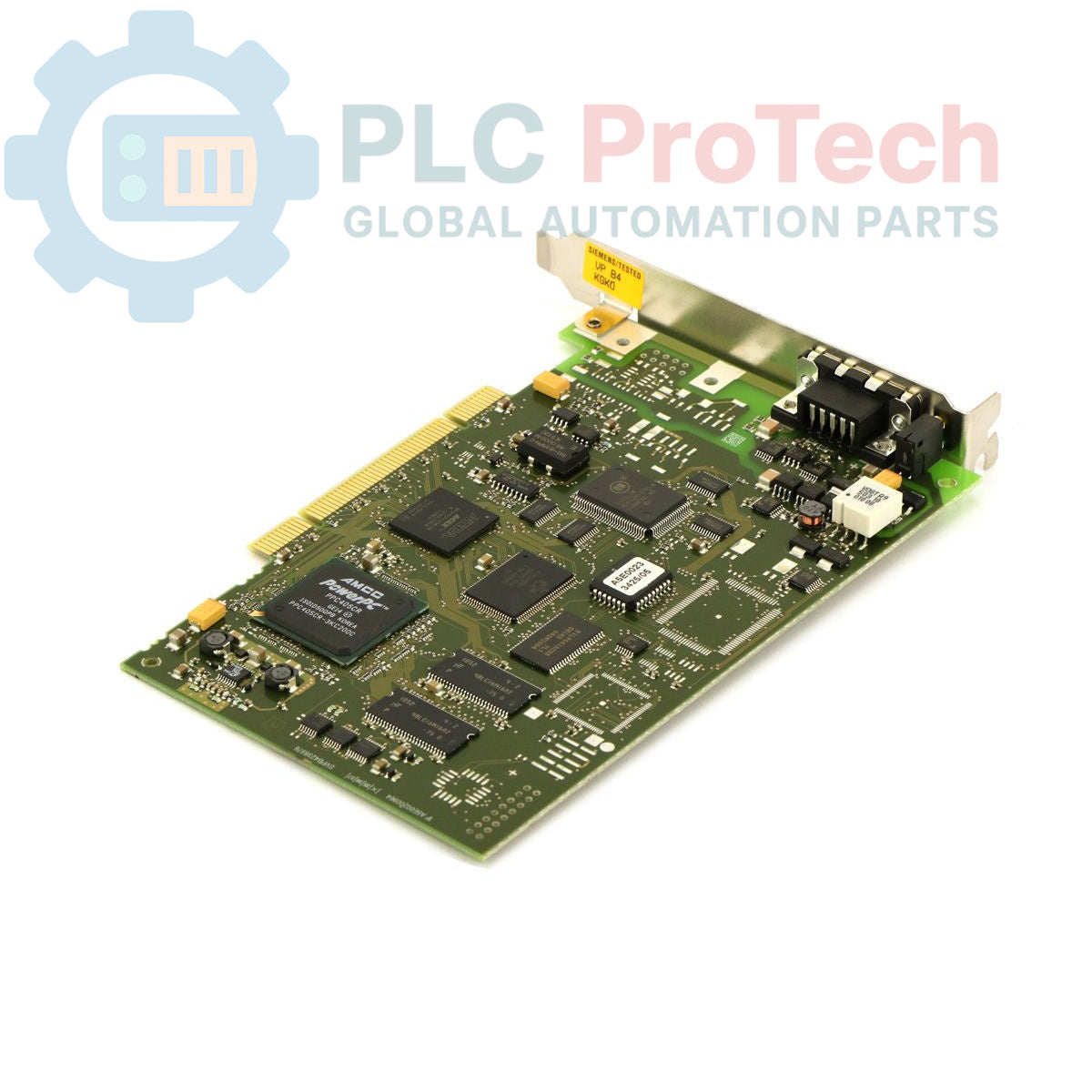

The Siemens 6GK1561-3AA01 is a CP 5613 A2 communications processor designed for legacy industrial automation systems. This module is implemented as a PCI card, providing a direct and reliable connection to PROFIBUS networks. It features a DP-RAM interface specifically for DP master operations and offers support for both PG and FDL protocols. This unit is intended for established applications running on operating systems up to Windows XP. The package includes the necessary DP-Base software, configuration tools, and runtime software on a CD-ROM. For systems requiring support for operating systems newer than Windows XP, the successor model 6GK1561-3AA02 is recommended.

Features

• PCI card form factor for integration into industrial PCs.
• Enables PROFIBUS network connectivity.
• Functions as a PROFIBUS DP master.
• Supports PG and FDL communication protocols.
• Includes DP-Base software, configuration tool, and runtime software.
• Single license for one installation.

Applications

• Legacy manufacturing and production lines.
• Process control systems requiring PROFIBUS DP master capabilities.
• PC-based automation and control stations.
• Data acquisition and monitoring systems on older platforms.

Technical Specifications

Installation Guidelines

1. 1 Ensure the host PC is fully de-energized and disconnected from its power source. Verify zero energy state.
2. 2 Use a properly grounded electrostatic discharge (ESD) wrist strap and connect it to an unpainted metal surface of the computer chassis to prevent static damage to the card.
3. 3 Open the computer chassis and select a vacant, compatible PCI slot. Remove the corresponding metal slot cover from the back of the chassis.
4. 4 Carefully align the card's edge connector with the PCI slot and press down firmly and evenly until the card is fully seated.
5. 5 Secure the card's metal mounting bracket to the chassis using the screw removed from the slot cover.
6. 6 Connect the PROFIBUS network cable to the port on the card's bracket. Ensure the connector is securely fastened.
7. 7 Replace the computer chassis cover, reconnect power, and proceed with software installation and configuration.
