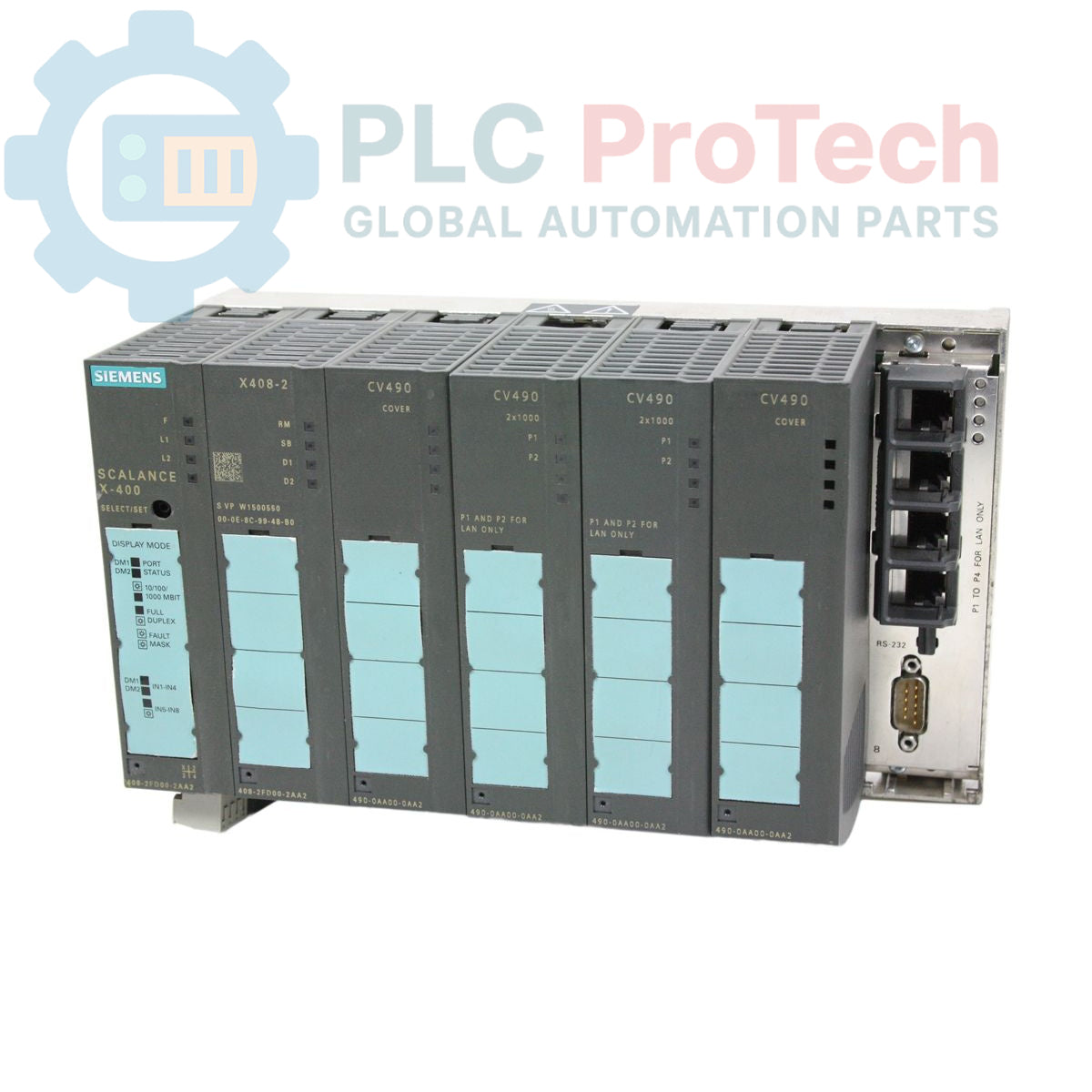

Siemens 6GK5408-2FD00-2AA2 SCALANCE X408-2 Industrial Ethernet Switch

The 6GK5408-2FD00-2AA2 is a SCALANCE X408-2 modular industrial Ethernet switch, designed to provide high-performance networking and advanced management capabilities in rugged production environments. This switch features a hybrid port configuration, including four 10/100/1000 Mbit/s RJ45 ports and four 10/100 Mbit/s RJ45 ports, alongside two additional slots for Gigabit or Fast Ethernet media modules. Engineered for reliability, the 6GK5408-2FD00-2AA2 includes an integrated redundancy manager and supports standard IT protocols such as RSTP and VLAN, enabling sophisticated network segmentation and high availability. It is supplied with a C-PLUG, which allows for rapid configuration backups and seamless device replacement, minimizing downtime in critical automation systems.

Features

• Flexible Port Density: Combination of Gigabit and Fast Ethernet RJ45 ports for versatile device connection.
• Modular Expansion: Two media module slots allow for customized network connectivity (Fiber/Copper).
• Network Reliability: Integrated redundancy manager supports fault-tolerant network topologies.
• Advanced Management: Supports VLAN (Virtual LAN) and RSTP (Rapid Spanning Tree Protocol) for efficient traffic management.
• Easy Maintenance: Includes a C-PLUG for fast, error-free device swapping and configuration storage.

Applications

• High-availability industrial network backbones.
• Integration of office-level communication protocols into the factory floor.
• Real-time data transmission in multi-machine production lines.
• Distributed control architectures requiring modular media flexibility.

Technical Specifications

Installation Guidelines

• Mounting: Designed for mounting on a standard S7-300 profile rail or direct wall mounting. Ensure sufficient clearance for airflow to prevent overheating.
• Redundancy Setup: Configure the integrated redundancy manager to ensure path protection in ring topologies.
• Media Modules: When installing media modules, ensure the power is off to avoid electrical damage to the backplane connectors.
• C-PLUG Usage: Insert the C-PLUG into the provided slot before initial startup to ensure configuration data is stored correctly.
• Grounding: Always connect the chassis to the system grounding point to maintain EMC integrity and protect against surge currents.
