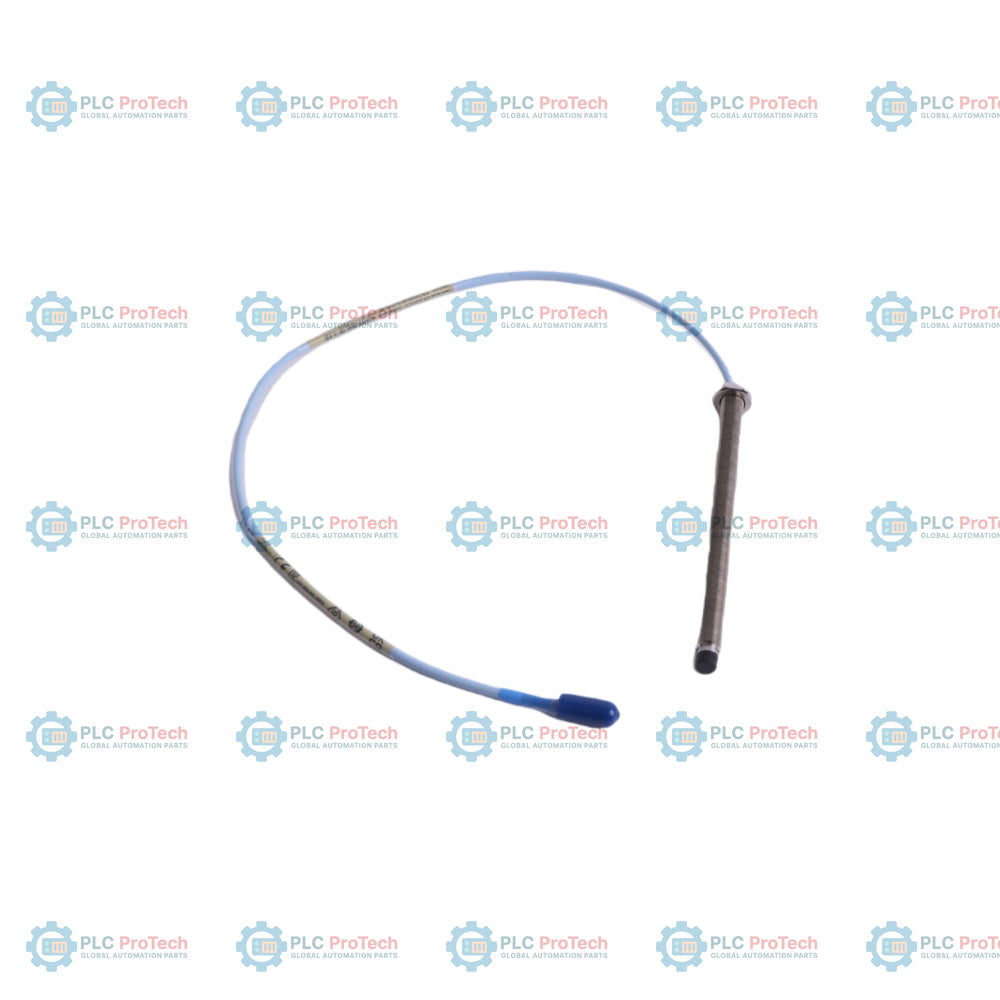

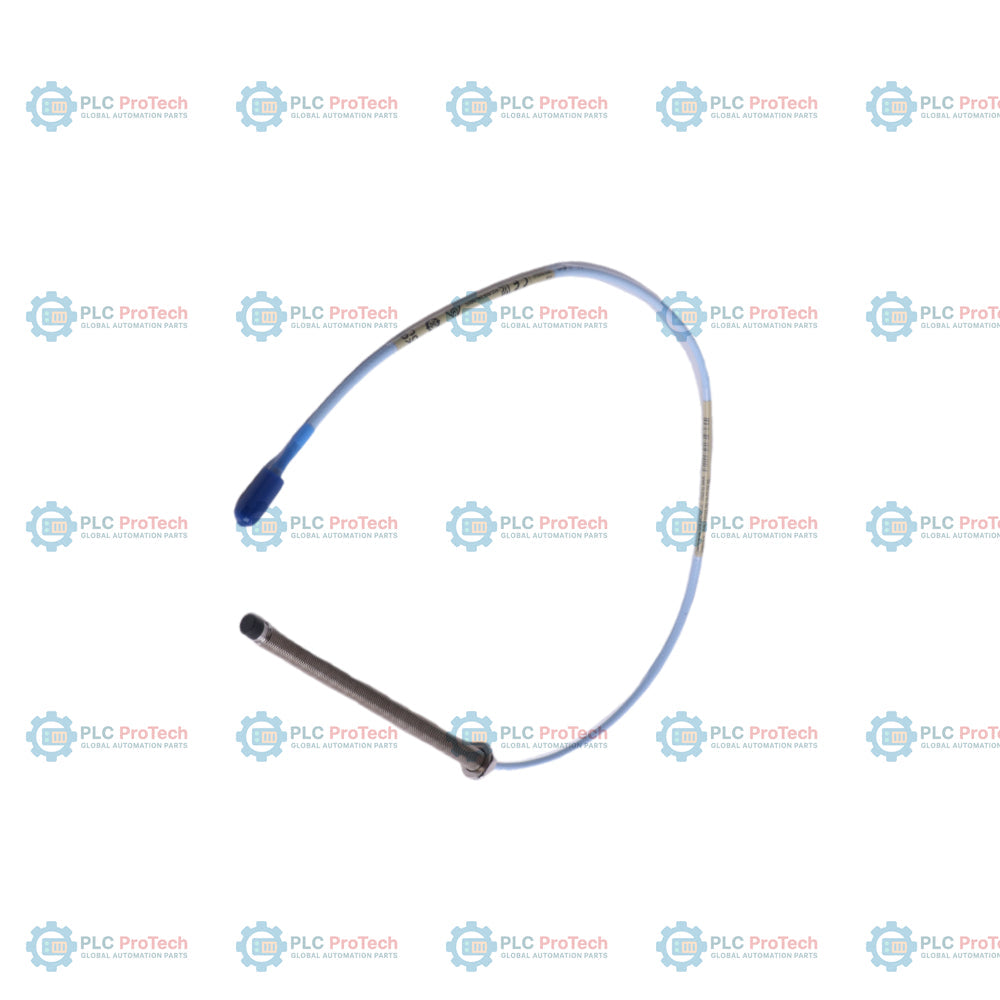

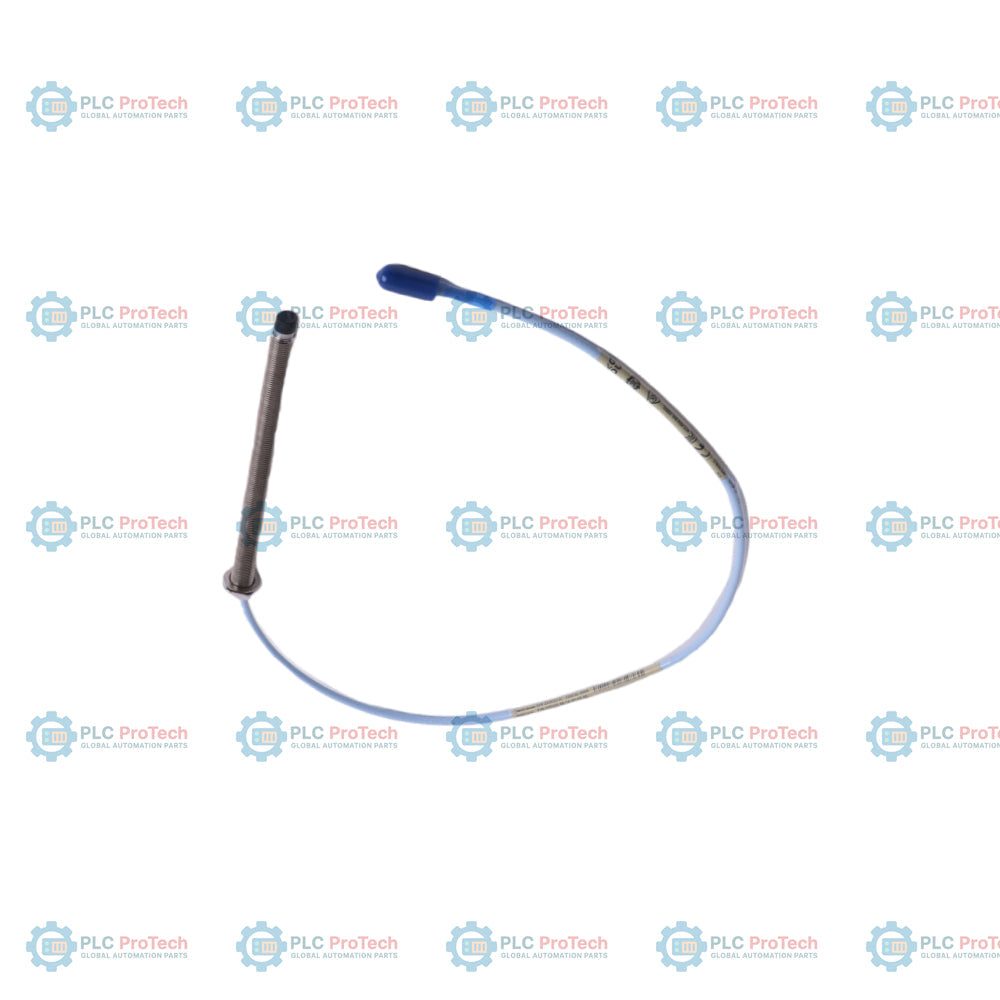

Bently Nevada 330103-00-14-05-02-00 3300 XL 8 mm Proximity Probe

Stokta sadece 2 adet kaldı

Üretici: Bently Nevada
Ürün No.: 330103-00-14-05-02-00
Menşei ülke:Amerika Birleşik Devletleri
Ürün Türü: 3300 XL 8 mm Proximity Probe
Barkod: 8537101190
Ödeme: T/T, Western Union
Ağırlık: 80g
Boyutlar: 10 mm x 10 mm x 140 mm (H x W x D)
Gönderim limanı: Xiamen
Garanti: 12 ay

Description

Fully threaded M10 x 1 steel probe body (Option 00) with 140 mm case (Option 14) and 0.5 m standard lead (Option 05) — 330103-00-14-05-02-00.

This 3300 XL 8 mm proximity probe has no protective armor (330103 series) and is configured with a miniature ClickLoc coaxial connector (Option 02) and no regional agency approvals (Option 00). It operates as part of an eddy-current transducer system to measure shaft vibration, radial displacement, or axial position relative to an AISI 4140 steel target.

Features

M10 x 1 metric thread structure without protective armor.
Option 00 specifies 0 mm unthreaded length, making the probe body fully threaded.
Option 14 specifies 140 mm overall case length.
Option 05 provides a 0.5-meter (1.6 feet) total probe cable length.
Option 02 provides a miniature coaxial ClickLoc connector with standard cable (no connector protector).
Option 00 specifies no agency approvals are required for standard industrial applications.
Supports complete interchangeability with other 3300 XL 8 mm components.

Applications

Fluid-film bearing machinery monitoring including steam turbines, gas turbines, and compressors.
Radial vibration and shaft displacement measurement.
Axial thrust position monitoring.
Keyphasor speed and phase reference measurements.

Ordering Information

Segment / Option	Code on This SKU	Description
Orderable Part Number	330103-00-14-05-02-00	3300 XL 8 mm proximity probe, M10 x 1 thread, unarmored
A - Unthreaded Length Option	00	0 mm unthreaded length (fully threaded case)
B - Overall Case Length Option	14	140 mm overall case length
C - Total Length Option	05	0.5 meter (1.6 feet) total probe length
D - Connector and Cable-Type Option	02	Miniature coaxial ClickLoc connector, standard cable (no protector)
E - Agency Approval Option	00	No agency approvals required
Suffix -CN (Regional Option)	-CN	China hazardous area approval package (NEPSI + CCC approvals and markings)

Technical Specifications

Parameter	Specification Value
Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330103-00-14-05-02-00
Product Family	3300 XL 8 mm Proximity Transducer System
Thread Type	M10 x 1 thread (without armor)
Unthreaded Length	0 mm
Case Length	140 mm
Total Probe Length	0.5 meter (1.6 feet)
Connector Type	Miniature ClickLoc coaxial connector (Option 02)
Cable Type	Standard coaxial cable
Operating Temperature Range	-52 degC to +177 degC
Linear Range	2.0 mm (80 mils), starting at 0.25 mm (10 mils)
Nominal Scale Factor	7.87 V/mm (200 mV/mil)
Probe DC Resistance	7.45 +/- 0.50 ohms (center to outer conductor)
Recommended Gap	-9 Vdc (approx. 1.27 mm / 50 mils)
Target Material	AISI 4140 steel target
Dimensions	10 mm x 10 mm x 140 mm (H x W x D)
Weight	0.08 kg

Installation Guidelines

Thread engagement limit for M10 x 1 thread is 15 mm maximum to avoid binding or damage.
Torque standard: Torque the probe case to mounting brackets or housing with standard metric locknuts.
Connect the coaxial ClickLoc connectors finger-tight to join the probe and extension cable.
Minimum bend radius for the standard coaxial cable is 25.4 mm (1.0 inch).
Keep the probe tip clear of surrounding metal structures to avoid side-viewing interference (minimum clearance of 1.5 times the probe tip diameter).

Compliance and Certifications

Option 00 specifies no agency approvals are configured.
If regional compliance is required for China, specifying the -CN suffix provides NEPSI and CCC hazardous area certifications.

Model Number / Title	Condition	Availability	Action
Bently Nevada 330901-00-78-10-02-00 3300 XL NSv Yakınlık Prob	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-11-01 3300 XL 8 mm Yakınlık Prob	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-02-01 3300 XL 8 mm Yakınlık Prob	Original New	In Stock	View Details

Key Features:

#Bently Nevada 3300 XL #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What does the Option 14 code mean on this 330103 probe?

The Option 14 code designates a metric case length of exactly 140 mm. This specifies the rigid threaded portion of the probe case that installs into the machine housing.

What is the total cable length for the 330103-00-14-05-02-00 configuration?

The Option 05 code specifies a total cable length of 0.5 meters (1.6 feet). This short lead is typically coupled with a 4.5-meter extension cable to complete a standard 5.0-meter transducer system loop.

Does the 330103-00-14-05-02-00 include protective armor or a connector protector?

No. The 330103 base model is an unarmored metric probe, and the Option 02 connector code specifies a standard coaxial cable with a miniature coaxial ClickLoc connector without an integrated connector protector.

How do I handle regional compliance for this probe if China NEPSI certification is required?

For installations in mainland China requiring regional NEPSI and CCC hazardous area compliance, the -CN suffix configuration must be specified. The standard -00 option is for general purpose environments.
