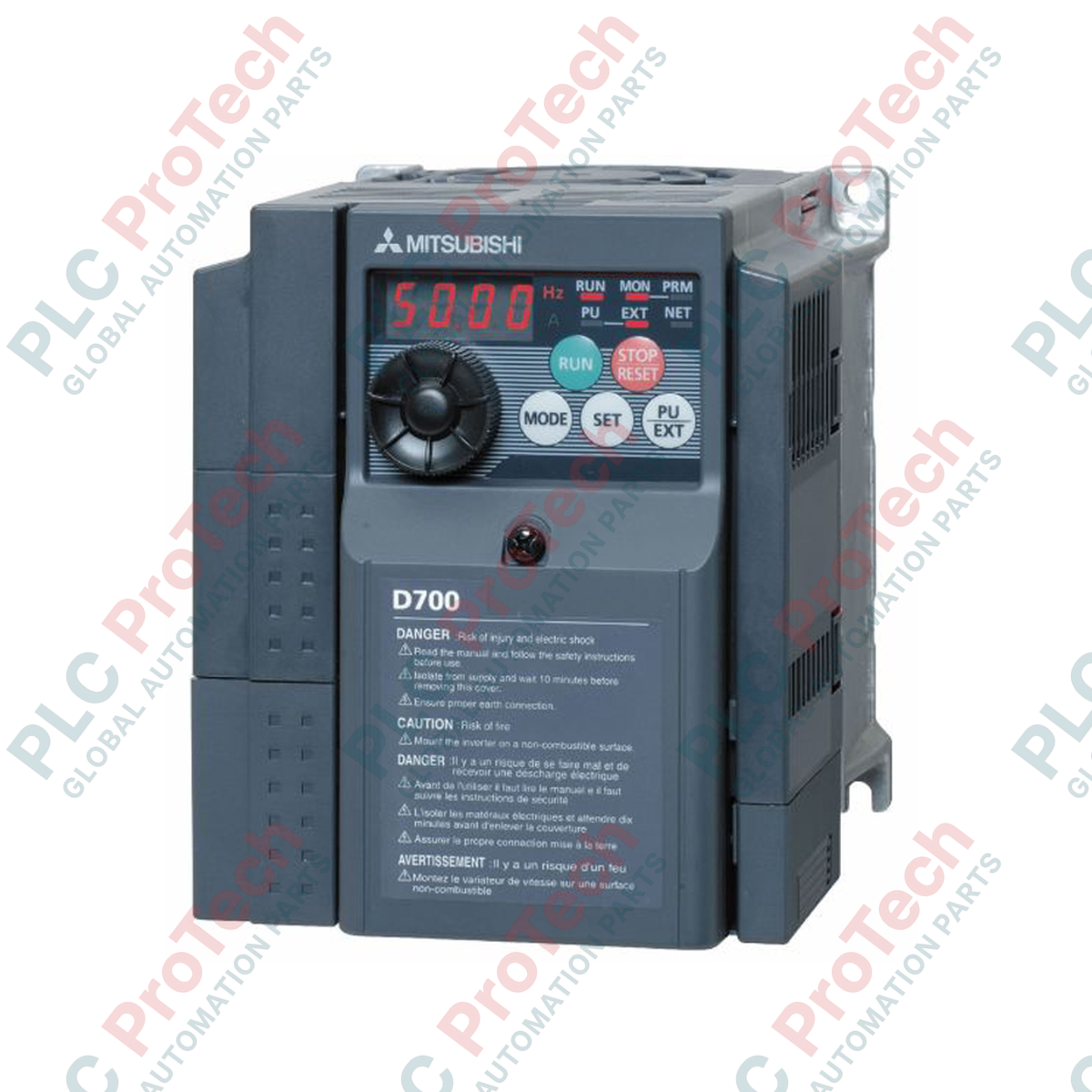

Mitsubishi Electric FR-D740-7.5K-CHT FR-D700 Series Variable Frequency Drive Inverter

Description

Delivering highly responsive motor control and compact integration, this Mitsubishi Electric FR-D740-7.5K-CHT variable frequency drive from the FR-D700 Series provides 7.5 kW of output capacity for demanding industrial environments. Engineered for three-phase 400V class applications, this compact inverter integrates general-purpose magnetic flux vector control to achieve high torque even at low operating speeds. Its design optimizes panel space while maintaining the robust thermal performance and long-service life components typical of the Mitsubishi Electric automation ecosystem.

Features

• Advanced Magnetic Flux Vector Control: Ensures stable torque delivery and highly accurate speed regulation across a wide dynamic operating range.
• Space-Saving Footprint: Supports side-by-side mounting to minimize overall electrical enclosure volume requirements.
• Integrated Digital Dial: Enables straightforward local speed reference adjustment, parameter configuration, and diagnostic monitoring.
• Built-in Modbus RTU: Supports direct networking and control integration through standard RS-485 serial communication interfaces.
• Spring-Clamp Control Terminals: High-reliability wiring connectors that resist vibration loosening and reduce overall installation time.

Applications

• Conveyor and material handling feed drives requiring high starting torque.
• Industrial fan, blower, and centrifugal pump speed modulation.
• Packaging, labeling, and filling machinery motion coordination.
• Machine tool spindles and manufacturing auxiliary axes.

Technical Specifications Table

Empirical Engineering Insights

Alternative Models & Compatibility

The FR-D740-7.5K-CHT is the designated regional variant for the Asian market, characterized by factory-default configurations aligned with 50Hz electrical infrastructure and sink-logic control configurations. When retrofitting or replacing standard global FR-D740-7.5K variants, commissioning engineers must verify and align Parameter 19 (Base frequency voltage) and the physical sink/source selection jumper to match regional control wiring schematics.

Application Pitfalls & Engineering Notes

When executing side-by-side close-contact installation of multiple FR-D700 drives in a single enclosure, the surrounding air temperature must not exceed 40 degC. For operations running up to 50 degC, horizontal clearances of at least 1 cm must be maintained between adjacent units. Neglecting these clearances under high load profiles accelerates thermal degradation of the internal DC bus capacitors and may cause nuisance E.THT (electronic thermal relay) faults.

Commissioning & Wiring Tips

To configure extended parameters beyond the basic set, Parameter 160 (User group read selection) must be changed from its default value "9999" to "0". Additionally, when wiring the RS-485 communication line via the onboard RJ45 port, ensure that high-speed control wiring is run in dedicated, grounded conduit isolated from the high-voltage motor output lines (U, V, W) to eliminate electromagnetic crosstalk and communication dropouts.
