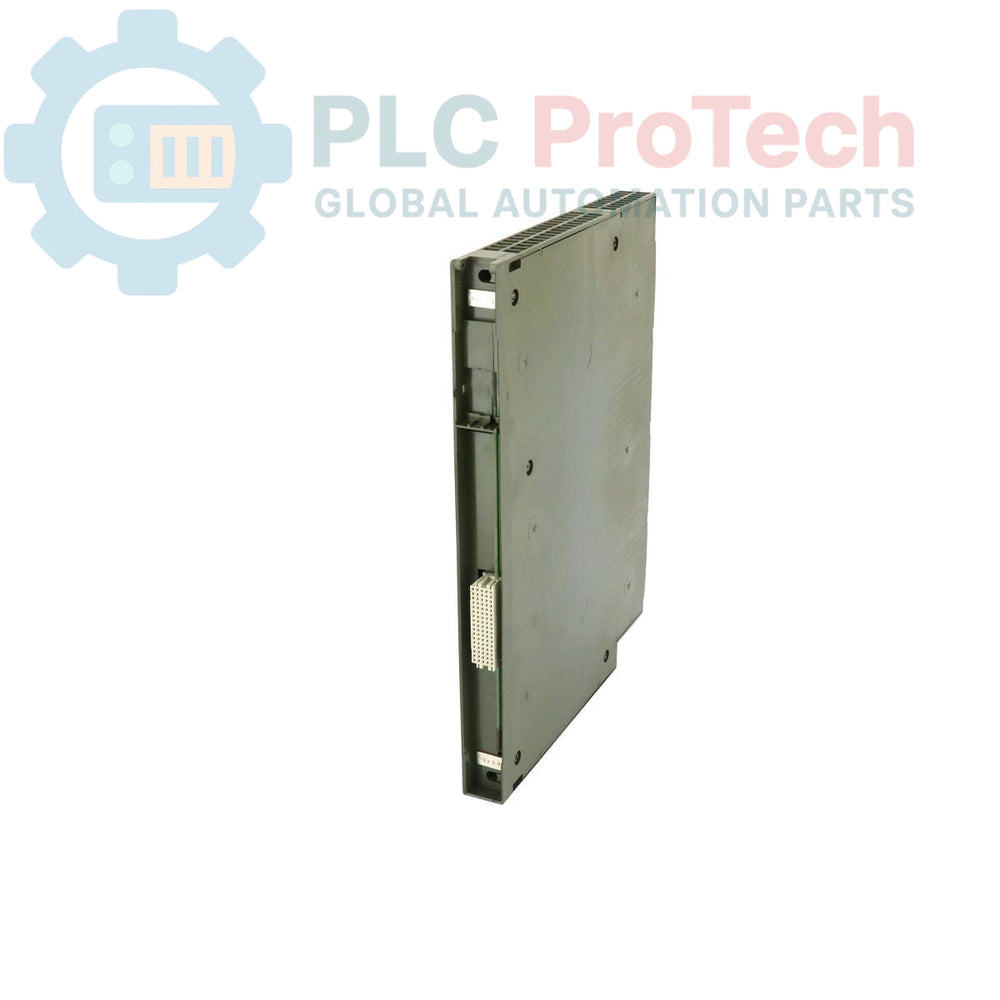

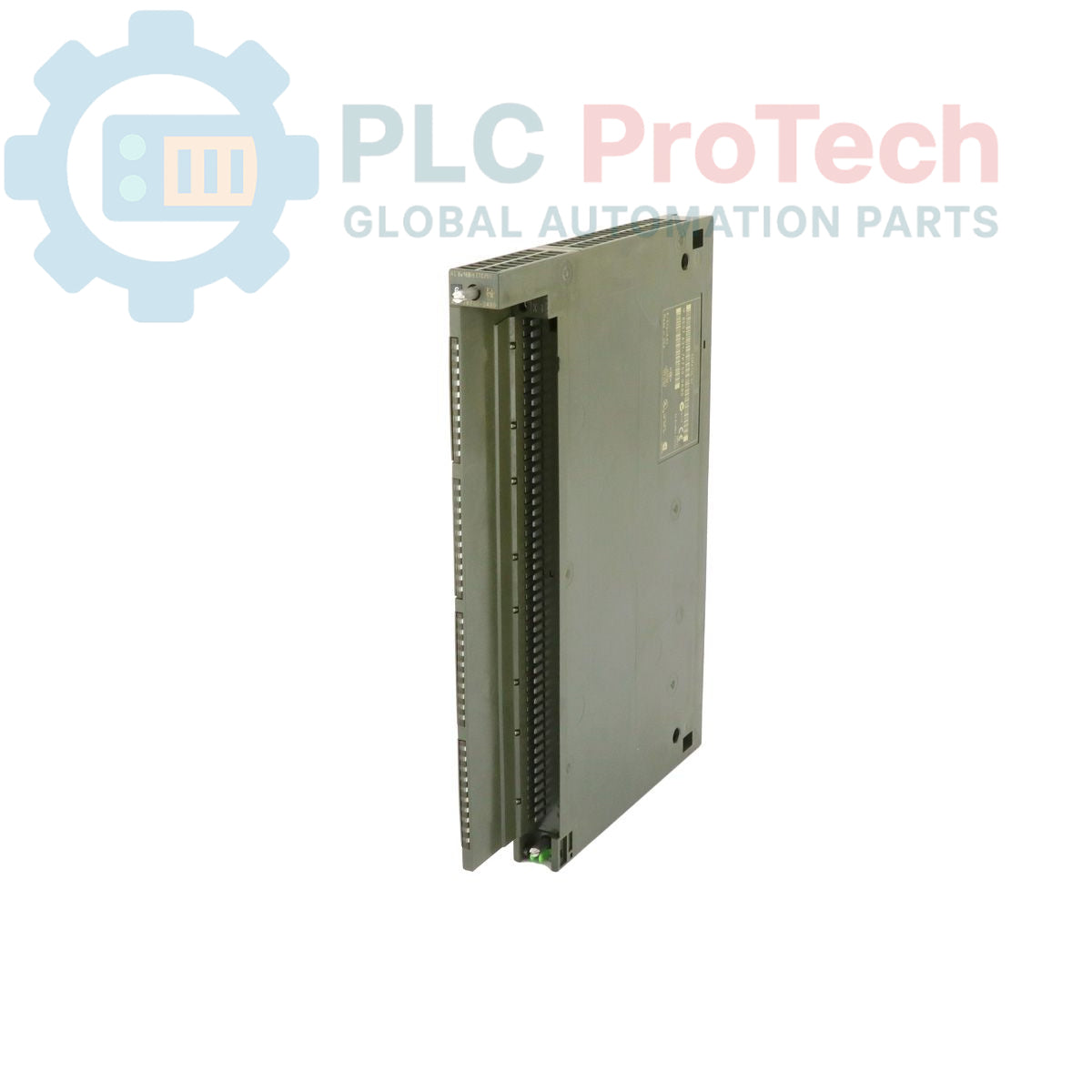

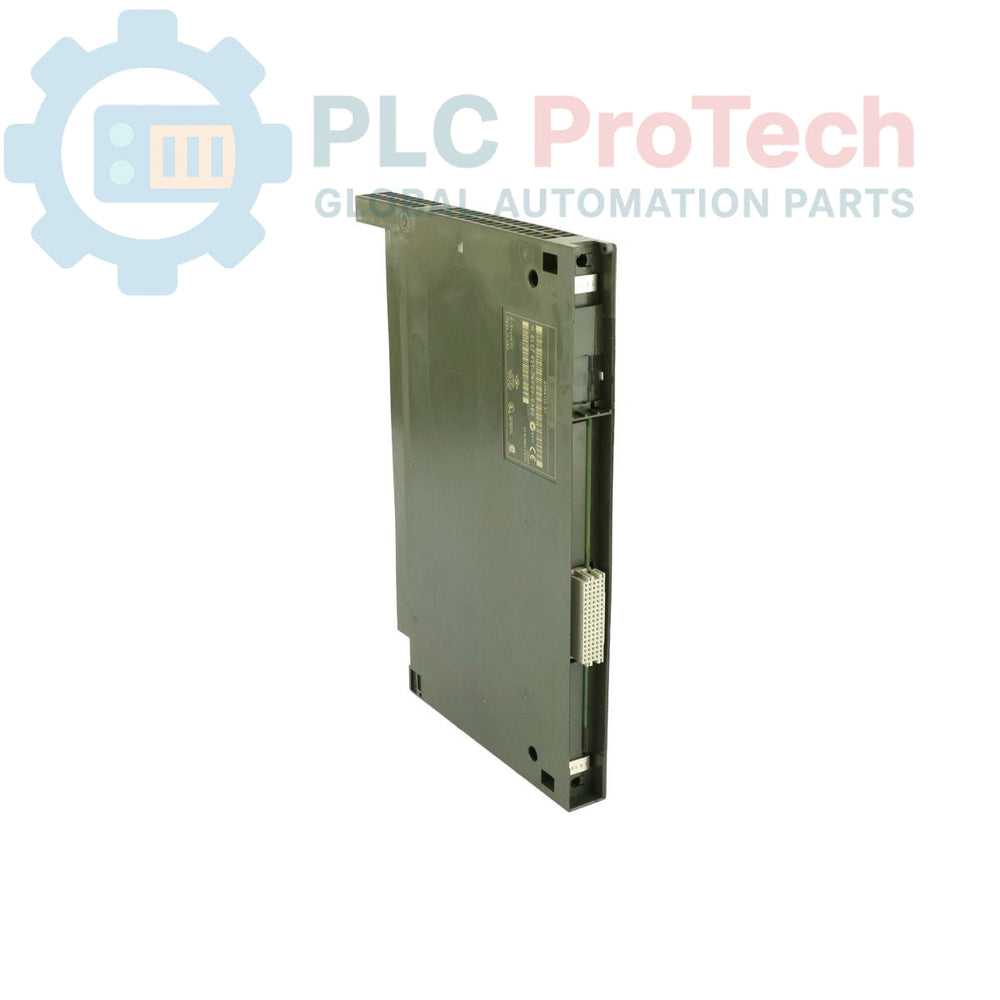

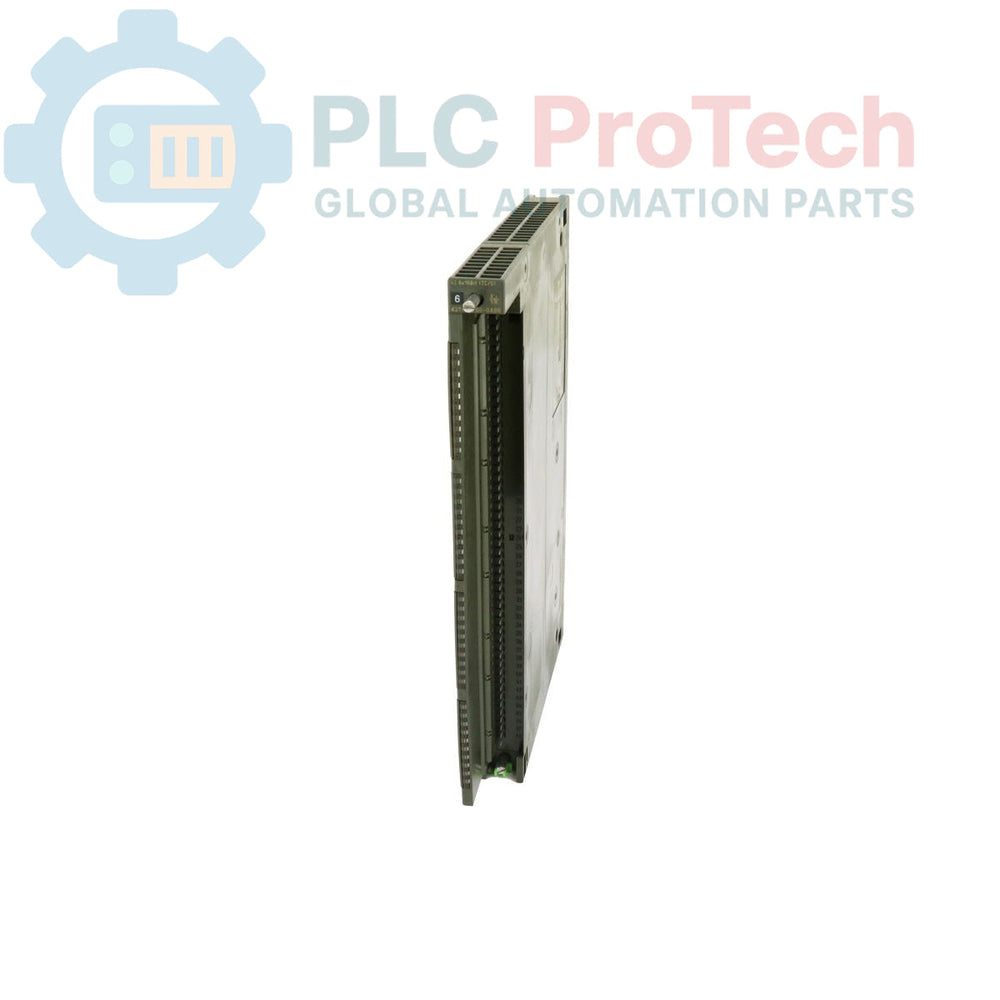

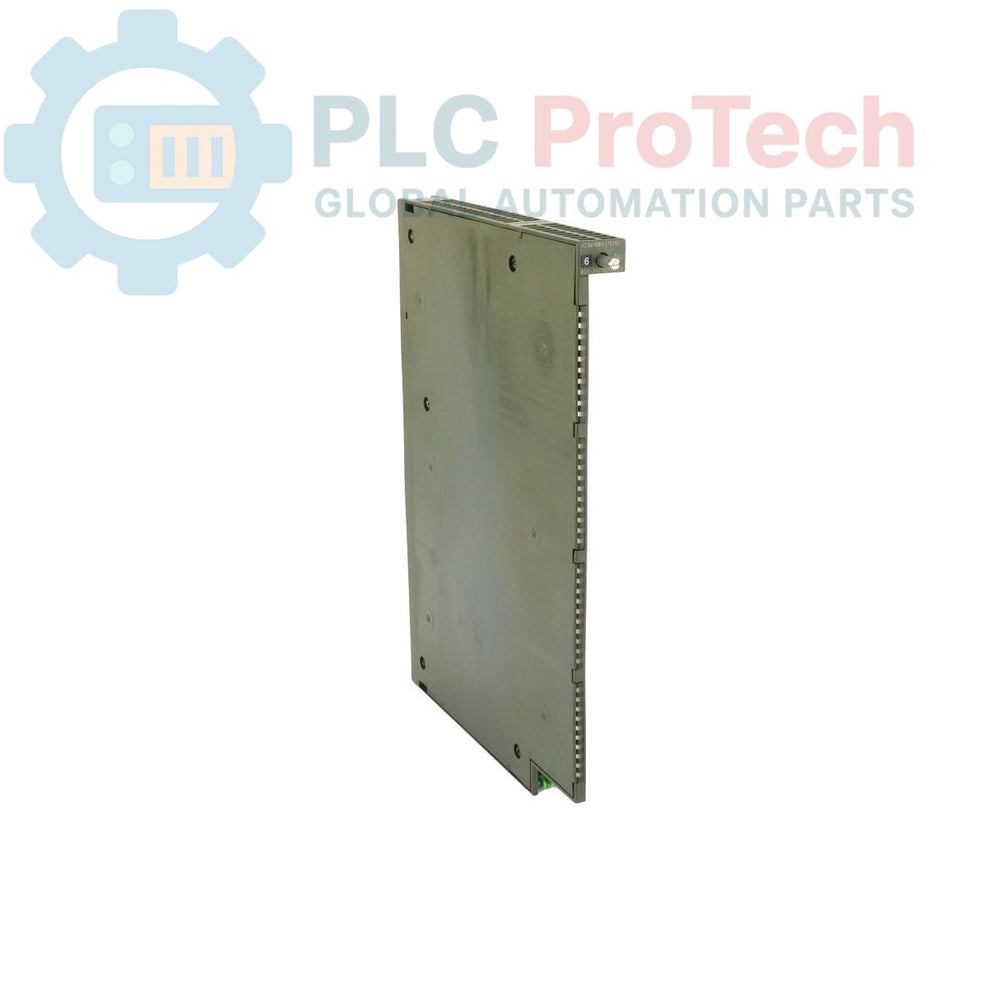

Siemens 6ES7431-7KF00-0AB0 SIMATIC S7-400 Analog Giriş Modülü

Description

The 6ES7431-7KF00-0AB0 is a high-precision Analog Input (AI) module for the SIMATIC S7-400 automation system. Engineered for complex process control, this SM 431 module provides 8 channels capable of measuring voltage, current, and thermocouple signals with 16-bit resolution. It features isolated signal processing with single-channel grounding to ensure high immunity to common-mode interference. The module is equipped with integrated diagnostic and alarm functions, providing real-time status reporting. With a rapid conversion time of 20 ms per channel, it is highly effective for time-sensitive data acquisition in large-scale industrial applications.

Features

• 8 analog input channels
• High-precision 16-bit resolution
• Universal input support: Voltage, Current, and Thermocouples
• Galvanic isolation with single-channel grounding
• Integrated diagnostic and alarm monitoring
• Fast 20 ms conversion time per channel
• Optimized for S7-400 backplane integration

Applications

• Process control in chemical and energy plants
• Temperature monitoring via thermocouple sensors
• High-resolution data acquisition for SCADA systems
• Complex automation requiring high signal integrity

Technical Specifications

Installation Guidelines

• Module Insertion: Ensure the S7-400 rack power is switched off before inserting the module into the central or expansion rack. Align the module with the backplane guide rails and secure it using the locking mechanism.
• Wiring: Use shielded twisted-pair cabling for all analog signals to minimize electromagnetic interference (EMI). Connect the cable shields to the cabinet ground at the entry point.
• Grounding: Take advantage of the single-channel grounding feature to prevent ground loops, which are common in distributed thermocouple measurements.
• Parameterization: Configure input types and diagnostic thresholds within the STEP 7 engineering software to ensure accurate reporting and alarm triggering.
