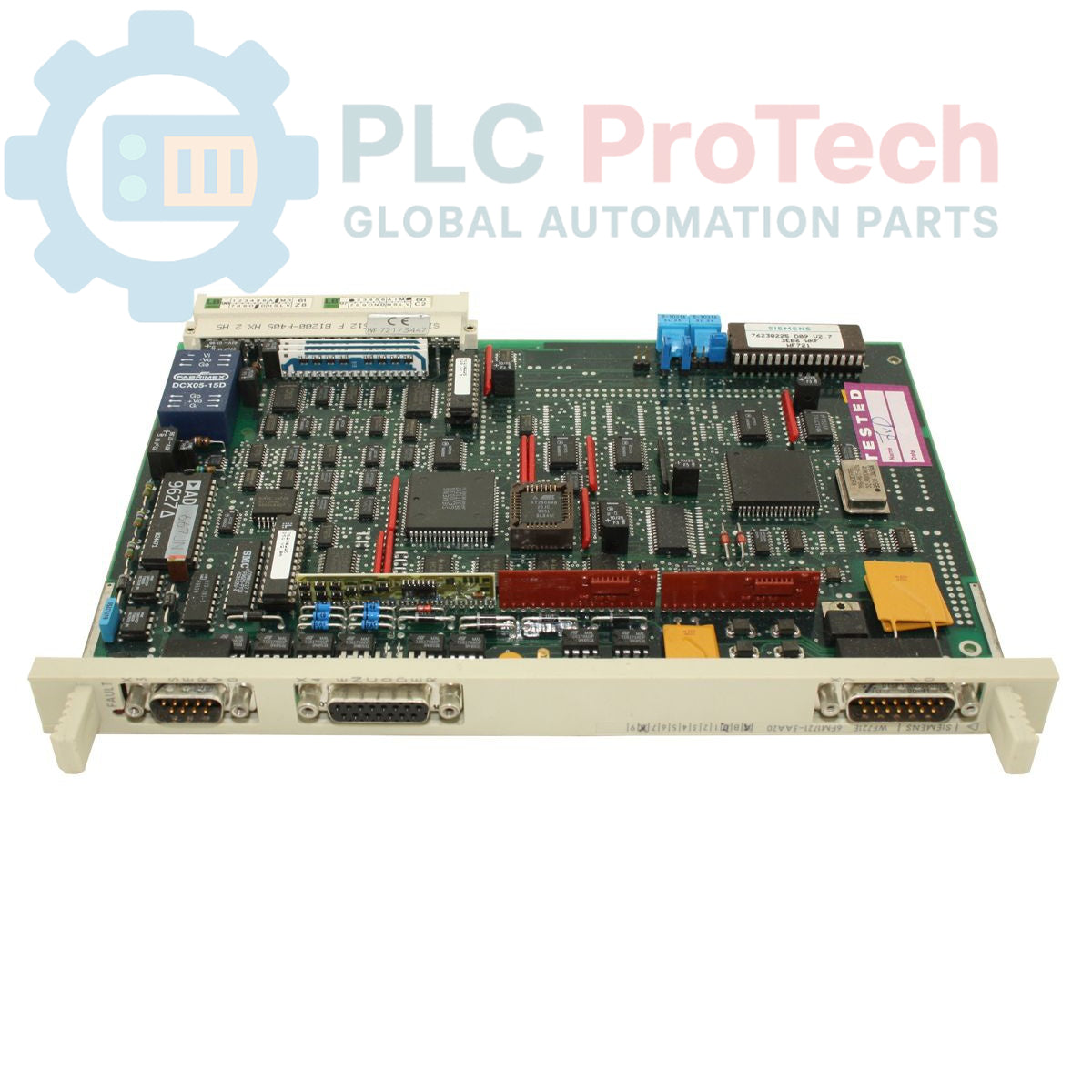

Siemens SIMATIC S5 WF 721 Konumlandırma Modülü (6FM1721-3AA20)

Description

The 6FM1721-3AA20 is a single-axis Positioning Module (WF 721) from the SIMATIC S5-135/155 family. Engineered by Siemens, this module provides high-precision motion control by processing feedback from position encoders. It is highly versatile, supporting both serial and incremental encoder interfaces, which allows it to adapt to various legacy automation setups. Despite being in a phase-out product lifecycle stage, it remains a critical component for the maintenance and operational continuity of older SIMATIC S5 control architectures in heavy industrial sectors.

Features

• Single-Axis Control: Optimized for precise motion management of one machine axis.
• Encoder Versatility: Supports integration with serial and incremental position encoders for flexible feedback loops.
• Seamless Integration: Designed specifically for the S5-135/155 PLC racks.
• Industrial Durability: Built to withstand the harsh conditions typical of legacy manufacturing environments.

Technical Specifications

Installation Guidelines

• Rack Insertion: Power down the S5-135/155 PLC rack before inserting or removing the WF 721 module to prevent electrical damage to the backplane.
• Encoder Wiring: Ensure that encoder cables are shielded and kept separate from power-carrying conductors to prevent signal interference with the pulse-counting circuitry.
• Grounding: Verify that the rack itself is properly grounded to ensure the stability of the low-voltage signals processed by the positioning module.
• Configuration: Utilize the appropriate S5 programming tools to define the machine parameters and encoder scaling factors required for precise positioning.
• Maintenance: Periodically inspect the edge connectors for signs of oxidation, which is common in older systems and can lead to intermittent positioning errors.
