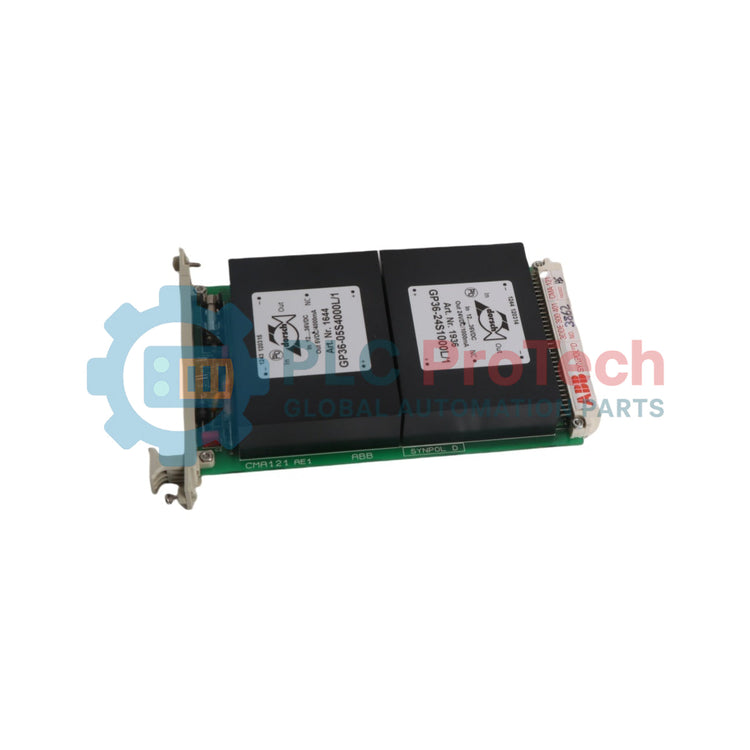

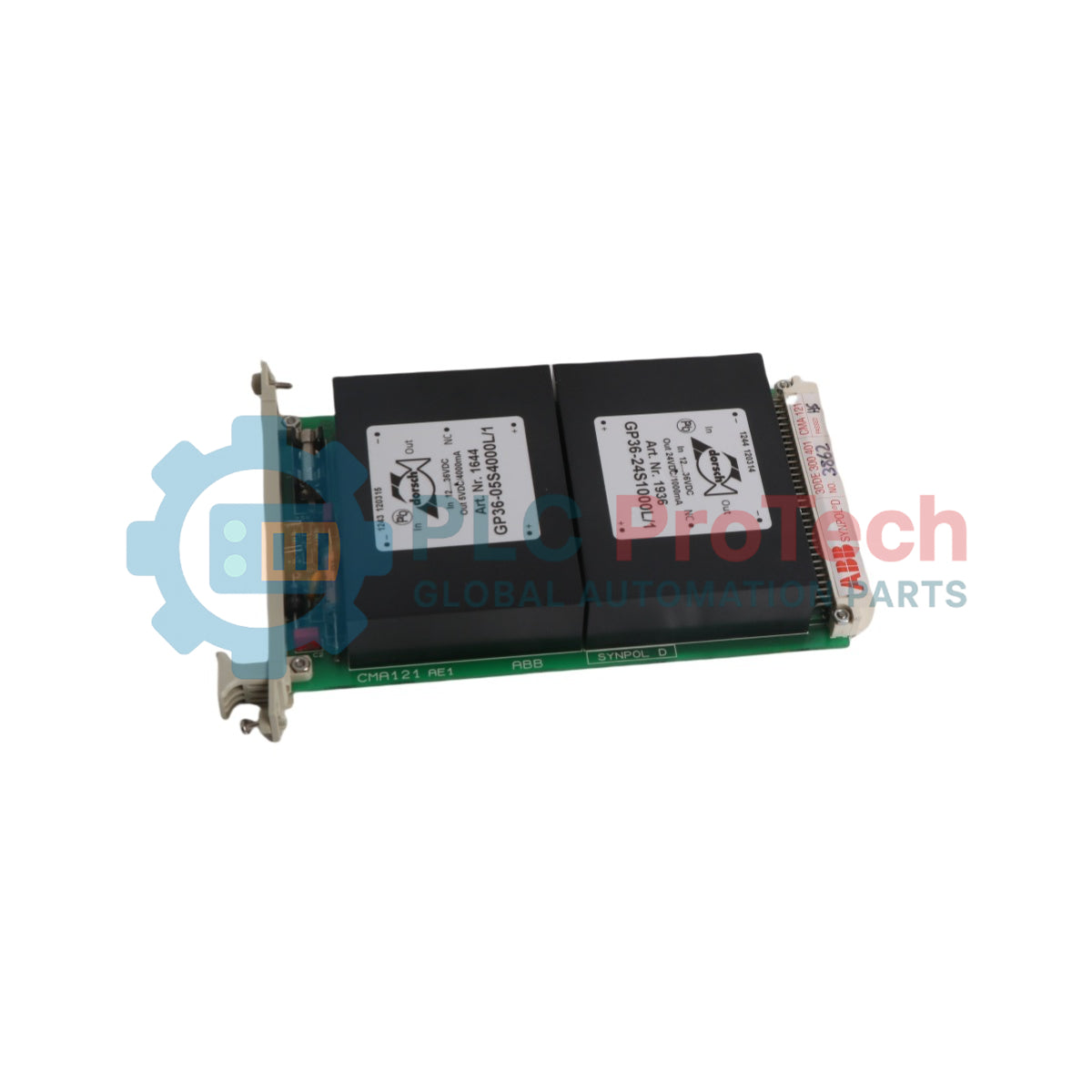

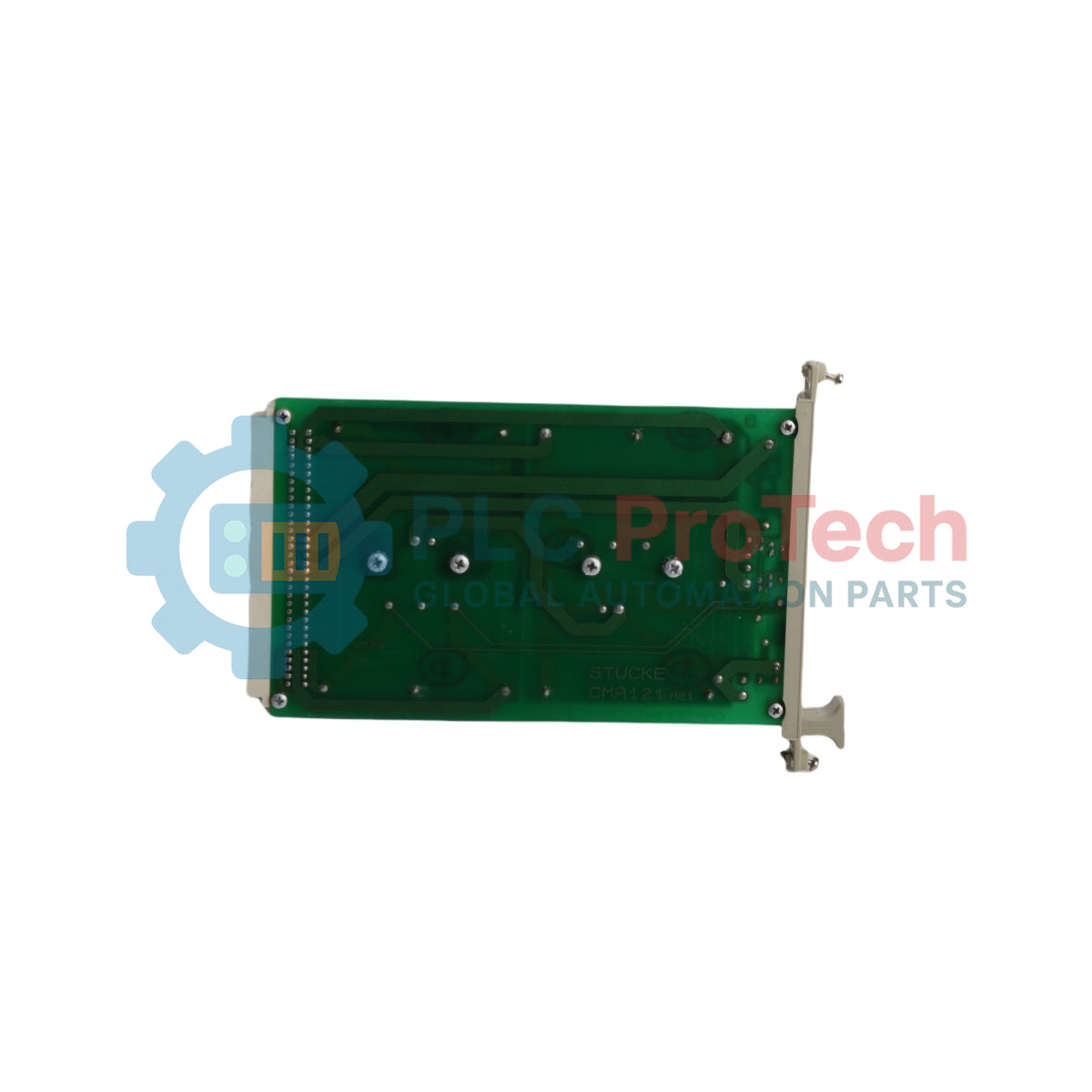

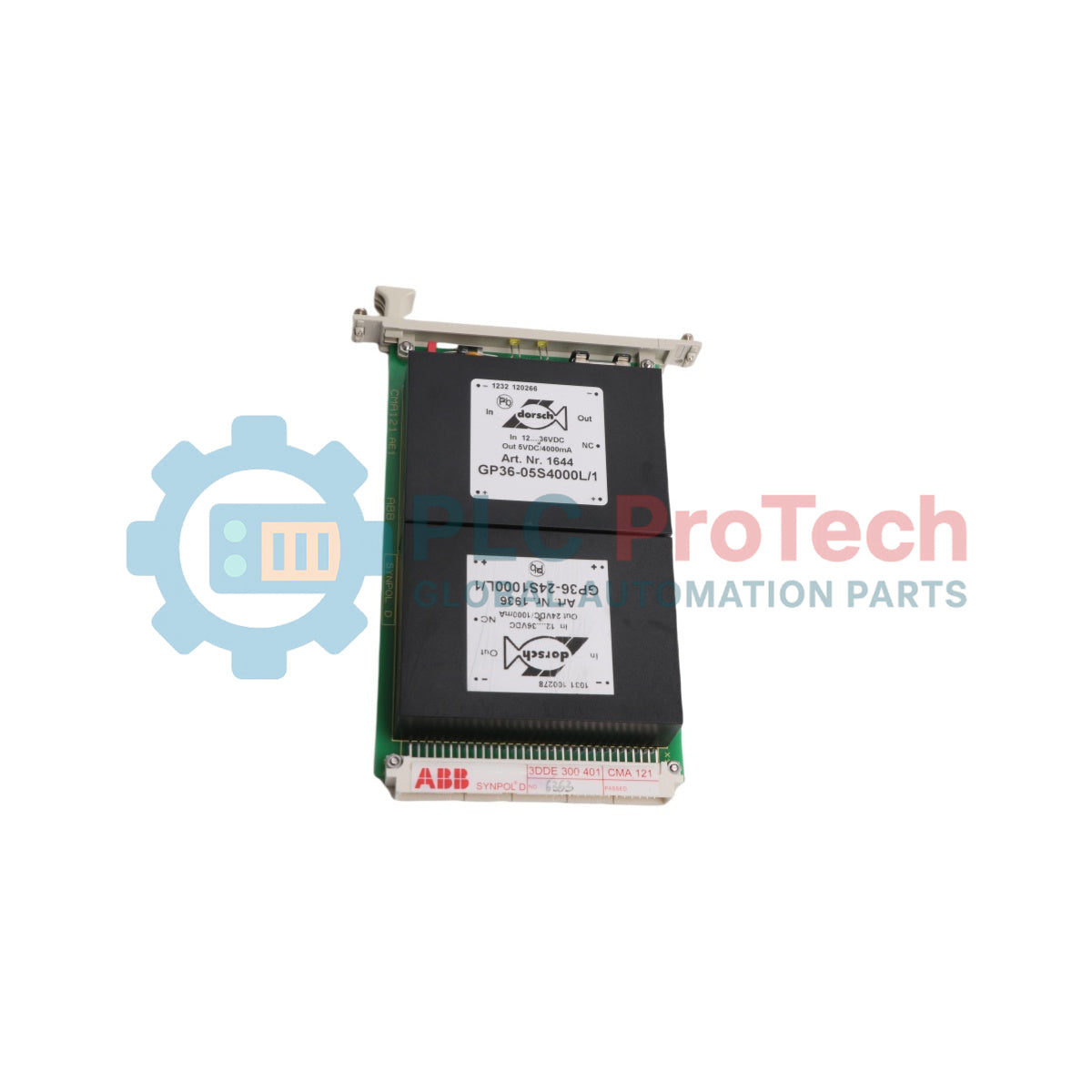

ABB CMA121 3DDE300401 doimiy tok quvvat ta’minoti moduli

SKU CMA121 3DDE300401

In stock

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: CMA121 3DDE300401
Country of origin:Sweden
Product Type: DC quvvat manbai modullari
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 540g
Dimensions: 2.8 x 18.5 x 12.8 cm
Shipping port: Xiamen
Warranty: 12 months

Tavsif

ABB CMA121 (3DDE300401) sanoat avtomatlashtirish va taqsimlangan boshqaruv tizimlari (DCS) arxitekturalari uchun ishlab chiqilgan maxsus DC quvvat manbai modulidir. Sezgir mantiqiy va boshqaruv zanjirlariga ishonchli hamda regulyatsiyalangan DC quvvat yetkazib berish uchun mo‘ljallangan ushbu qurilma talabchan sanoat muhitlarida barqaror ishlashni ta’minlaydi.

Modul yuqori samaradorlikka ega DC/DC quvvat o‘zgartirgich sifatida ishlaydi: standart sanoat kirish kuchlanishi diapazonini qabul qilib, aniq regulyatsiyalangan past kuchlanishli chiqishni ta’minlaydi. U standart boshqaruv shkaflariga muammosiz integratsiyalanadi va ichki stend komponentlari, raqamli I/O konturlari hamda tegishli asboblarni quvvatlantirish uchun ideal tanlov hisoblanadi.

Xususiyatlari

Standart sanoat 24V DC infratuzilmasini qo‘llab-quvvatlovchi keng kirish kuchlanishi tolerantligi
Sezgir elektron mantiqiy zanjirlar uchun aniq regulyatsiyalangan past kuchlanishli DC chiqish
Tuproq konturlarining hosil bo‘lishini oldini olish va quyi oqimdagi komponentlarni himoya qilish uchun kirish va chiqish bosqichlari o‘rtasidagi galvanik izolyatsiya
Boshqaruv shkaflari ichida standart DIN reykasiga yoki panelga o‘rnatish uchun optimallashtirilgan ixcham modulli konstruksiya
Sanoat harorat diapazonlarida yuqori ishonchlilikdagi uzluksiz ishlash uchun mo‘ljallangan

Qo‘llanilishi

Taqsimlangan boshqaruv tizimlari (DCS) uchun quvvat taqsimoti
Sanoat avtomatlashtirish va motorlarni boshqarish panellari
Jarayonlarni boshqarish asboblari uchun quvvatni moslashtirish
OEM mashinalari va boshqaruv shkaflarini ishlab chiqarish

Texnik spetsifikatsiyalar

Parametr	Spetsifikatsiya
Ishlab chiqaruvchi	ABB
Mahsulot turi	DC quvvat manbai moduli
Model / buyurtma kodi	CMA121 / 3DDE300401
Kirish kuchlanish diapazoni	18 dan 32 V DC gacha (nominal 24 V DC)
Chiqish kuchlanishi	Regulyatsiyalangan 5 V DC
Maksimal chiqish toki	4 A (20 W)
Samaradorlik	85 foizdan yuqori
Izolyatsiya	Kirishdan chiqishga 500 V DC
O‘rnatish turi	DIN reyka / panelga o‘rnatish
Ishlab chiqarilgan mamlakat	Shvetsiya
O‘lchamlar	2.8 x 18.5 x 12.8 cm
Sof og‘irlik	0.54 kg

O‘rnatish bo‘yicha ko‘rsatmalar

Qutini ochishdan oldin ABB CMA121 qis partiya raqami va buyurtma kodini tizim loyihasi talablariga muvofiqligini tekshiring.
Simlar bilan ishlashdan oldin shkafga kiruvchi barcha quvvat manbalari to‘liq kuchlanishdan uzilganini va blokirovka qilinganini ta’minlang.
Modul korpusi va terminallarini tashish paytida yuzaga kelgan shikastlanish yoki ifloslanish bor-yo‘qligini tekshiring.
Modulni boshqaruv shkafi ichidagi belgilangan montaj reykasiga yoki orqa panelga mahkam o‘rnating.
Kirish quvvati va chiqish yuklama liniyalarini tegishli terminal bloklariga ulang, qutblanish hamda moment spetsifikatsiyalariga rioya qiling.
Tizim quvvatini qayta tiklang va quyi oqimdagi mantiqiy yuklamalarni ulashdan oldin kalibrlangan multimetr yordamida chiqish kuchlanishi darajalarini tekshiring.

FAQ

ABB CMA121 3DDE300401 ning asosiy vazifasi nima?

ABB CMA121 3DDE300401 sezgir boshqaruv tizimi elektronikasini aniq barqarorlashtirilgan chiqish kuchlanishi bilan ta’minlash uchun standart sanoat doimiy tok ta’minoti kuchlanishlarini o‘zgartirishga mo‘ljallangan doimiy tok quvvat manbai modulidir.

Ushbu modulning kirish va chiqish elektr ko‘rsatkichlari qanday?

ABB CMA121 18 dan 32 V gacha bo‘lgan doimiy tok kirish kuchlanishini qabul qiladi va 4 A gacha tokda barqarorlashtirilgan 5 V doimiy tok chiqishini ta’minlaydi.

ABB CMA121 elektr izolyatsiyasini ta’minlaydimi?

Ha, ABB CMA121 yer konturlarining hosil bo‘lishining oldini olish va og‘ir sanoat muhitlarida keyingi ulangan o‘lchov asboblarini himoya qilish uchun kirishdan chiqishgacha 500 V doimiy tok izolyatsiyasiga ega.

CMA121 modulining fizik o‘lchamlari va og‘irligi qanday?

ABB CMA121 o‘lchamlari 2.8 x 18.5 x 12.8 cm, sof og‘irligi esa 0.54 kg.
