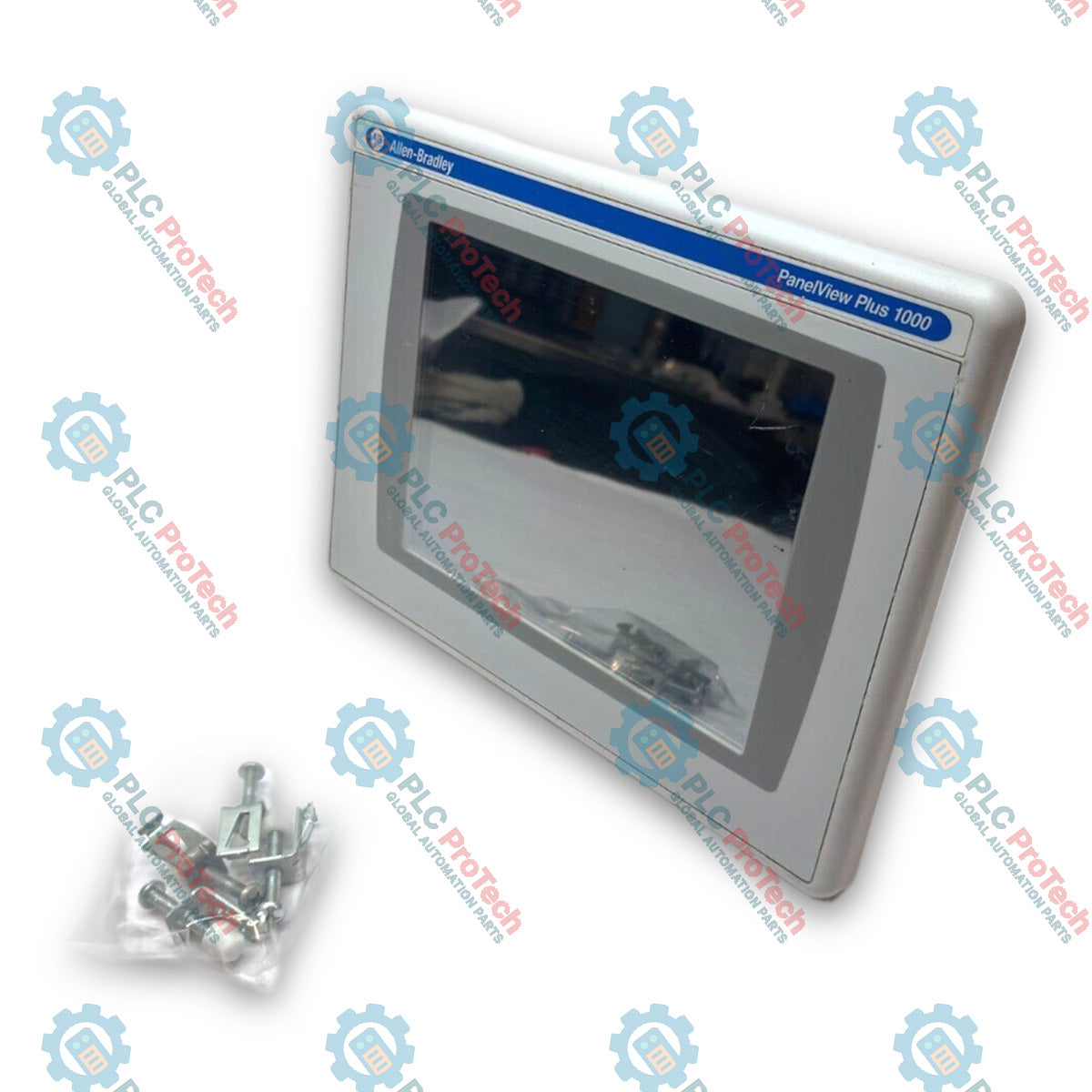

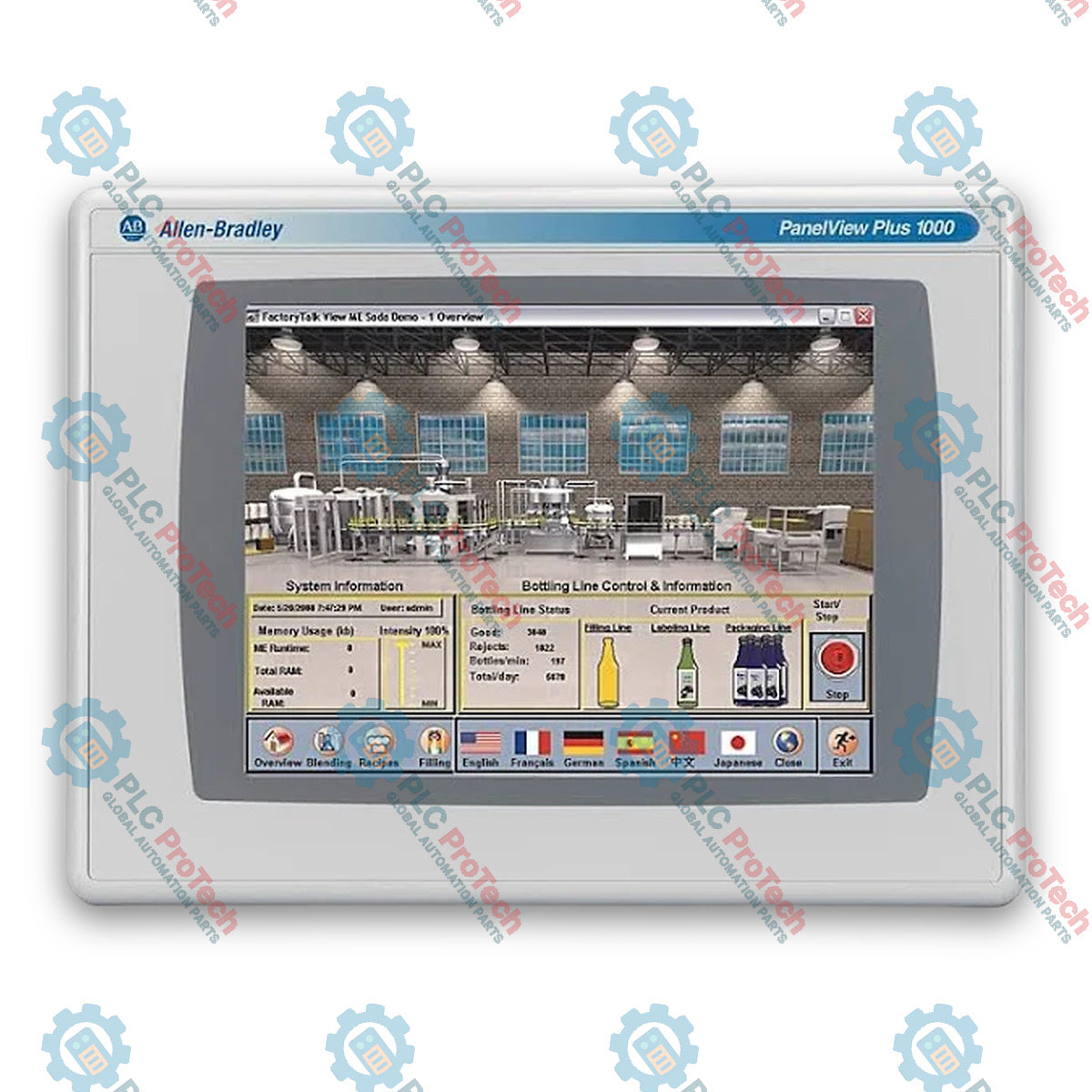

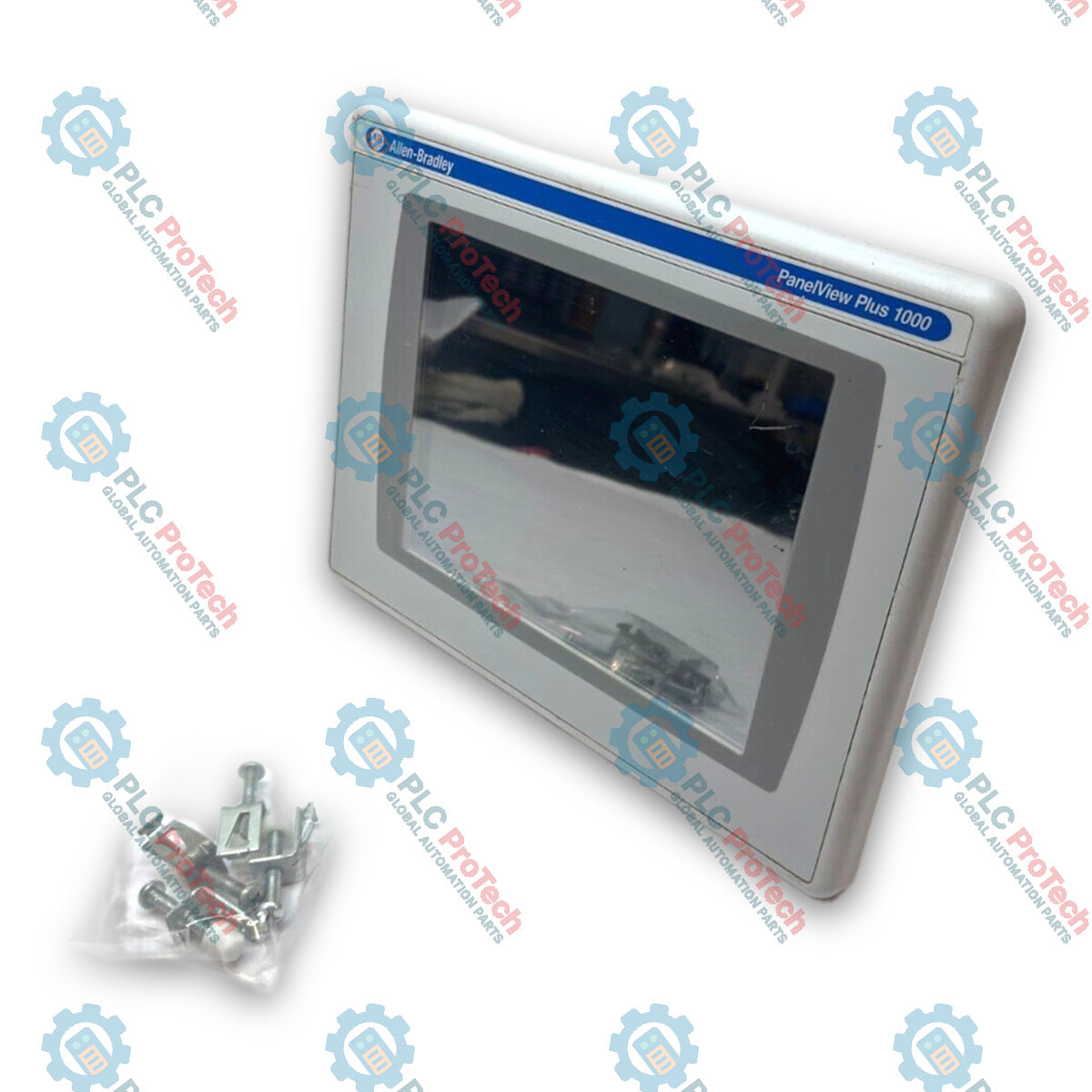

Allen-Bradley 2711P-T10C4A9 PanelView Plus 6 1000 sensorli ekran terminali

SKU 2711P-T10C4A9

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 2711P-T10C4A9
Origin United States
Product Type: Operator interfeyslari
Payment: T/T, Western Union
Weight: 2.5 kg
Dimensions: 224 x 305 x 55 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Tavsif

Allen-Bradley 2711P-T10C4A9 — PanelView Plus 6 1000 mahsulot platformasiga mansub 10,4 dyuymli rangli sensorli ekranli HMI terminalidir. Modulli arxitektura asosida yaratilgan ushbu terminal 10,4 dyuymli faol matritsali TFT displey moduli va yuqori unumdorlikdagi o‘zgaruvchan tokda ishlaydigan mantiq modulini birlashtiradi. U kengaytirilgan funksiyalarga ega Windows CE 6.0 operatsion tizimida ishlaydi hamda Microsoft Office fayllarini ko‘ruvchi dasturlarni taqdim etadi; shuningdek, FactoryTalk View Machine Edition ishga tushirish dasturi oldindan yuklangan va brauzer orqali masofadan kuzatish uchun FactoryTalk ViewPoint dasturiga bitta litsenziyali kirish imkonini beradi.

Real vaqt rejimida vizualizatsiya va mashinani boshqarish uchun ishlab chiqilgan 2711P-T10C4A9 murakkab grafik interfeyslarni qayta ishlaydi va EtherNet/IP yoki ketma-ket ulanishlar orqali ControlLogix, CompactLogix hamda boshqa avtomatlashtirish platformalari bilan ishlaydi. Mantiq moduli 512 MB tezkor xotira va 512 MB doimiy flesh-xotiraga (taxminan 79 MB bo‘sh foydalanuvchi xotirasi bilan) ega bo‘lib, ishga tushirish fayllarini saqlash, tarixiy ma’lumotlarni qayd etish va signallar jurnallarini yuritish uchun yetarli sig‘imni ta’minlaydi. Tizimga ulanish o‘rnatilgan 10/100 Mbps Ethernet porti, RS-232 ketma-ket porti, ikkita USB host porti va issiq almashtiriladigan Secure Digital (SD) karta uyasi orqali qo‘llab-quvvatlanadi.

Xususiyatlar

Modulli apparat dizayni: Joyida almashtiriladigan displey va mantiq modullariga ega bo‘lib, texnik xizmat ko‘rsatishni samarali bajarish va apparatni oson yangilash imkonini beradi.
Standart aloqa interfeyslari: Kontrollerga ulanish va dasturlash uchun o‘rnatilgan 10/100 Mbps Ethernet (Auto-MDI/MDI-X) hamda RS-232 ketma-ket interfeysiga ega.
Tarmoqni ixtiyoriy kengaytirish: DH+, DH-485, ControlNet (rejalashtirilgan yoki rejalashtirilmagan) yoki qo‘shimcha Ethernet porti uchun modulli tarmoq kartalarini qabul qiluvchi ichki kengaytirish interfeysiga ega.
Kengaytirilgan dasturiy ta’minot imkoniyatlari: Windows CE 6.0 operatsion tizimining kengaytirilgan funksiyalari veb-brauzer, Remote Desktop ulanishi, VNC serveri/mijozi, FTP serveri, PDF o‘quvchi va Microsoft fayl ko‘ruvchilarini qo‘shadi.
FactoryTalk dasturiy ta’minoti oldindan o‘rnatilgan: Brauzer orqali masofadan kirish uchun FactoryTalk View Machine Edition Station ishga tushirish muhiti (v6.0 yoki undan keyingi versiya) va FactoryTalk ViewPoint (v1.2 yoki undan keyingi versiya) o‘rnatilgan.
Issiq almashtiriladigan tashqi media: Ikkita USB 2.0 host porti va SD-karta uyasi (1784-SDx kartalarini qo‘llab-quvvatlaydi) ilovalarni tez yangilash, parametrlarning zaxira nusxalarini yaratish va ma’lumotlar jurnallarini eksport qilish imkonini beradi.
Mustahkam rezistiv sensorli ekran: Og‘ir sanoat sharoitlarida teginish orqali boshqarish uchun mo‘ljallangan 8 simli analog rezistiv sensorli ekran bilan jihozlangan.

Qo‘llanilishi

Mashina interfeysi: Qadoqlash uskunalari, materiallarni tashish tizimlari va yig‘ish liniyalari uchun asosiy operator boshqaruv terminali.
Jarayonni vizuallashtirish: Suvni tozalash, oziq-ovqat va ichimliklar ishlab chiqarish hamda diskret ishlab chiqarish uchastkalarida jarayonlarni mahalliy monitoring qilish va nazorat qilish.
Ma’lumotlarni qayd etish va hisobotlar: Kengaytirilgan Windows CE funksiyalari orqali ishlab chiqarish statistikasi, jarayon parametrlari va diagnostik signal jurnallarini mahalliy saqlash va ko‘rish.

Buyurtma berish ma’lumotlari

Katalog raqami tuzilishi	Tanlash varianti
Byulleten	2711P PanelView Plus 6 seriyasi
Kirish turi	T = Sensorli ekran
Displey o‘lchami	10 = 10,4 dyuym
Displey turi	C = Rangli TFT
Aloqa	4 = Ethernet, RS-232, (2) USB
Quvvat manbai	A = AC kirish (100...240 V AC)
Operatsion tizim	9 = Windows CE 6.0 kengaytirilgan funksiyalar bilan

Texnik xususiyatlar

Umumiy

Parametr	Spetsifikatsiya
Ishlab chiqaruvchi	Allen-Bradley / Rockwell Automation
Aniq model	2711P-T10C4A9
Mahsulot oilasi	PanelView Plus 6 1000
UPC	885630004211
Ishlab chiqarilgan mamlakat	Amerika Qo‘shma Shtatlari

Displey va sensor

Parametr	Spetsifikatsiya
Displey o‘lchami	10,4 dyuym (264 mm)
Displey turi	Rangli faol matritsali TFT
Displey aniqligi	640 x 480 (VGA)
Displey sohasi	211 x 158 mm
Yorqinlik	300 cd/m2 (nit)
Orqa yoritgich turi	CCFL, joyida almashtiriladi
Orqa yoritgich xizmat muddati	25 °C (77 °F) da kamida 50 000 soat
Sensorli ekran turi	8 simli analog rezistiv
Sensorni ishga tushirish kuchi	10 g
Sensorli ekran xizmat muddati	1 million marta bosish

Elektr va hisoblash

Parametr	Spetsifikatsiya
Ta’minot kuchlanishi	100...240 V AC, 50/60 Hz
Quvvat sarfi	Maksimal 160 VA, odatda 65 VA
Issiqlik tarqalishi	240 BTU/soat

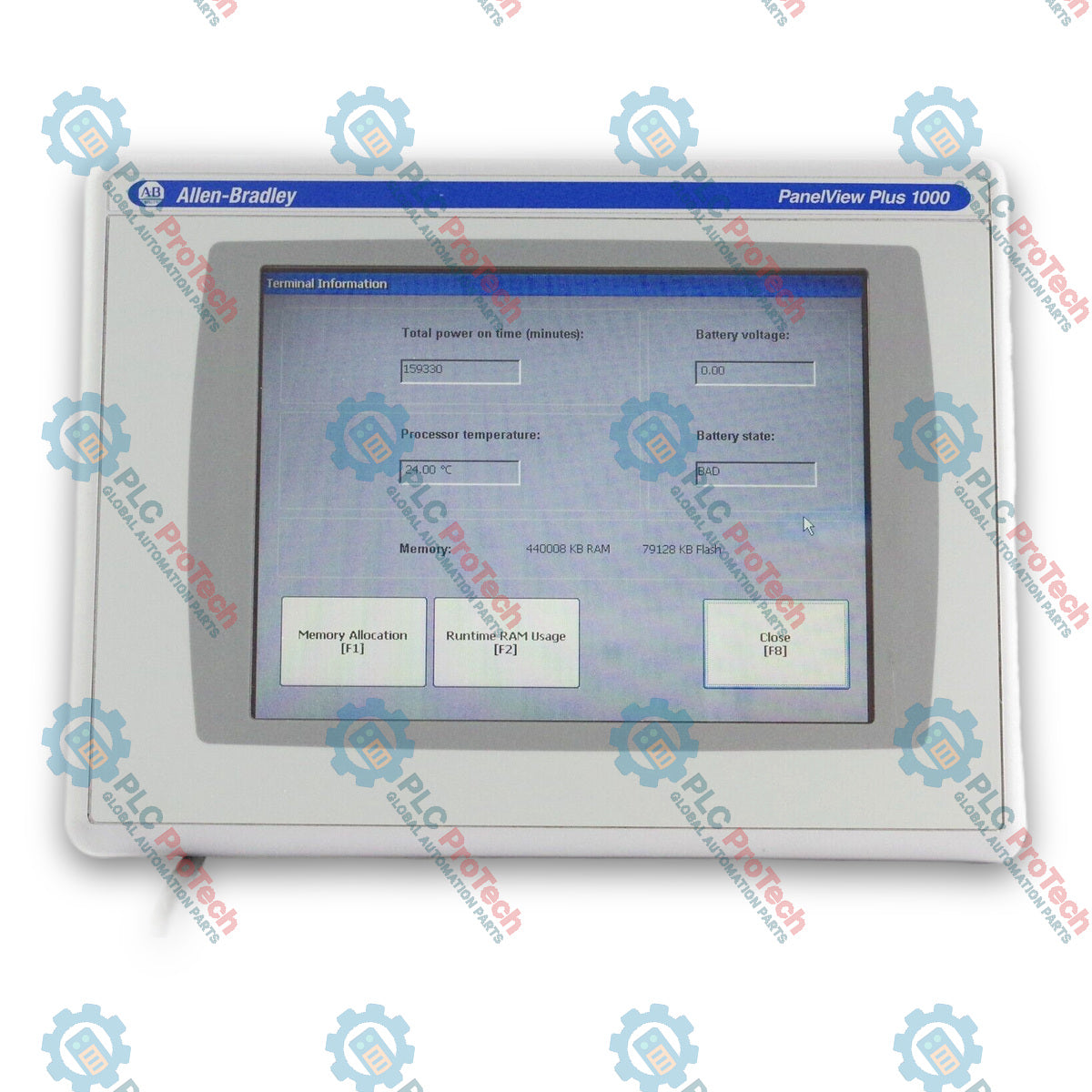

Tizim xotirasi	512 MB RAM, 512 MB doimiy flesh-xotira
Foydalanuvchi uchun bo‘sh xotira	Taxminan 79 MB
Real vaqt soati batareyasi	Almashtiriladigan CR2032 rusumli litiyli tanga batareya (Cat. No. 2711P-RY2032); 25 °C da kamida 4 yil xizmat muddati
Real vaqt soati aniqligi	Oyiga +/- 2 daqiqa

Operatsion tizim va dasturiy ta’minot

Parametr	Spetsifikatsiya
Operatsion tizim	Windows CE 6.0 kengaytirilgan funksiyalar bilan
Kiritilgan ilovalar	FTP Server, VNC Server/Client, PDF Reader, Internet Explorer, Media Player, Remote Desktop, Microsoft Office Viewers
Ishlash dasturi	FactoryTalk View Machine Edition Station v6.0 yoki undan keyingi versiya
Masofadan ko‘rish dasturi	FactoryTalk ViewPoint v1.2 yoki undan keyingi versiya

Mexanik va atrof-muhit sharoitlari

Parametr	Spetsifikatsiya
Kesma o‘lchamlari	224 x 305 mm
Old ramka o‘lchamlari	248 x 399 mm
O‘rnatish chuqurligi	55 mm
Og‘irligi	Taxminan 2,5 kg
Korpus himoya darajalari	NEMA/UL Type 12, 13, 4X (faqat bino ichida foydalanish uchun), IEC IP54, IP65
Old panel himoyasi	IP65, NEMA 4X
Ishlash harorati	0...55 °C (32...131 °F)
Ishlamaydigan harorat	-25...70 degC (-13...158 degF)
Nisbiy namlik	5...95%, kondensatsiyasiz
Ishlash balandligi	2000 m (6561 ft)
Zarbaga chidamlilik	Ishlash: 11 ms davomida 15 G
Vibratsiya	Cho‘qqidan cho‘qqigacha siljish 0.012 dyuym bo‘lganda 10...57 Hz; cho‘qqi tezlanishi 2 G bo‘lganda 57...500 Hz

Ulanishlar / Interfeyslar

Interfeys	Ulagich / Tavsif
Ethernet porti	(1) RJ45 10/100 Mbps, Auto-MDI/MDI-X
Ketma-ket port	(1) RS-232, 9-pinli D-sub erkak ulagich
USB host portlari	(2) USB 2.0 Type A, yuqori tezlikdagi, issiq almashtiriladigan
USB qurilma porti	(1) USB Type B (kompyuterga ulash / dasturlash uchun)
Karta sloti	(1) Issiq almashtiriladigan Secure Digital (SD) karta sloti
Tarmoq moduli sloti	Ixtiyoriy DH+, DH-485, ControlNet yoki Ethernet moduli uchun ichki slot
Quvvat terminali	3-pinli AC quvvat terminal bloki

O‘rnatish bo‘yicha ko‘rsatmalar

Panel kesmasini tayyorlash: To‘g‘ri zichlash uchun o‘rnatish paneli toza va tekis ekanini, kesma esa silliq qirralar bilan aniq 224 x 305 mm o‘lchamda tayyorlanganini ta’minlang.
O‘rnatish bo‘shlig‘i: Ventilyatsiya uchun korpus ichida displey bloki atrofida yetarli bo‘shliq qoldiring (barcha tomonlarda kamida 2 dyuym).
Panelga o‘rnatish: Terminalni paneldagi kesmaga old tomondan kiriting. Berilgan o‘rnatish qisqichlarini bezel atrofiga mahkamlang va NEMA 4X / IP65 suv o‘tkazmaydigan zichlamasini ta’minlash uchun ortiqcha kuch ishlatmasdan bir tekis torting.
Quvvat simlarini ulash: AC ta’minot kuchlanishi terminal nominaliga (100...240V AC) mos kelishini tekshiring. Faza, neytral va yerga ulash simlarini 3-pinli AC terminal blokiga ulang.
Yerga ulash: Elektr shovqini va statik zaryad to‘planishini kamaytirish uchun funksional yerga ulash terminaliga alohida, past impedansli yerga ulash o‘tkazgichini ulang.

Sozlash va ishga tushirish

Dastlabki yoqish: Quvvatni yoqing va terminal Windows CE operatsion tizimiga yuklanib, FactoryTalk View ME runtime stansiyasini avtomatik ishga tushirishiga imkon bering.
Tarmoqni sozlash: PanelView terminali sozlamalari menyusida IP-manzil parametrlarini (DHCP yoki statik IP), quyi tarmoq niqobi va shlyuzni sozlang.
Ilovani uzatish: FactoryTalk View Studio Transfer Utility yordamida USB-disk, SD-karta yoki Ethernet orqali runtime .MER loyiha fayllarini yuklang.
Aloqani tekshirish: Maqsadli kontrollerlarga (masalan, Logix5000) faol RSLinx Enterprise ma’lumot yo‘llarini tekshiring va teglar bilan aloqa holatini tasdiqlang.
Zaxira nusxasini sozlash: Asl .MER loyiha faylining zaxira nusxasini tezkor almashtirish uchun tashqi SD-karta yoki xavfsiz serverda saqlang.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What software is used to program the 2711P-T10C4A9 terminal?

The Allen-Bradley 2711P-T10C4A9 terminal is programmed using FactoryTalk View Studio for Machine Edition (ME) software. Runtime `.MER` applications are created in FactoryTalk View Studio and transferred to the terminal over Ethernet, USB, or SD card.

What is the difference between Windows CE 6.0 standard and extended features on PanelView terminals?

Extended features (indicated by '9' in the catalog code) add applications such as Internet Explorer web browser, Remote Desktop connection, Media Player, WordPad, and Microsoft Office file viewers (Word, Excel, PowerPoint) to the base Windows CE operating system.

Can I add DH+ or ControlNet communication to the 2711P-T10C4A9?

Yes, the terminal includes an internal network expansion interface that supports modular communication modules, such as 2711P-RN6 for DH+/DH-485 or 2711P-RN15S for ControlNet.

What replacement battery is required for the real-time clock in this terminal?

The 2711P-T10C4A9 uses a field-replaceable CR2032 coin-cell lithium battery (Allen-Bradley catalog number 2711P-RY2032 or equivalent) to maintain time stamping for critical data.
