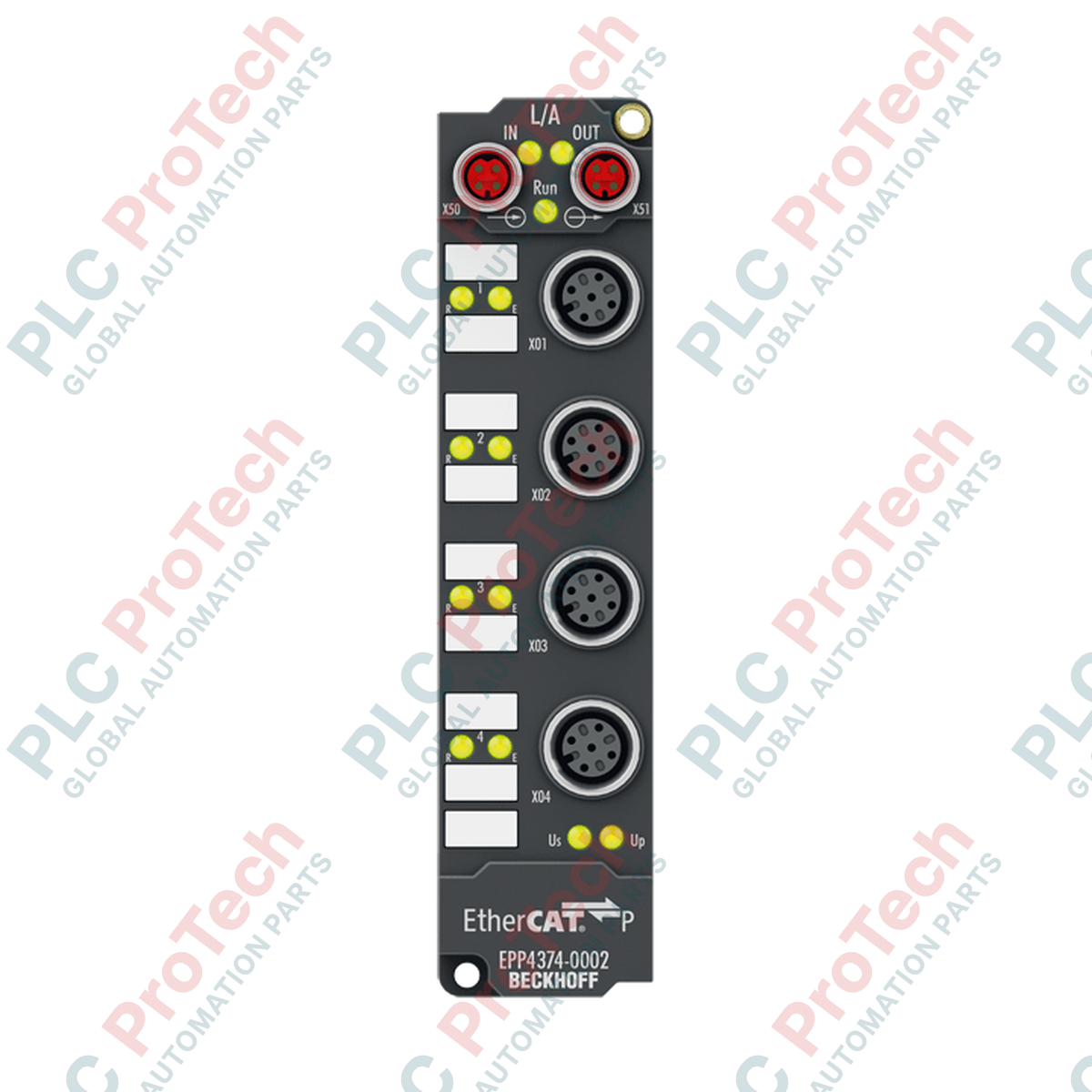

BECKHOFF EPP4374-0002 EtherCAT P bloki

SKU EPP4374-0002

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EPP4374-0002
Origin Germany
Product Type: EtherCAT P qutilari
Payment: T/T, Western Union
Weight: 0.165 kg
Dimensions: 30 mm x 126 mm x 26.5 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Tavsif

BECKHOFF EPP4374-0002 og‘ir sanoat muhitlarida analog signallarni bevosita qabul qilish va qayta ishlash uchun mo‘ljallangan yuqori unumdor, markazlashtirilmagan EtherCAT P Box qurilmasidir. Kirish va chiqishlarni birlashtiruvchi modul sifatida ushbu qurilma ikkita analog kirish va ikkita analog chiqishga ega bo‘lib, ularning har biri tok yoki kuchlanish signallari uchun alohida parametrlanishi mumkin. Bu moslashuvchanlik mahalliy ulash qutilarisiz turli xil datchiklar va ijro mexanizmlarini bevosita maydonga ulash imkonini beradi.

BECKHOFF EPP4374-0002 EtherCAT P texnologiyasidan foydalanib, o‘ta tezkor EtherCAT aloqasini ikkita mustaqil 24 V DC quvvat ta’minoti (tizim va datchik elektronikasi uchun Us hamda periferik ijro mexanizmlarini quvvatlantirish uchun Up) bilan yagona M8 ulagichlar tizimida birlashtiradi. Ushbu integratsiya maydon simlarini sezilarli darajada soddalashtiradi, tizim egallaydigan joyni qisqartiradi va kabel boshqaruvining umumiy xarajatlarini kamaytiradi.

IP67 himoya darajasiga ega mustahkam va ixcham korpusga joylashtirilgan modul namlik, chang va mexanik zo‘riqishga chidamli. U mashinaga bevosita o‘rnatish uchun juda mos bo‘lib, himoya boshqaruv shkaflariga ehtiyojni bartaraf etadi hamda qo‘llanish nuqtasida bevosita toza va yuqori aniqlikdagi signallarni qayta ishlashni ta’minlaydi.

Xususiyatlari

2 ta analog kirish va 2 ta analog chiqishni o‘z ichiga olgan kombinatsiyalangan konfiguratsiya.
Kuchlanish (-10 dan +10 V gacha, 0 dan 10 V gacha) yoki tok (0 dan 20 mA gacha, 4 dan 20 mA gacha) signallari uchun alohida parametrlanadigan kanallar.
Signallarni aniq kuzatish va boshqarish uchun yuqori aniqlikdagi 16 bitli analog-raqamli va raqamli-analog o‘zgartirish.
EtherCAT P interfeysi aloqa va ta’minot quvvatini joyni tejovchi yagona ulanishda birlashtiradi.
Ijro mexanizmlari va datchiklar bilan ishonchli maydon ulanishlari uchun standart M12 x 1, 5 kontaktli, A-kodlangan rozetkalar.
IP65, IP66 va IP67 himoya darajalariga ega, shkafsız o‘rnatishga mos to‘liq germetik korpus.

Qo‘llanilishi

Joy cheklangan sanoat qurilmalarida mashinaga bevosita o‘rnatish.
Avtomatlashtirilgan ishlab chiqarish liniyalarida analog datchiklar va ijro mexanizmlarini taqsimlangan holda integratsiyalash.
Qayta aloqa tizimlarida tok va kuchlanishni aniq o‘lchash hamda chiqishlarni boshqarish.
EtherCAT P topologiyalaridan foydalanuvchi modulli mashinalarda maydon darajasidagi signallarni qayta ishlash.

Texnik xususiyatlar

Umumiy ma’lumot

Parametr	Texnik xususiyat
Ishlab chiqaruvchi	BECKHOFF
Model	EPP4374-0002
Mahsulot turi	EtherCAT P Box (kombinatsiyalangan modul)
Kanallar soni	2 ta analog kirish + 2 ta analog chiqish
Signal turi	-10/0…+10 V \| 0/4…20 mA, har bir kanal uchun parametrlanadi
Aniqlik	16 bit

Elektr va diagnostika

Parametr	Texnik xususiyat
Nominal kuchlanish	24 V DC (-15% / +20%)
Us manbasidan tok iste’moli	Odatda 100 mA
Ijro mexanizmi ta’minoti	Yordamchi Up kuchlanishidan
Elektr izolyatsiyasi	500 V
Yuklama (chiqishlar)	Kuchlanish: > 5 kOm \| Tok: < 500 Om

Ishlash ko‘rsatkichlari

Parametr	Texnik xususiyat
O‘zgartirish vaqti (kirish)	Taxminan 100 mikrosekund
O‘zgartirish vaqti (chiqish)	Taxminan 40 mikrosekund
O‘lchash xatosi (kirish)	< 0,3% (to‘liq shkala qiymatiga nisbatan)
O‘lchash xatosi (chiqish)	< 0,1% (to‘liq shkala qiymatiga nisbatan)

Mexanik va atrof-muhit sharoitlari

Parametr	Texnik xususiyat
Korpus o‘lchamlari (W x B x Ch)	30 mm x 126 mm x 26,5 mm
Og‘irligi	Taxminan 165 g
Ishlash harorati	-25 dan +60 °C gacha
Saqlash harorati	-40 dan +85 °C gacha
Himoya darajasi	IP65, IP66, IP67 (EN 60529 standartiga muvofiq)
Vibratsiyaga chidamlilik	EN 60068-2-6 standartiga muvofiq
Zarbaga chidamlilik	EN 60068-2-27 standartiga muvofiq
EMC barqarorligi/nurlanishi	EN 61000-6-2 / EN 61000-6-4 standartlariga muvofiq
Tasdiqlar/Belgilar	CE, UL

Ulanishlar / Interfeyslar

Interfeys	Funksiya
EtherCAT P (Kirish/Chiqish)	2 x M8 rozetka, ekranlangan, vintli tur, P-kodli
Analog kirishlar/chiqishlar	4 x M12 x 1, 5 kontaktli, A-kodli

O‘rnatish bo‘yicha ko‘rsatmalar

Tizim holatini tekshirish: Mexanik o‘rnatish yoki simlarni ulashni boshlashdan oldin barcha quvvat manbalarini kuchlanishdan uzing.
Jismoniy montaj: Belgilangan montaj teshiklaridan foydalanib, modulni bevosita mashina korpusiga yoki montaj ramkasiga mahkam o‘rnating. Korpusga mexanik zo‘riqish tushmasligi uchun montaj yuzasi tekis ekanini ta’minlang.
EtherCAT P simlarini ulash: Kiruvchi EtherCAT P kabelini kirish M8 rozetkasiga ulang; zanjirli ulashda keyingi modulni chiqish M8 rozetkasi orqali ulang. Himoya va signal yaxlitligini ta’minlash uchun faqat ekranlangan, P-kodli M8 ulagichlardan foydalaning.
Signal I/O ulanishi: Analog sensorlar va ijro mexanizmlarini M12 rozetkalariga ulang. Elektromagnit shovqin va xalaqitlarni kamaytirish uchun barcha analog liniyalarda ekranlangan kabellardan foydalaning.
Yerga ulash: Mahalliy me’yorlarga muvofiq modulning yetarli darajada yerga ulanganini ta’minlang; buning uchun, agar mavjud bo‘lsa, yerga ulash nuqtalaridan yoki o‘tkazuvchan va yerga ulangan yuzadagi montaj vintlaridan foydalaning.
Ishga tushirish: Tizimni yoqing va holat LED indikatorlarini tekshiring. TwinCAT dasturlash muhitida har bir kanal uchun signal parametrlarini (kuchlanish yoki tok) sozlang.
