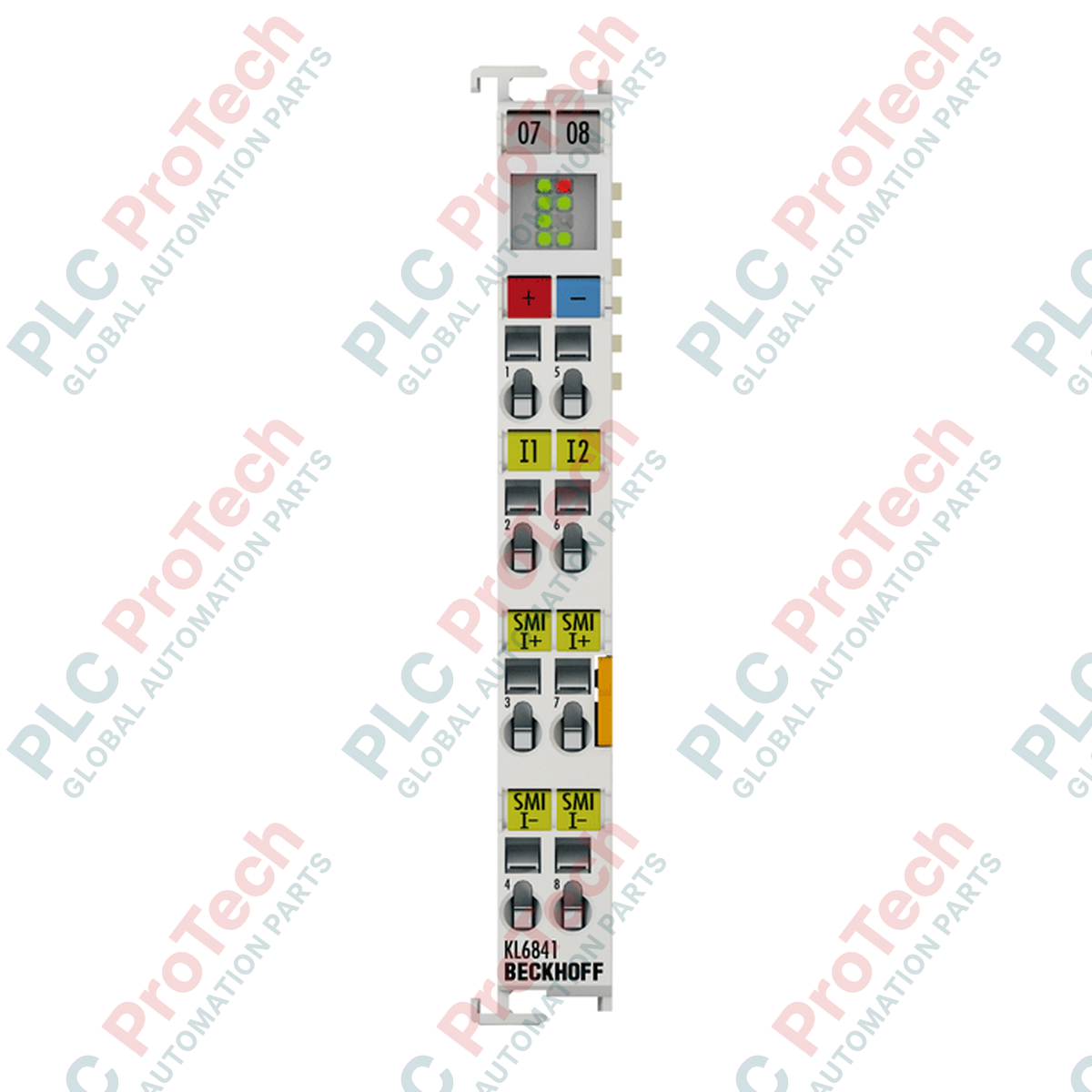

BECKHOFF KL6841 Bus Terminal qurilmasi Beckhoff K-bus modulli I/O tizimlariga integratsiya qilish uchun mo‘ljallangan maxsus SMI (Standard Motor Interface) master terminalidir. Ushbu bir kanalli terminal standart ikki simli liniya topologiyasi orqali panjur va jalyuzi yuritmalari kabi 16 tagacha SMI slave qurilmalarini bevosita ulash va boshqarish imkonini beradi. Maxsus aloqa interfeysi sifatida ishlaydigan qurilma 2400 bod uzatish tezligida, uzunligi 200 metrgacha bo‘lgan kabellar orqali ma’lumotlar almashinuvini boshqaradi hamda binolarni avtomatlashtirish va sanoatdagi soyalanish ilovalarida aniq joylashuv va holat monitoringini ta’minlaydi.

Terminal ulangan dala qurilmalari uchun integratsiyalangan quvvat boshqaruviga ega bo‘lib, 230 V AC kuchlanishli SMI tizim kuchlanishini va ichki elektronika uchun 24 V DC nominal kirish kuchlanishini qo‘llab-quvvatlaydi. Bundan tashqari, KL6841 mahalliy ishga tushirishni soddalashtirish va qo‘lda boshqarish funksiyalarini ta’minlash uchun korpusga o‘rnatilgan ikkita raqamli kirishga ega. Boshqaruv tizimiga integratsiya yuqori darajadagi Bus Coupler yoki kontroller orqali, muhandislik va parametrlashni soddalashtiruvchi maxsus TwinCAT PLC SMI kutubxonasidan foydalanib amalga oshiriladi.

Xususiyatlari

16 tagacha Standard Motor Interface slave qurilmalari uchun bir kanalli SMI master interfeysi
2400 bod tezlikda maksimal kabel uzunligi 200 metr bo‘lgan liniya topologiyasini qo‘llab-quvvatlaydi
Ulangan yuritmalar uchun 230 V AC kuchlanishli integratsiyalangan SMI tizim ta’minoti
Mahalliy ishga tushirishni soddalashtirish uchun 2 ta raqamli kirish bilan jihozlangan
Kirish va chiqish ma’lumotlarini almashish uchun 24 baytlik jarayon tasviri bit kengligi
SMI shinasi, K-bus va quvvat kontaktlari o‘rtasida ishonchli elektr izolyatsiyasi
TwinCAT PLC kutubxonalari yordamida yuqori darajadagi Bus Coupler yoki kontroller orqali sozlanadi

Qo‘llanilishi

Binolarni avtomatlashtirish va tijorat ko‘chmas mulkini boshqarish
Motorli jalyuzilar, rolikli panjurlar va quyoshdan himoyalash tizimlarini markazlashtirilgan va markazlashtirilmagan boshqarish
Beckhoff boshqaruv arxitekturalariga integratsiyalangan energiya tejamkor fasad avtomatikasi

Texnik xususiyatlar

Umumiy

Parametr	Texnik xususiyat
Ishlab chiqaruvchi	BECKHOFF
Aniq model	KL6841
Mahsulot turi	Shina terminali
Texnologiya	SMI (Standard Motor Interface)
Ishlab chiqarilgan mamlakat	Germaniya

Signal va kiritish/chiqarish

Parametr	Texnik xususiyat
Kanallar soni	1
Slave’lar soni	16 tagacha SMI slave
Raqamli kirishlar	Soddalashtirilgan ishga tushirish uchun 2 ta kirish
Jarayon tasviridagi bit kengligi	Kirish/chiqish: 24 bayt

Elektr va aloqa

Parametr	Texnik xususiyat
Ma’lumot uzatish standarti	SMI
Ma’lumot uzatish tezligi	2400 bod
Topologiya	Liniya topologiyasi
Kabelning maksimal uzunligi	200 m
Kirish kuchlanishi	24 V DC (-15 % / +20 %)
SMI tizim kuchlanishi	230 V AC
K-Bus tok iste’moli	Odatda 55 mA
Elektr izolyatsiyasi	500 V (K-bus / SMI-bus)
Izolyatsiya kuchlanishi	SMI shinasi / K-bus: 1 500 V DC; SMI shinasi / quvvat kontaktlari: 1 500 V AC

Mexanik va atrof-muhit

Parametr	Texnik xususiyat
Og‘irligi	Taxminan 80 g
Ishlash harorati diapazoni	0 dan +55 darajagacha
Saqlash harorati diapazoni	-25 dan +85 darajagacha
Nisbiy namlik	95 %, kondensatsiyasiz
Vibratsiya/zarba chidamliligi	EN 60068-2-6 / EN 60068-2-27 standartlariga mos
EMC xalaqitlarga chidamlilik/nurlanish	EN 61000-6-2 / EN 61000-6-4 standartlariga mos
Himoya darajasi	IP20
O‘rnatish holati	O‘zgaruvchan
Tasdiqlar	CE

O‘rnatish bo‘yicha ko‘rsatmalar

O‘rnatish yoki simlarni ulash ishlarini boshlashdan oldin butun boshqaruv tizimi quvvatsizlantirilgan va blokirovka qilinganiga ishonch hosil qiling.
BECKHOFF KL6841 Bus Terminali va uning korpusini tashish paytida shikastlanish belgilari bor-yo‘qligiga tekshiring.
Terminalni mos Bus Coupler yoki mavjud K-bus terminallari yonidagi 35 mm DIN-reykaga o‘rnating va ishonchli mexanik mahkamlanishini ta’minlang.
K-bus ulanishlari va quvvat kontaktlari qo‘shni modullar bilan to‘g‘ri blokirovka qilinishini tekshiring.
SMI liniya topologiyasi va dala quvvat manbalarini amaliyotdagi ulash talablari asosida ulang; past kuchlanishli boshqaruv zanjirlari bilan 230 V AC SMI tarmog‘i o‘rtasida to‘g‘ri ekranlash va ajratishni ta’minlang.
Tizim quvvatini yoqing va diagnostika indikatorlari hamda TwinCAT dasturiy muhiti yordamida ishlashini tekshiring.
